CC-01 Jeep Wrangler - Build

The place for all things Tamiya.

Moderators: scr8p, klavy69

User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

vintage88 wrote:very cool build cant wait to see trail pics when its done...
me too :D

shodog wrote:Do you plan to run this? IMO you've made it too nice to run. My jeep is one of my favorite runners so if you do run it, you're gonna love it. On mine I've locked the rear diff but kept an open front diff. The chassis would benefit from locking the front diff and as long as you run in the dirt, the scrubbing of the inside wheel on a turn will not make much difference to the turn radius. on the street you'll notice it and it might put stress on the integrated chassis gearbox. Just as good measure you should pick up an extra chassis and top gear cover. I've seen the plastic on the mounting holes get weak allowing the screws to loosen and in turn allowing the gears to skip. I really like the Junfac skid plates, I may pic up some of those. Did you check out some of the RC channel parts before buy the GPM?
Yup this will be my backyard runner .
Rc channel is my first choice, but things get in different direction when I saw a GPM complete package auction for CC01 (except the steering link). The current bid was only 35usd and its only 3hrs left. I put my max bid to 51. After the time lapse I won for 51usd.

User avatar
abailey21
Approved Member
Posts: 273
Joined: Sun Feb 13, 2011 8:28 am
Location: Leander TX
Been thanked: 2 times

Re: CC-01 Jeep Wrangler - Build

Post by abailey21 »

y no new pics?????

User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

abailey21 wrote:y no new pics?????
waiting for the lipo battery, and can't decide for the body shell color :roll:
thanks for the interest :D

User avatar
Bo Wallen
Approved Member
Posts: 170
Joined: Wed Feb 29, 2012 11:54 am
Location: New York City

Re: CC-01 Jeep Wrangler - Build

Post by Bo Wallen »

ireg wrote:
abailey21 wrote:y no new pics?????
waiting for the lipo battery, and can't decide for the body shell color :roll:
thanks for the interest :D
Black is Beautiful :D
RedBoxRacer™

User avatar
abailey21
Approved Member
Posts: 273
Joined: Sun Feb 13, 2011 8:28 am
Location: Leander TX
Been thanked: 2 times

Re: CC-01 Jeep Wrangler - Build

Post by abailey21 »

Lime green body FTW!

either way I think I require weekly picture updates whether there are new things to show or not


I think I'm just living vicariously through your build cause I always wanted one ;)

User avatar
Bo Wallen
Approved Member
Posts: 170
Joined: Wed Feb 29, 2012 11:54 am
Location: New York City

Re: CC-01 Jeep Wrangler - Build

Post by Bo Wallen »

abailey21 wrote:Lime green body FTW!

either way I think I require weekly picture updates whether there are new things to show or not


I think I'm just living vicariously through your build cause I always wanted one ;)
I'm sitting in a closet waiting for new wonders to happening........
RedBoxRacer™

User avatar
Mindwarp
Approved Member
Posts: 515
Joined: Mon Mar 14, 2011 6:14 pm
Location: Kingston, Ontario, Canada

Re: CC-01 Jeep Wrangler - Build

Post by Mindwarp »

What are you doing with the original parts? There's probably enough there for someone to built a new one. If you sell the original parts, let us know.

User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

Bo Wallen wrote:
ireg wrote:
abailey21 wrote:y no new pics?????
waiting for the lipo battery, and can't decide for the body shell color :roll:
thanks for the interest :D
Black is Beautiful :D
In the design concept there is matt black :)
Bo Wallen wrote:
abailey21 wrote:Lime green body FTW!

either way I think I require weekly picture updates whether there are new things to show or not


I think I'm just living vicariously through your build cause I always wanted one ;)
I'm sitting in a closet waiting for new wonders to happening........
Lime green hmmm, green is one of my favorite color as such I used combination of neon green and fluorescent red paint for my race car (onroad/offroad) I do not want all of my body shell to have a shade of green

sit tight and wonders will happen :P
Mindwarp wrote:What are you doing with the original parts? There's probably enough there for someone to built a new one. If you sell the original parts, let us know.
parts will be used to my TA-02 :)

User avatar
Diggley
Approved Member
Posts: 1166
Joined: Wed Jan 28, 2009 5:44 pm
Location: is everything...
Been thanked: 8 times

Re: CC-01 Jeep Wrangler - Build

Post by Diggley »

Hmmm...

Neon/lime green works for me.. :D
Projects and shelfers:
Late Edinger, RC10B2, Dual Sport, GT, Kyosho Turbo Ultima, Triumph, Tamiya Sand Scorcher, Blackfoot/Monster Beetle, '67 Beetle, Nikko Rhino, Traxxas Fiero, Slash, Hand-built Dune Buggy..all on here somewhere...

User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

Have not updated this thread for quite sometime now. Been busy with my work, and things not work as planned.

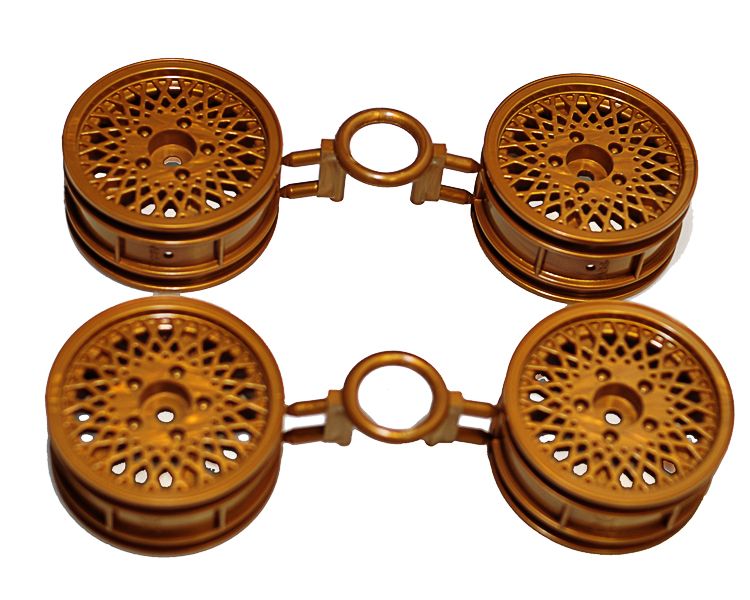

The Wheels and Tires.

CC-01 uses 1.9 wheels and tires


I'm not planning to use these in this project but to my TA-02 (another project then)

User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

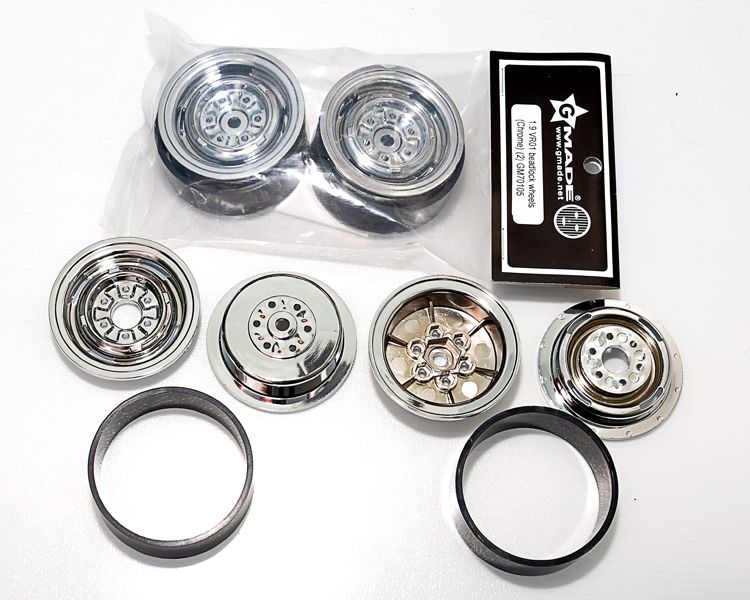

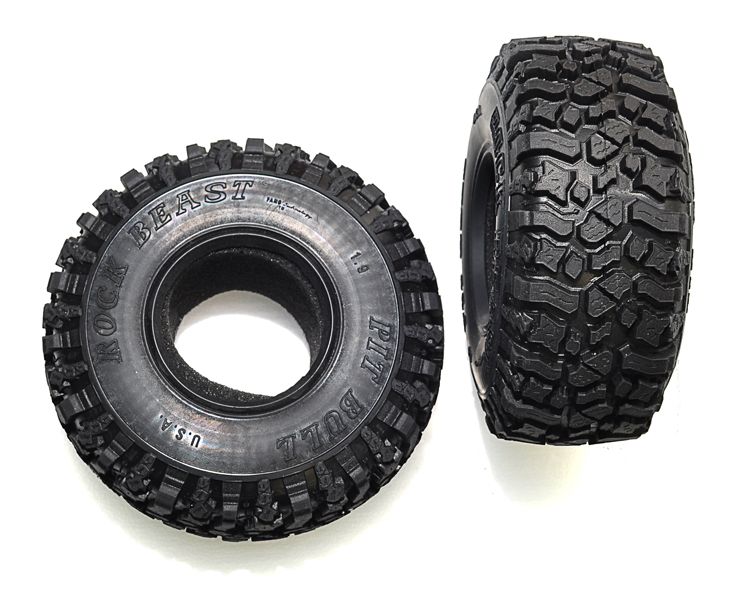

So I ordered G-Made's 1.9 wheels and Pit Bull Rock Beast tire



User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

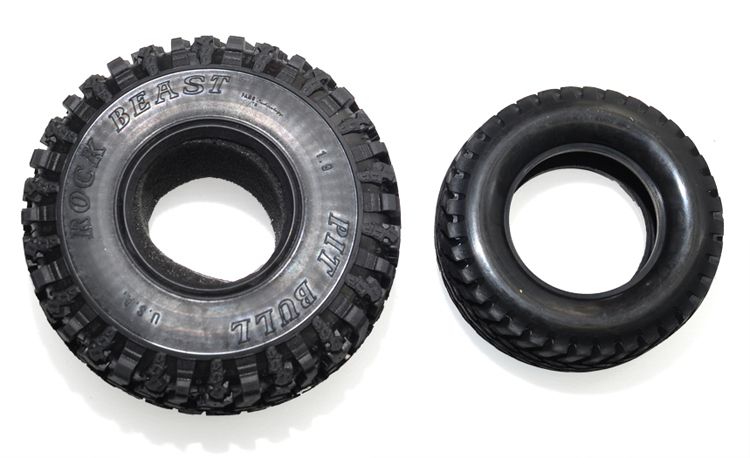

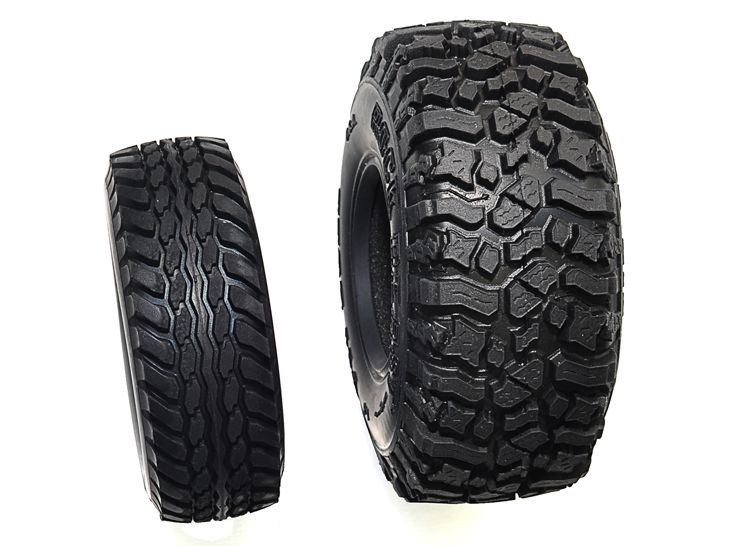

Comparisson, I did not expect the big difference between the two :lol:

Tamiya small one and Rock Beast the big one


How on earth I can use these combo.

User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

Solution

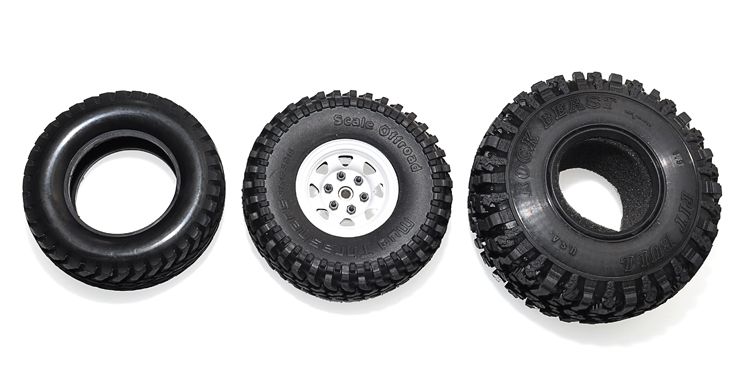

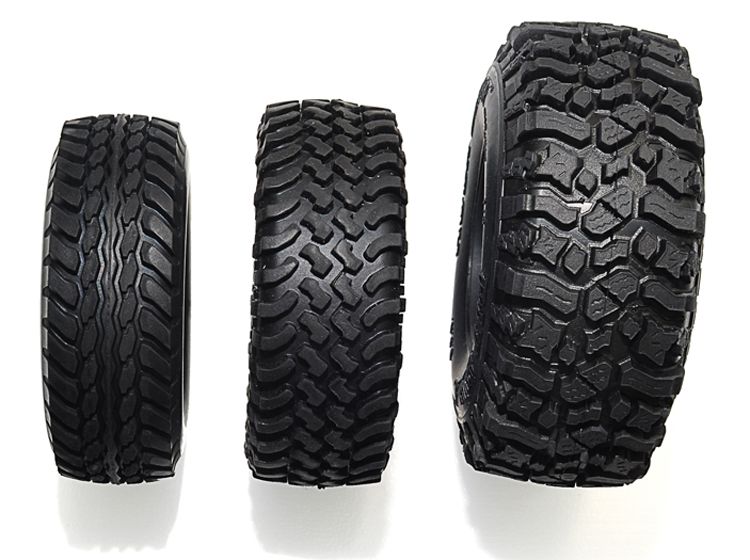

I used my RC4wd 1.5 combo , see the comparisson :)



(Tamiya 1.9 - RC4WD 1.5 - Pit bull 1.9 )

The Pit bull rock beast tires I'm not worried as this tire have good reputatuon in its class (easy to sell)
or follow my wife suggestion. "buy a new car that this tires will fit simple as that"

User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

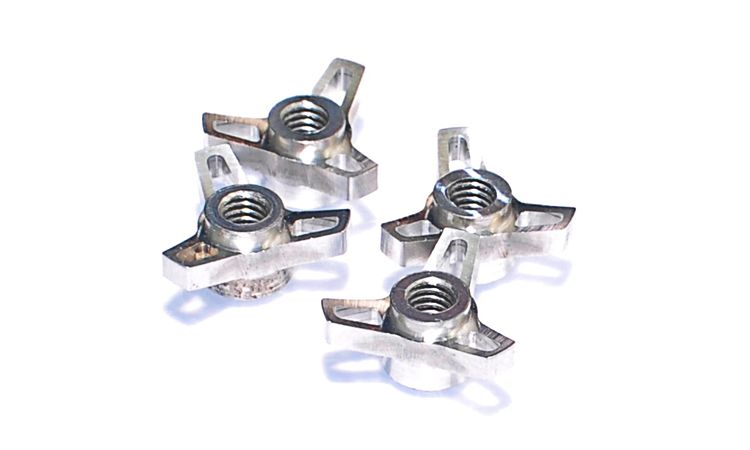

The 3-Spoke 'Knockoff' Wheel Nuts, I have been warned not to use these for bashing :P, but can not resist the beauty of it (thanks toyranosaur)


User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

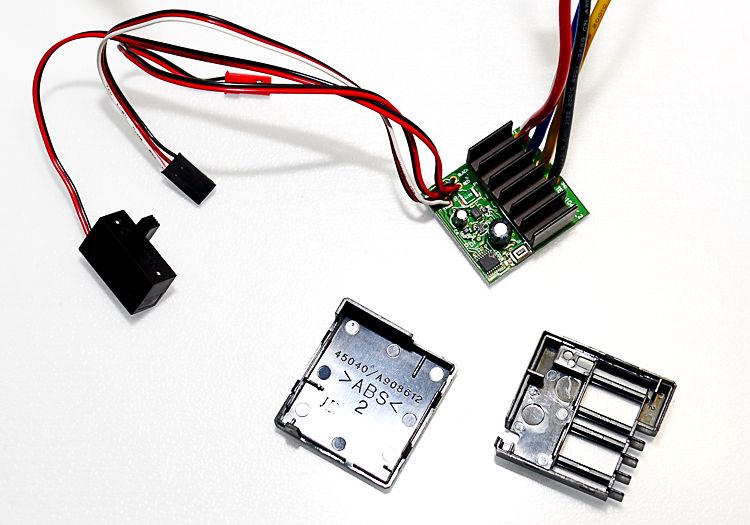

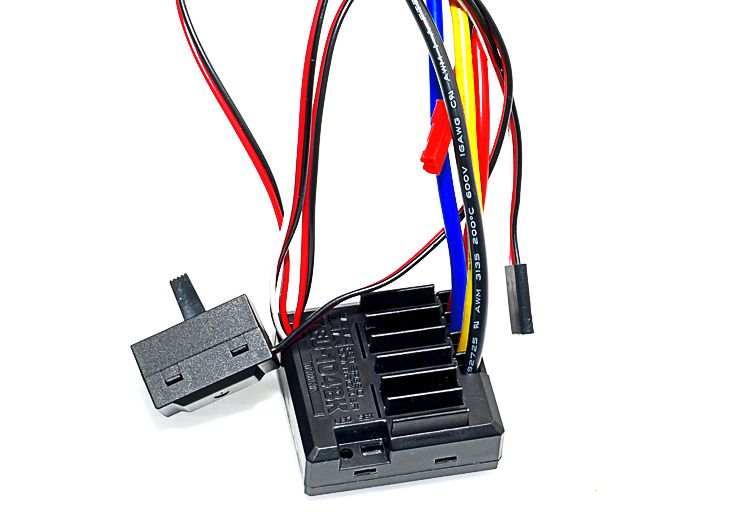

The Tamiya's ESC
I've cut the plugs for the battery and motor, as I'm used to use dean plugs and solder the wires directly to the motor.

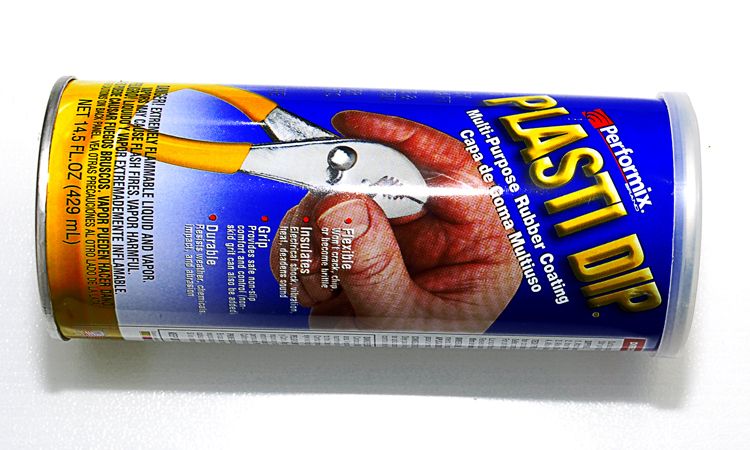

I've planned to waterproof this ESC using Plastidip.


But cant figure out how to dip this esc without covering the two holes for binding it to controller (1 for push button and the other 1 for blinking light).

Can not spray silicon to the electronics itself as the housing dont give enough space for extra thickness.
