For those that are interested in rendered pictures of the CAD files, here are some. Only the chassis has been modeled, as the original suspension components would be maintained. Some of the original parts have been measured and recreated in CAD, so the interference with other parts could be checked ...

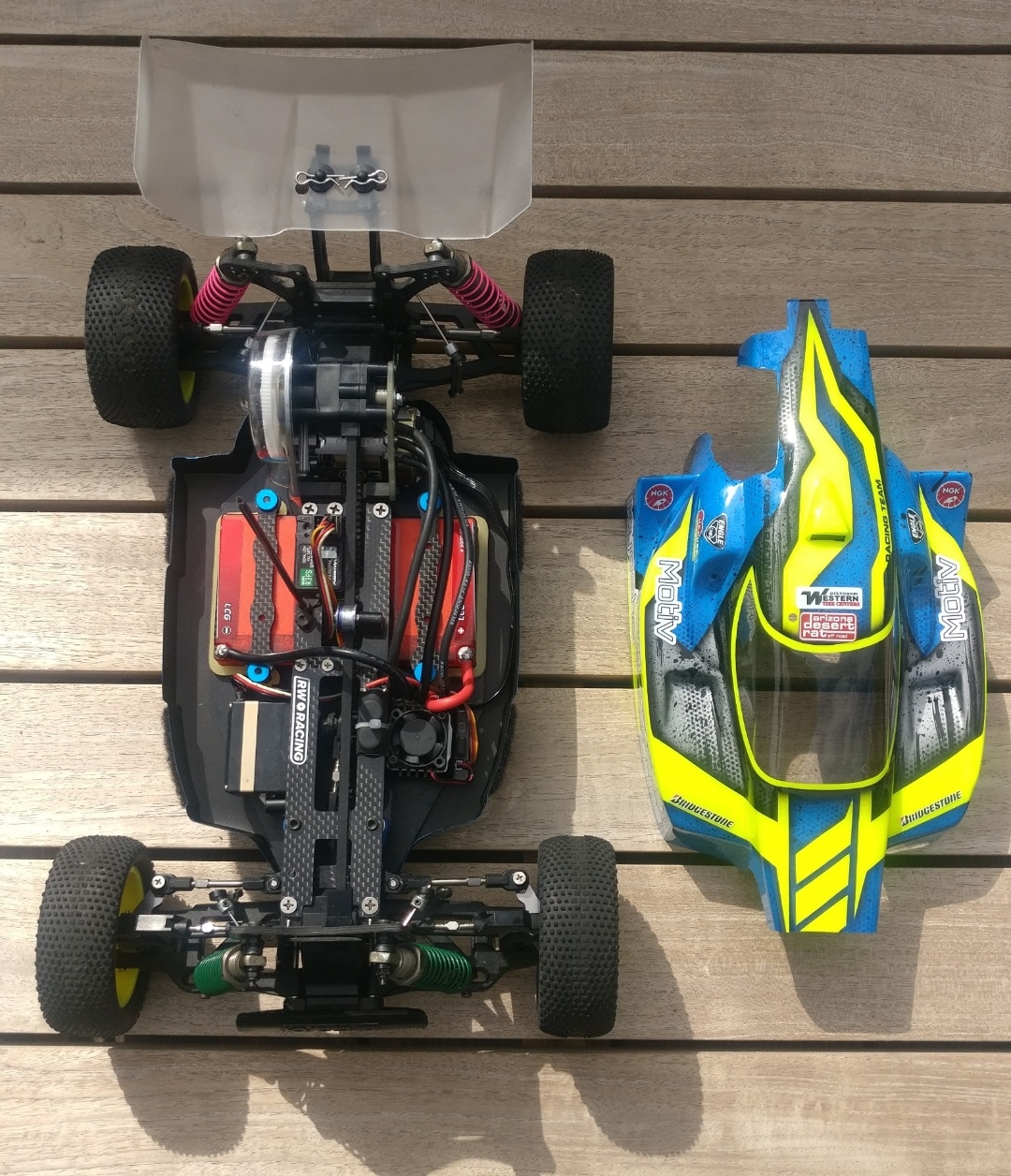

Race ready Kyosho Lazer ZX.
Carbon fibre shock towers and top deck. Some custom made lipo shorty battery cradles and the blue steering bellcranks make this car ready for the track. Runs really smooth.

Futaba mc10 FET might be the right looking esc you are after...
I don't know how big they are, but do seem to be normal sized.

Yokomo bmax4 III springs are fairly short, might work but not sure. Other option would be to put downtravel limiters in the shocks.

The mount for the shock tower does wobble a bit. I managed to decrease this by drilling a hole to connect it to the gearbox with a screw. Other option would be to design a new mount that mounts on the same points, but also rests on the front and rear of the gearbox. This would eliminate all the wobb...

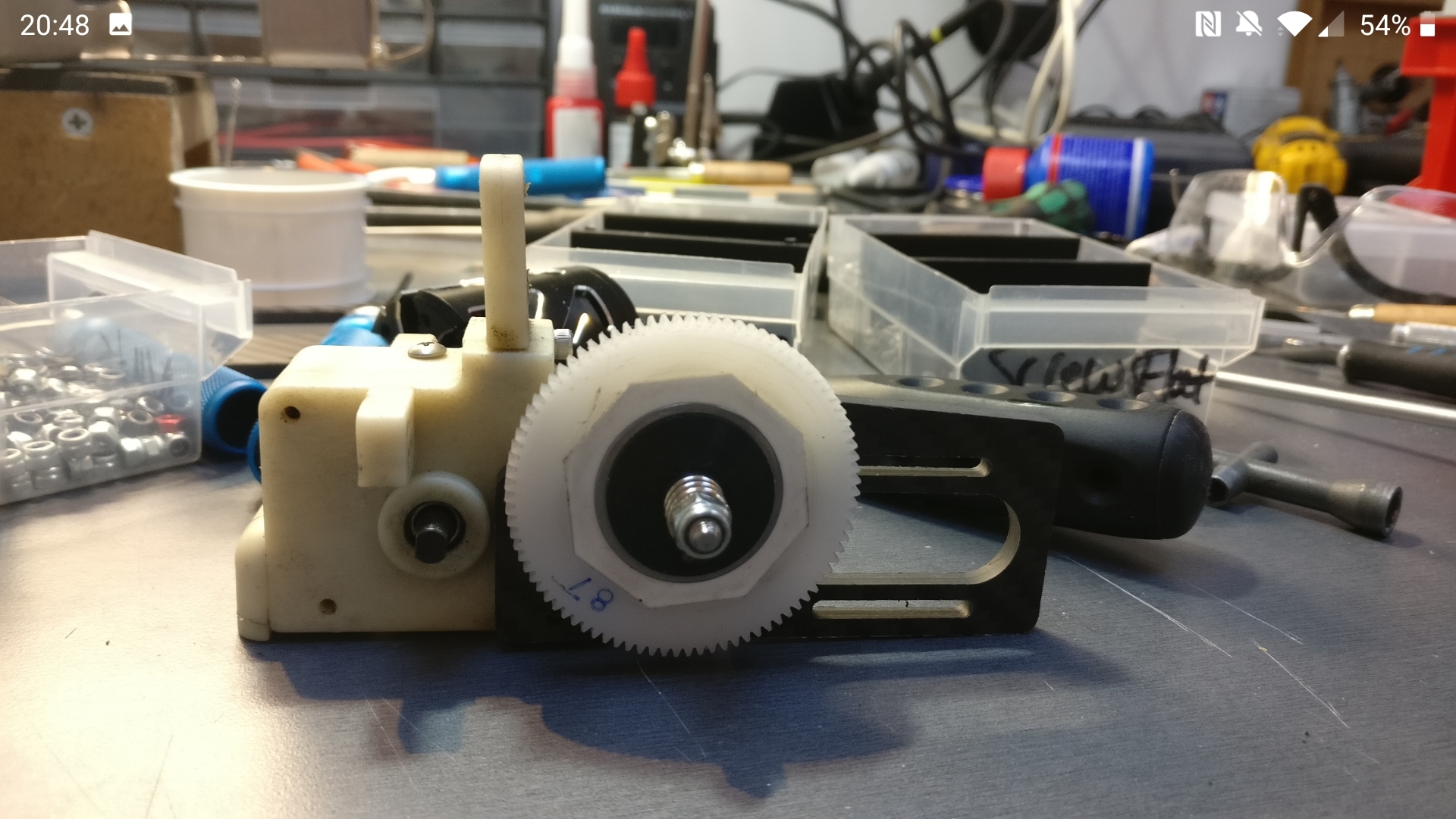

Did this already . Maybe interesting option for a second version. If you are interested I could send you the 2d cad file for this motorplate.

The easiest and most original way to do a comparable conversion would be to take the transmission of the nitro hawk or nitro buggy and create a custom motorplate to accommodate the electric motor. - I still haven't seen anyone else out there making a proper mid motor Traxxas conversion. Even the goo...

Really nice work. Will they be available to purchase through shapeways? I uploaded the parts to shapeways. These are the links to order the parts: Front Uprights: https://www.shapeways.com/product/97S94NZJV/schumacher-bosscat-uprights-set?optionId=162847394&li=shop-inventory Front Bumper: https...

Really nice work. Will they be available to purchase through shapeways? It would really depend on the amount of interest in these parts and this built. If there were more reactions of others who are also searching for these parts, I might look into the possibilities of opening a shapeways shop. How...

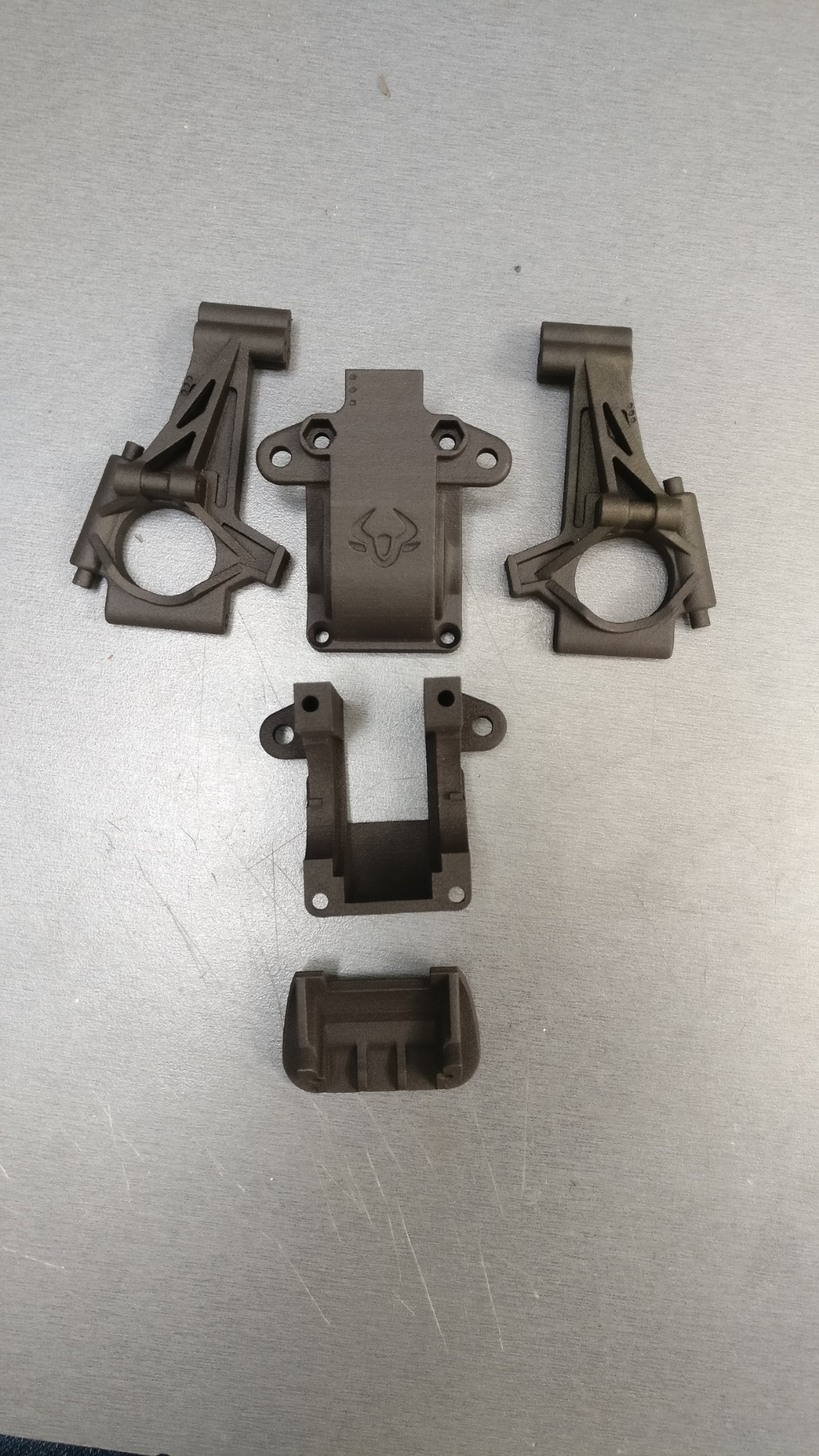

Got the parts in today. Really nice printing quality from shapeways. Not yet fully assembled, but this is a nice front end: Looking forward to seeing how this looks when mounted to the car.

I also need to figure out what I do with the center hole at the tip of the nose plate... as said, the nose plate hole is not threaded, and is too big. I could fit a nut on there, but the bellcranks hits it when turning left. I know it's a shelfer, so not critical but still. If someone has a good id...

nikoscfu wrote: ↑Sun May 10, 2020 1:12 pm Hello i have this rc in my possession and i would like to know wich model is it. thanks
https://www.flickr.com/photos/188036560@N02/49879332226/in/dateposted-public/
https://www.flickr.com/photos/188036560@N02/49878682518/in/dateposted-public/

It is a Kyosho Group C Nissan R89 C

The front end is starting to look like a cool custom one. I added two extra holes in the upright, of which one is meant for the longer threaded small bore shock I want to use. This shock is just a bit longer than the standard one. Just needs some finishing touches and a front boumper. See for yourse...

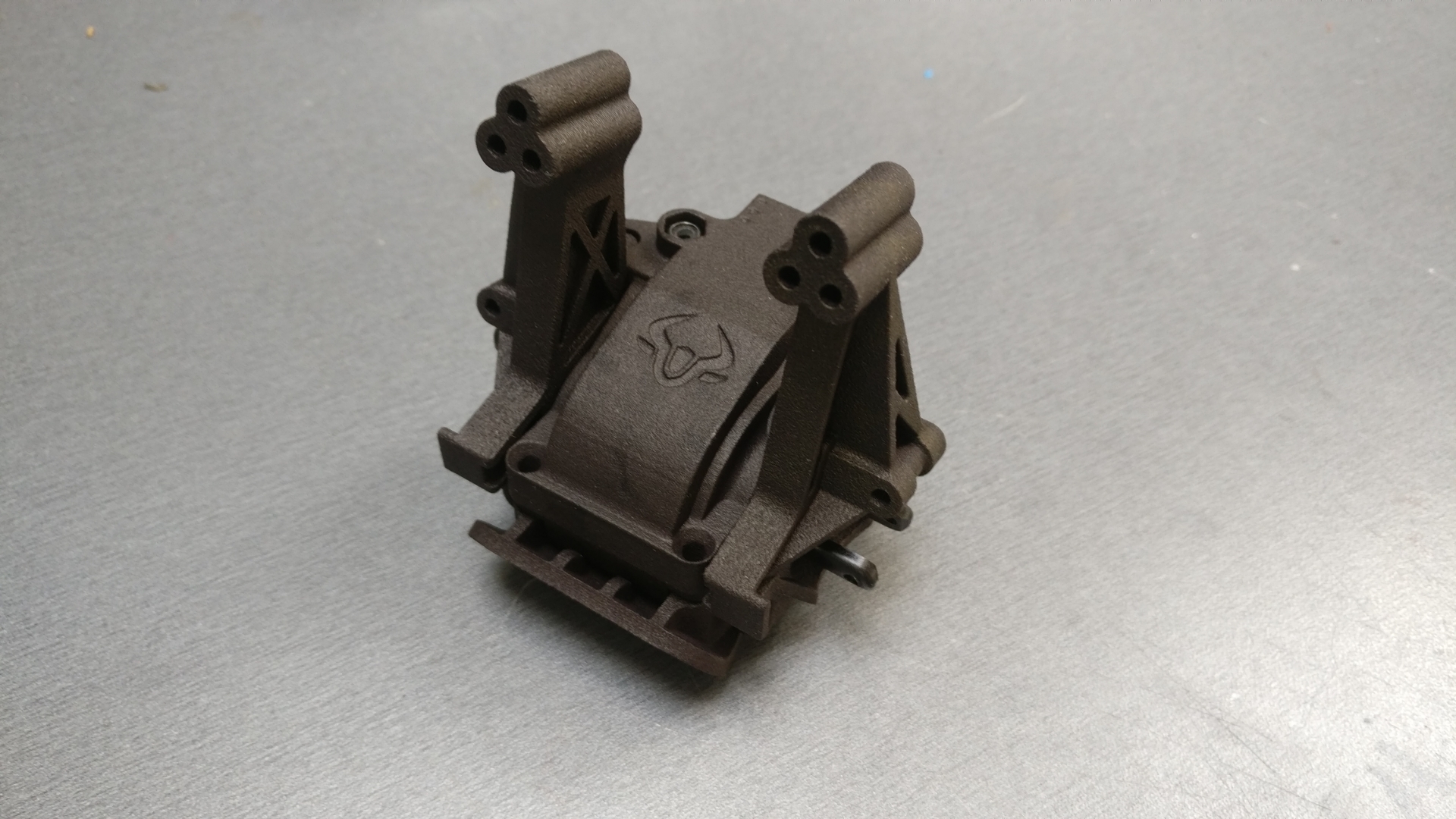

Well, since the parts I am missing are nowhere to be found, I could do the next best thing to complete this car: CAD (At least until the missing parts magically appear somewhere) I drew the bottom half of the gearbox to the dimensions of the broken one I had, this one was only missing the ears for t...

Here are some pictures of the condition of the car when I received it. It came together with a complete procat as shown, which is done already, just needs a body :D Screenshot_20200507-141255__01.jpg Screenshot_20200507-141241__01.jpg Screenshot_20200507-141300__01.jpg Screenshot_20200507-141305__01...
