XXT runner project

Post by Potter »

After getting the itch to own the stadium truck from my youth that I never had, some research led me to this place and after reading a couple build threads I knew it had to be an XXT. Scooped this project truck off eBay last week and already have some parts in the mail to get it rolling. I believe this was a XXT CR from the graphite parts that are already on it? Also what year might this be from? Hoping mid 90s. I believe that axles are MIPs and might be factory? Any info on what I have would be greatly appreciated!
Attachments

User avatar
Lavigna
Super Member
Posts: 1285
Joined: Wed Aug 05, 2015 4:24 am
Location: Petaluma, CA
Has thanked: 800 times
Been thanked: 1052 times

Re: XXT runner project

Post by Lavigna »

Welcome. This place is a great source for information on these trucks. The XXT is my favorite truck. Here is a bit of info to hopefully help you out.

The XXT came in 3 different versions:
XXT
XXT CR - XL frame, revised rear arms and mounts, etc
XXT CR Graphite Plus - XL graphite frame, all Graphite arms and pieces.

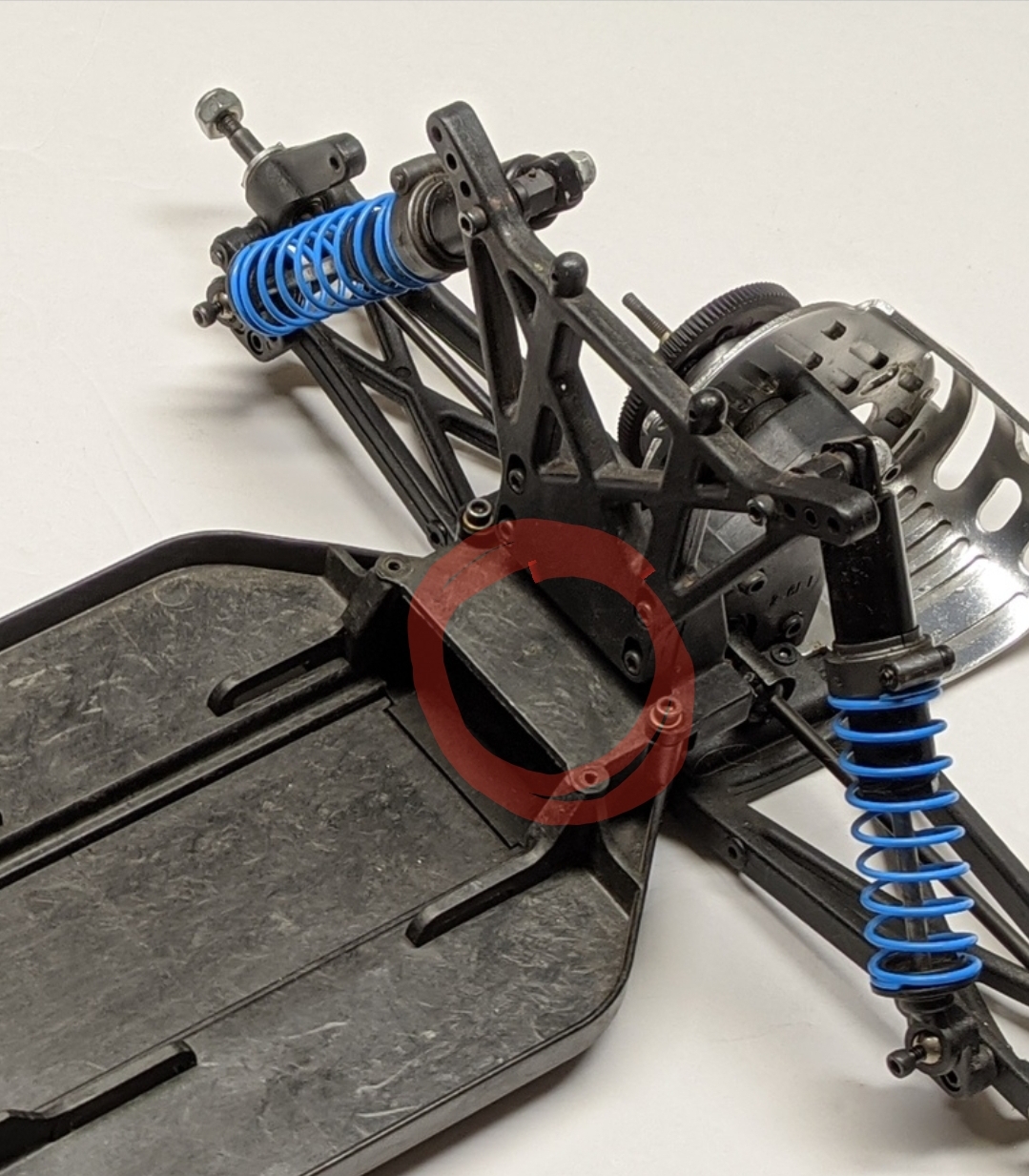

It looks like you have the L length chassis, not the XL. (the chassis will have a L or XL in this location from my picture) This tells me it was likely a CR that received some graphite part upgrades by the previous owner. This length of chassis will better fit the first generation bodies.

I believe the XX series came out around 94' and continued until 97-98'.

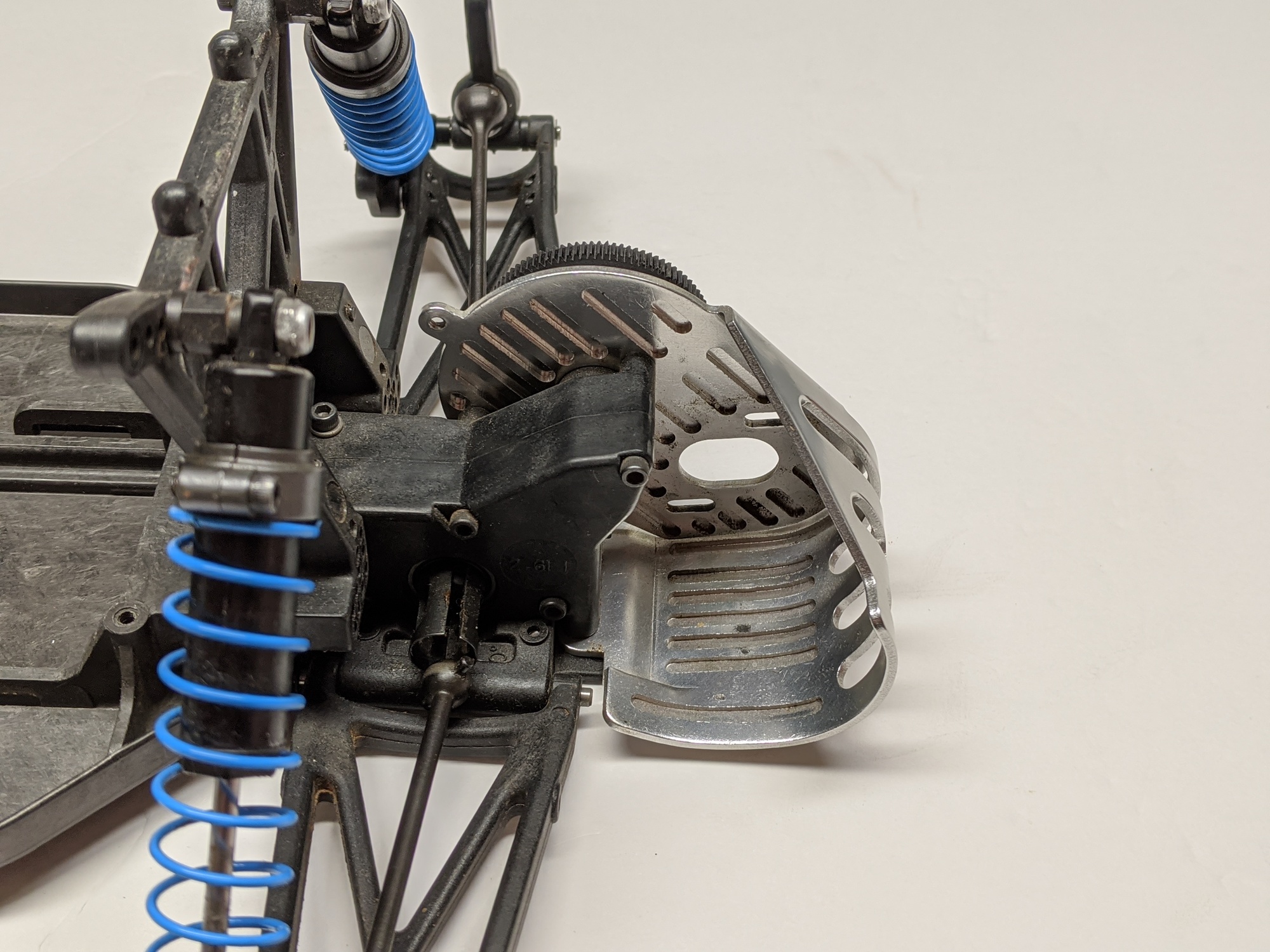

Your axles appear to be steel MIP cvd units. The silver MK1 motor plate is a nice addition. They are the most desirable and can be hard to find.

Keep us posted on your progress.
Attachments

Potter
Regular Member
Posts: 13
Joined: Sat Apr 04, 2020 2:36 pm
Been thanked: 1 time

Re: XXT runner project

Post by Potter »

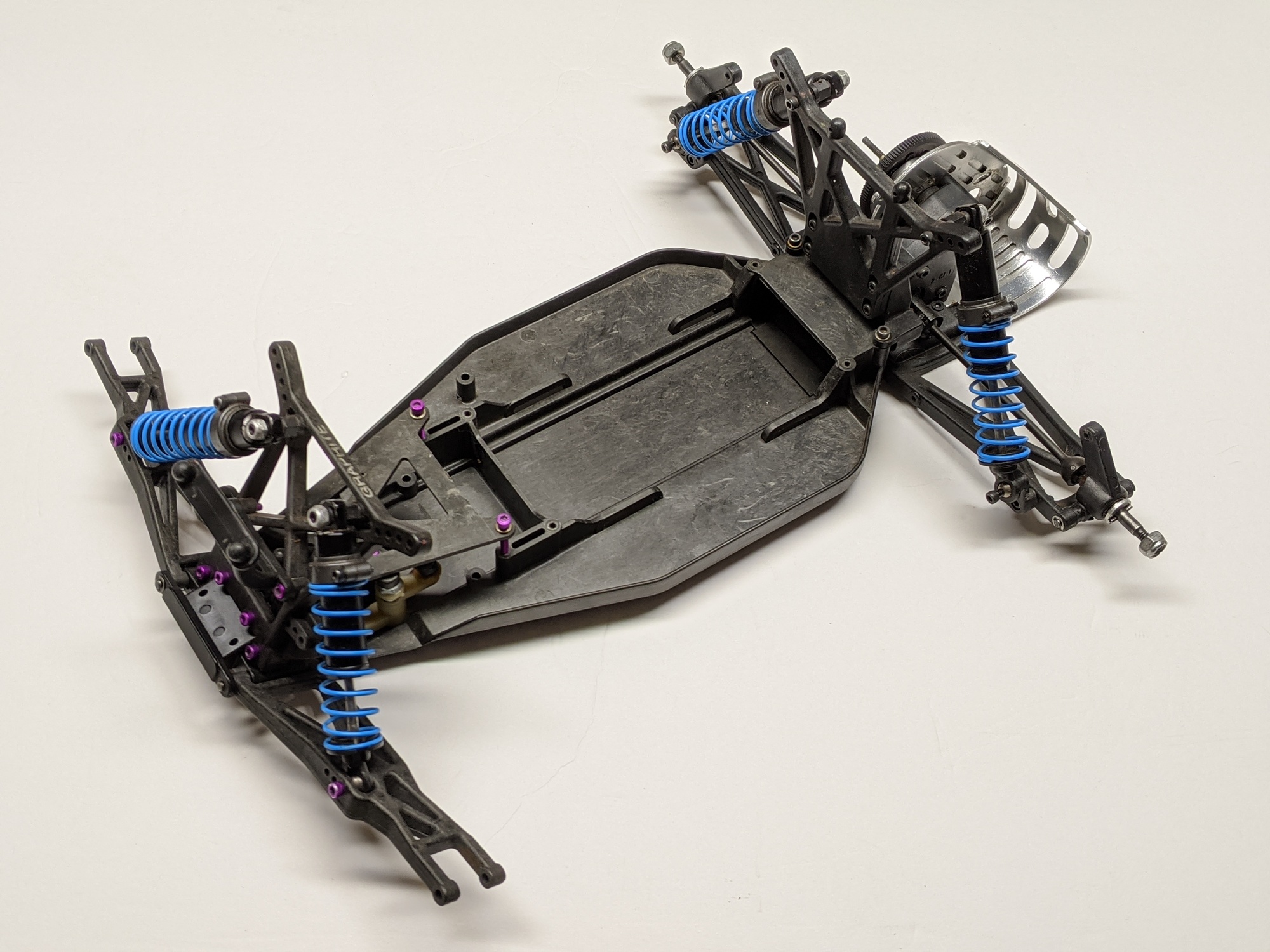

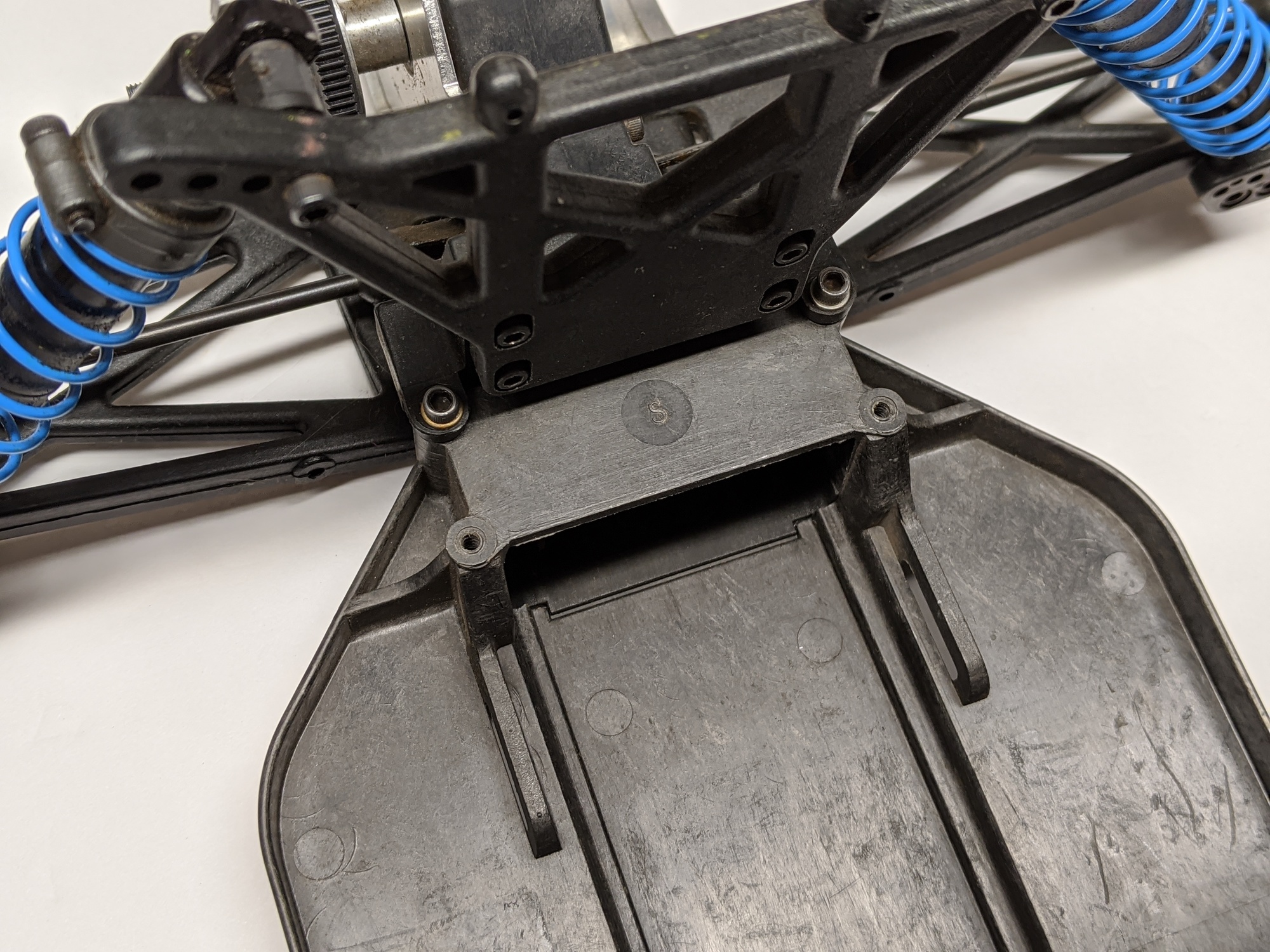

Thank you for the very informative reply. Really good info there but I'm disappointed to report back. Im guessing this is a bastardized buggy chassis but it seems to have xxt front body mount? Bummer, guess I'll be hunting for a L or XL chassis.

Thanks again for the info! 8)
Attachments

User avatar
Lavigna
Super Member
Posts: 1285
Joined: Wed Aug 05, 2015 4:24 am
Location: Petaluma, CA
Has thanked: 800 times
Been thanked: 1052 times

Re: XXT runner project

Post by Lavigna »

I couldn't make out the letter on the chassis from your original photos. I could only see it was a single digit, so I assumed L. Yes, it is a buggy chassis converted to truck. Don't see that done very often!

Potter
Regular Member
Posts: 13
Joined: Sat Apr 04, 2020 2:36 pm
Been thanked: 1 time

Re: XXT runner project

Post by Potter »

Well I guess my next question is if I get a G+ chassis is the battery hold down the only thing that's different? Same servo mount and front brace will work?

Potter
Regular Member
Posts: 13
Joined: Sat Apr 04, 2020 2:36 pm
Been thanked: 1 time

Re: XXT runner project

Post by Potter »

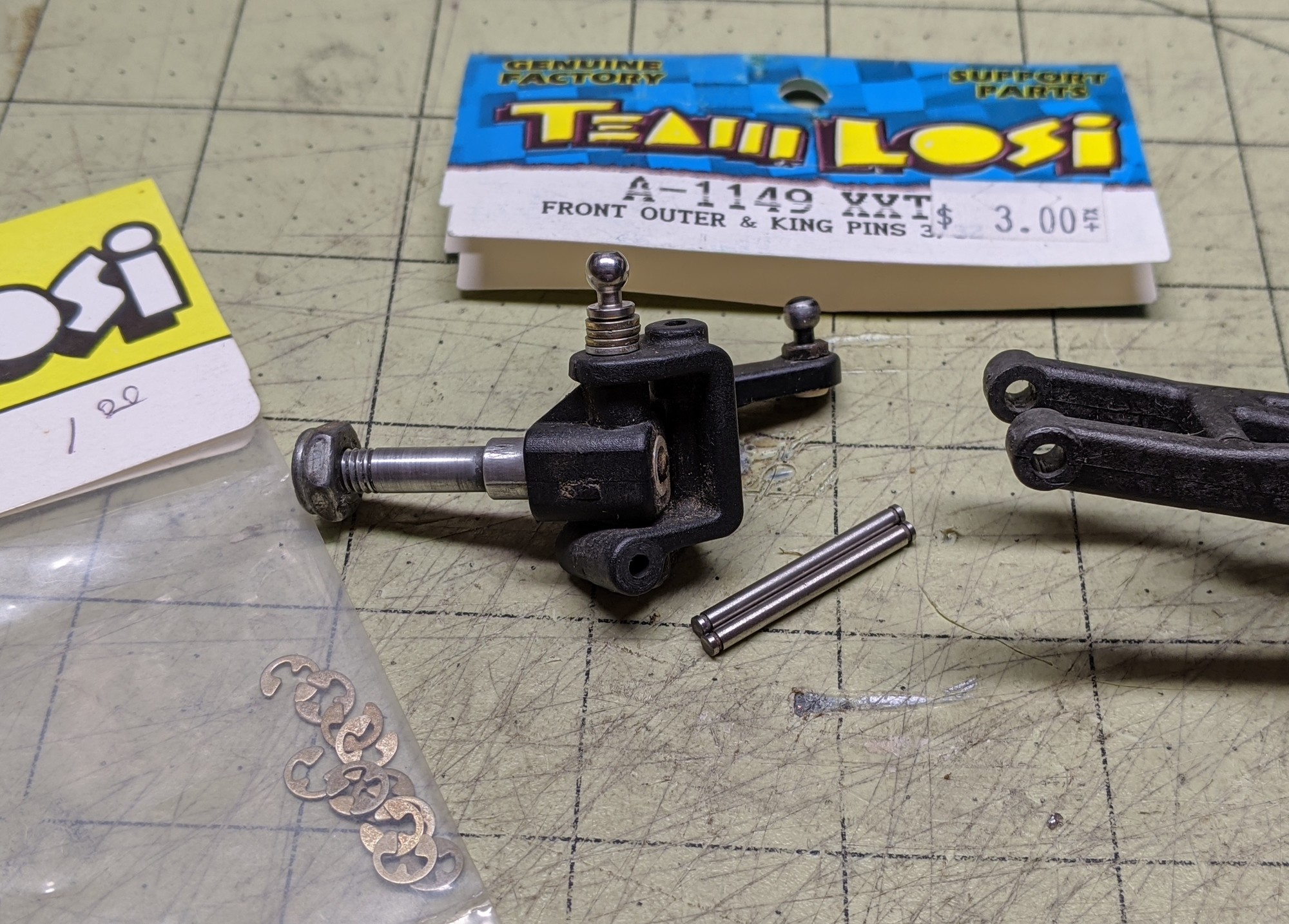

The next issue... Starting to think I should have just held out for a complete truck. The previous guy drilled out the front arm pivot holes for what appears to be a 3mm screw. Time to find some new front arms.
Attachments

jb7778
Approved Member
Posts: 40
Joined: Thu Apr 18, 2019 10:02 am
Been thanked: 14 times

Re: XXT runner project

Post by jb7778 »

To answer the chassis question, yes the chassis and the battery strap are the only difference....

Potter
Regular Member
Posts: 13
Joined: Sat Apr 04, 2020 2:36 pm
Been thanked: 1 time

Re: XXT runner project

Post by Potter »

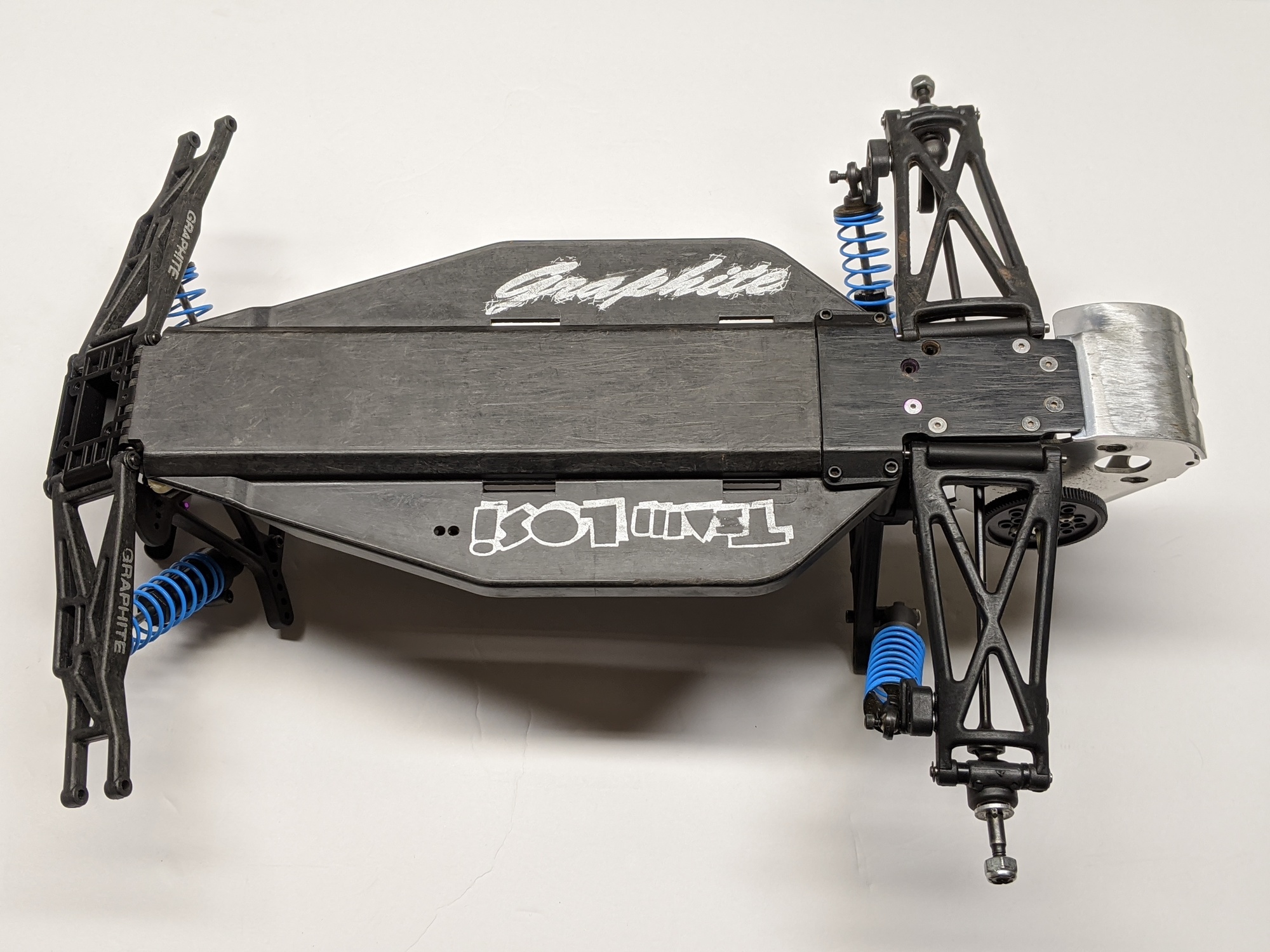

Thank you JB. And thanks to a member here I found a G+ chassis!
