Kyosho Lazer ZX -- 2010 VONATs Entry....

The place for all things Kyosho.

Moderators: scr8p, klavy69

treehugger
Approved Member
Posts: 1304
Joined: Tue Dec 08, 2009 10:10 pm
Location: seattle washington

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by treehugger »

nice lazer i have a few and they are i think the best car kyosho made and i converted one of mine to pins i got the drives out of a alpha i dont know if that was standard but they work well for bashing that is
Paul

adam lancia
Approved Member
Posts: 1116
Joined: Tue Feb 05, 2008 6:37 pm
Location: Donkin, Nova Scotia, Canada
Has thanked: 7 times
Been thanked: 41 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by adam lancia »

Nice work!

In the last pic it looks like you've got a B4 slipper assembly and spur gear fitted, care to share how you worked that out? Looks great.

isobarik
Approved Member
Posts: 616
Joined: Mon Sep 22, 2008 5:09 am
Location: Sweden
Been thanked: 10 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by isobarik »

yeah lett us know what you have done with the slipper looks awsome..

got to love those bbs style wheels looking good.

How does the jc body fit arent it kind of narrow ????

mvh Isobarik

tecnica2001
Approved Member
Posts: 1047
Joined: Mon Jun 30, 2008 3:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by tecnica2001 »

OK, I removed the stock slipper assembly, left the bottom washer/ring, made the hole on the associated spur big enough to fit the center bearing, slipped the spur and pads onto the shaft on top of the bottom (or First) washer, then slipped an associated slipper plate on top of everything, and tightened it all down with the stock nut.

There might be more creative ways of doing this mod, so all you Kyosho Mad Scientist, please, please, improve on my Idea... :shock:

I'm only running a 17.5 motor on my ZX.

I also replaced the Kyosho shocks with RC10 Team Shocks, used Associated Tie Rods with RPM ball cups, and I'm in search of a bearing steering system.

The B44 lexan undertray fits almost perfect, the sides of the chassis need to be trimmed a bit to have a perfect fitment, and the body will take some creative cutting to make it fit.... :D
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

isobarik
Approved Member
Posts: 616
Joined: Mon Sep 22, 2008 5:09 am
Location: Sweden
Been thanked: 10 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by isobarik »

Aha you just drilled the spur does it run true ??? i think i will have to try make one my self looks awsome like the newer stuff slippers.

mvh Isobarik

tecnica2001
Approved Member
Posts: 1047
Joined: Mon Jun 30, 2008 3:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by tecnica2001 »

As I was looking through my posted pictures, there isn't one that clearly shows the slipper assembly, I will do so tomorrow after work.

Isobarik,
I used a body reamer very carefuly, I put a pinion gear on the motor to see if it would wobble, ran it, and it was nice,straight, and smooth.

I still have to sort out a set of rear cvds...
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

isobarik
Approved Member
Posts: 616
Joined: Mon Sep 22, 2008 5:09 am
Location: Sweden
Been thanked: 10 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by isobarik »

Do you want to use the old w-5061 or the new style ?????

The new style just use the 62,5 bone and the axle La231.02.
i have done that works awsome and you can use the clamp on hexes .

mvh Isobarik

tecnica2001
Approved Member
Posts: 1047
Joined: Mon Jun 30, 2008 3:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by tecnica2001 »

I have the original ones, I need a set of the newer pin style ones. I know my local hobby shop has them in stock.
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

tecnica2001
Approved Member
Posts: 1047
Joined: Mon Jun 30, 2008 3:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by tecnica2001 »

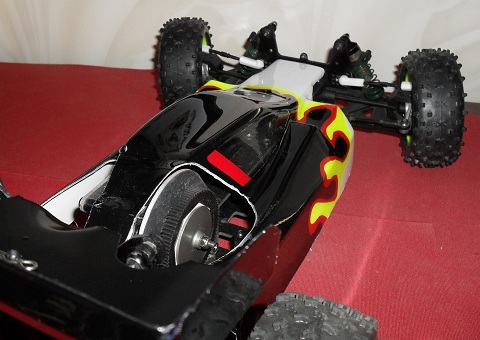

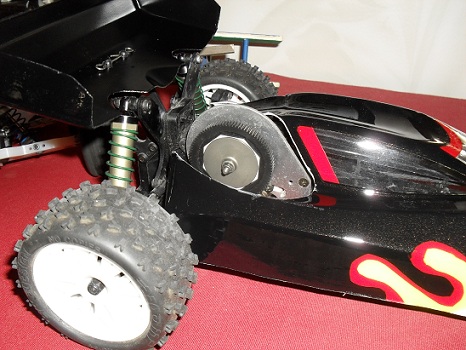

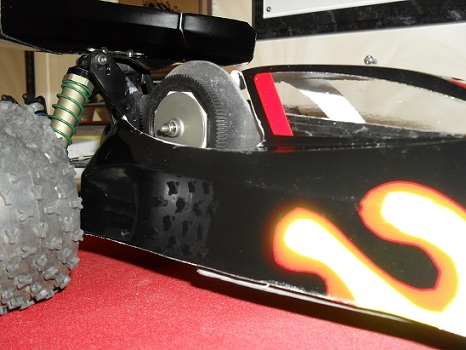

Here are a couple of better pictures of the slipper assembly.
Attachments
church and rc cars 011 (2).JPG
church and rc cars 011 (2).JPG (202.07 KiB) Viewed 977 times
church and rc cars 011 (2).JPG
church and rc cars 011 (2).JPG (202.07 KiB) Viewed 977 times
church and rc cars 002 (3).JPG
church and rc cars 002 (3).JPG (200.83 KiB) Viewed 977 times
church and rc cars 002 (3).JPG
church and rc cars 002 (3).JPG (200.83 KiB) Viewed 977 times
church and rc cars 004 (3).JPG
church and rc cars 004 (3).JPG (210.35 KiB) Viewed 977 times
church and rc cars 004 (3).JPG
church and rc cars 004 (3).JPG (210.35 KiB) Viewed 977 times
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

tecnica2001
Approved Member
Posts: 1047
Joined: Mon Jun 30, 2008 3:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by tecnica2001 »

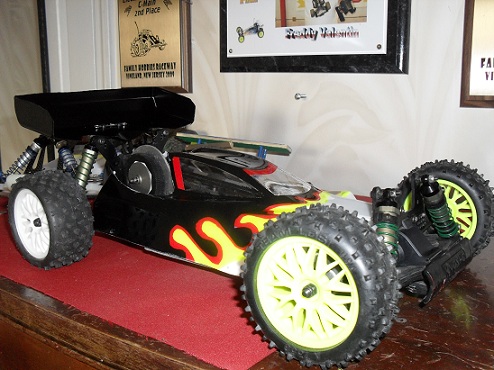

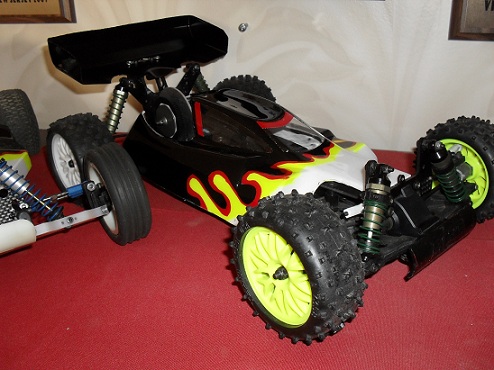

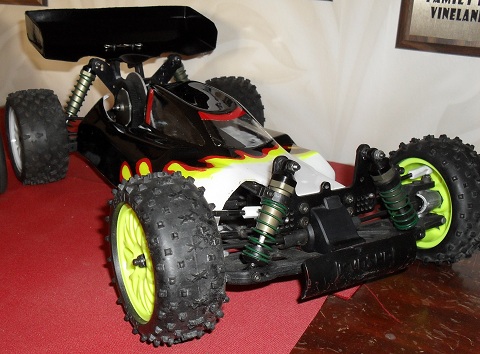

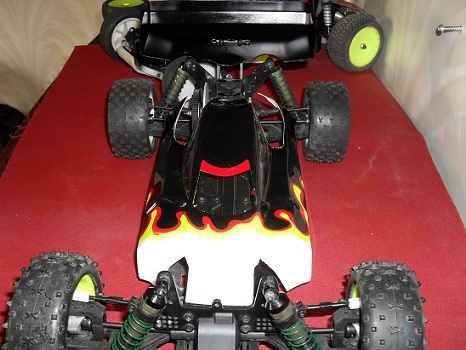

So I felt a bit creative today, and decided to paint the JC body... :D

Why did I cut out both sides of the body?? I don't know, it just looks kinda cool. :mrgreen: still need to get an under tray.
Attachments
church and rc cars 010 (2).JPG
church and rc cars 010 (2).JPG (211.62 KiB) Viewed 977 times
church and rc cars 010 (2).JPG
church and rc cars 010 (2).JPG (211.62 KiB) Viewed 977 times
church and rc cars 009 (2).JPG
church and rc cars 009 (2).JPG (214.42 KiB) Viewed 977 times
church and rc cars 009 (2).JPG
church and rc cars 009 (2).JPG (214.42 KiB) Viewed 977 times
church and rc cars 008 (3).JPG
church and rc cars 008 (3).JPG (207.92 KiB) Viewed 977 times
church and rc cars 008 (3).JPG
church and rc cars 008 (3).JPG (207.92 KiB) Viewed 977 times
church and rc cars 006 (2).JPG
church and rc cars 006 (2).JPG (219.14 KiB) Viewed 977 times
church and rc cars 006 (2).JPG
church and rc cars 006 (2).JPG (219.14 KiB) Viewed 977 times
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

isobarik
Approved Member
Posts: 616
Joined: Mon Sep 22, 2008 5:09 am
Location: Sweden
Been thanked: 10 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by isobarik »

I have ordered slipper disks from kyosho and an B4 spur and some slipper pads.
I will try to make it fit by takin the back down and have the disk fitted should work .....i hope .
Will let you know.

mvh Isobarik

tecnica2001
Approved Member
Posts: 1047
Joined: Mon Jun 30, 2008 3:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by tecnica2001 »

If you cut down the B4 slipper backing plates you should be able to use two B4 plates and the slipper spring on it. I'm gonna try that also... :D
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

Kyosho Fan2
Approved Member
Posts: 320
Joined: Mon Nov 26, 2007 3:39 pm

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by Kyosho Fan2 »

Great car, but i am curious as to why you opted for doing that mod on the slipper. Did you contemplate buying the hyper clutch instead? That in my opinion is better as you can remove the spur without having to mess with the slipper setting.

tecnica2001
Approved Member
Posts: 1047
Joined: Mon Jun 30, 2008 3:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by tecnica2001 »

Ehh, If I did a bit more research, and had a bit more money I probably would've done a better set up, I just wanted to use what I had on hand to make it a 48p compatible machine.... :D
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

Kyosho Fan2
Approved Member
Posts: 320
Joined: Mon Nov 26, 2007 3:39 pm

Re: Kyosho Lazer ZX -- 2010 VONATs Entry....

Post by Kyosho Fan2 »

Cool. Your idea was good and making it happen is what its all about. I have done the same. At least your using a less powerful motor as the spur is a lot smaller than standard. So for you info three spur gear teeth equate to one pinion gear tooth. Look on radiocontrolzone under the lazer zx,zxr thread and you will find many options that are still available. I decided to get a lot of items made up for lazer racers so we could still race competitively now, so chassis, top deck, shock towers, servo plate, steering plate, gearboxes (he occassionaly makes them when requested), bodyshells and someone got the belts made so now so much is out there you will be racing this for years to come. Welcome to the club. Any help just pm me.
