I need some help identifying which mid I have

The place for all things Kyosho.

Moderator: GoMachV

perry
Approved Member
Posts: 77
Joined: Fri Feb 01, 2013 4:06 am
Location: Ione, Ca 95640 USA

I need some help identifying which mid I have

Post by perry » Sat Apr 20, 2013 2:25 am

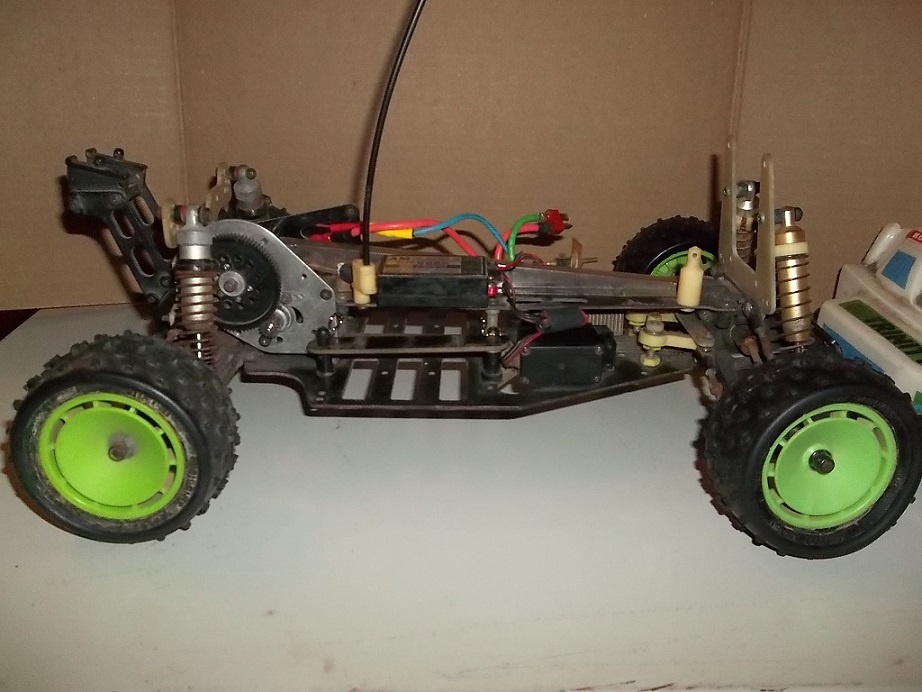

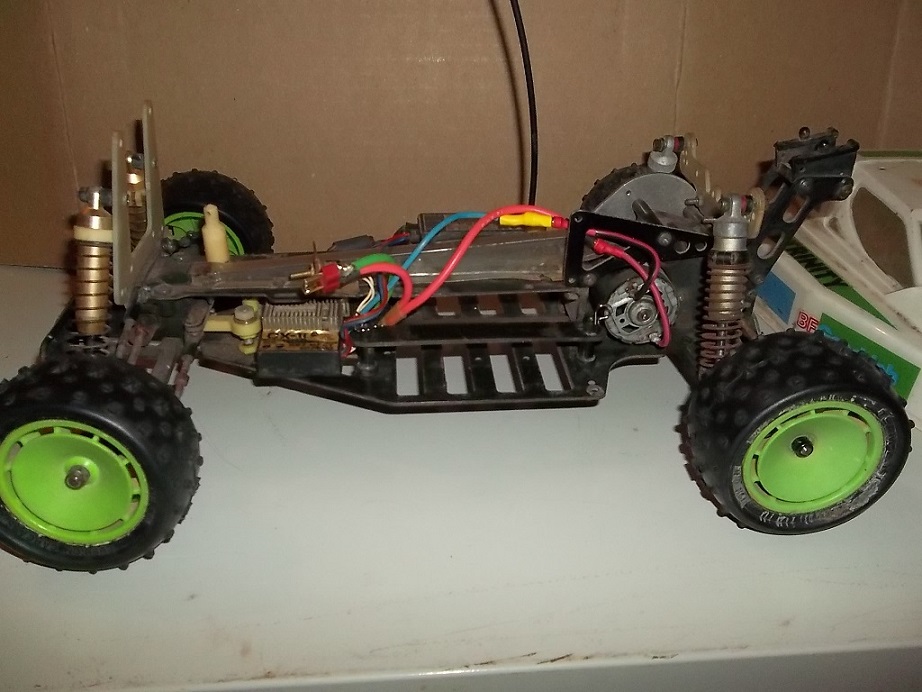

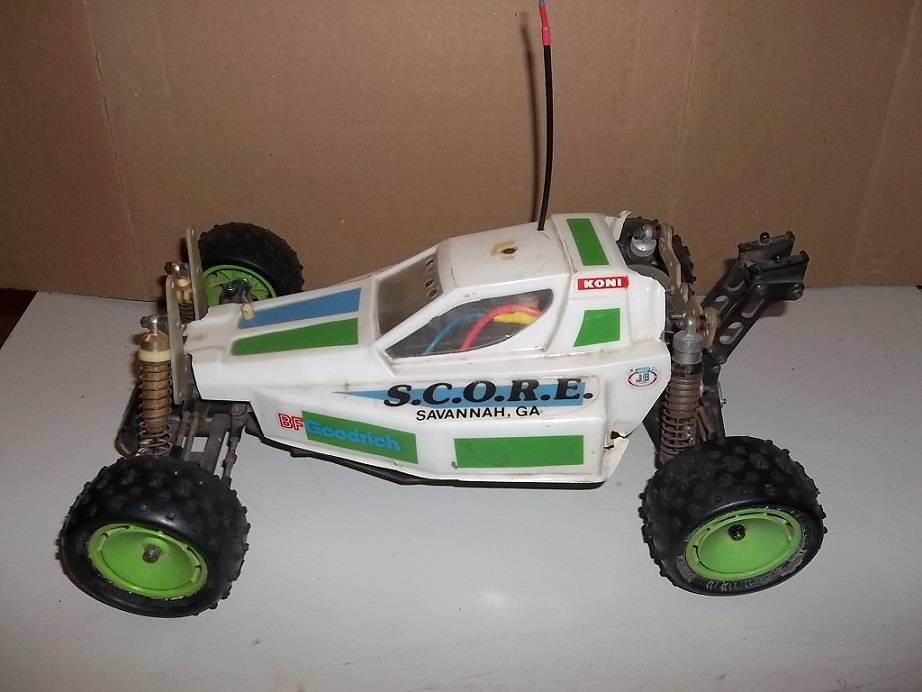

I think it's a mid custom special, but I'm not sure. I did some trading for it and it has no stickers left on it to help me. Does anyone know, or know of a reference page to help? I've looked on here, but a lot of the pictures i find aren't up anymore. plus it has different shock towers, which doesn't help either.

any ideas are appreciated.
Attachments

User avatar
DennisM
Approved Member
Posts: 2510
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark

Re: I need some help identifying which mid I have

Post by DennisM » Sat Apr 20, 2013 5:34 am

It´s a LWB, no doubt. But if it was born like that, I´m not able to tell :)
Rear shocks are Kyosho platinum, front arms seems to be Andy´s, steering set to be A&L ?, front shock mount looks like aftermarket ultima and the body is a cut up Turbo Optima.

Does it have oneway´s at the front?
Gone fishing

keithrc
Approved Member
Posts: 246
Joined: Thu Dec 27, 2012 11:13 am
Location: Australia

Re: I need some help identifying which mid I have

Post by keithrc » Sat Apr 20, 2013 6:03 am

If it's a Custom Mid it's had a lot of mods, if it's a Custom Special it's had parts taken off.

Going by the shocks, gearbox brace (triangular piece above the rear of the motor) and only the steering arms are turnbuckles I'd guess it's a Custom Mid that's beem modded with the carbon chassis. On the other hand, if it has ball diffs it could've started as a Custom Special.

A Custom Mid had the non turnbuckle rods, alloy chassis, gear diffs, equaliser plastic shocks and alloy shock towers (I think).

The Custom Special had turnbuckles all round, F&R stabilisers, gold shocks, carbon chassis and shock mounts (?) ball diffs and the smaller carbon gearbox brace.


Keith :wink:
NIB Optima! :)
NIB Turbo Optima :)
My threads:
Optima's viewtopic.php?f=30&t=29477
Mids viewtopic.php?f=30&t=29489
Lazer's viewtopic.php?f=30&t=29525

User avatar
DennisM
Approved Member
Posts: 2510
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark

Re: I need some help identifying which mid I have

Post by DennisM » Sat Apr 20, 2013 7:01 am

My best guess is that it started out as a std. Optima Mid and then converted to LWB.
And that´s all based on the black frp MSC mount :mrgreen:
Gone fishing

keithrc
Approved Member
Posts: 246
Joined: Thu Dec 27, 2012 11:13 am
Location: Australia

Re: I need some help identifying which mid I have

Post by keithrc » Sat Apr 20, 2013 7:11 am

Ah, but the standard Mids came with an alloy MSC mount/gearbox brace not a carbon one like this car has.


Keith :wink:
NIB Optima! :)
NIB Turbo Optima :)
My threads:
Optima's viewtopic.php?f=30&t=29477
Mids viewtopic.php?f=30&t=29489
Lazer's viewtopic.php?f=30&t=29525

User avatar
DennisM
Approved Member
Posts: 2510
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark

Re: I need some help identifying which mid I have

Post by DennisM » Sat Apr 20, 2013 8:20 am

Show me :mrgreen: I know the Turbo Optima Mid SE came with an aluminum brace but the Std. Optima Mid came with black frp.
Gone fishing

keithrc
Approved Member
Posts: 246
Joined: Thu Dec 27, 2012 11:13 am
Location: Australia

Re: I need some help identifying which mid I have

Post by keithrc » Sat Apr 20, 2013 8:46 am

After looking on here a bit it seems that both the standard Mid and the SE came with the OT-096 alloy rear plate (as it's called in the intruction manual) and the Turbo came with the smaller carbon plate. So that leaves me a bit confused as to what came standard with the larger carbon plate :?


Keith :wink:
NIB Optima! :)
NIB Turbo Optima :)
My threads:
Optima's viewtopic.php?f=30&t=29477
Mids viewtopic.php?f=30&t=29489
Lazer's viewtopic.php?f=30&t=29525

User avatar
DennisM
Approved Member
Posts: 2510
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark

Re: I need some help identifying which mid I have

Post by DennisM » Sat Apr 20, 2013 10:08 am

Search for Kyosho Optima Mid box content on the internet. Eventually the OTM-5 bag will show up :mrgreen:
Gone fishing

User avatar
j0pp3
Approved Member
Posts: 425
Joined: Tue Apr 17, 2012 2:47 pm
Location: Stockholm, Sweden

Re: I need some help identifying which mid I have

Post by j0pp3 » Sat Apr 20, 2013 11:45 am

I just checked my Kyosho catalog from 1988 and a few other web sources and here is the result:

Optima Mid - FRP Rear Plate (L) with rotary speed control holder
Turbo Optima Mid - FRP Rear Plate (L)
Turbo Optima Mid SE - Alloy Rear Plate (L) with rotary speed control holder

I also realized that I restored my Optima Mid with an alloy plate which is wrong :lol:
Cheers
Joel

User avatar
DennisM
Approved Member
Posts: 2510
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark

Re: I need some help identifying which mid I have

Post by DennisM » Sat Apr 20, 2013 11:52 am

So Joppe,
Now we´re gonna be needing new shots of the entire rebuild of Your std. Mid :mrgreen:
Gone fishing

User avatar
j0pp3
Approved Member
Posts: 425
Joined: Tue Apr 17, 2012 2:47 pm
Location: Stockholm, Sweden

Re: I need some help identifying which mid I have

Post by j0pp3 » Sat Apr 20, 2013 12:03 pm

DennisM wrote:So Joppe,
Now we´re gonna be needing new shots of the entire rebuild of Your std. Mid :mrgreen:
More or less, yes. I feel responsible because so many images shows up on Google. Sorry for misleading restorations :)

/j0pp3
Cheers
Joel

User avatar
DennisM
Approved Member
Posts: 2510
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark

Re: I need some help identifying which mid I have

Post by DennisM » Sat Apr 20, 2013 12:08 pm

Yeah - When You do quality stuff like Your rebuild sessions, it better be right. People start using them as reference :)
Gone fishing

keithrc
Approved Member
Posts: 246
Joined: Thu Dec 27, 2012 11:13 am
Location: Australia

Re: I need some help identifying which mid I have

Post by keithrc » Sat Apr 20, 2013 12:37 pm

That's where I got the idea that the alloy rear plate was right for the standard Mid, awell...

I spose it's easy to assume that being the standard version it would have the alloy plate instead of the FRP version.

I have noticed though that the FRP and alloy MSC plate versions are actually different shapes. The FRP version has a straight leading edge whereas the alloy one has a curved leading edge. That said, I made up an alloy copy of the small FRP plate (without the MSC mounts) for my "mystery Turbo Mid" project that I'm planning.


Keith :wink:
NIB Optima! :)
NIB Turbo Optima :)
My threads:
Optima's viewtopic.php?f=30&t=29477
Mids viewtopic.php?f=30&t=29489
Lazer's viewtopic.php?f=30&t=29525

perry
Approved Member
Posts: 77
Joined: Fri Feb 01, 2013 4:06 am
Location: Ione, Ca 95640 USA

Re: I need some help identifying which mid I have

Post by perry » Sat Apr 20, 2013 12:44 pm

wow! thanks guys.

so apparently I have a standard optima mid that's had a few pieces and parts changed around.

I had it up for sale, because i didn't think I'd be able to run it and find parts(and i have too many r/c projects already), but it looks like i'm gonna keep it and find some spare belts for it.

oh, and it doesn't have the one way diff in the front.

User avatar
DennisM
Approved Member
Posts: 2510
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark

Re: I need some help identifying which mid I have

Post by DennisM » Sat Apr 20, 2013 1:02 pm

You can allways sell a Mid, the price might have been to high :mrgreen:
But I´d say keep it, if You have the slightest interest in old RC buggy´s
Clean it up and find a short set of shocks either platinums or golds and the corect front shock mount.
Gone fishing
