Barn find Rocky, belt drive conversion

The place for all things Kyosho.

Moderators: scr8p, klavy69

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Barn find Rocky, belt drive conversion

Post by cas22 »

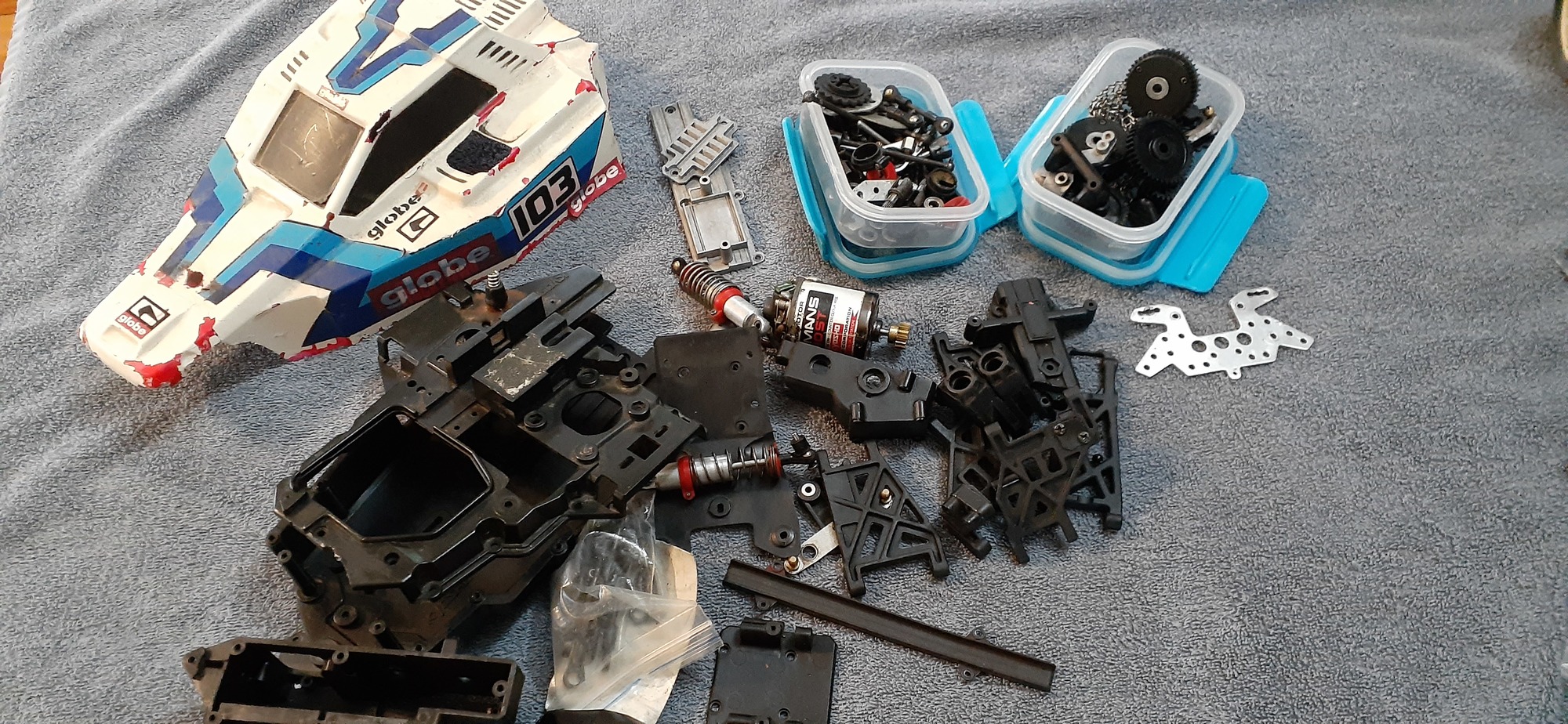

Got this old girl thrown in a box of rc , pretty poor condition, but getting hard to find.
These used to kick the Tamiya hotshots when i was younger.
Conditions too poor for a shelf queen so going to have some fun instead. Fibreglass chassis, and hopefully belt drive conversion if i have measured correctly.
As found
As found

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Re: Barn find Rocky

Post by cas22 »

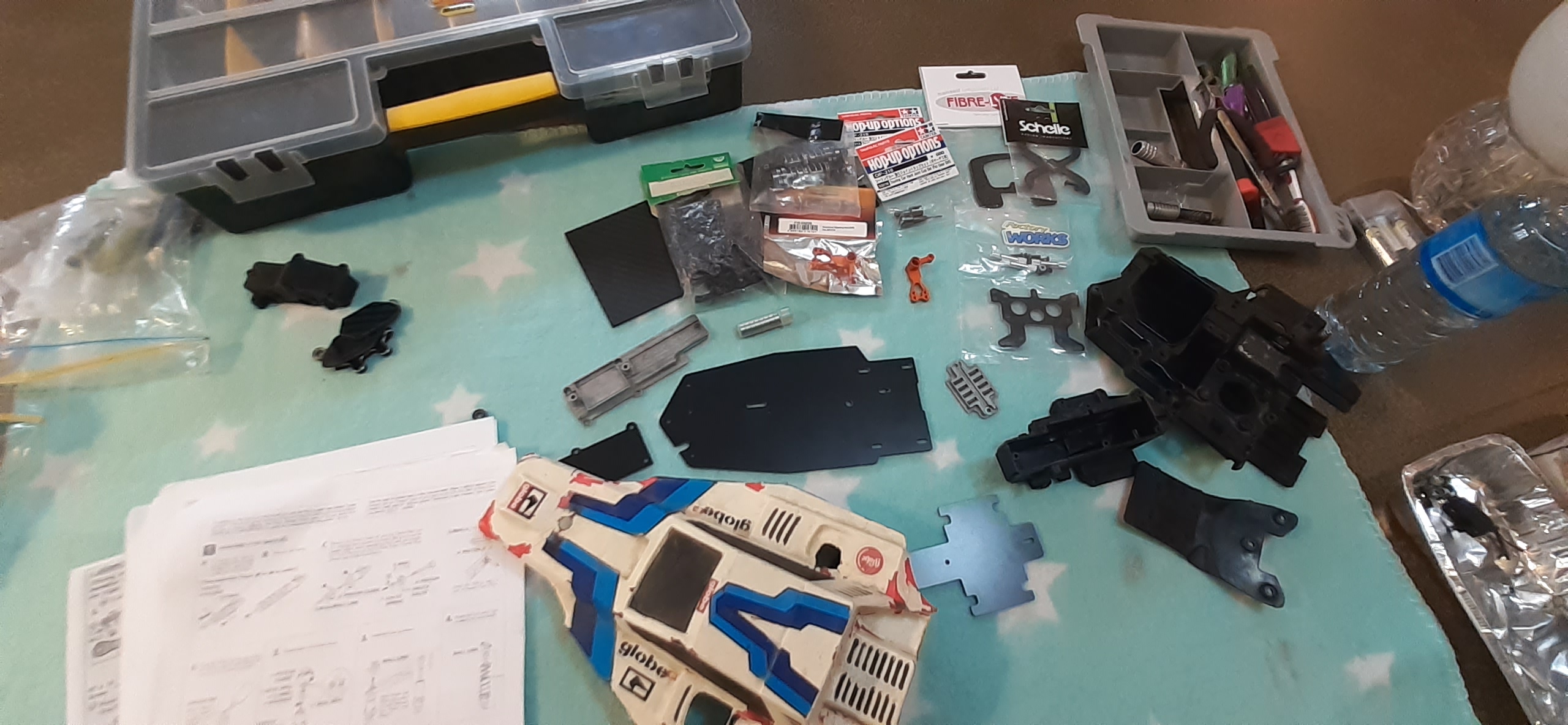

Finally had a wet day here in New Zealand and time to crack into my projects.
Post has been terrible with COVID, but assembled enough to make a start
Attachments

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Re: Barn find Rocky

Post by cas22 »

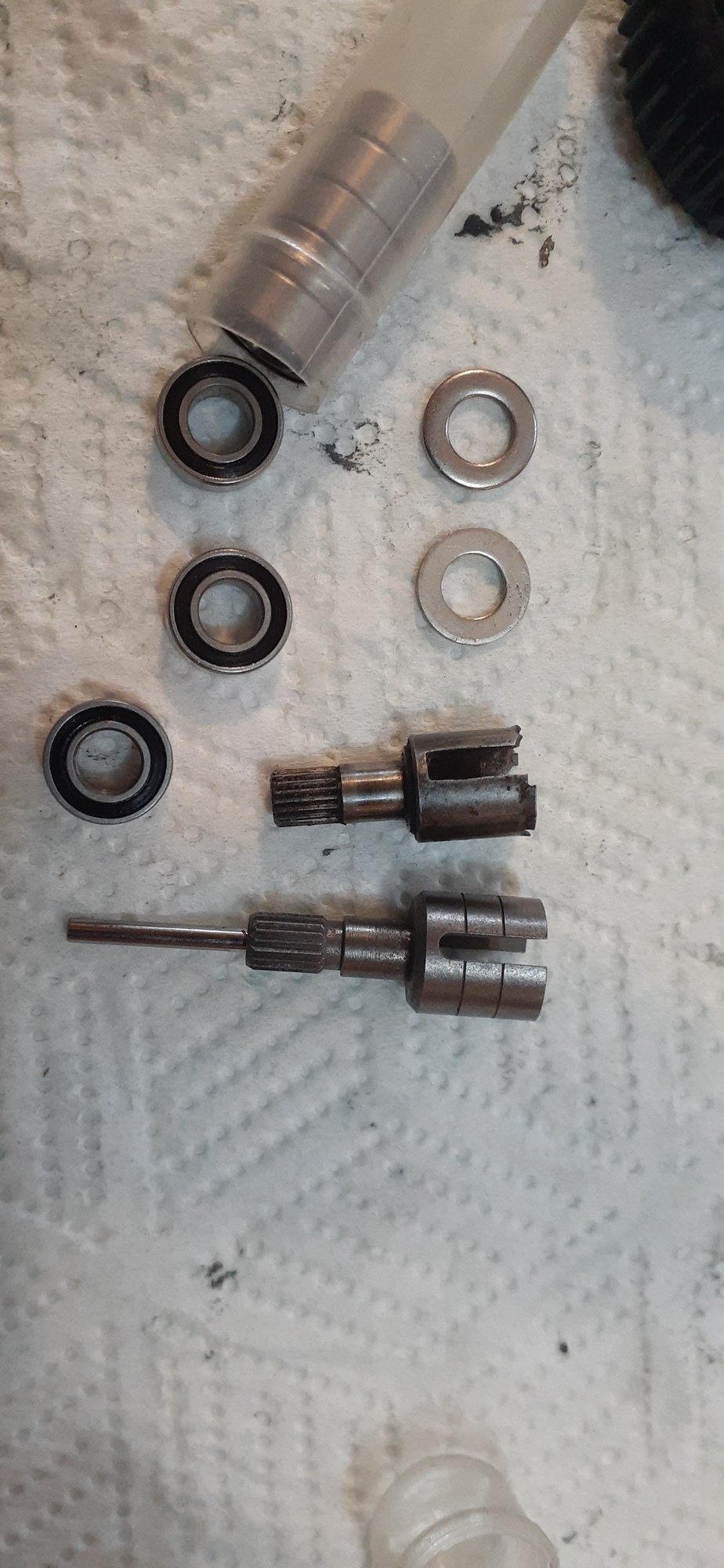

Searching posts here i found Tamiya OP-218 #53218 Hard tiuring car drive cups fit nicely into the rebuilt rocky differentials these may work on Raiders too?
Attachments

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Re: Barn find Rocky

Post by cas22 »

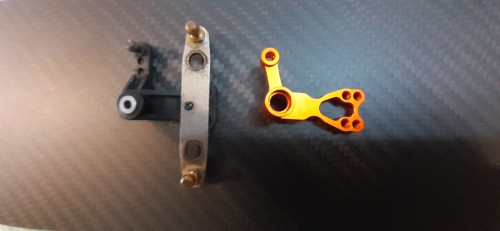

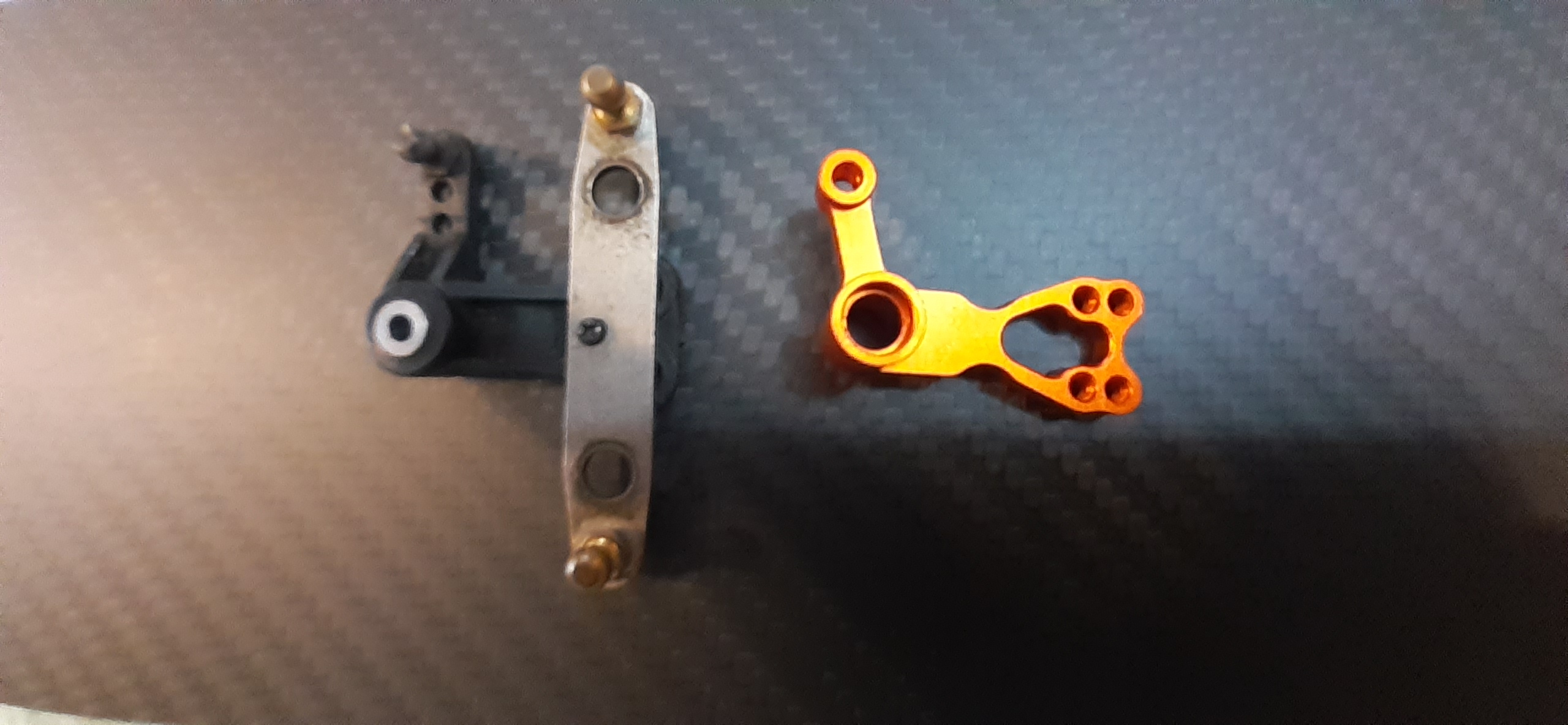

The Steering bellcrank is still under review, i know you can buy 3D printed units on shapeways or EBay but stumbled on this Yeah Racing HPI F10 arm, seems close, but i got a few to machine around with #F10-042OR if it helps anyone later.
Someone has "repaired" and butchered my original one as you can see.
Wanted gunmetal grey to match but it was only anodising left.
If it works ill give it to a Jeweller mate to polish silver.
Attachments

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Re: Barn find Rocky

Post by cas22 »

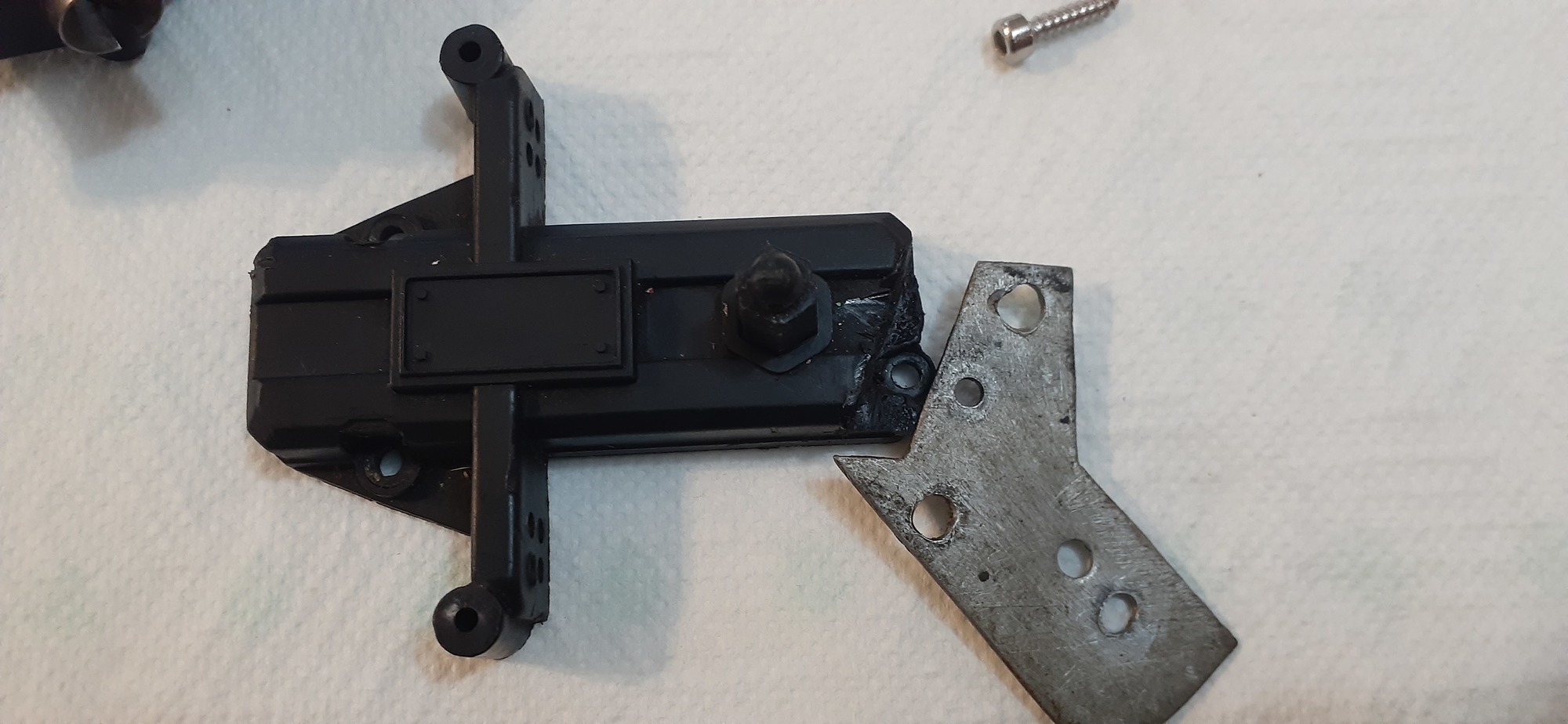

Same bloke also did a dodgy repair on the bathtub chassis and used a bit of galv plate to patch it up.
What do you expect for a 30 yr old car i guess.
Problem is he also cut outvthe front gearbox cover too.
I think its part number is RK-04?

If anyone has one to sell pleaee PM me, even a Turbo Rocky unit, authough i think id perfer the monoshock, and fo have a full set of original Kyosho platinum shock for my next project
Attachments

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Re: Barn find Rocky

Post by cas22 »

Same bloke also did a dodgy repair on the bathtub chassis and used a bit of galv plate to patch it up.
What do you expect for a 30 yr old car i guess.
Problem is he also cut outvthe front gearbox cover too.
I think its part number is RK-04?

If anyone has one to sell pleaee PM me, even a Turbo Rocky unit, authough i think id perfer the monoshock, and fo have a full set of original Kyosho platinum shock for my next project

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Re: Barn find Rocky

Post by cas22 »

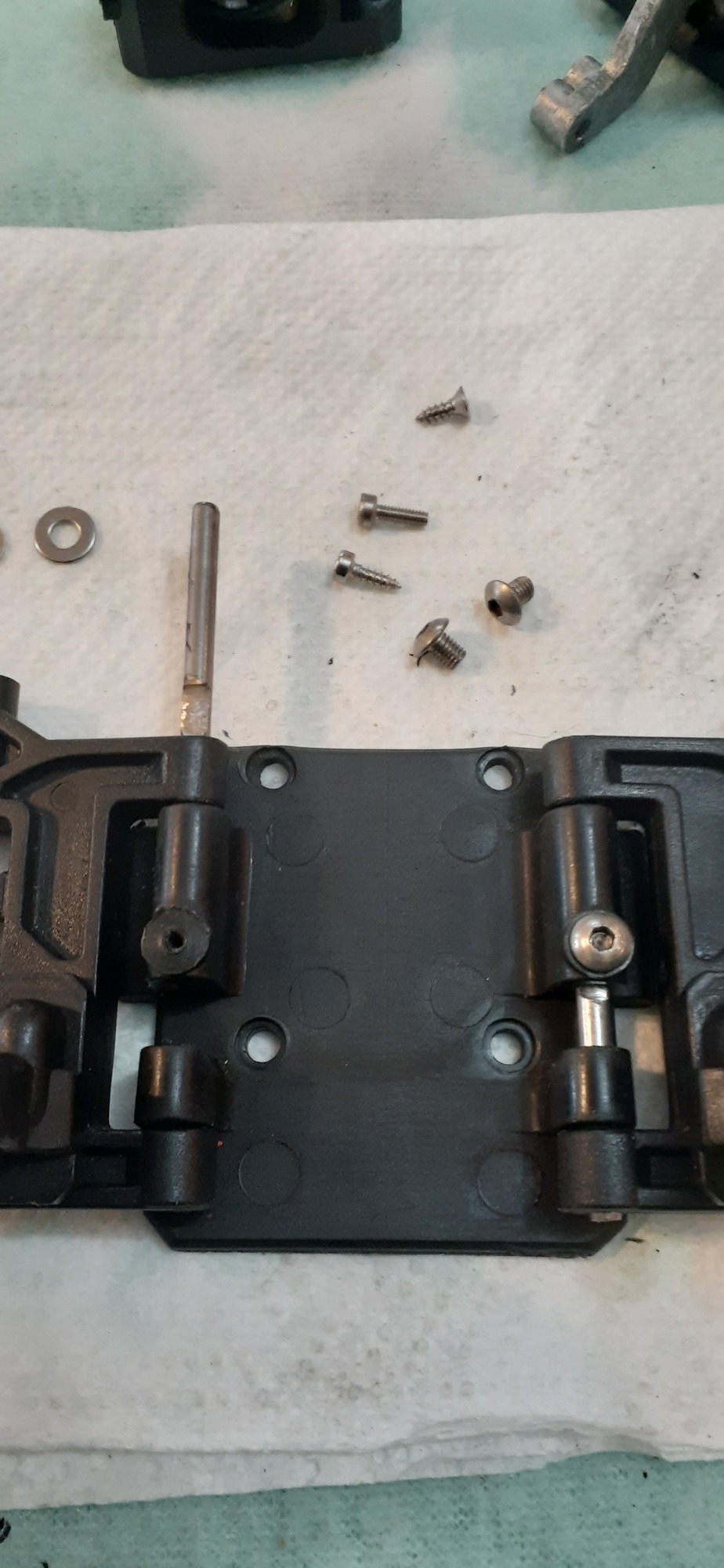

The manual asks for M2 X4mm screw to hold the suspension pin home, mine were stripped /missing, so i dremmel slot the shaft lightly andvused a M3 X 4mm titanium cap screw, sits down nice on the mouldings now too
Attachments

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Re: Barn find Rocky

Post by cas22 »

I realise purists may not like the self tapping cap screws but ghe old car was too rough for a shelf queen, going to have some fun instead.
Managed to save the M2 x4 for the other suspension shafts on the front.
Be nice to have a new bumper to fit but shipping takes weeks, even Airmail
Attachments

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Re: Barn find Rocky

Post by cas22 »

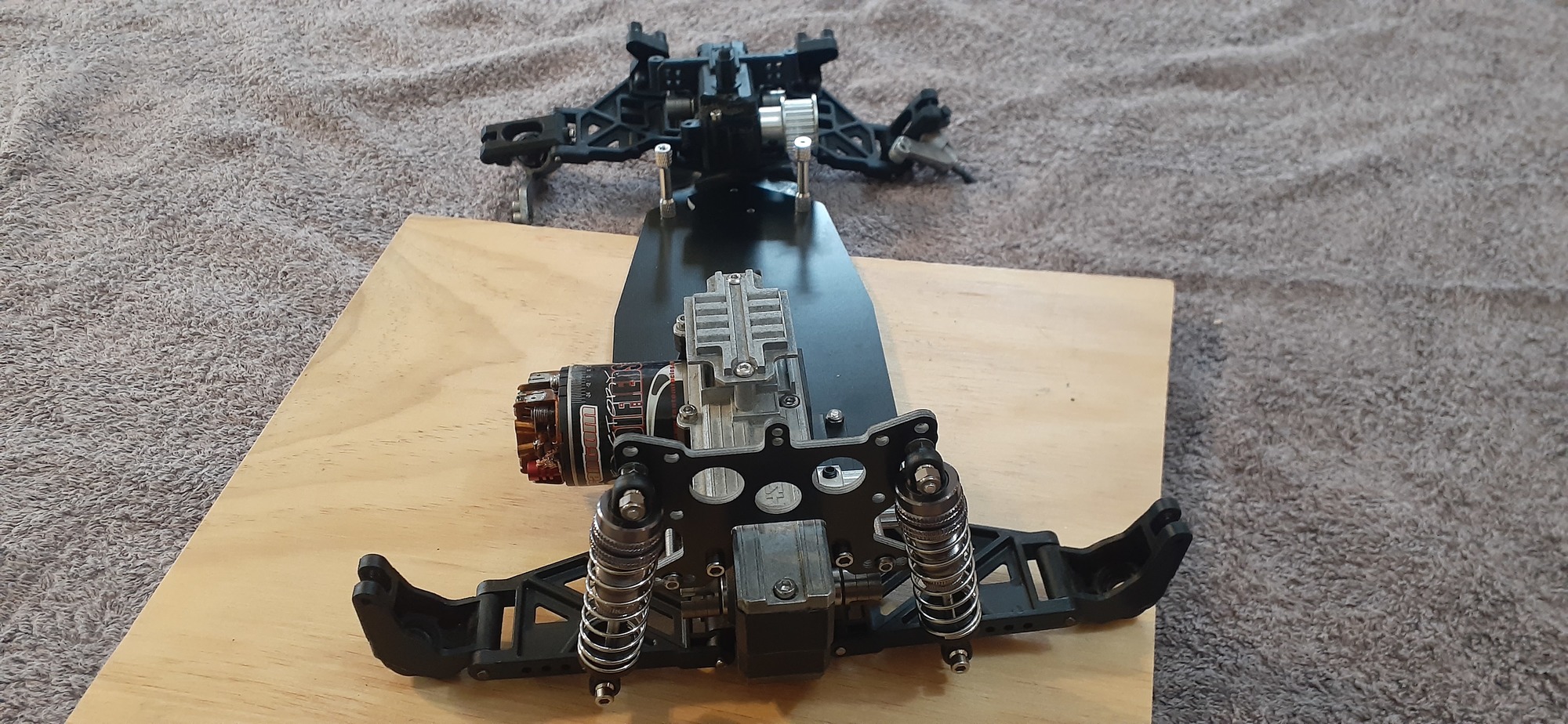

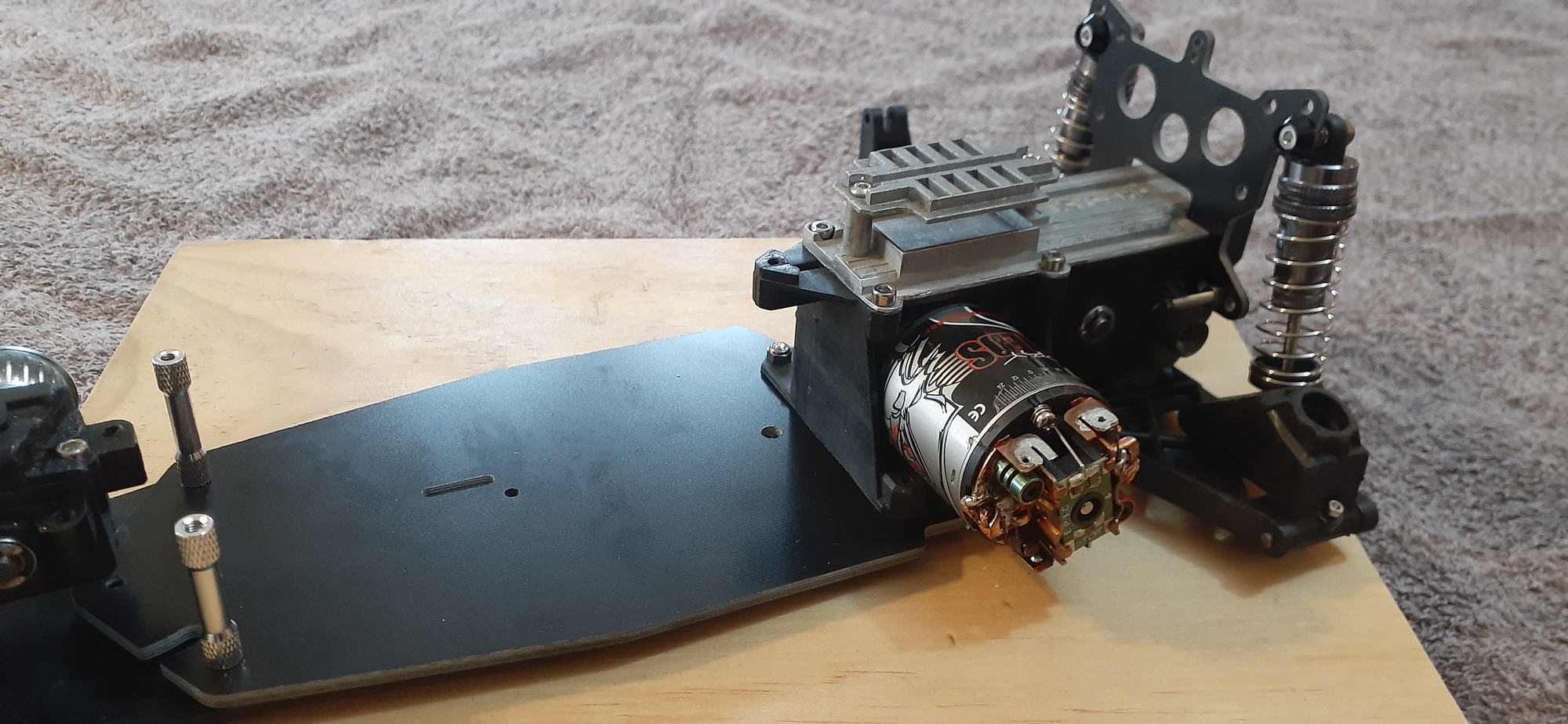

Getting closer, running a Fantom 14 x2 brushed because i had it lying around.
Replaced the last few bushes with bearings.
Fitted NOS arms,

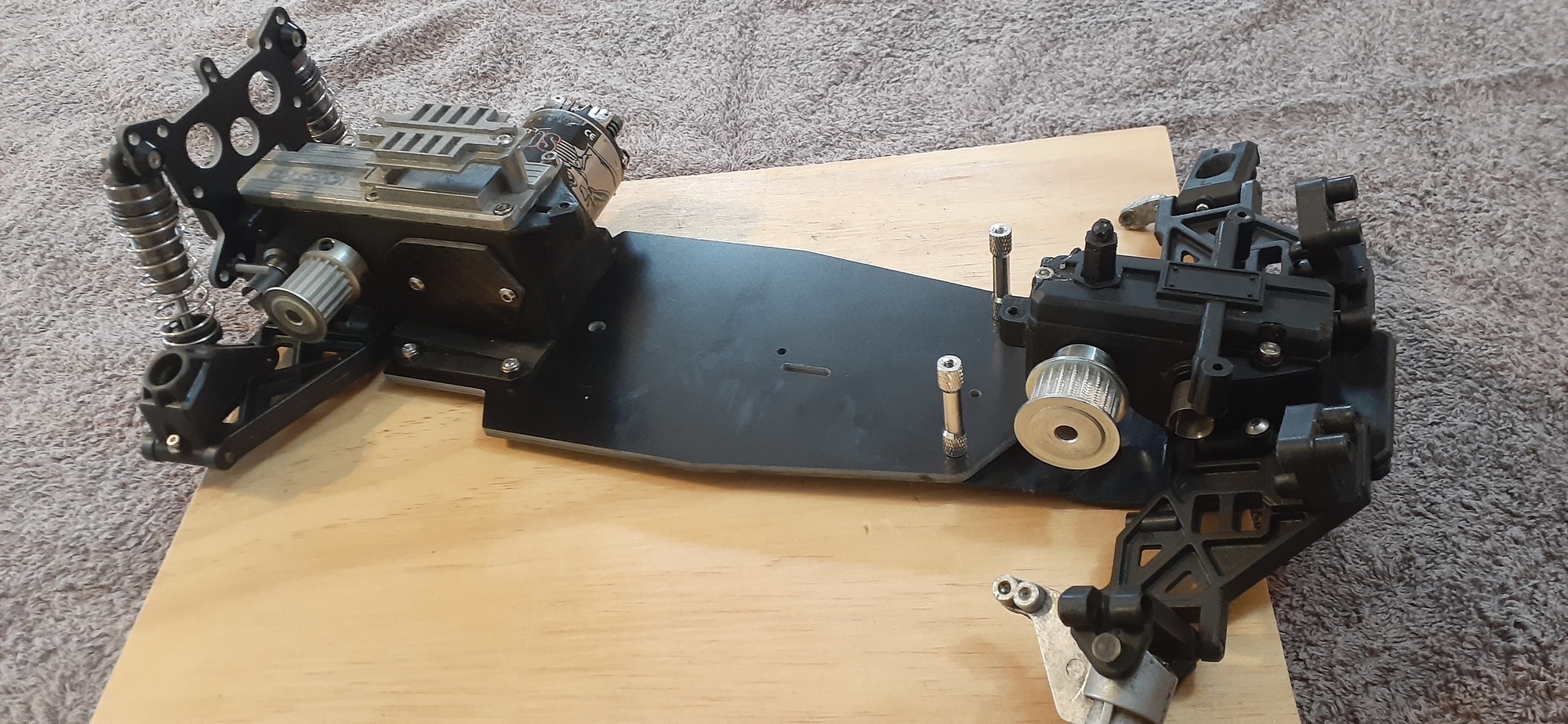

Glass chassis and shock tower, excuse the belt pulleys, just rough trial ones until i find the best alignment, and where to mount a tensioner, think ill run a shorty lipo so that needs sorting too.
Found a Schelle B6 X graphite battery strap that looks promising

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Re: Barn find Rocky

Post by cas22 »

Another angle
Attachments

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Re: Barn find Rocky

Post by cas22 »

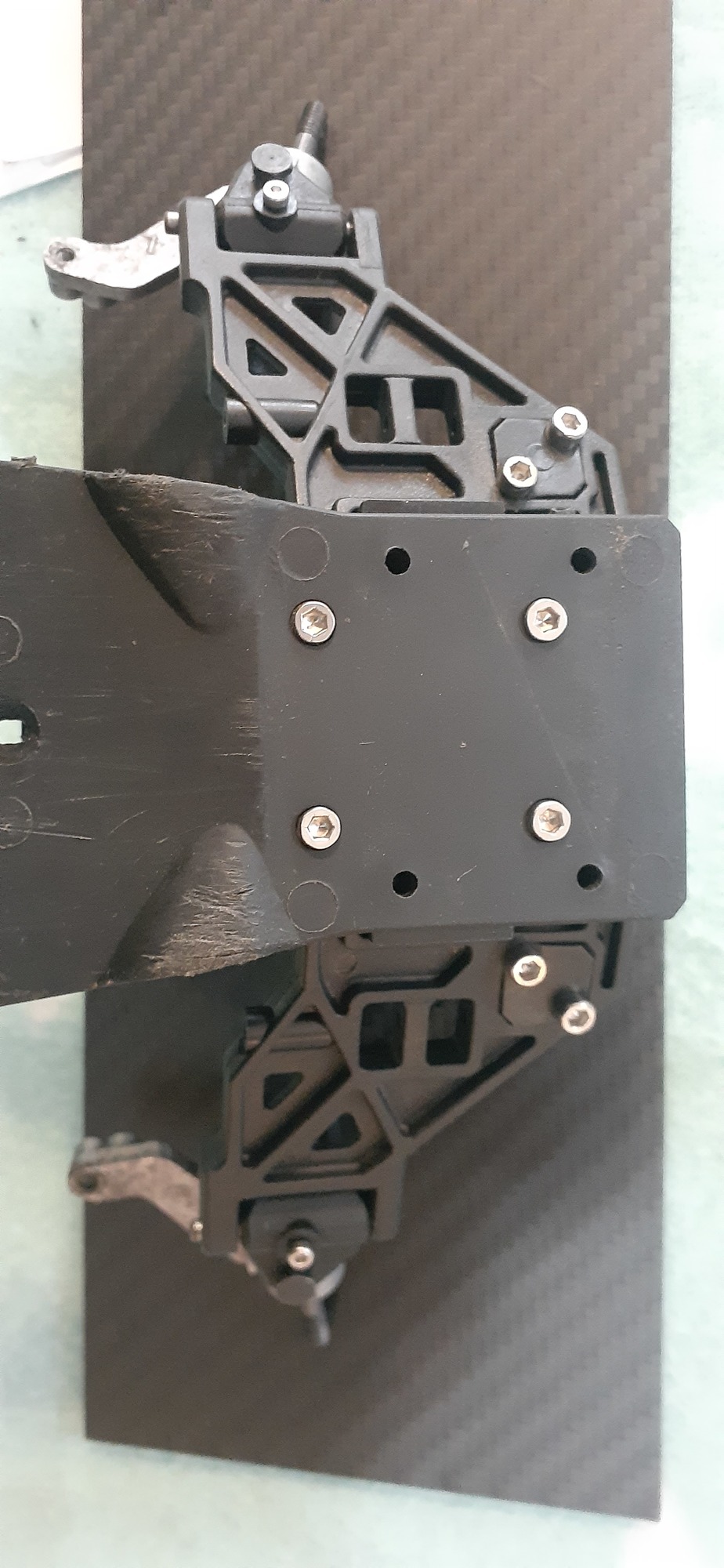

Other side, not really happywith the shocks yet
Attachments

User avatar
coxbros1
Approved Member
Posts: 2157
Joined: Mon Dec 24, 2018 1:50 pm
Location: Energy, Illinois
Has thanked: 1892 times
Been thanked: 1685 times

Re: Barn find Rocky

Post by coxbros1 »

I dig the project! I am bummed your not rockin a 240st motor tho.... :shock:
Tap pic for clarity: Derek

User avatar
cas22
Approved Member
Posts: 137
Joined: Tue Jan 31, 2017 11:03 am
Location: New Zealand
Has thanked: 29 times
Been thanked: 100 times

Re: Barn find Rocky

Post by cas22 »

I have got one here but iys in pretty sorry condition, ive been reading the posts about rere decals etc, but my can anodizing is quite faded

User avatar
coxbros1
Approved Member
Posts: 2157
Joined: Mon Dec 24, 2018 1:50 pm
Location: Energy, Illinois
Has thanked: 1892 times
Been thanked: 1685 times

Re: Barn find Rocky

Post by coxbros1 »

Might have to score one on Ebay if funds allow
Tap pic for clarity: Derek

User avatar
TheDiamondOne
Approved Member
Posts: 415
Joined: Fri Nov 12, 2010 7:26 pm
Location: Energy, IL
Has thanked: 1500 times
Been thanked: 381 times

Re: Barn find Rocky, belt drive conversion

Post by TheDiamondOne »

240 ST ONLY!
David, The artist formerly known as coxbros
