MIX21’ Cougar-ish

Post by Djerk »

Since i told last week, i am in Quarantine currently...
So, finished another project in between... ☺️

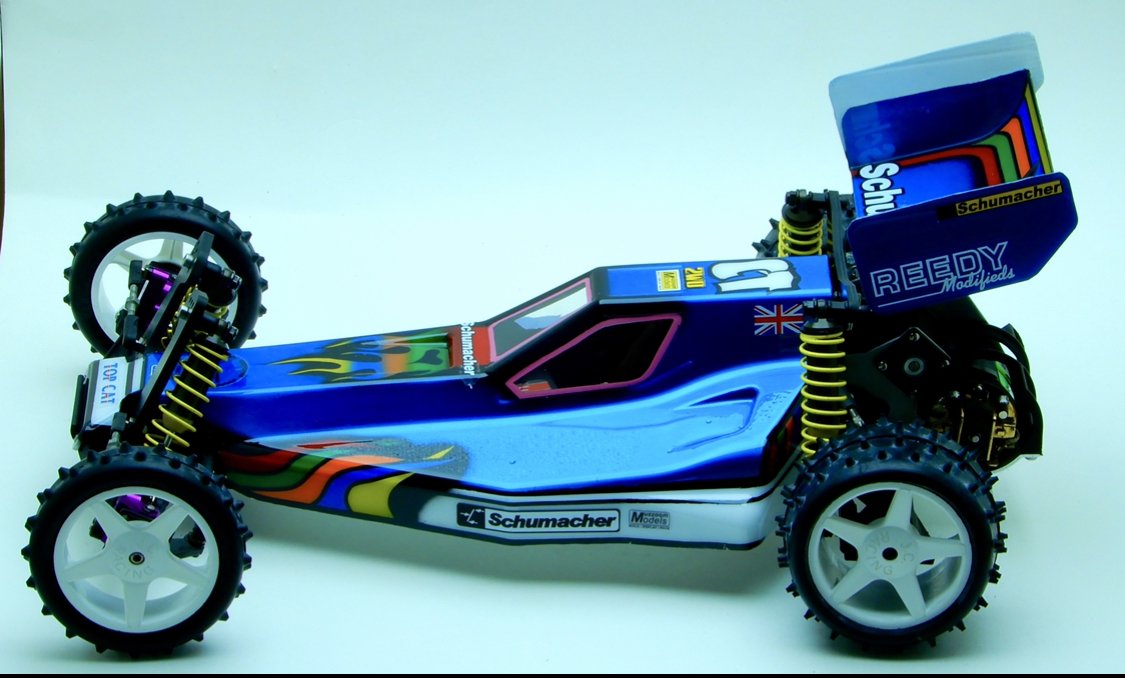

Meet the “MIX21’ Cougar”

I wanted to tribute the Masami NIX91’ but then Schumacher style-ish.. 😉
Maybe you hate it, maybe you love it.. that’s up to you!
Marshky did another design again for the front tower support and shocktower, which came out superb!! 👌🏼😁

If you want to build your own?
Parts will be available soon.

- tower support (3D printed)
- front shock tower
- rear shocktower (not on the pictures)

So... Not completely finished yet, but.. almost there! ✌🏼☺️
Attachments

Johnski
Regular Member
Posts: 1
Joined: Wed Mar 03, 2021 12:14 am
Has thanked: 2 times
Been thanked: 1 time

Re: MIX21’ Cougar-ish

Post by Johnski »

Love it! Paint job looks great to.
When do you think the parts would be available? Very interested in this

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: MIX21’ Cougar-ish

Post by Djerk »

Johnski wrote: Thu Mar 04, 2021 12:21 pm Love it! Paint job looks great to.
When do you think the parts would be available? Very interested in this
Thanks mate!
The parts will be available within 2/3 weeks.

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: MIX21’ Cougar-ish

Post by Djerk »

Here they are... finally!!

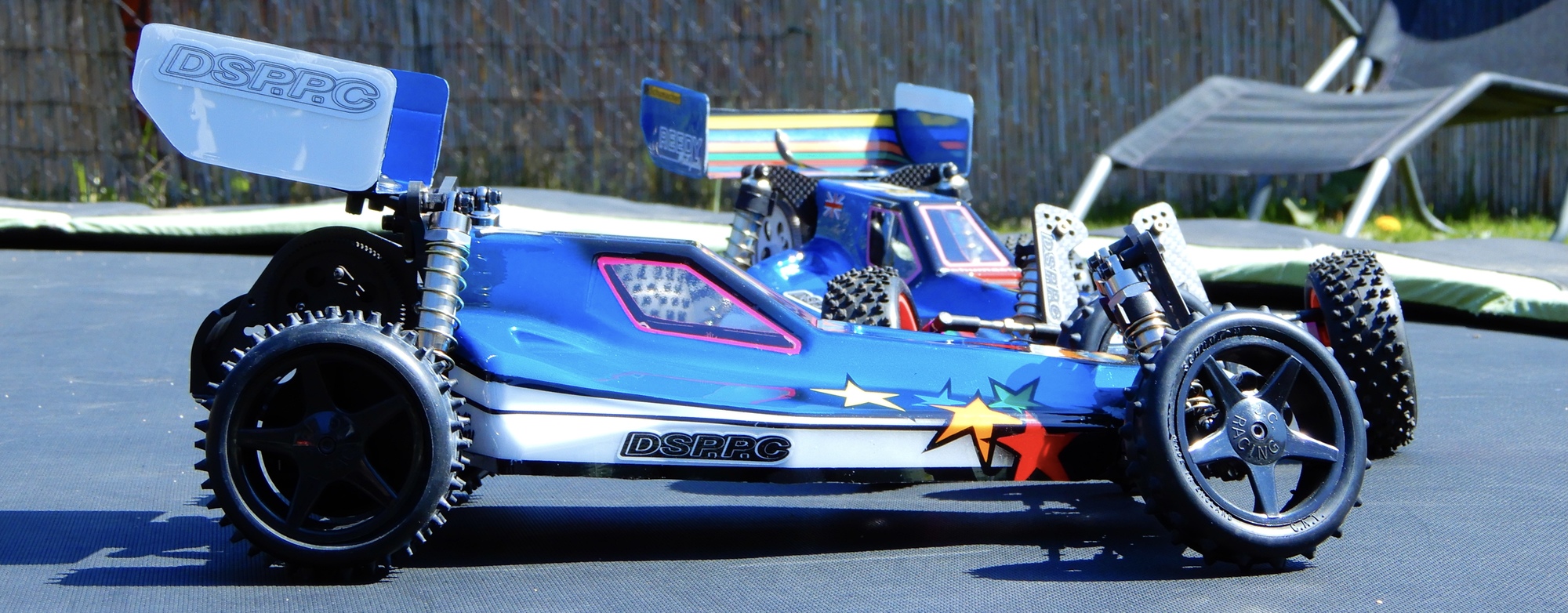

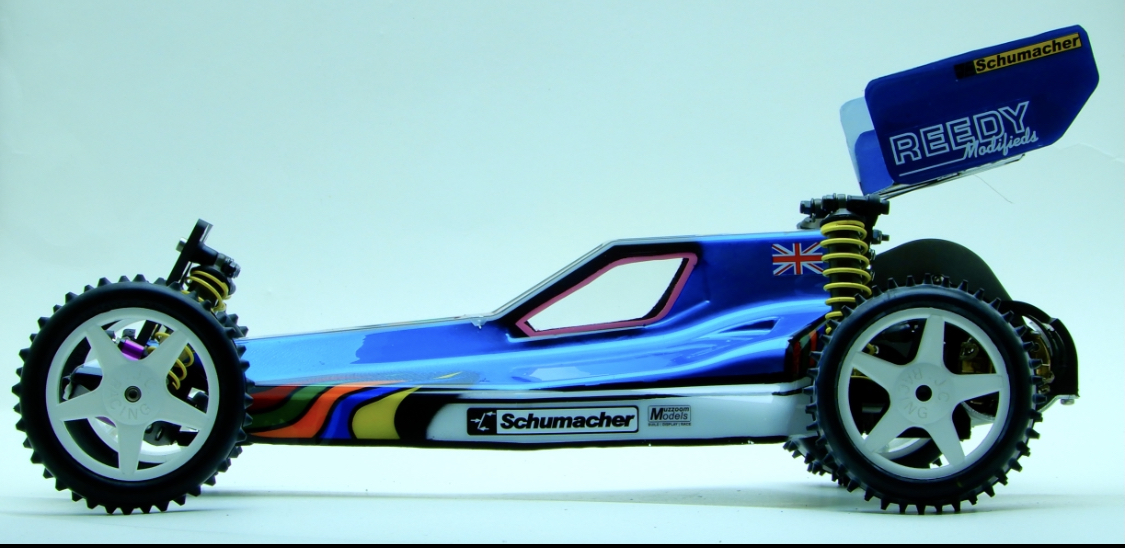

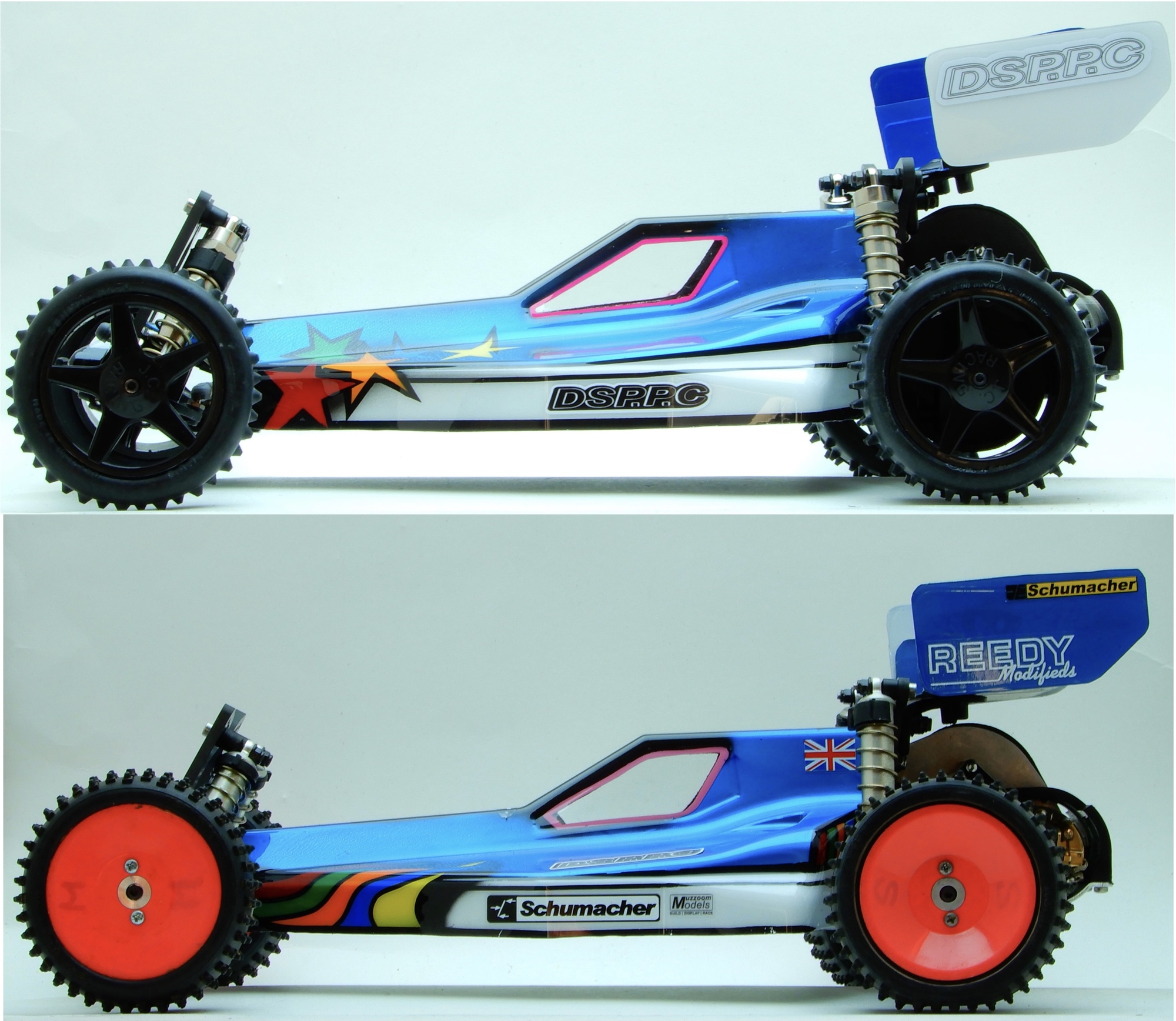

The two MIX21’ Schumacher Cougars!

The most of you have seen the pictures on the other Facebook groups i guess, so on this page a bit more detailed information to share.

We are working on the finalization of the prices for the “MIX21’ kits”.
It will include

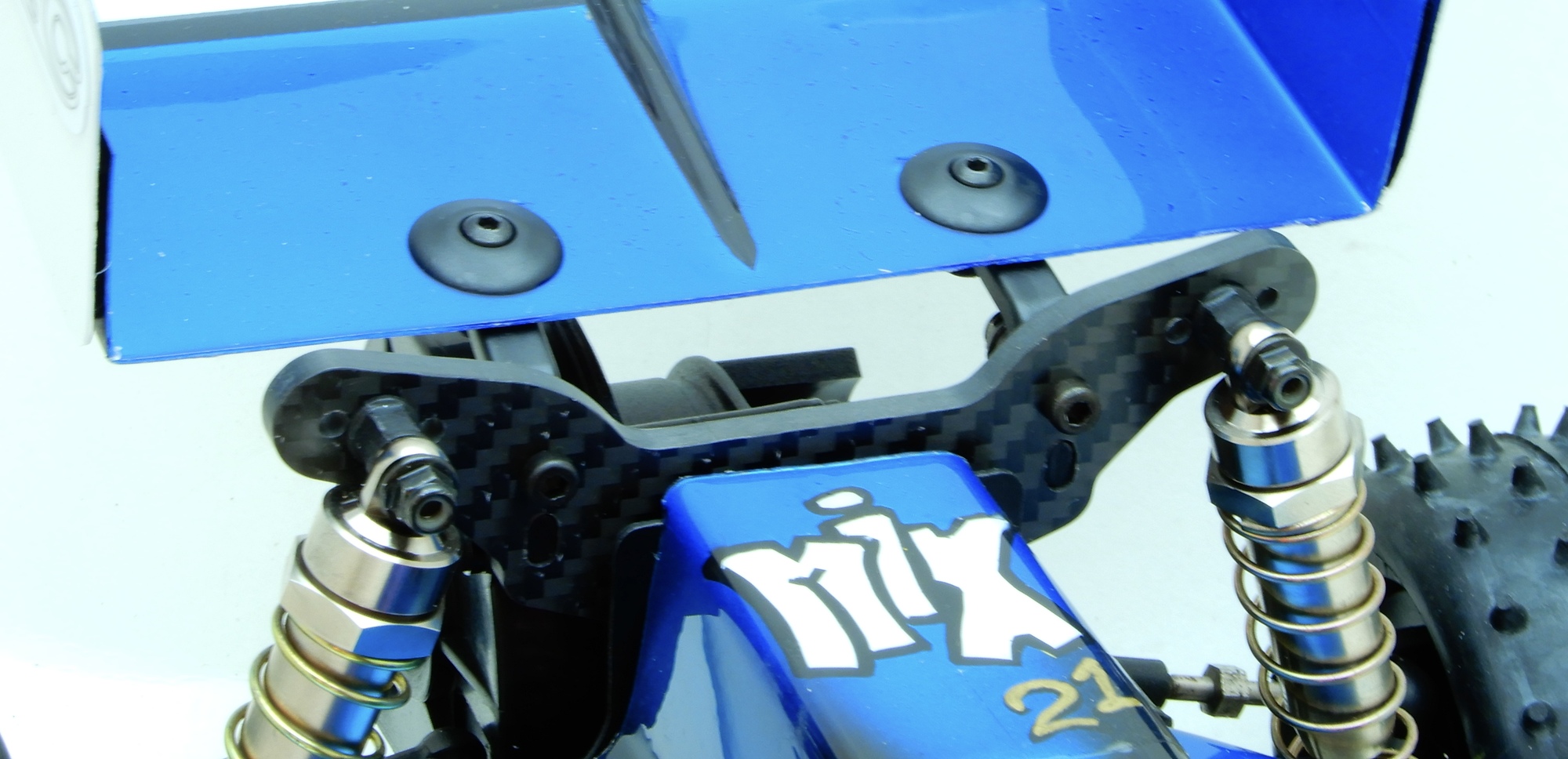

- front shock tower
- rear shock tower
- 3D printed front tower support
- screws and bit to mount.

You will need to order the wingmounts from Schumacher.
I would suggest U4377 or U7952.

If you are interested to buy the set, please wait until the pricing has been done, and i will post it here on this group.

And for the DSPPC EXP3 Mid, also the last steps are being fullfilled, with all the new updates. So more news coming soon!! ☺️
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: MIX21’ Cougar-ish

Post by Djerk »

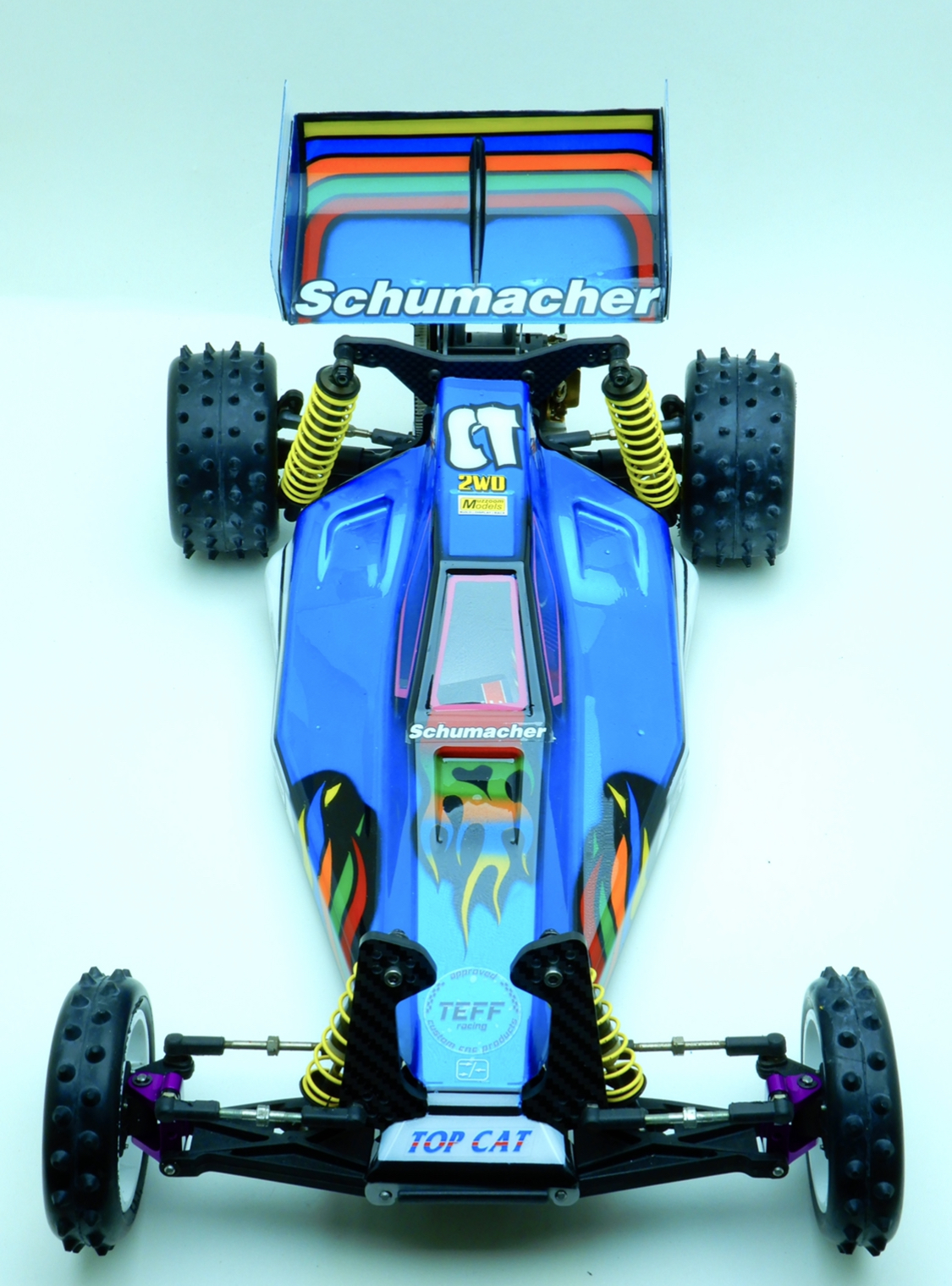

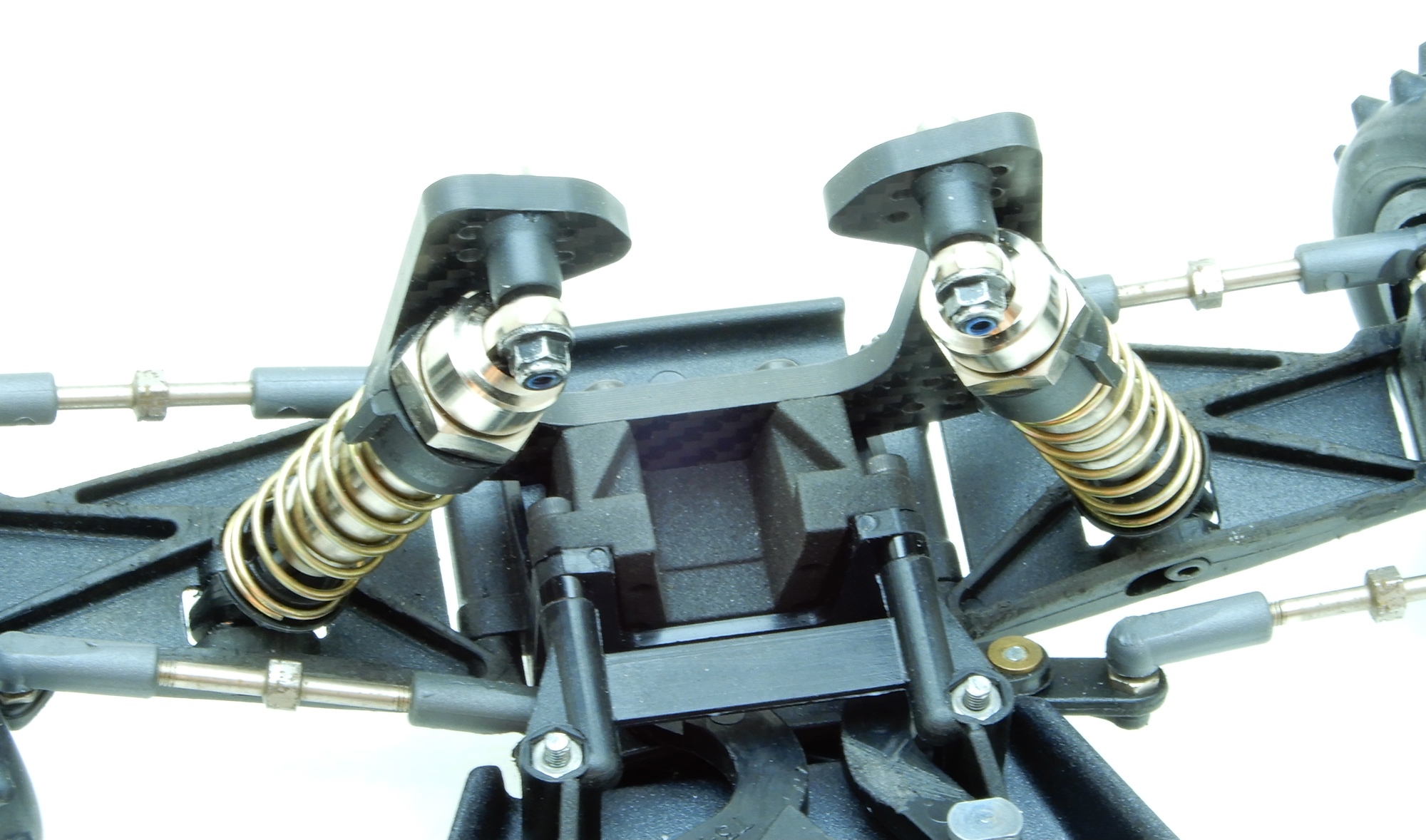

Some more pictures.
Attachments

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: MIX21’ Cougar-ish

Post by Djerk »

NEW DSPPC MIX21’ kits Available!!!

Here it is, the MIX21’ kit for Schumacher Cougars!
I have pre-produced 5 sets, to start the first batch.
(Only 2 sets left, when i posted this... 😳🙈😬)

The price is €79,50 per set (excl shipping from the Netherlands).

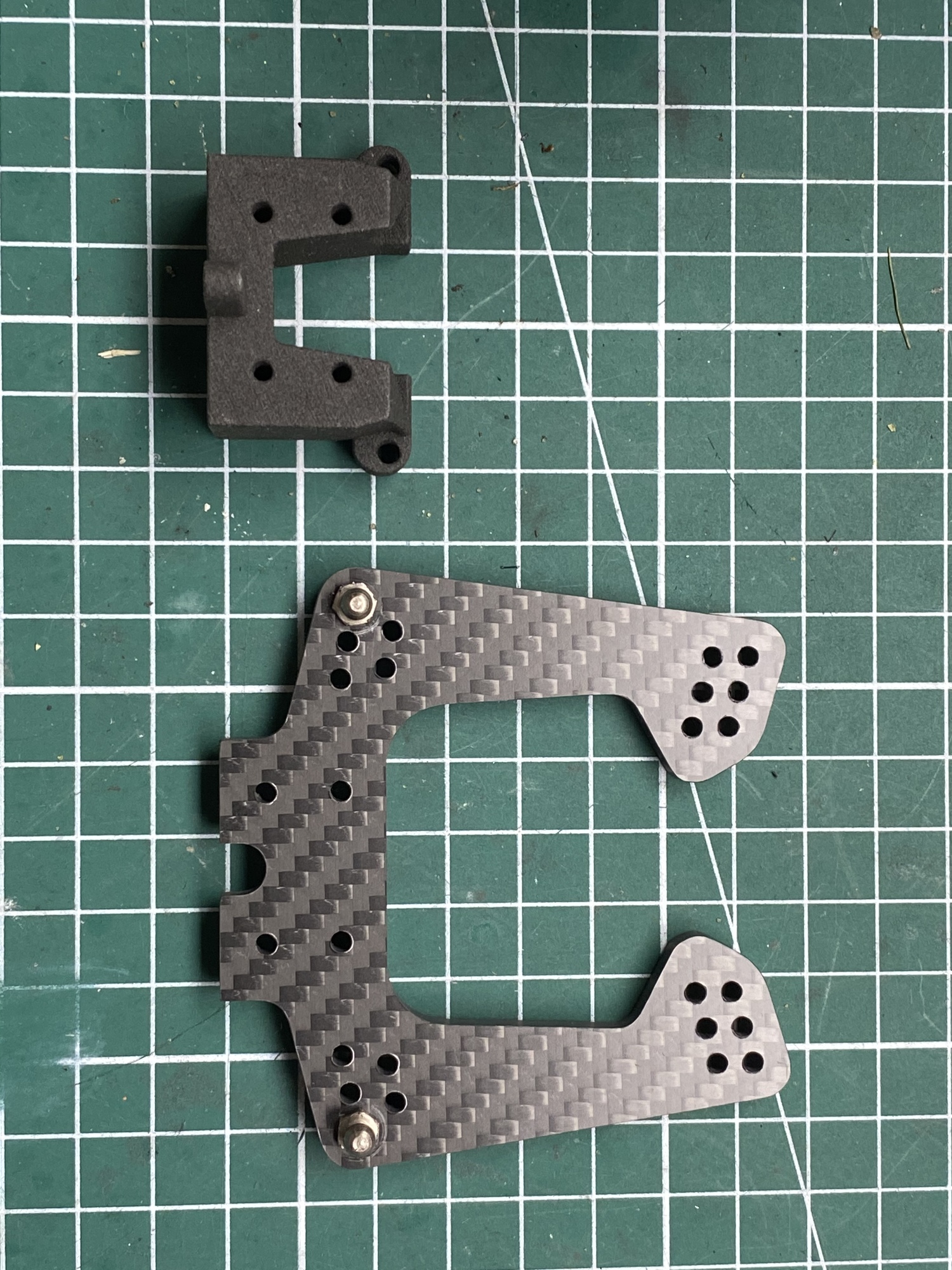

The kit contains:
- Front CF 4mm shock tower
- Rear CF 4mm shock tower
- Tower mounting brace 3D printed
- 15 Steel HEX screws
- 8 Stainless Steel locknuts
- 5 DSPPC decals
- Manual

All packed and labeled recording to the manual.

Additional parts you need or want:
• Top Cat body and wing U5141
• Wingmount U4377 (or U7952 when 10mm shallower or wider wing holes are wanted)

Please be aware, the Top Cat body needs to be cut in a different way as original for a good slick fit.

Recommendations for the shocks:
• Front shocks: Length between 76mm and 85mm (85 looks cool)
• Rear shocks, between 95mm and 105mm.
Standoffs need to be 7mm to 10mm on the front, and 7mm on the rear Rear.

New orders‼️
For the next batch, i need minimal 5 sets to order. Please feel free to subscribe to pre-order! I will ask for €30,- advanced payment, when no delivery, cash back (pinky promise!!)
Attachments

User avatar
KidAgain
Approved Member
Posts: 902
Joined: Fri Feb 01, 2019 7:11 pm
Location: So Cal
Has thanked: 276 times
Been thanked: 190 times

Re: MIX21’ Cougar-ish

Post by KidAgain »

Djerk wrote: Thu May 06, 2021 6:08 pm NEW DSPPC MIX21’ kits Available!!!

Here it is, the MIX21’ kit for Schumacher Cougars!
I have pre-produced 5 sets, to start the first batch.
(Only 2 sets left, when i posted this... 😳🙈😬)

The price is €79,50 per set (excl shipping from the Netherlands).

The kit contains:
- Front CF 4mm shock tower
- Rear CF 4mm shock tower
- Tower mounting brace 3D printed
- 15 Steel HEX screws
- 8 Stainless Steel locknuts
- 5 DSPPC decals
- Manual

All packed and labeled recording to the manual.

Additional parts you need or want:
• Top Cat body and wing U5141
• Wingmount U4377 (or U7952 when 10mm shallower or wider wing holes are wanted)

Please be aware, the Top Cat body needs to be cut in a different way as original for a good slick fit.

Recommendations for the shocks:
• Front shocks: Length between 76mm and 85mm (85 looks cool)
• Rear shocks, between 95mm and 105mm.
Standoffs need to be 7mm to 10mm on the front, and 7mm on the rear Rear.

New orders‼️
For the next batch, i need minimal 5 sets to order. Please feel free to subscribe to pre-order! I will ask for €30,- advanced payment, when no delivery, cash back (pinky promise!!)
Wow that came out great love the presentation also very professional......................
Visit Nostalgic RC in the business section or @nostalgicrc on Facebook for your custom RC10DS parts

Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44

User avatar
Djerk
Business Member
Posts: 63
Joined: Mon Aug 24, 2020 6:40 am
Location: Netherlands
Has thanked: 34 times
Been thanked: 69 times

Re: MIX21’ Cougar-ish

Post by Djerk »

The first 5 sets have been sold.

I will produce a next batch, when i have a minimum of 5 requests again.
Feel free to ask me anything, and if your interested i can put you on the list.

Once i have 5 requests, i will as for a €30,- downpayment, just to be sure you will buy it.

Regards, Dirk
