Brian obviously didn't like the red (could be a one-off)? from early-mid 91? Detroit car from August 91' with new(?) livery. Note the red trans case.

Worlds prototype XX.
Reedy Race non-prototype from a few months previous to Worlds (for context).

Source for blue screws.

https://factoryworks.com/shop/ols/products/9290screws

Here's the collection rundown.

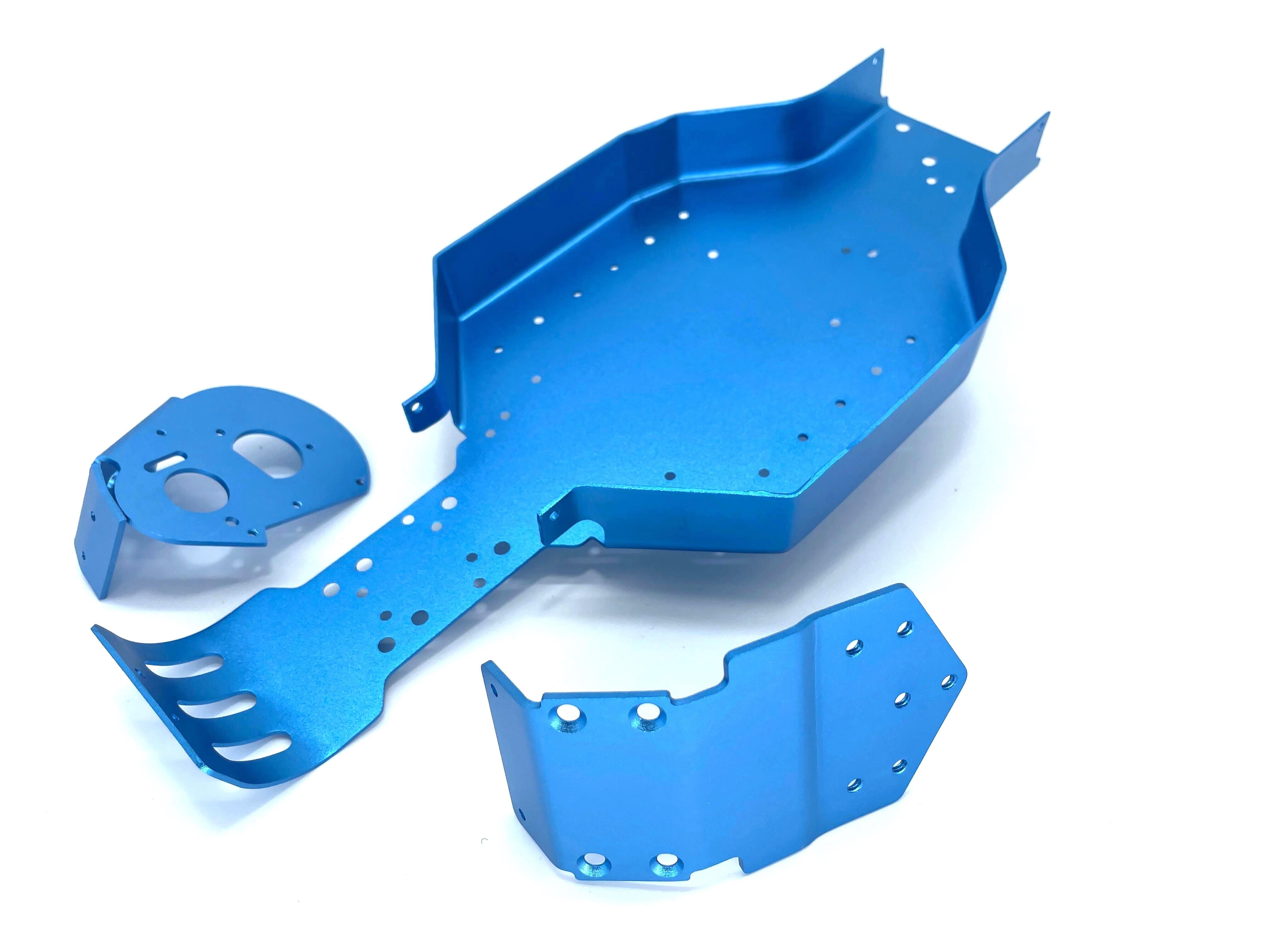

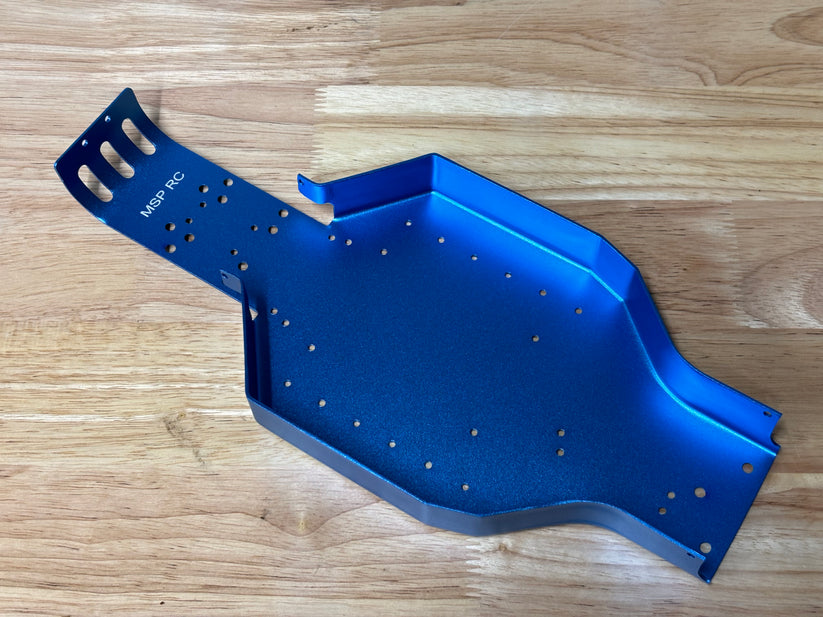

https://www.gofasthobbies.com/products/msp-rc10b1?variant=45173649244380 https://www.jcracingproducts.co.uk/rc10-wide-arm-bundle---pre-order

A few on here not on the list.

This might help with the wing setup?

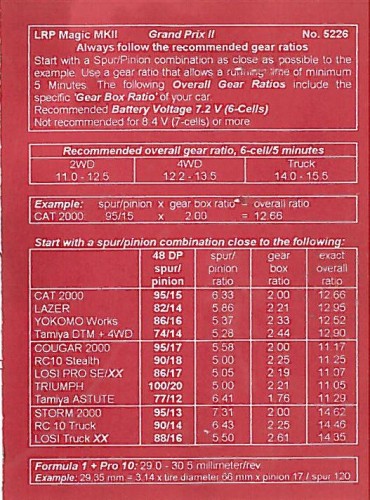

I'd say you'll be closer to a 33t pinion than a 23t. Remember those gearing recommendations in the manual are for 2.0" wheels, NiCd and 4-minute races. I believe the LRM trans is 2.18:1 ratio. 86/23 x 2.18 = 8.15 FDR 86/33 x 2.18 = 5.68 FDR Will a pinion that big fit?

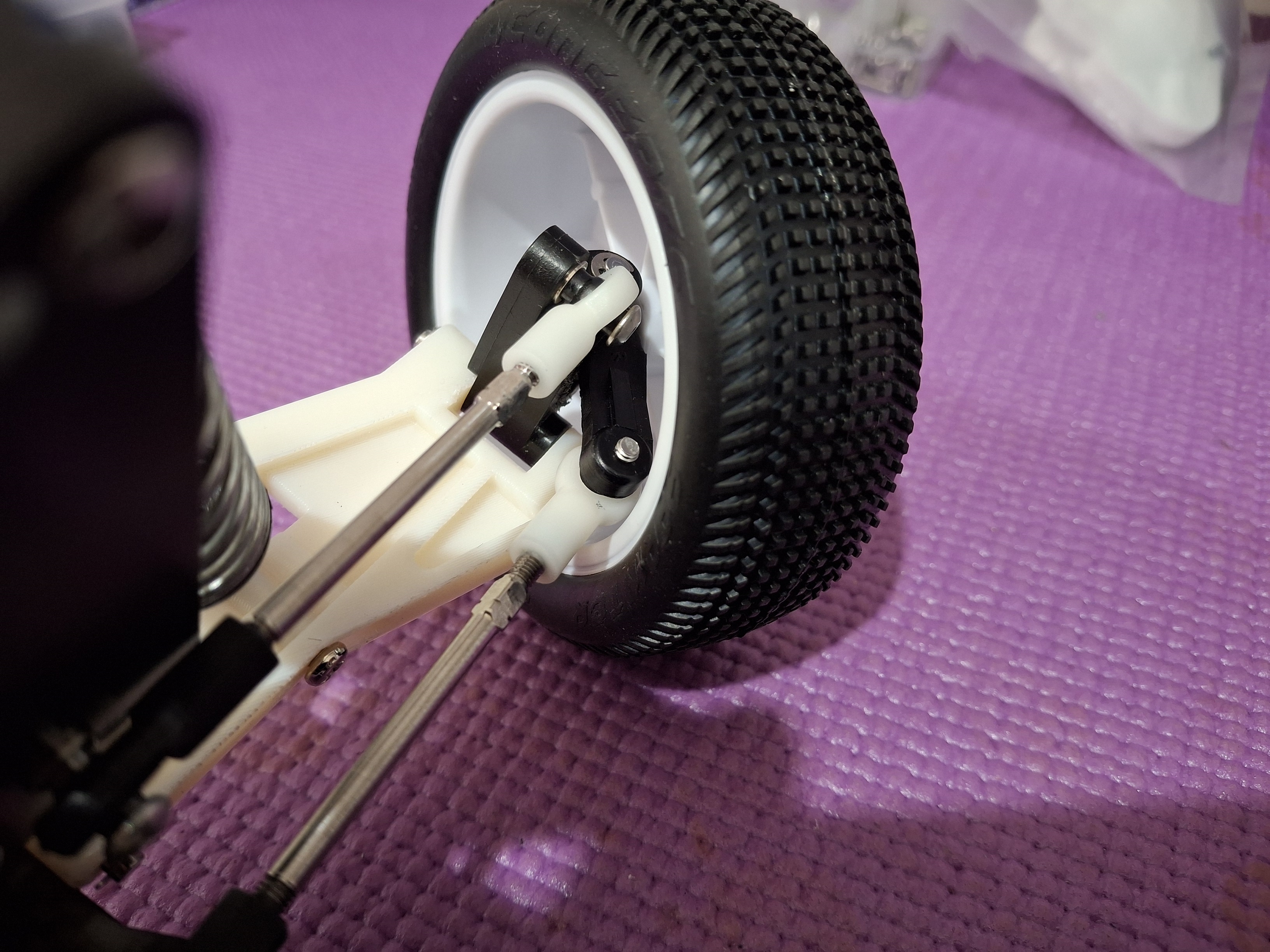

With the B-MAX2 front wheels, the front width is now 245mm, same as the rear. Just enough clearance from the Yokomo rod ends and arms throughout steering movement.

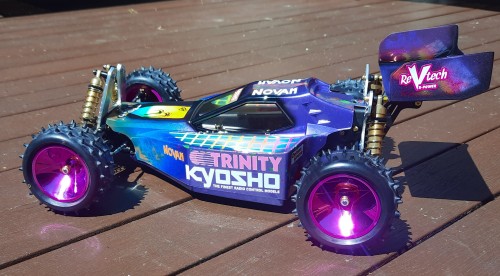

Orange and purple stuff. 8) Novak.jpg Novak ESC with cans. Not enough orange! ESC.jpg All this wiring for damn brushless? Motor.jpg Front width with the DT02 wheels is around 254mm. I have some BMAX2 wheels that take a 5x10mm bearing that I'll try. Rear width is 245mm with the Yokomo setup. Seeing o...

R6cowboy wrote: ↑Tue Oct 15, 2024 8:14 pm Anyone know what size wheel the Schumacher "Full Spike" 1/10 Buggy Rear Tires fit, part # SCHT650?? Are these 2.2", or something else?

They are 2.0".

Front clip done.

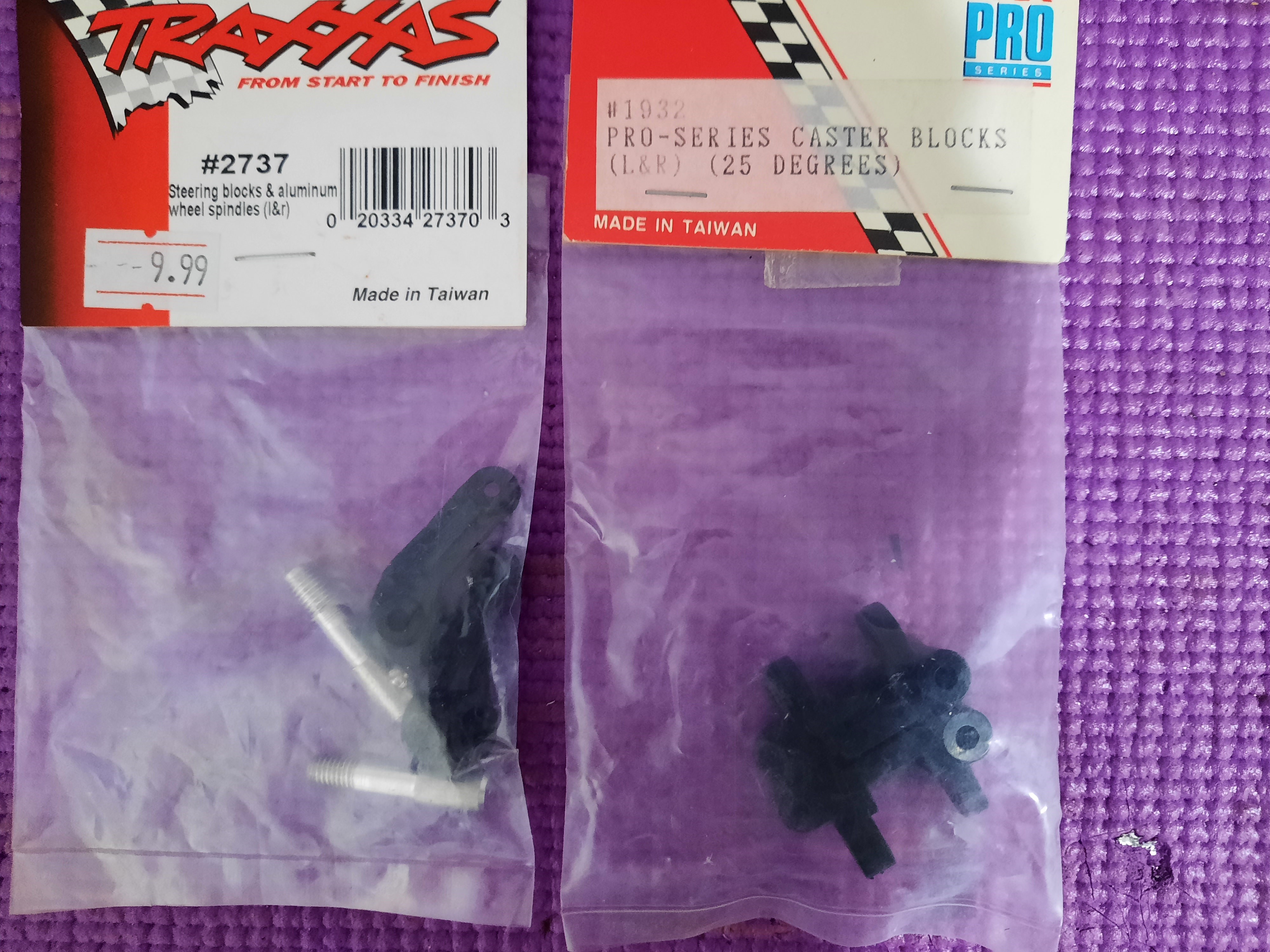

Mostly standard stuff. Some dremeling needed on the castor blocks.

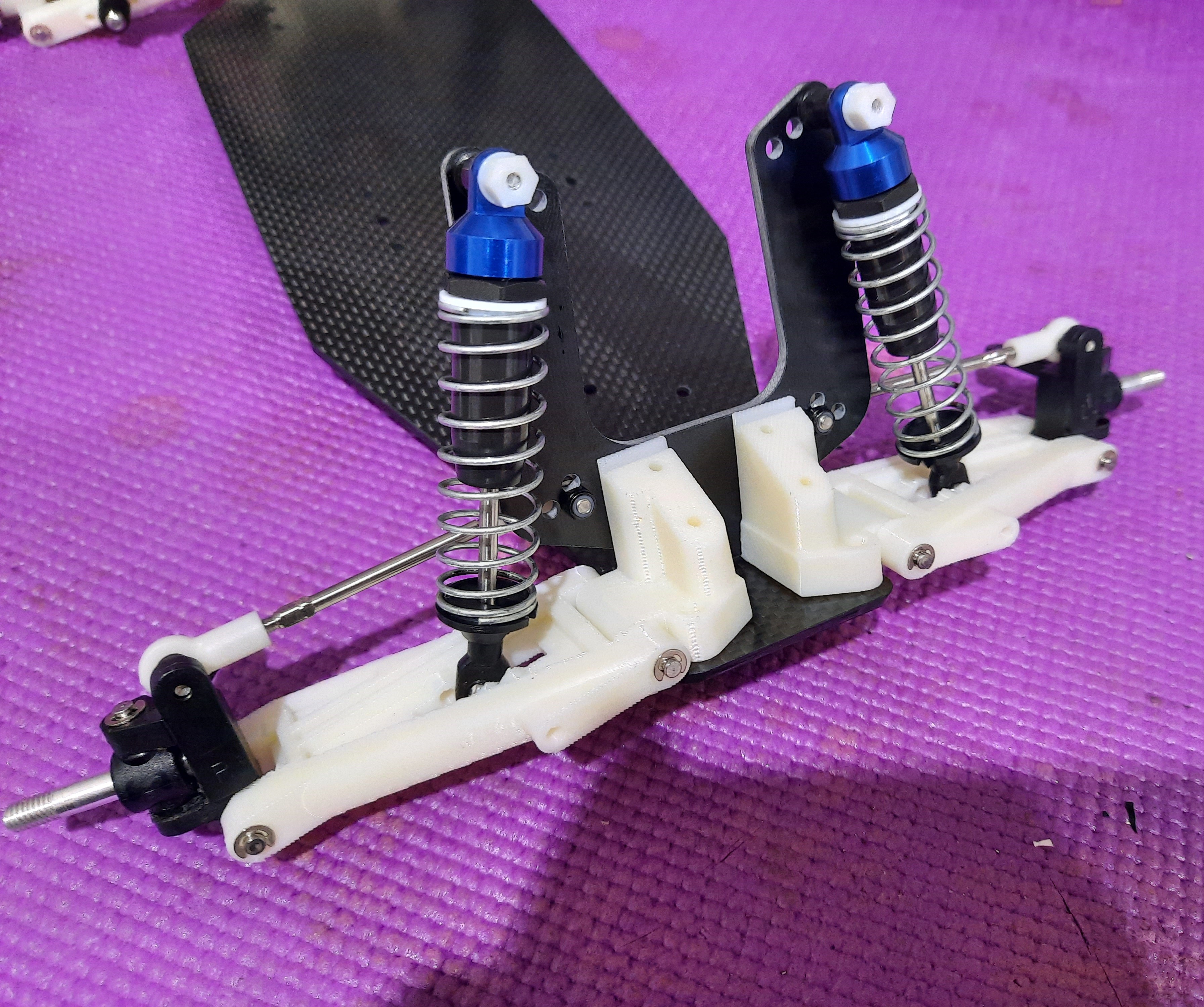

Back end's done. Quite a bit of fettling with the printed parts. The hinge pin holes were 3mm instead of 1/8" (3.18mm), so I had to ream those. The 5x11x4mm bearings wouldn't fit without some work. Traxxas rear arm mounts needed minor dremeling for outdrive clearance. Rear.jpg Best to use a goo...

So, bad news on the rerere 6565. I was waiting for you to chime in with some compatibility issue...thanks :lol: I was unable to get my fan transmission to spin smooth, I ran it for 2 hours on my drill press and it was better but still not good. Frustrating for sure With the above news, I had anothe...

I’m guessing the last picture is not your vehicle? That's my Team Car. Team Car[1].jpg Duh, I was gonna post about the trans brace addition (and did), then actually READ your entire post. Hey, no worries. Should have a custom top brace soon. 41mm centre-centre for the RC10 Stealth brace, extended t...
