RC10 four wheel drive project

[scr8p]

just throwing bugle's b3 into the mix......

http://www.rc10talk.com/viewtopic.php?f=35&t=8224&hilit=4x4+rc10b3

[Phin]

...I have a one-way on order that I'm hoping will work (and was cheap enough to take a shot at)...

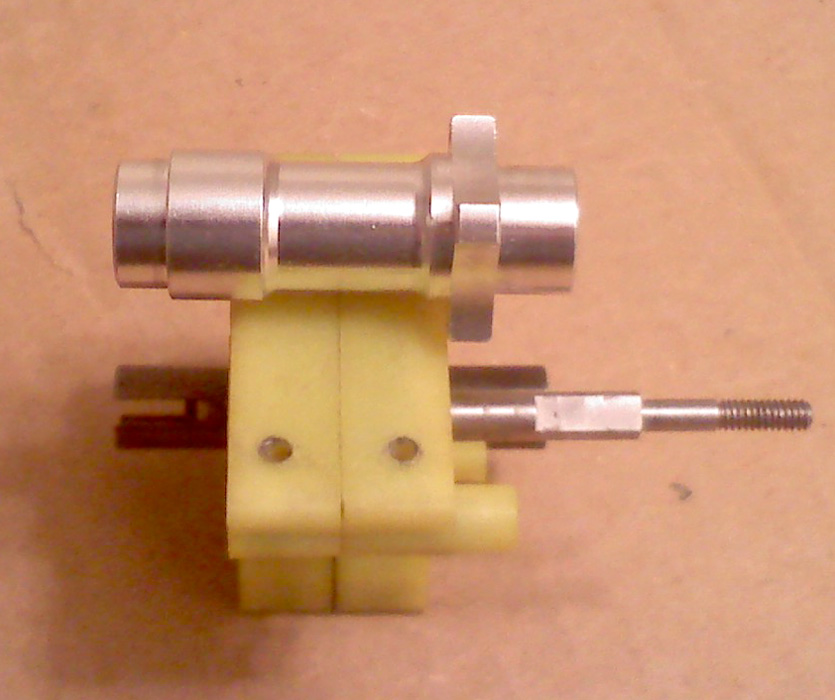

Looks like the one-way I ordered will work out well.

It's from a Mugen MTX-4 and as it's sitting in the pic is 21mm from the center line of the MIP Changebox case to each end of the one-way. The pulley on the one-way looks like it should line up well with a pulley mounted on the B4 top shaft. The stock pulley for this pulley is 28t but I believe Mugen has a 27t pulley for the MTX-5 that should fit and with a 12t pulley on the shaft it'll give a 2.25 ratio the same as a standard Stealth trans. I'm still undecided if I'll use the Stealth or use the MIP trans and go for an overdrive set up.
