New BBT Project

General discussion, builds/restorations, etc...

Moderators: scr8p, klavy69

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Re: New BBT Project

Post by scr8p »

i vote for short front arms. :wink:

tizeye
Approved Member
Posts: 1004
Joined: Thu Jan 01, 2009 11:00 pm
Location: Otago New Zealand
Been thanked: 1 time

Re: New BBT Project

Post by tizeye »


User avatar
RedScampi
Approved Member
Posts: 2157
Joined: Sat Aug 30, 2008 7:35 am
Location: Bonney Lake, WA

Re: New BBT Project

Post by RedScampi »

God, yes. I'm drooling. This is how these projects get out of hand...
Gary

User avatar
murphy3428
Approved Member
Posts: 579
Joined: Mon Oct 06, 2008 11:19 am

Re: New BBT Project

Post by murphy3428 »

the hot trick chassis wouldn't work with out having to make tabs to mount the main frame. But the hot trick chassis does great I have one that I built into an oval it came out really nice. You could always grab some carbon fiber and cut out a new chassis just use urs as a template

User avatar
rc10johnny
Approved Member
Posts: 1304
Joined: Sun Sep 27, 2009 6:48 pm
Location: Richmond Va.
Been thanked: 1 time

Re: New BBT Project

Post by rc10johnny »

RS, Ive got a set of front HOT TRICK arms left over.If ya want LMK . JohnnySr.

User avatar
RedScampi
Approved Member
Posts: 2157
Joined: Sat Aug 30, 2008 7:35 am
Location: Bonney Lake, WA

Re: New BBT Project

Post by RedScampi »

Thank you for the offer. I will keep it in mind.
Gary

User avatar
Bent
Approved Member
Posts: 514
Joined: Mon Jan 05, 2009 1:22 am
Location: Warsaw Texas (pop. 316)

Re: New BBT Project

Post by Bent »

Hey scampi any update.
You run me in the grass imma run you in the wall, drive like a racer not a flippin idiot

THIS PLACE ROCKS!!!!

User avatar
RedScampi
Approved Member
Posts: 2157
Joined: Sat Aug 30, 2008 7:35 am
Location: Bonney Lake, WA

Re: New BBT Project

Post by RedScampi »

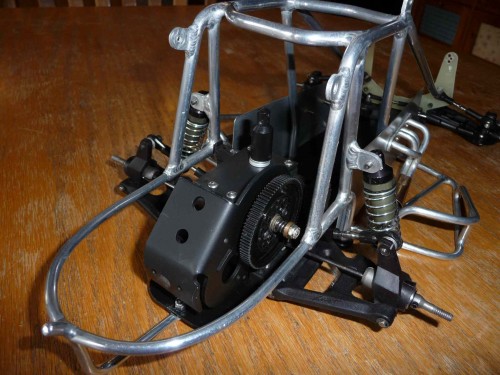

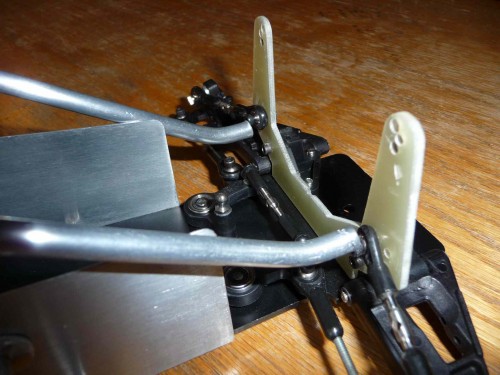

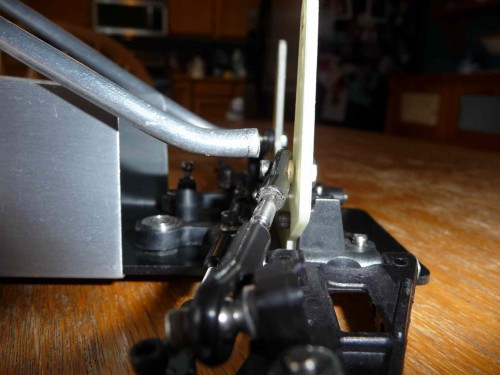

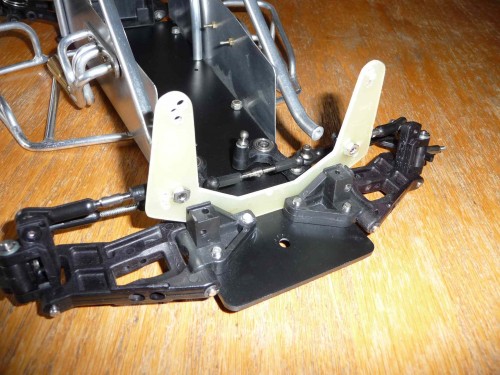

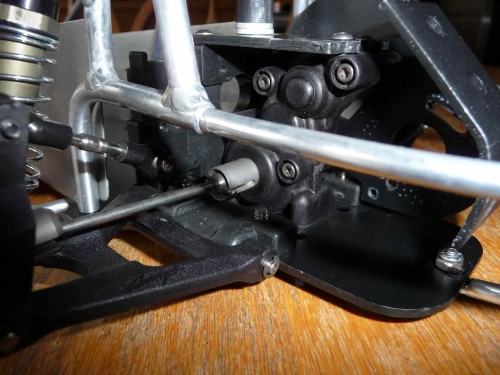

After a long hiatus on this project I finally have something to share. I spent some time today screwing this together. I am having a couple of weird fit issues though. Having never had one of these I am not sure how the suspension is supposed to be set up. On the rear suspension specifically I have had to move the connecting rod to the bottom hole in order to obtain clearance to the roll cage. This puts the rod at a weird angle but does not cause any binding issues. I assumed that short shocks are the norm on the rear of these cars but you can see it pulls the rear arm up at about a 15 degree angle. Is this normal or ok? Should I be using a longer shock? Also while your looking at the back end notice how far out towards the end of the outdrive the dogbone is riding. It goes inside a bit farther with shock compression but still bugs me. One more issue, now at the front of the car. Look how far the ends of the down tubes are from the shock tower. I still haven't drilled this shock tower for connecting but any attempt to pull this gap together results in enormous preload and warpage of the chassis. Is it possible that among other issues I have the wrong chassis for this car? I know that this car is a mishmash of parts so my assumption is that this was an Ascot chassis or something else that was a bit longer.
Attachments
Gary

tizeye
Approved Member
Posts: 1004
Joined: Thu Jan 01, 2009 11:00 pm
Location: Otago New Zealand
Been thanked: 1 time

Re: New BBT Project

Post by tizeye »

My Vindicator chassis is exactly 14" long if that helps ... I'm fairly certain that the Desperado and the Vindicator shared the same chassis ... I'm only saying that because I turned my Desperado into a Vindicator no problems at all..hope this helps

tizeye
Approved Member
Posts: 1004
Joined: Thu Jan 01, 2009 11:00 pm
Location: Otago New Zealand
Been thanked: 1 time

Re: New BBT Project

Post by tizeye »

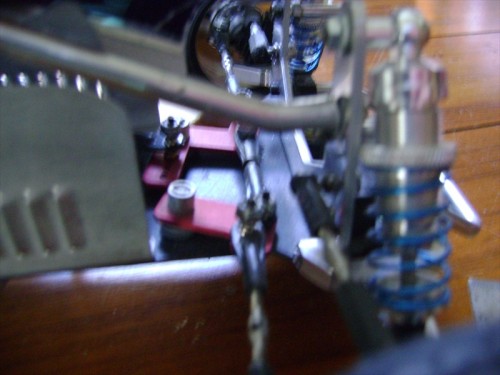

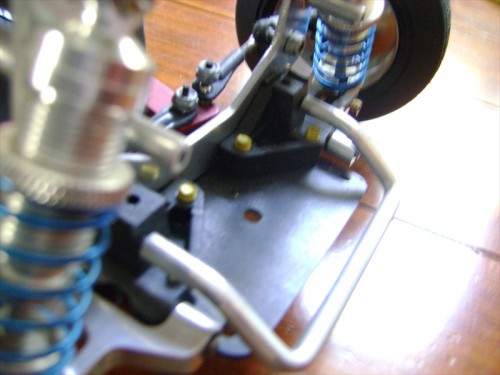

Sorry about the quality but here's my front end..
Attachments
RC10bear 175.jpg
RC10bear 174.jpg

User avatar
RedScampi
Approved Member
Posts: 2157
Joined: Sat Aug 30, 2008 7:35 am
Location: Bonney Lake, WA

Re: New BBT Project

Post by RedScampi »

Thanks for the information and the photos. I am very perplexed now. :? I measured my chassis and it comes in at just under 14 inches. Hmmm.
Gary

tizeye
Approved Member
Posts: 1004
Joined: Thu Jan 01, 2009 11:00 pm
Location: Otago New Zealand
Been thanked: 1 time

Re: New BBT Project

Post by tizeye »

I think I can see at least part of the reason why mine fits ... I made my shock tower out of a piece of alloy I had sitting around ..it appears thicker than the one you are using..

User avatar
murphy3428
Approved Member
Posts: 579
Joined: Mon Oct 06, 2008 11:19 am

Re: New BBT Project

Post by murphy3428 »

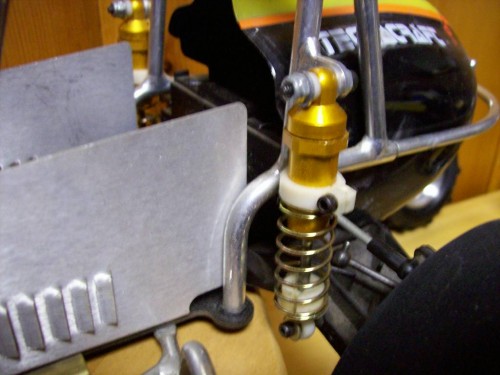

here is the rear shock view of my vindicator
Attachments

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Re: New BBT Project

Post by scr8p »

scampi, it seems to me that your down tubes have been bent down, and the ends kicked back up. thus, making the down tubes too short. hard to tell, but that's how it looks to me.

as for your rear camber rods, drill a hole down lower on the hub carrier closer to the hub. then you can trim off the top (or leave it as is). this will allow you to raise the inner rod to help reduce the neg. camber issues and not hit the rear bumper.

the rear shocks should be the .71's.

tizeye
Approved Member
Posts: 1004
Joined: Thu Jan 01, 2009 11:00 pm
Location: Otago New Zealand
Been thanked: 1 time

Re: New BBT Project

Post by tizeye »

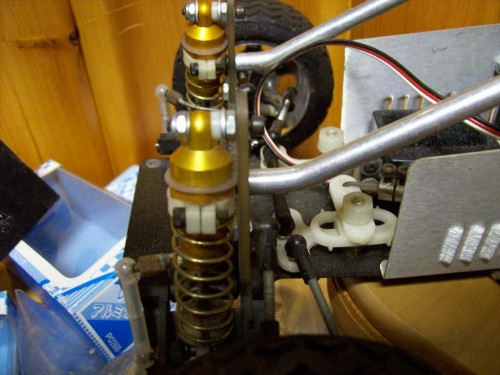

And mine
Attachments
RC10bear 177.jpg
