My 2012 Vonat Builds (2WD) (02/18/12)

[knucklebuster]

nice job!

[m_vice]

This car looks awesome, very nice work.

[Norman]

what kinda cvd's did you use?

thanks!

[nvxwax]

what kinda cvd's did you use?

thanks!

B44 Rears

[Norman]

thanks!

[klavy69]

what kinda cvd's did you use?

thanks!

B44 Rears

B44 Rears? Did you mean b44 fronts or did you do something out of the norm to get the rears to work? Thanx
Todd

[nvxwax]

what kinda cvd's did you use?

thanks!

B44 Rears

B44 Rears? Did you mean b44 fronts or did you do something out of the norm to get the rears to work? Thanx
Todd

I think i used the rears, The fronts are to long from what i can remember.

Im building two almost identical cars,

The First car is built with (Car Pictured)

Associated R Cva Kit:B44 ASC9756
http://www.ebay.com/itm/180636585751?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2649

TEAM LOSI Part # A 2038 Rigid rear hubs h arm a2025
http://www.ebay.com/itm/290589850695?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2649


The second car is built with

Associated R Cva Kit:B44 ASC9756
http://www.ebay.com/itm/180636585751?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2649

RPM Carriers w/o Ball Bearings RC10GT RPM70272
http://www.ebay.com/itm/180652586811?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2649

[nvxwax]

More pics later 2nite

[nvxwax]

Ok here are the builds as they sit, I still have a few parts to source but they are almost done, I also have to order some chassis bracel from A&L, Then i get to figure out what to do with the bodys lol.

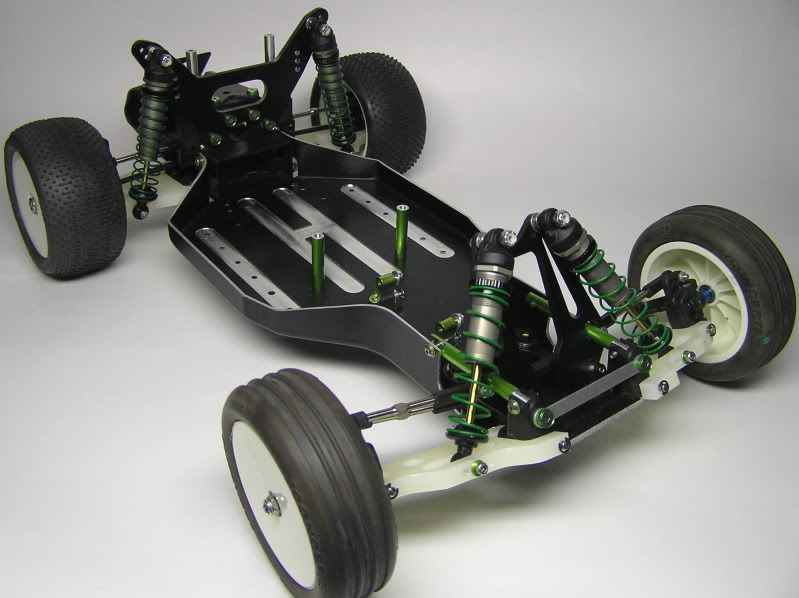

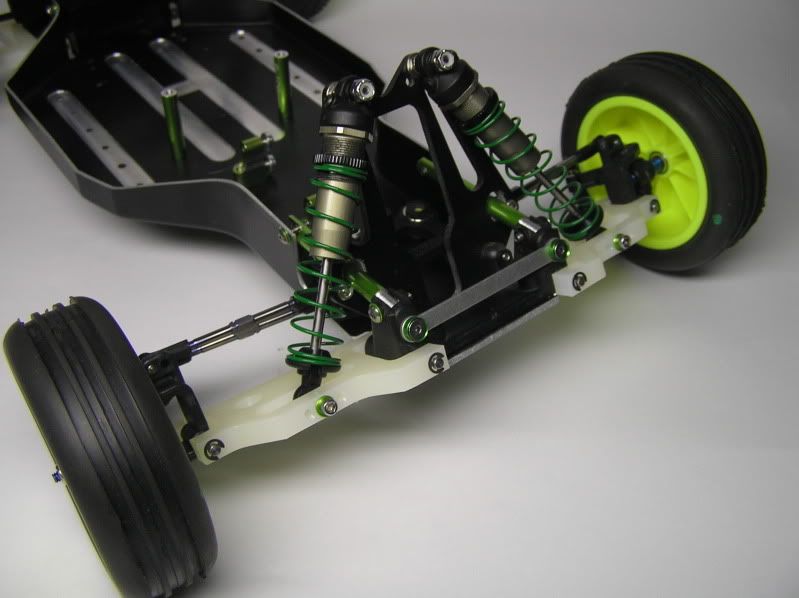

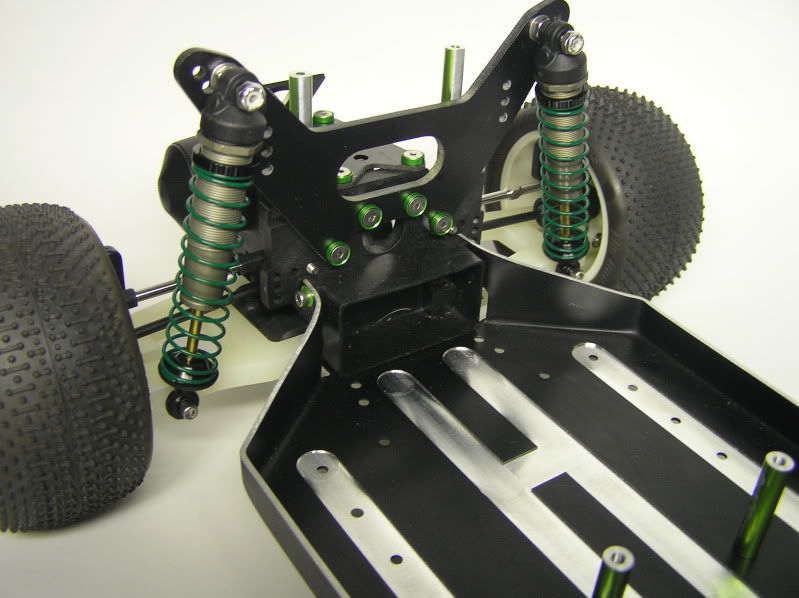

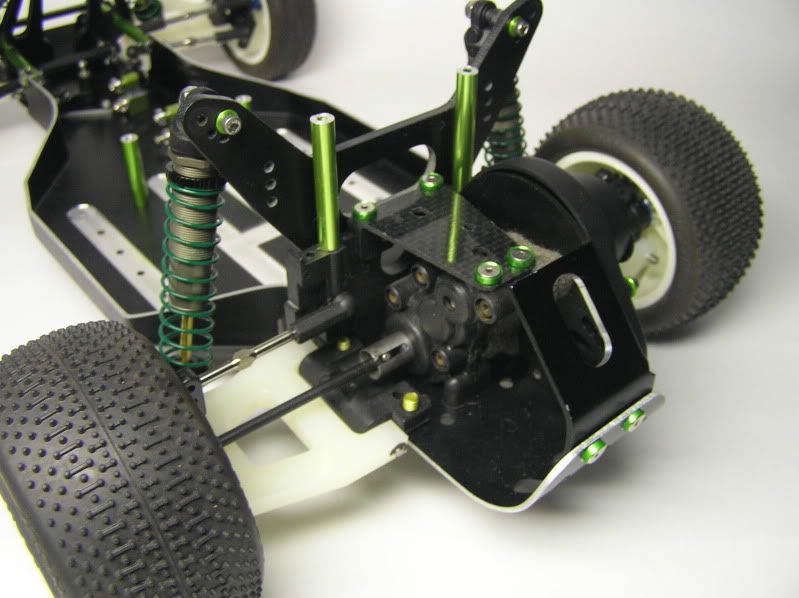

Shelf Build

Chassis
6302 Chassis (Black) Milled and Trimmed
7305 Truck nose plate (Black) Milled and Trimmed
6593 Team car Trans Brace
Custom Nose Tubes (Axial Green)
Custom Wing Tubes (Axial Green)
Lunsford Punisher Associated B4 Titanium Turnbuckle Kit

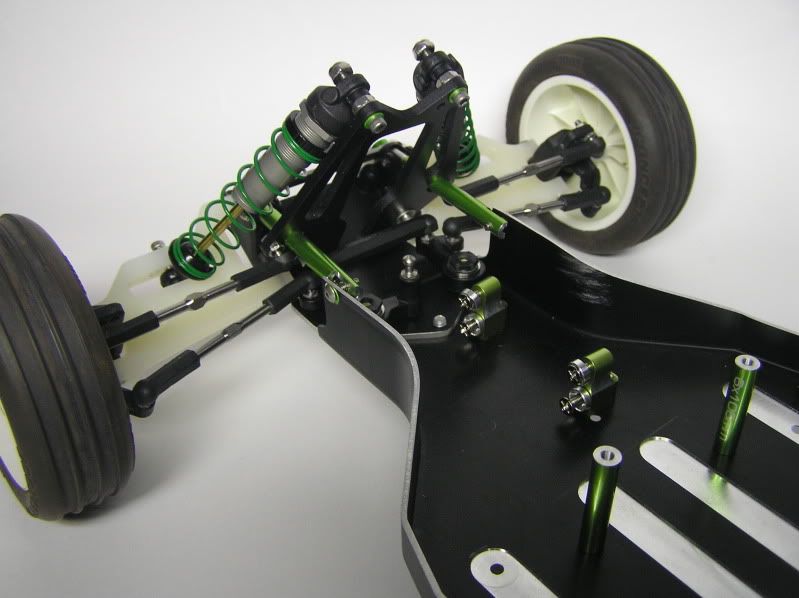

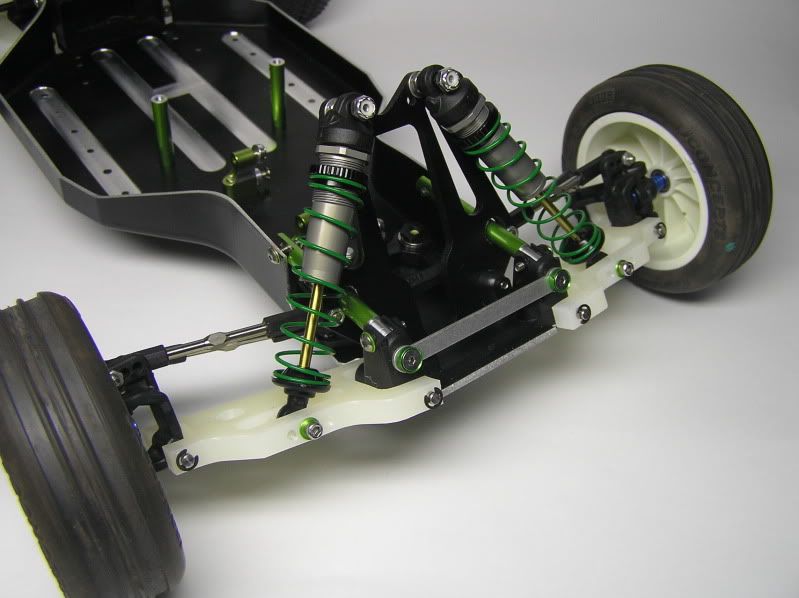

Front
2701 Dynotech front suspension arms
7207 RC10T Front Bulkhead (Black)
7215 RC10T2 Front SHock Tower
9580 B4 Caster block 25 degree
9577 B4 Steering Blocks Inline
7222 B4 Front Wide Axles
2660 Proline B4 Front Wheels
9633 RC10T Threaded Team Shocks 1.02

Rear
2700 Dynotech rear suspension arms
6323 RC10T Rear Bulkhead (Black)
7353 RC10T Rear Shock Tower
9756 B44 Rear CVD
9608B B4 wheel spacers
2038 Losi H arm rear carriers
CSW7208 Custom Works Rear Wheel Spacer .125"
2667 Proline B4 Rear Wheels
9634 RC10T Threaded Team Shocks 1.32

Trans
2.25 Stealth (White)
B4.1 Transmission Slipper Clutch

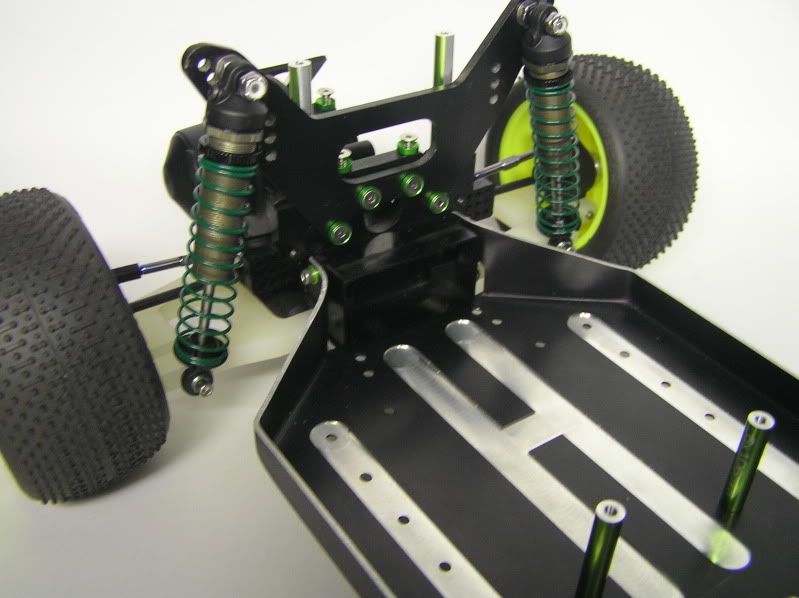

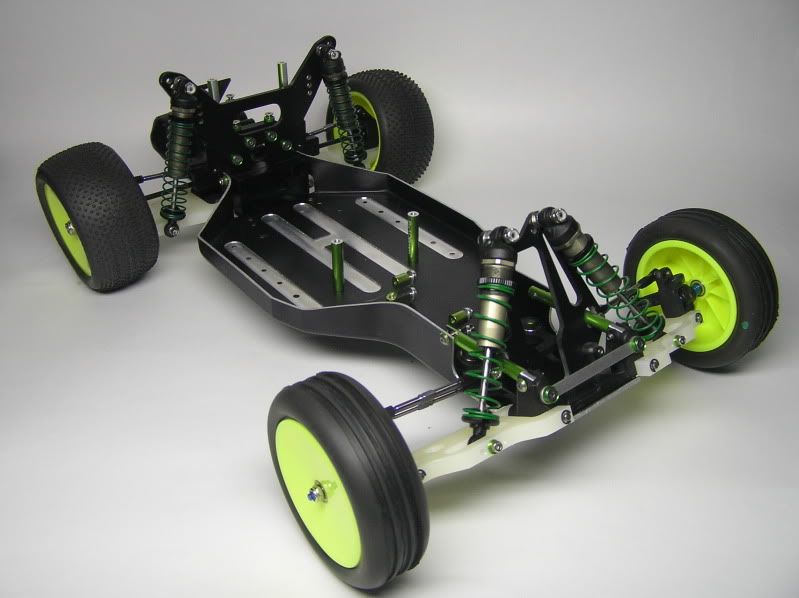

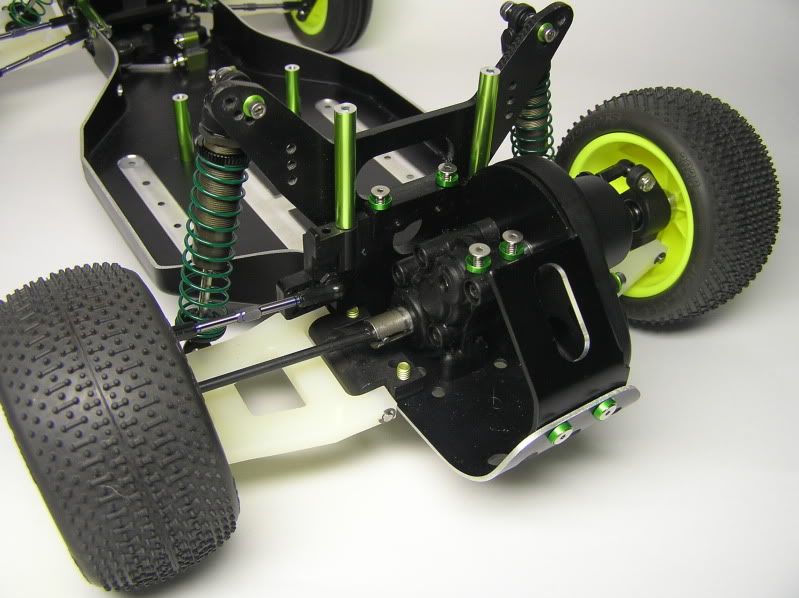

Runner Build
I still need to find a trans brace, Mind the crazy castor on the wheels, i have a set of Turnbuckle on order to replace the temps lol.

Chassis
6302 Chassis (Black) Milled and Trimmed
7305 Truck nose plate (Black) Milled and Trimmed
6593 Team car Trans Brace
Custom Nose Tubes (Axial Green)
Custom Wing Tubes (Axial Green)
Lunsford Punisher Associated B4 Titanium Turnbuckle Kit (On Order)

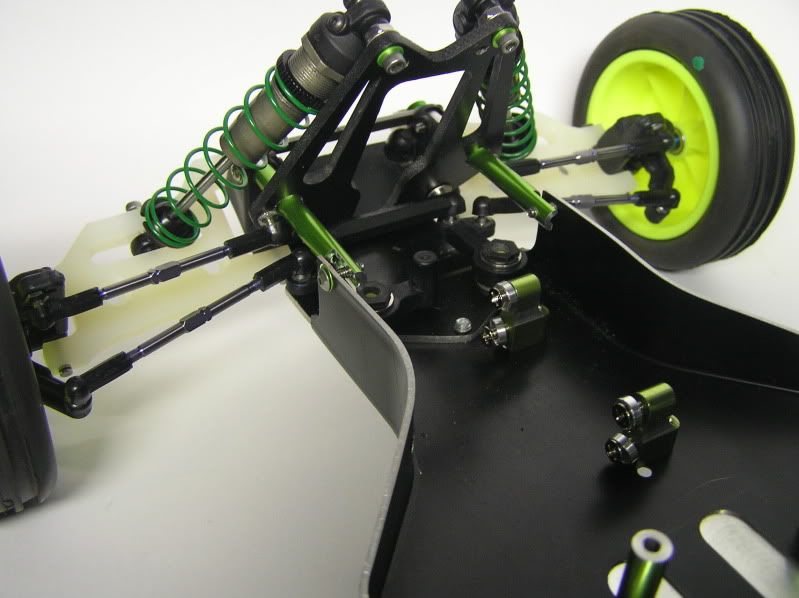

Front
2701 Dynotech front suspension arms
7207 RC10T Front Bulkhead (Black)
7215 RC10T2 Front SHock Tower
9580 B4 Caster block 25 degree
9577 B4 Steering Blocks Inline
7222 B4 Front Wide Axles
9688 B4 Front Wheels (Yellow)
9633 RC10T Threaded Team Shocks 1.02

Rear
2700 Dynotech rear suspension arms
6323 RC10T Rear Bulkhead (Black)
7353 RC10T Rear Shock Tower
9756 B44 Rear CVD
9608B B4 wheel spacers
70272 RPM RC10GT rear carriers
CSW7208 Custom Works Rear Wheel Spacer .125"
9689 B4 Rear Wheels (Yellow)
9634 RC10T Threaded Team Shocks 1.32

Trans
2.25 Stealth (White)
B4.1 Transmission Slipper Clutch

[Seabass]

Very nice man, we need a pic of them together, LOL.

I bet these cars have really broke the bank. I remember building my red one, I was nickled and dimed to death on it and I only built one.

So what is the decision on paint? You know I have plans to go to the 2012 vonats. Will bring a couple cars with me.

Jake

[nvxwax]

Very nice man, we need a pic of them together, LOL.

I bet these cars have really broke the bank. I remember building my red one, I was nickled and dimed to death on it and I only built one.

So what is the decision on paint? You know I have plans to go to the 2012 vonats. Will bring a couple cars with me.

Jake

lol, I will get a group picture as soon as i get the turnuckles installed, I have to drag out the light box.

Im not sure what im going to do for paint, i know they will have a perl lime green, im thinking the green, white and silver paint

If all goes well i might build some kind of 4 wheel drive for the VONATS

[Norman]

wow. super sick looking rc10's. this is making me want to rethink my rc10 lol

[nvxwax]

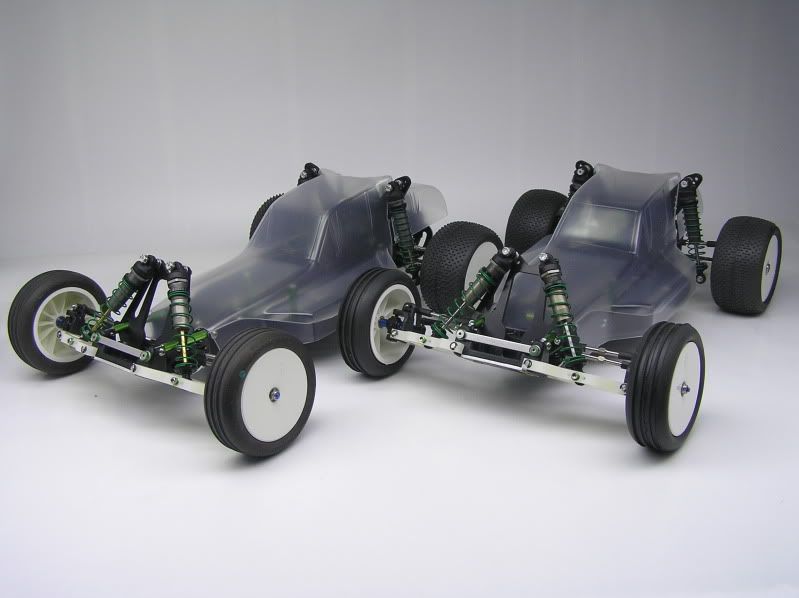

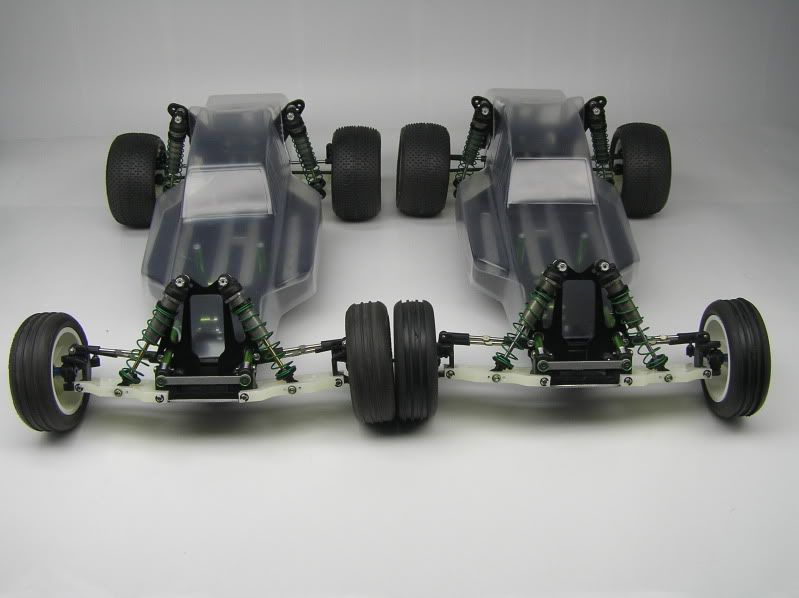

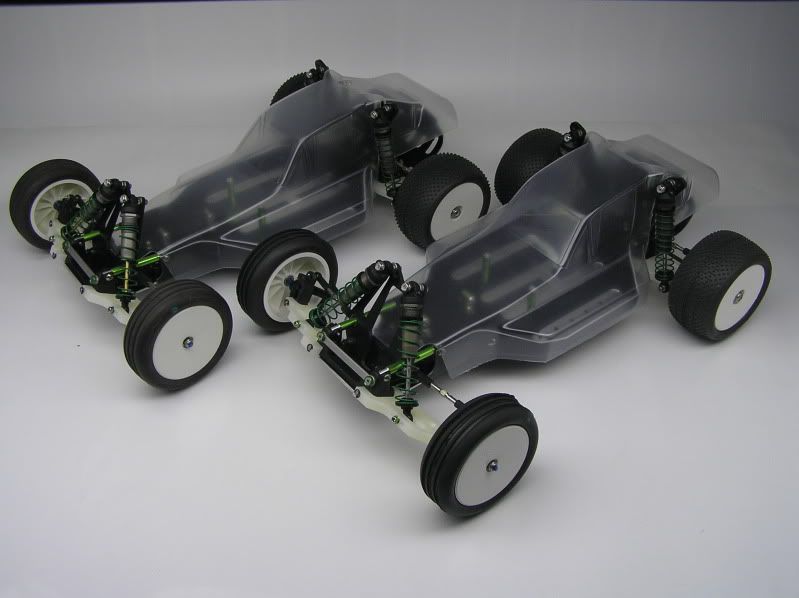

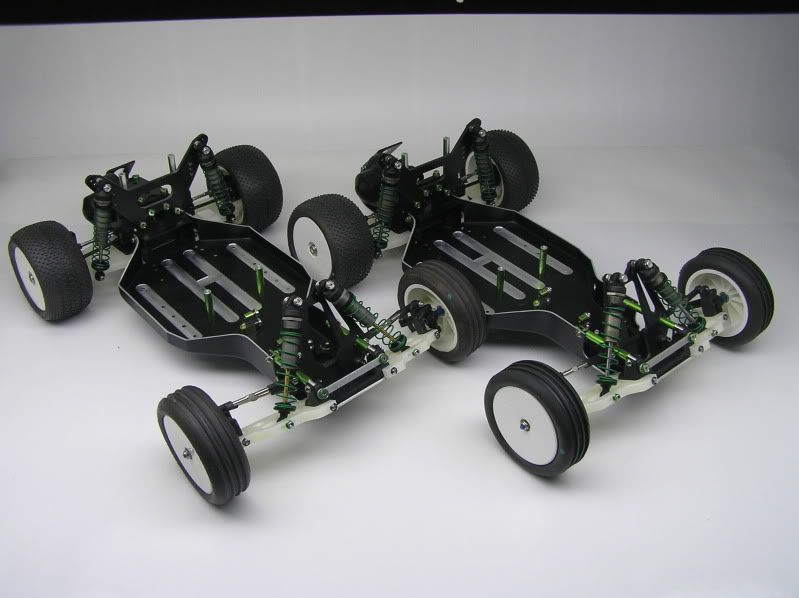

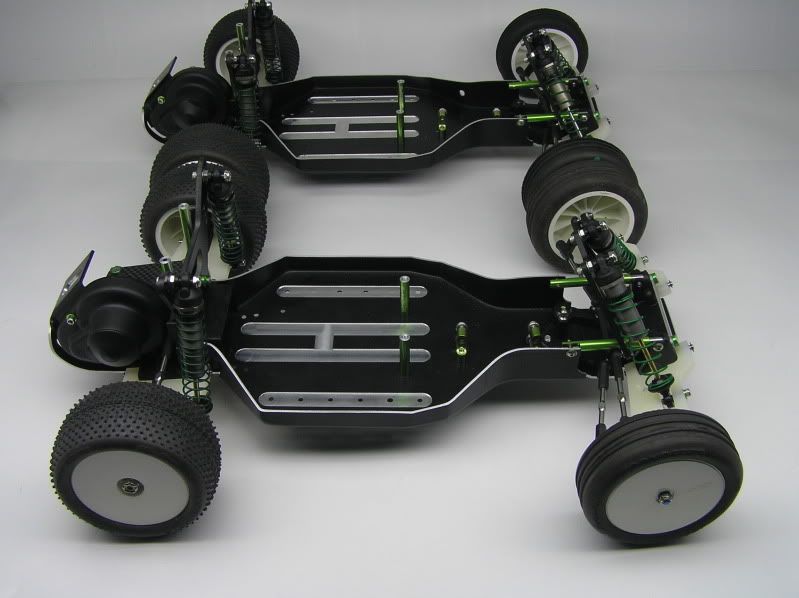

Ok here are some group shots of my old new cars, The only thing i have left to do is get two chassis stiffeners, Adjust all the turnbuckles, Add wings, electronics, and paint the bodys (i hate painting lol, i might have to wait till summer for some warm weather)

[aeiou]

It's the double mint (green) twins.

Once again, great work!

[THEYTOOKMYTHUMB]

WOW! One for you and one for me! Thanks buddy!
