My Kyosho Pro-X

[fbruechert]

Hello,
I am new here and show now once my Kyosho Pro-X which I just restore.



[RedScampi]

Cool, welcome to the forum! There are a couple of those buggies floating around in here. I have one I restored and there is another new in box. What version is your car?

[fbruechert]

I already saw that. Your Pro-X very already became. Mine is also the sport-version. The difference to the team are however only ball bearings and the tie rods.
I lack the upper plate above the servo and the gear covering.

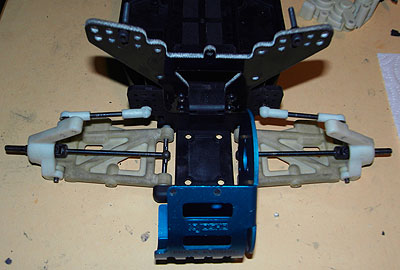

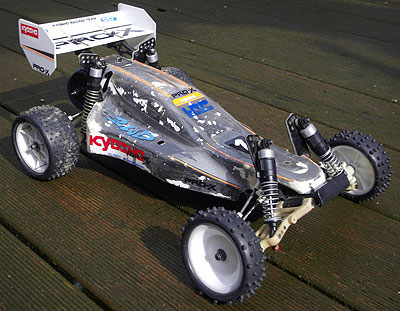

My Pro-X looks like this now.







[RedScampi]

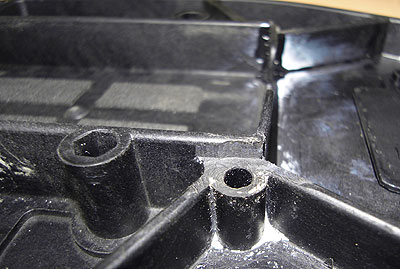

It appears that your rear upper plate support is broken much the same as mine was. Do you still have the upper part of it? You could probably fabricate a post and drill a hole through the chassis bottom, then use a long screw from the bottom to fasten the top plate.

[fbruechert]

I do not have the upper part unfortunately. I myself will manufacture that. I wanted to renew the editions just the same as you did it.

[fbruechert]

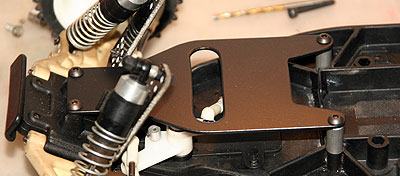

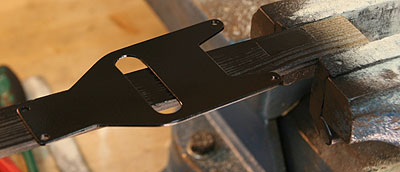

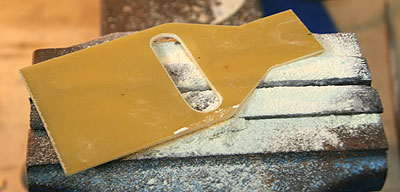

I turned 8 mm of aluminum onto measure and put continuous M4 on threads. So I can attach the measuring rods from the chassis underside by means of flat-head screws and screw on the selfmade upper deck from abov.



[RedScampi]

Wow! Very nice job on that. Do you have access to a mill or was the top plate made with a router?

[fbruechert]

@RedScampi
Everything handiwork.





[bearrickster]

Very nice work! I miss mine, I should have kept it but oh well thats how it works sometimes.I have very nice Losi XXcr to replace it thats a little more to my likeing? Very Nice build very clean work

[fbruechert]

@bearrickster

To thanks!

[Brandon G]

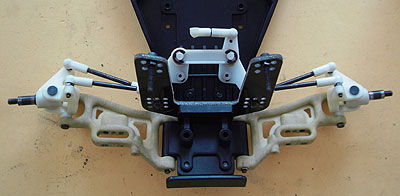

Nice work on the front plate. Very tidy.

You need the Aluminum shocks as well to turn it into the "Team" car.

[Mr. ED]

very nice handwork indeed: did you use a jigsaw and files, or the trusty dremel or ???

Those plastic shocks are actually very good. Their design is almost a direct copy of the gold shocks. Unless you plan to race this car every weekend for a year or longer I'd save the money on the shocks and use it for good quality electronics

[fbruechert]

I think, the plastic shocks suffice for me.
I drilled, sawed and filed. I do not own a Dremel. So I will manufacture also the accu holder.

[Mr. ED]

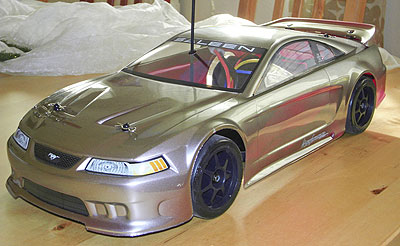

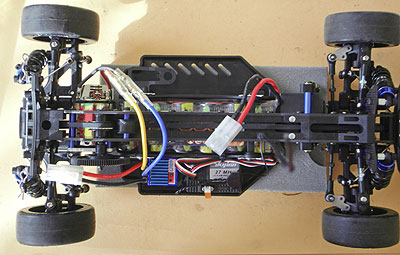

just noticed your signature says you have a KX-one also; too cool.

[fbruechert]

I have. That is my favorite onroad car.
