KO PROPO CX-III esc manual

Post by Bormac » Wed Apr 25, 2012 12:58 am

Hi guys.
I have an old CX-III esc, and was wondering if anyone might have access to a manual which they might consider posting up a scan of.
Any help would be appreciated.

Thank you- Jason

-Jason.

Still known as- bormac

My collection-http://www.tamiyaclub.com/showroom.asp?id=10980

scr8p: Administrator; Posts: 16405; Joined: Wed Feb 08, 2006 2:46 am; Location: Northampton, PA; Has thanked: 26 times; Been thanked: 845 times

Re: KO PROPO CX-III esc manual

Post by scr8p » Wed Apr 25, 2012 3:54 pm

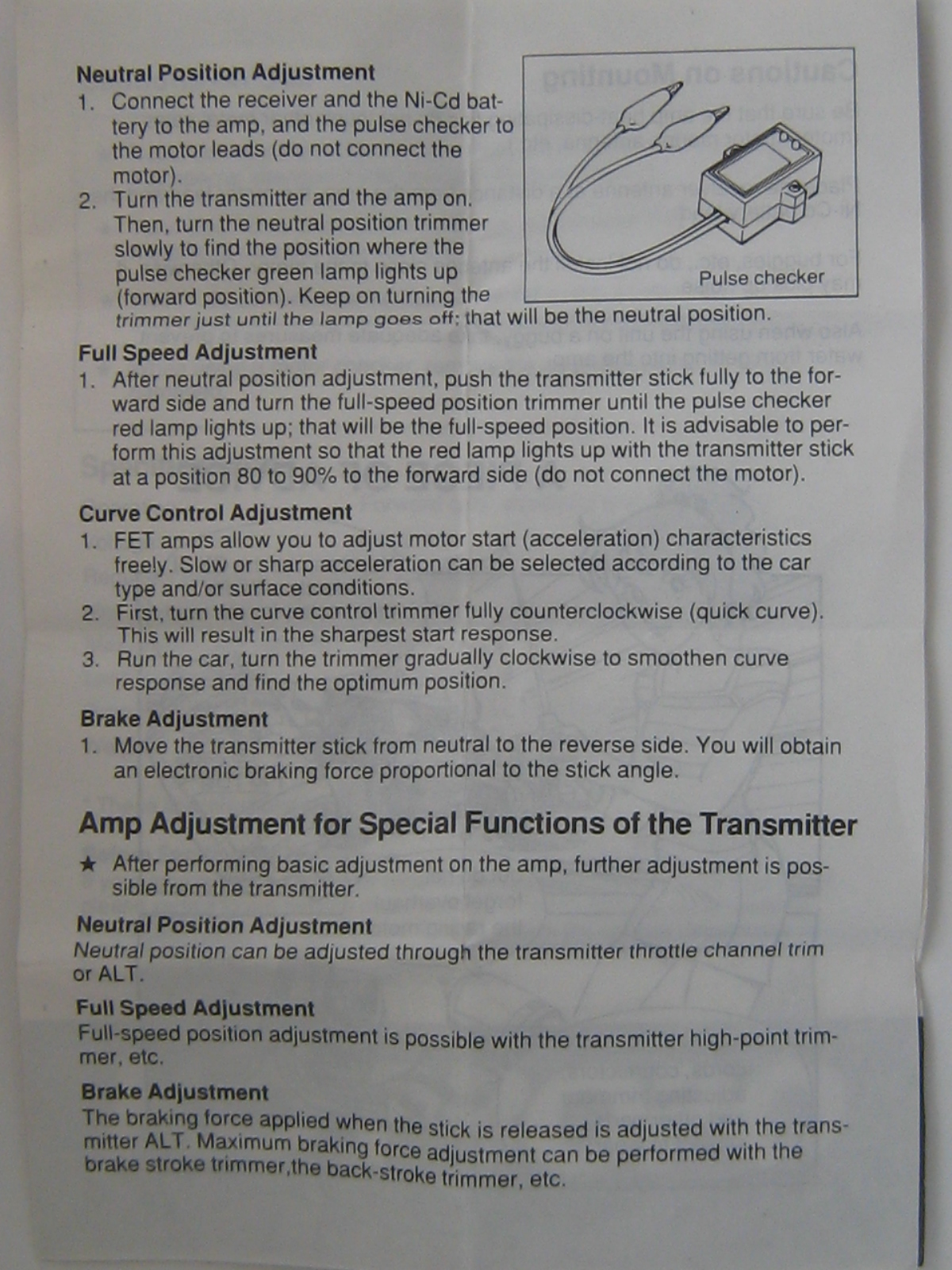

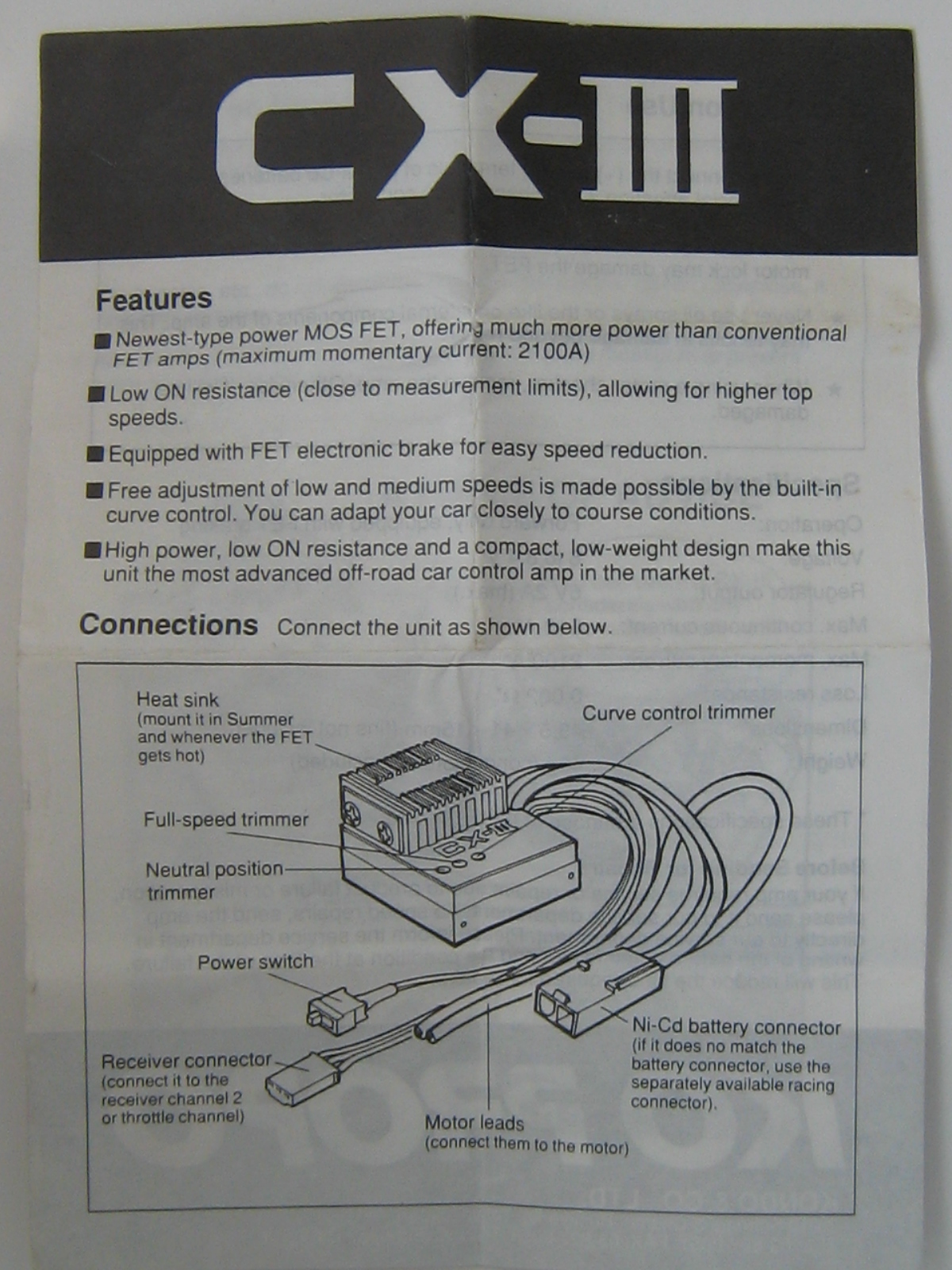

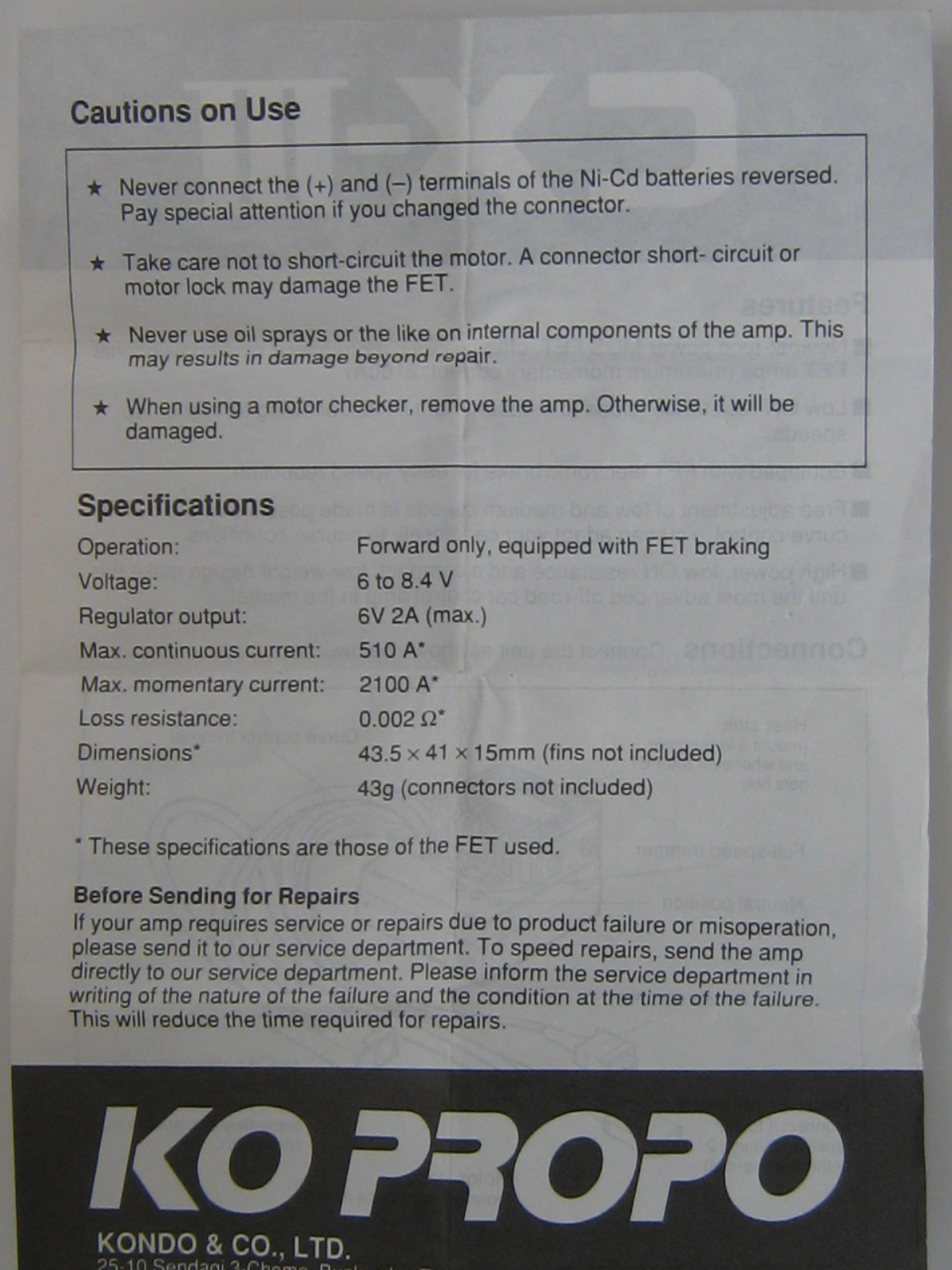

hope these pics are alright, my scanner is an eff'n POS.

Flashback R/C Products

My Gallery

Bormac: Approved Member; Posts: 3112; Joined: Wed Sep 05, 2007 7:52 pm; Location: CENTRAL COAST, NSW AUSTRALIA; Has thanked: 21 times; Been thanked: 2 times

Re: KO PROPO CX-III esc manual

Post by Bormac » Wed Apr 25, 2012 11:38 pm

Thank you for your help with this Jason. I appreciate it.

-Jason.

Still known as- bormac

My collection-http://www.tamiyaclub.com/showroom.asp?id=10980

alsoli: Regular Member; Posts: 27; Joined: Mon Apr 28, 2008 1:00 pm; Location: Australia

Re: KO PROPO CX-III esc manual

Post by alsoli » Sun Apr 29, 2012 1:37 am

scr8p - thank you so much.

I have been wanting to track this down for a long time.

Nice of you to share,
Scott
