4WD GT

Post by Sixtysixdeuce »

This is just a teaser, but I will chronicle the build as it happens. Not sure what exactly it's gonna be yet, other than the plan is to use a blue tub with HPI RS4 diffs front and rear, B44 C-hubs and steering blocks, and regular old CVDs front and rear. Don't know yet if I'm going to run a center diff or a solid shaft with a slipper.

Ideas welcome! Nothing set in stone at this time, and much is yet to be decided.
"When you are dead, you do not know you are dead; It is difficult only for others. It is the same when you are stupid."

User avatar
Lonestar
Approved Member
Posts: 4270
Joined: Wed Dec 12, 2007 5:17 am
Location: Switzerland, yannow, in Europe (or almost)
Has thanked: 626 times
Been thanked: 167 times

Re: 4WD GT

Post by Lonestar »

interesting - maybe something that can be reapplied to buggies ;)

RS4 diffs and shaft drive might not work well together, though :mrgreen:
AE RC10 - Made In The Eighties, Loved By The Ladies.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.

User avatar
romulus22
Super Member
Posts: 2496
Joined: Wed May 19, 2010 7:30 pm
Location: KY
Has thanked: 710 times
Been thanked: 685 times

Re: 4WD GT

Post by romulus22 »

Just tossing this out there but why not TC3 diffs to keep it all Associated?

Watching to see how this progresses 8)

Sixtysixdeuce
Approved Member
Posts: 494
Joined: Tue Aug 20, 2013 1:07 am
Location: Elbert County, CO
Been thanked: 2 times

Re: 4WD GT

Post by Sixtysixdeuce »

interesting - maybe something that can be reapplied to buggies
Yeah....really would only consist of adjusting shafts lengths.
RS4 diffs and shaft drive might not work well together, though

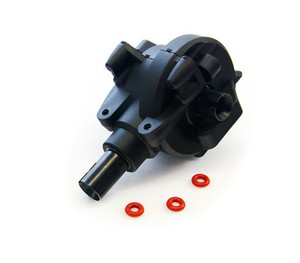

The older style:

Just tossing this out there but why not TC3 diffs to keep it all Associated?
More difficult mounting, smaller, plastic gears. The RS4 diffs will be stronger internally, and mounted more easily without tying into chassis braces. I considered using Prolite diffs, but they're larger both dimensionally and in terms of outdrive sockets, so that creates some challenges. The RS4 outdrives are very close to AE, just need to be opened up slightly.

That, and I scored a pair of brand new take-offs for $19 :D
"When you are dead, you do not know you are dead; It is difficult only for others. It is the same when you are stupid."

User avatar
romulus22
Super Member
Posts: 2496
Joined: Wed May 19, 2010 7:30 pm
Location: KY
Has thanked: 710 times
Been thanked: 685 times

Re: 4WD GT

Post by romulus22 »

I have no experience with shaft drive RS4's or TC3's. should be cool when you're done.

User avatar
Lonestar
Approved Member
Posts: 4270
Joined: Wed Dec 12, 2007 5:17 am
Location: Switzerland, yannow, in Europe (or almost)
Has thanked: 626 times
Been thanked: 167 times

Re: 4WD GT

Post by Lonestar »

er.... rs4 is belt-drive ;)

edit: got it - nitro rs4 ;)
AE RC10 - Made In The Eighties, Loved By The Ladies.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.

User avatar
romulus22
Super Member
Posts: 2496
Joined: Wed May 19, 2010 7:30 pm
Location: KY
Has thanked: 710 times
Been thanked: 685 times

Re: 4WD GT

Post by romulus22 »

Thought the newer ones were shaft drive too?

Nitro RS4 3 evo looks shaft drive

User avatar
spydur23
Approved Member
Posts: 165
Joined: Fri Sep 06, 2013 12:58 pm
Location: Littleton, Colorado

Re: 4WD GT

Post by spydur23 »

Siiiickkk! :mrgreen:

justinspeed79
Approved Member
Posts: 1679
Joined: Sun Aug 13, 2006 10:54 pm
Location: Houston Texas
Has thanked: 2 times
Been thanked: 4 times

Re: 4WD GT

Post by justinspeed79 »

Sweet project. I look forward to seeing this one. 8)

Sixtysixdeuce
Approved Member
Posts: 494
Joined: Tue Aug 20, 2013 1:07 am
Location: Elbert County, CO
Been thanked: 2 times

Re: 4WD GT

Post by Sixtysixdeuce »

Well, it's been a slow go, mainly just because other projects have been more important. But we're starting to make some progress.


Just ordered the B44 front parts, and a set of T4 CVDs.

Will update again when there is a little more progress!
"When you are dead, you do not know you are dead; It is difficult only for others. It is the same when you are stupid."

User avatar
spydur23
Approved Member
Posts: 165
Joined: Fri Sep 06, 2013 12:58 pm
Location: Littleton, Colorado

Re: 4WD GT

Post by spydur23 »

looking good! I was just gonna tell you I have a bunch of xx4 parts leftover if you need em for the front.

XjRob98
Regular Member
Posts: 9
Joined: Fri Jun 21, 2013 4:34 pm
Location: Independence, Ky

Re: 4WD GT

Post by XjRob98 »

That is going to be amazing if you can pull it off

ginnz
Regular Member
Posts: 18
Joined: Fri Dec 26, 2014 6:47 pm

Re: 4WD GT

Post by ginnz »

well.... I guess this thing never flew. ;-) so to say. looked good, but half a car. :-(

User avatar
yellowdatsun
Approved Member
Posts: 844
Joined: Mon Jul 20, 2015 1:15 pm
Location: Phx, AZ

Re: 4WD GT

Post by yellowdatsun »

That's a really steep angle on the back drive shaft. Does it bind at all? It looks like more of an angle than you'd normally get with truck/buggy rear suspension. Maybe more than that setup was designed for? I know even u-joints have issues with steep drive angles.

The front one also looks like it may bind at the front diff, where the actual shaft might contact the outdrive edges. If there's no contact, it's gotta be close.

Edit: Just realized this was a year-and-a-half old thread.
