Differences between a XXCR and XXCR BK

Post by SPLATT »

I have what I believe to be XXCR. I don't know the history of the car as I inherited if from my wife's cousin after he passed. What are the differences between the XXCR and the Kinwald version?

User avatar
works92
Approved Member
Posts: 251
Joined: Mon Jun 04, 2012 7:36 am
Location: Lyon-France
Has thanked: 86 times
Been thanked: 29 times

Re: Differences between a XXCR and XXCR BK

Post by works92 »

blue motor mount on the kinwald, front shock tower in a more square design, xcelerator body, blue shocks springs...

User avatar
Essejay
Approved Member
Posts: 59
Joined: Sat Apr 02, 2016 2:15 am
Location: Angers, France
Has thanked: 77 times
Been thanked: 50 times

Re: Differences between a XXCR and XXCR BK

Post by Essejay »

Hello,
There is no hydradrive on the BK edition, all the parts are made from graphite (instead of stiffzell), you also have the titanium turnbuckles from lunsford and Tin shock shafts.

User avatar
mytimac
Business Member
Posts: 945
Joined: Mon Apr 28, 2008 8:42 pm
Location: Rochester MN
Has thanked: 7 times
Been thanked: 54 times

Re: Differences between a XXCR and XXCR BK

Post by mytimac »

Blue wing buttons.
http://oldrc.com - Find parts for older Losi, Associated, Tamiya and others.
http://vintagelosi.com - Manuals and information on older Team Losi models

SPLATT
Regular Member
Posts: 8
Joined: Sun Dec 09, 2018 2:26 pm

Re: Differences between a XXCR and XXCR BK

Post by SPLATT »

Well It didn't have a body or wing when I got it. It has a squared off front shock tower with blue front shock springs and pink rears. The motor mount is silver but no Hydradrive and the turn buckles I believe to be titanium(they aren't steel anyway). The chassis along with most of the other parts are marked as graphite. One thing I've noticed that I haven't seen on others is where the ESC and receiver are usually mounted a slight recess is machined in. I'll try to get some picture posted soon.

SPLATT
Regular Member
Posts: 8
Joined: Sun Dec 09, 2018 2:26 pm

Re: Differences between a XXCR and XXCR BK

Post by SPLATT »

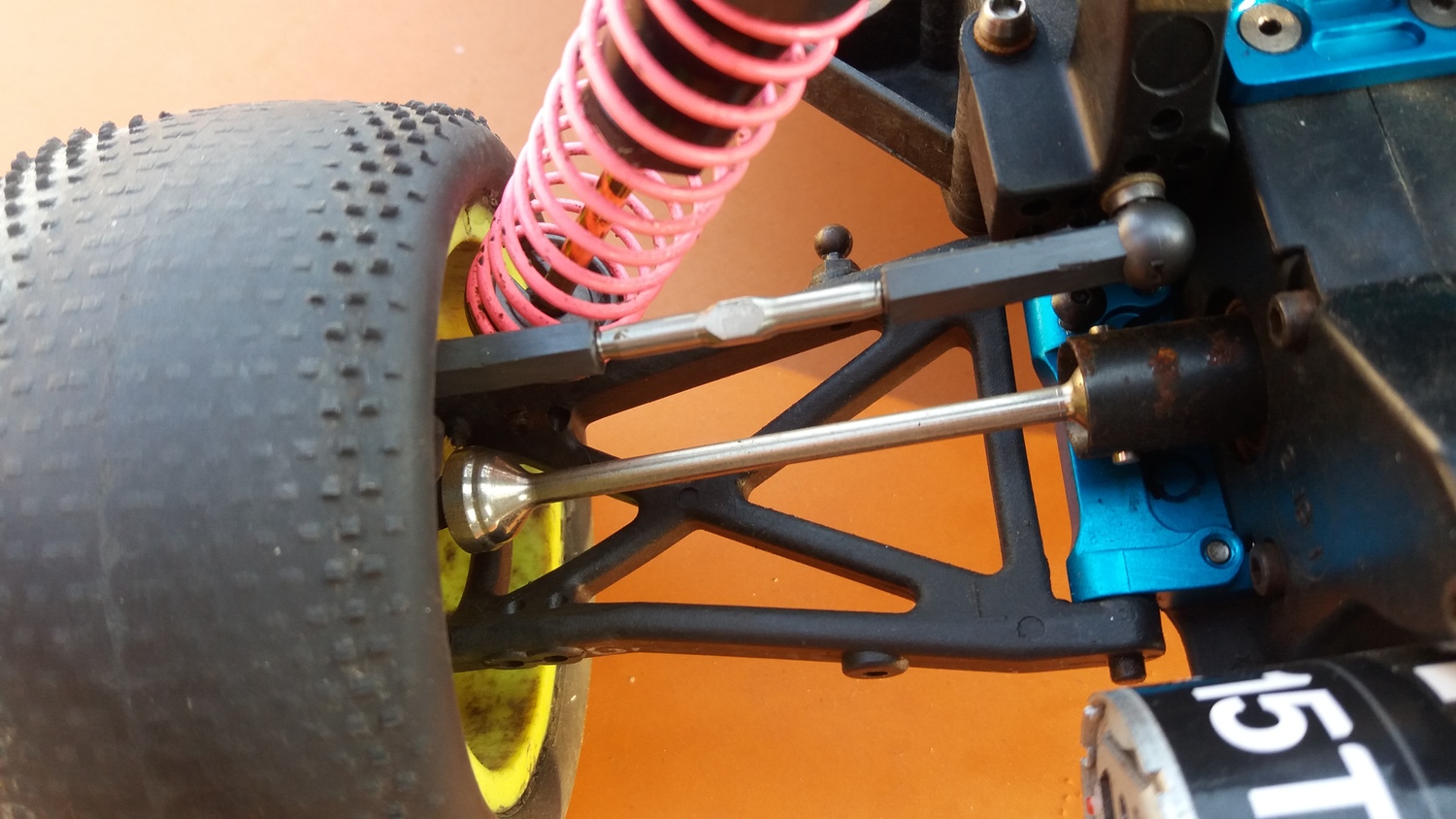

Here's some pics.
20171209_134136 - Copy.jpg
20171209_134112 - Copy.jpg
20171209_134123 - Copy.jpg
20171209_134057 - Copy.jpg
20171209_134049 - Copy.jpg
20171209_134036 - Copy.jpg

User avatar
works92
Approved Member
Posts: 251
Joined: Mon Jun 04, 2012 7:36 am
Location: Lyon-France
Has thanked: 86 times
Been thanked: 29 times

Re: Differences between a XXCR and XXCR BK

Post by works92 »

nice BK you got there; with some aftermarket parts ( i see losi and trinity)

never seen a machined XX chassis before , probably home made ... gives me some ideas...
thank's for sharing.

PS: front C-hub got a popular modification too (more front bit in long turns)

SPLATT
Regular Member
Posts: 8
Joined: Sun Dec 09, 2018 2:26 pm

Re: Differences between a XXCR and XXCR BK

Post by SPLATT »

works92 wrote: Sun Dec 23, 2018 1:56 am nice BK you got there; with some aftermarket parts ( i see losi and trinity)

never seen a machined XX chassis before , probably home made ... gives me some ideas...
thank's for sharing.

PS: front C-hub got a popular modification too (more front bit in long turns)
Knowing who had it before me I'm positive he bought it the way it is minus the parts box electronics I installed. I'll have to get some pictures of the semi restored condition it's in now. I'm looking to install one of the 2 Novak ESCs along with a period correct motor. I'm going to be going with a modern 2.4 radio and NiMH batteries. My end goal is something I can run on open track days.
