Wheel ID help, please!

[Brandon G]

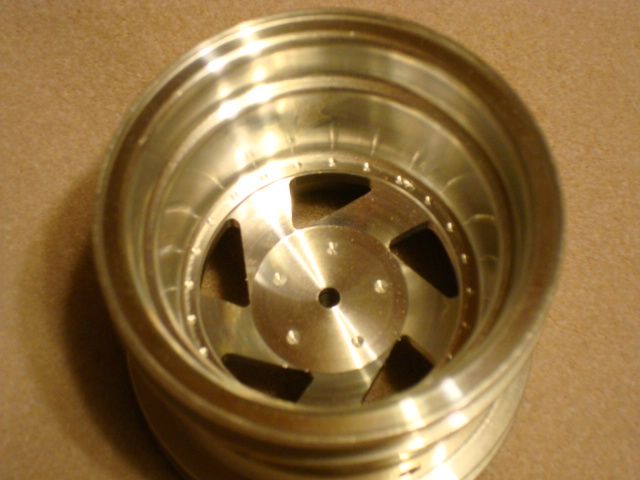

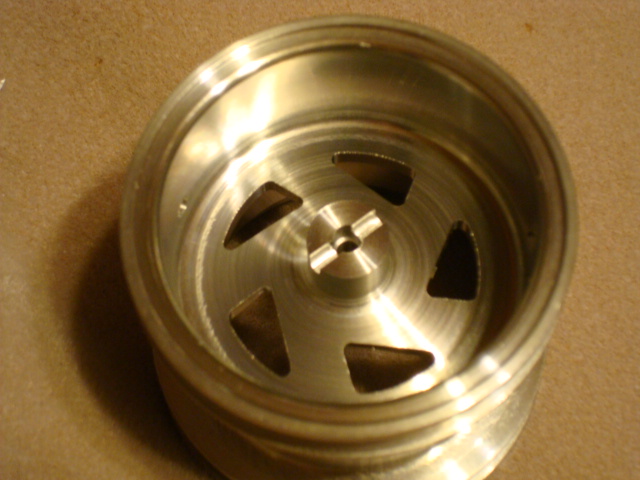

I have this set of wheels, See's Kyosho Rear Truck wheels with directional spokes Model No. 3415


Measurements:
Axle hole is 5mm stepped down to 4mm
Diameter where you glue the tire: 65.5mm
Diameter of outside lip: 74mm
Width: 57mm

Anybody have an idea what this fits? Since it specifies rear, I am assuming it is for a 2wd truck. Does anyone know if it could be used on any of their 4wd trucks?

Thanks fellers.

[scr8p]

this is funny. i was gonna send you a pm about it ealier today. i have the exact same pair of rear rims and was gonna ask you the same question. you know, since your the sees guy.

[Brandon G]

I'm not heavy into any of the Kyosho trucks. It has me stumped.

[RichieRich]

Most Kyosho cars/trucks use the hex drives. It's possible these will fit the 1/9 scale Kyosho trucks as I don't think they use a hex on the wheels. I could be wrong though.

[Mr. ED]

Try some RS4 rear axles: should be a straight fit.
You could use these on optima, mid, lazer, baboon

But much wilder: M-chassis!
Maybe wild-willy too...

[Brandon G]

OK, i'll be the retard and answer my own question. At least for scr8p's benefit!
Got to digging last night, and it seems these will fit the following:

Big Brute
Hi Rider Vette
Double Dare
Big Boss
USA-1 electric axles I think), but tires for the USA-1 are much wider than these wheels allow.

Seems the Kyosho 2wd monster trucks have a front axle that uses the cross pin in it as well as the rear.

[murphy3428]

They fit the Tamiya blackfoot, lunch box, and will also fit on some of the older Traxxas like the Eagle. I have a set of 4 forsale on ebay right now.

[scr8p]

thanks brandon.

these are definately not for tamiya. the tamiya axle is too large in diameter. i tried to put them on my pumpkin and they don't fit.

[murphy3428]

Well don't know if mine are the exact duplicate of yours, See's made many different wheel styles for alot of different rc name brand vehicles and I have not checked the diameter size on mine, but I did try these on 2 different blackfoots just to make sure that the previous owner did not modify the blackfoot that the wheels came and they fit perfect on both.

[scr8p]

the blackfoots would have a standard 2.2 rim. these are a bit larger in both height and width. even the bead is quite wide where the tire sits. they're definately for trucks that brandon listed.

i don't remember where i got mine, but someone tried to taper the inner hub to use them on 1/4" rc10 axle. i don't know why being as though the axle is too short.

[murphy3428]

They must be different then mine,the wheels I have are the same width,height, and bead is the same as the blackfoot stock wheels.

[Brandon G]

Yeah, they are definetely bigger than the 2.2" blackfoot wheel. Odd size. I guess kyosho had to go out on their own on these...

[RichieRich]

Brandon,

The Kyosho trucks you listed use a weird mounting hub similar to the hotshot where there are little nubs that fit into the wheel. They can be removed which just leaves the axle and crosspin.

[purpletimbo]

As I have a Vette, a Double dare and 2 electric USA1 what were you doing with them Brandon, and have you got 4?

[Brandon G]

Yes, I have 4 wheels.

Need some?
