Motor plate pictures.

Post by NCOHOG »

I am still in the process of throwing together a runner. I have been machining up a few items for there and there. I am getting ready to mill the motor plate and was wondering if anyone had any pics of how they have done it. I am referring to two areas. First would be how they cut the area that attaches to the main chassis. I have seen angle and radiused in the past. The other area I am interested in would be the flat surfaces. I have seen different milled lines and im curious as to what others have done.

Thanks,
BJ

User avatar
myfordcnc
Approved Member
Posts: 365
Joined: Wed Feb 20, 2013 5:10 am
Location: Stockton, CA.
Been thanked: 1 time

Re: Motor plate pictures.

Post by myfordcnc »

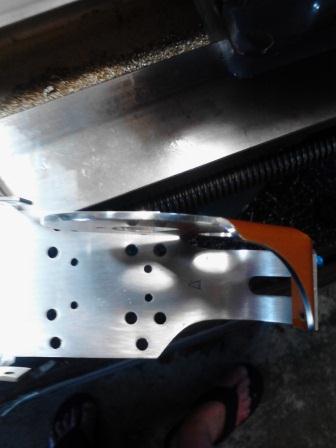

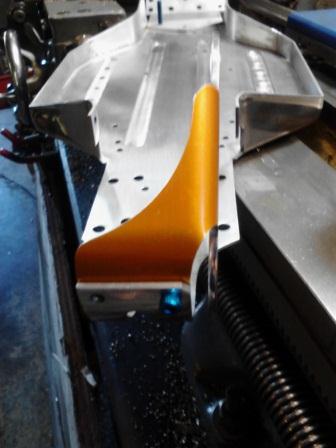

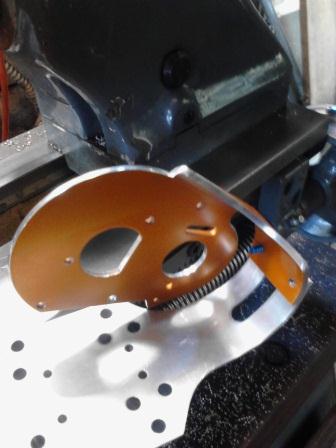

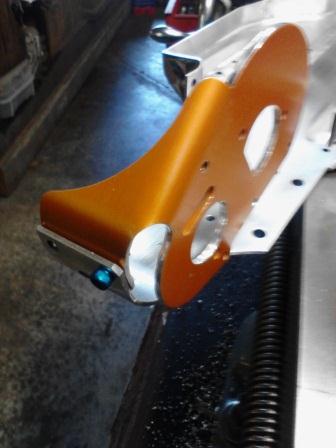

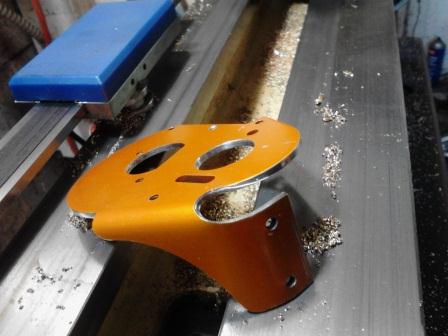

Here is what I did. I have seen this done on a few other rigs. but I did some thing to one part I have not seen yet. I cut it out using a jewelers saw. I laid out the curves using flexible ships curves. I dykem blued the piece and scribed my lines in. and sawed to that. I kept the saw Blade perpendicular to any surface resulting in a rolling bevel on the edge. The width at the bottom near the mounting threads, I got from the width that I modified on the back of the chassis. Once it was cut out I filled smooth then sanded from 320 to 1500 grit then polished.
Attachments

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Motor plate pictures.

Post by GoMachV »

It was already trimmed when I got it but here's another example. A little thin for my tastes but it will work

It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

NCOHOG
Approved Member
Posts: 35
Joined: Mon Mar 05, 2012 9:28 pm
Location: OHIO

Re: Motor plate pictures.

Post by NCOHOG »

Both examples are very nice! I have never seen a chassis narrowed quite like that in the rear. I really dig it. I just don't know if I have the heart to cut the pink chassis I have. I don't have the motor plate in pink so im all about cutting the one I have. Does anyone have examples of how they have ballmilled theres on the back side?
