RC10 Shock/Arm Clearance Question

Quote

Post by limestang » Wed Dec 02, 2015 10:38 am

When working with the wide RC10 front arms, I often run into clearance issues attempting to install the lower shock mount. My usual solution is to file the arm until there is enough clearance. Is there a better solution?

Thanks, Mark

Attachments

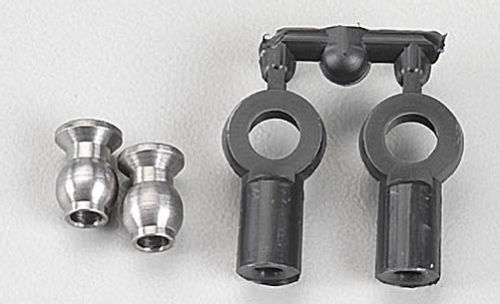

: RC10 Shock Mount.jpg (24.76 KiB) Viewed 944 times

: RC10 Shock Mount.jpg (24.76 KiB) Viewed 944 times

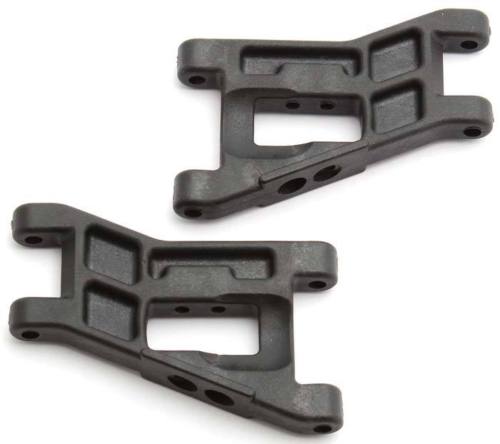

: RC10 Arms.jpg (15.77 KiB) Viewed 944 times

: RC10 Arms.jpg (15.77 KiB) Viewed 944 times

JK Racing: Super Member; Posts: 4603; Joined: Thu Jul 19, 2007 2:32 pm; Location: Placentia, CA; Has thanked: 103 times; Been thanked: 200 times

Re: RC10 Shock/Arm Clearance Question

Quote

Post by JK Racing » Wed Dec 02, 2015 10:49 am

I usually file or trim just a touch to make it easy. Its a tight fit.

--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com

RC10th: Approved Member; Posts: 4288; Joined: Sat Feb 16, 2013 9:51 am; Location: Australia; Has thanked: 40 times; Been thanked: 1009 times

Re: RC10 Shock/Arm Clearance Question

Quote

Post by RC10th » Wed Dec 02, 2015 10:27 pm

I haven't run into many issues with the parts you posted. The "flanged" rod ends on the other hand need clearancing.

I was old school - when old school wasn't cool !

twisted: Approved Member; Posts: 75; Joined: Fri Sep 06, 2013 10:19 pm; Location: New York

Re: RC10 Shock/Arm Clearance Question

Quote

Post by twisted » Wed Dec 02, 2015 10:31 pm

i used the factory b4 balls. they fit into the stock plastic shock ends. fits perfect in the arm.

limestang It’s my birthday!: Approved Member; Posts: 896; Joined: Tue Sep 27, 2011 9:48 am; Location: Fort Worth, TX; Has thanked: 21 times; Been thanked: 161 times

Re: RC10 Shock/Arm Clearance Question

Quote

Post by limestang » Thu Dec 03, 2015 7:50 pm

Thanks everyone for your suggestions.

Mark
