Customized Shinwa Motor Dresser

Post by coxbros1 »

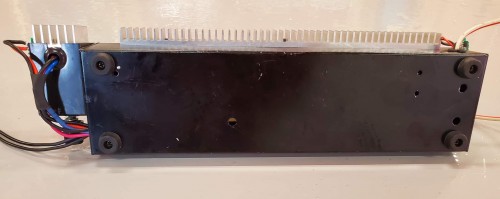

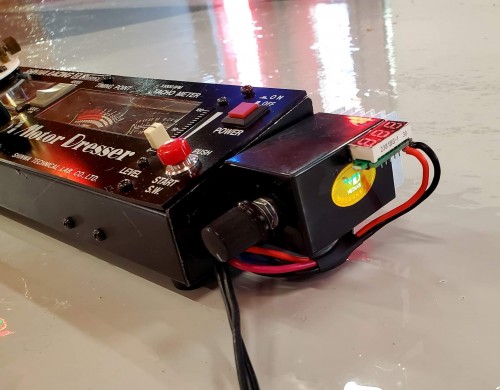

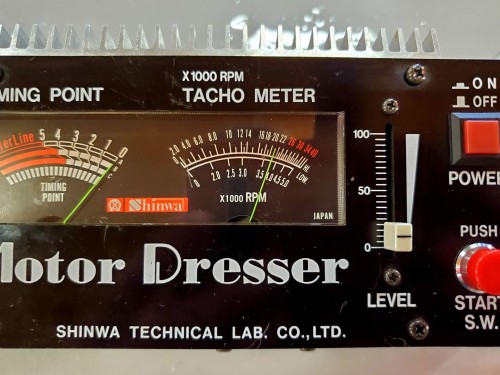

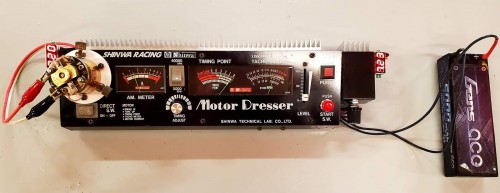

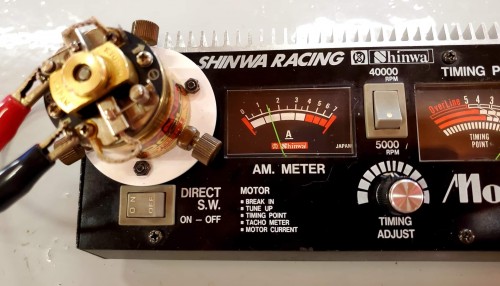

I customized and calibrated my motor dresser, it just wasn't cutting it in stock form, the level slider didn't do anything, absolutely no way to adjust voltage, what u put in it was going to the motor...now I can run it on my 12v power supply for the ultimate in accuracy, it's has a 12v adjustable rheostat on it now, infinitely adjustible...two digital voltmeters, one for input voltage, one for voltage at the motor running, I also calibrated the tachometer for perfect accuracy, all the wiring is inside... now I can test all my Le Mans motors accurately!
Tap pic for clarity: Derek

User avatar
MarkyDents
Approved Member
Posts: 867
Joined: Sun Jan 10, 2021 4:52 pm
Location: Staten Island, N.Y.
Has thanked: 987 times
Been thanked: 379 times

Re: Customized Shinwa Motor Dresser

Post by MarkyDents »

Me likey 8)
Who do you race for ?
Me……. I race for me.
That’s impossible, I was told you need a sponsor to race.
Hey Cru ! Go balls out 8)

Dadio
Approved Member
Posts: 3591
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 1806 times
Been thanked: 1709 times

Re: Customized Shinwa Motor Dresser

Post by Dadio »

Tidy
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
