Ummmmm....trust me, I couldn't even make that cool shock tower picture; much less the part.arf wrote:As usual there will be much measuring and chin rubbing before the cut, suspension geometry is tricky and I'm no expert.
Project RC10GTplus
- THEYTOOKMYTHUMB
- Super Member
- Posts: 6814
- Joined: Wed Oct 22, 2008 5:15 pm
- Location: Evansville, IN
- Has thanked: 2122 times
- Been thanked: 1346 times
Re: Project RC10GTplus
"The world looks so much better through beer goggles: Enjoy today, you never know what tomorrow may bring."
Ken
Ken
-
- Approved Member
- Posts: 1280
- Joined: Tue Dec 30, 2008 3:02 am
- Location: michigan
- Been thanked: 87 times
Re: Project RC10GTplus

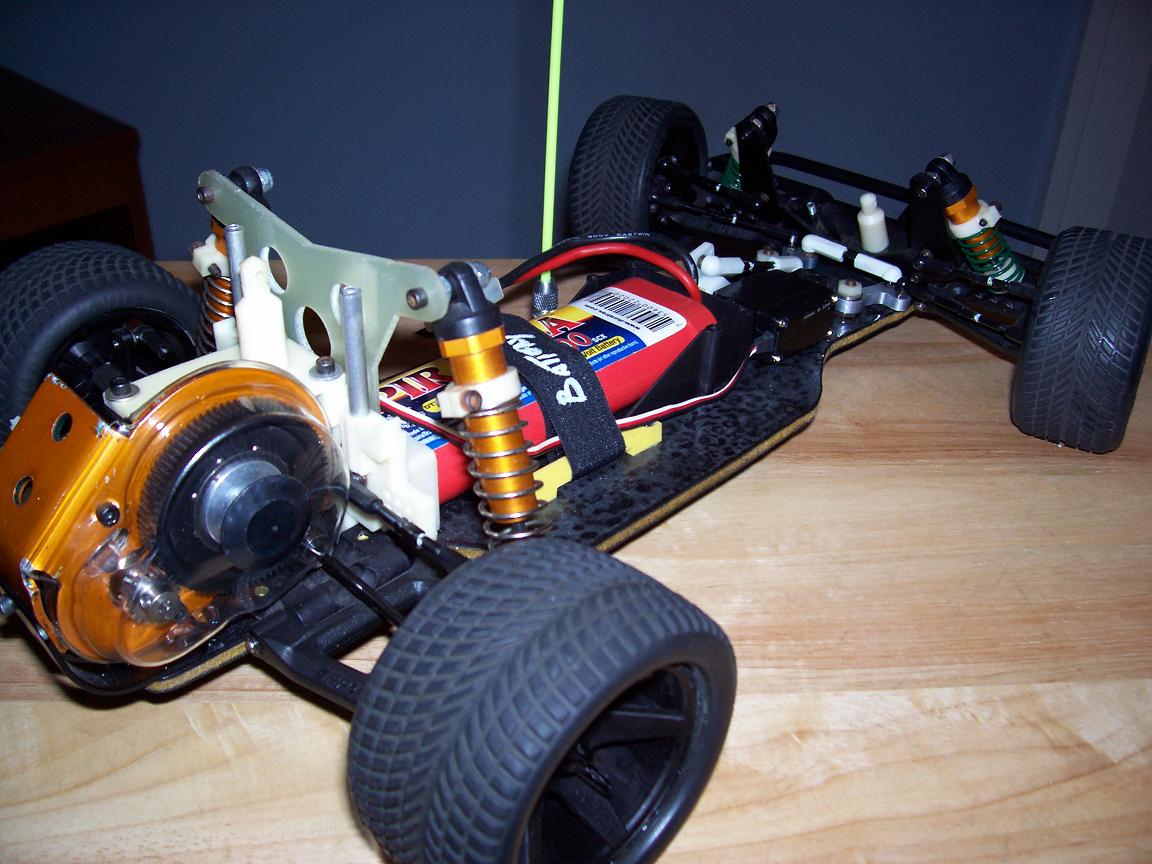

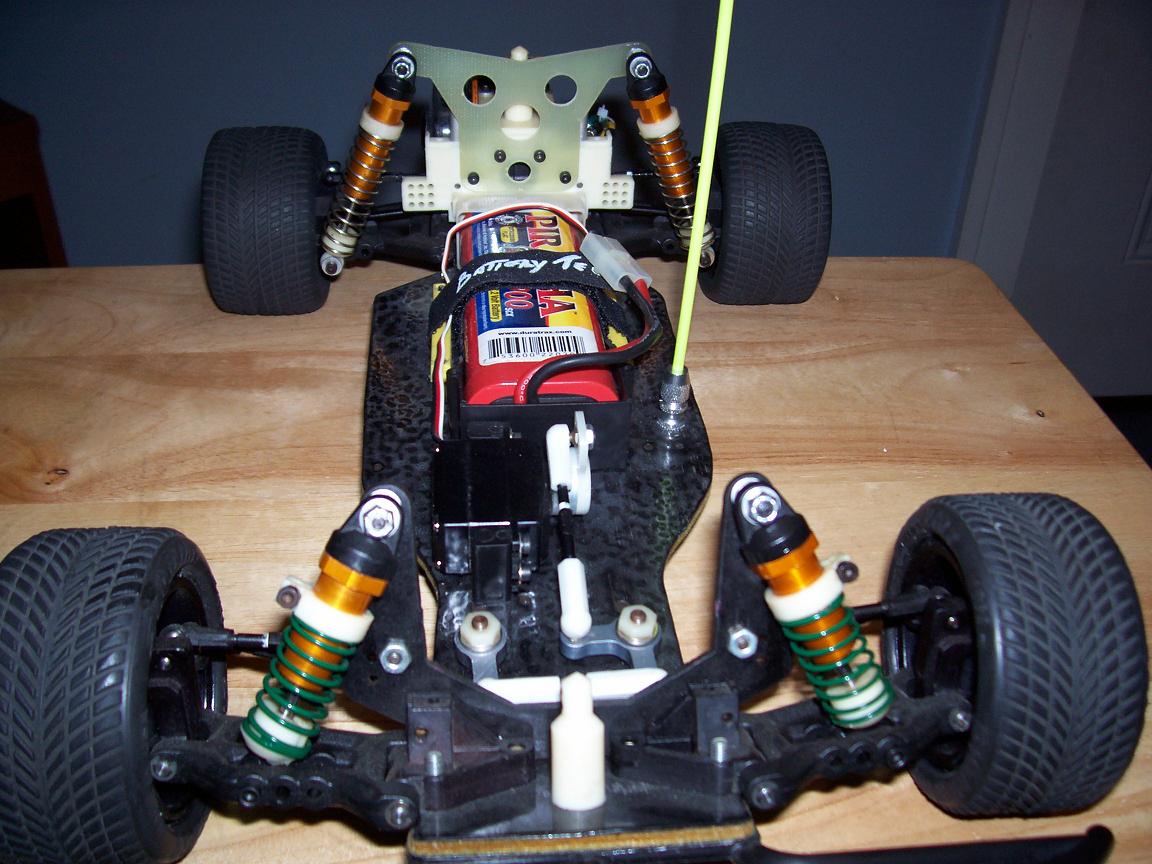

here is a pic of RC 10 with a lotus paint job. Based on a composit craft chassis.
- arf
- Approved Member
- Posts: 254
- Joined: Tue Jan 08, 2008 8:48 pm
- Location: LaLaLand
- Been thanked: 7 times
Re: Project RC10GTplus

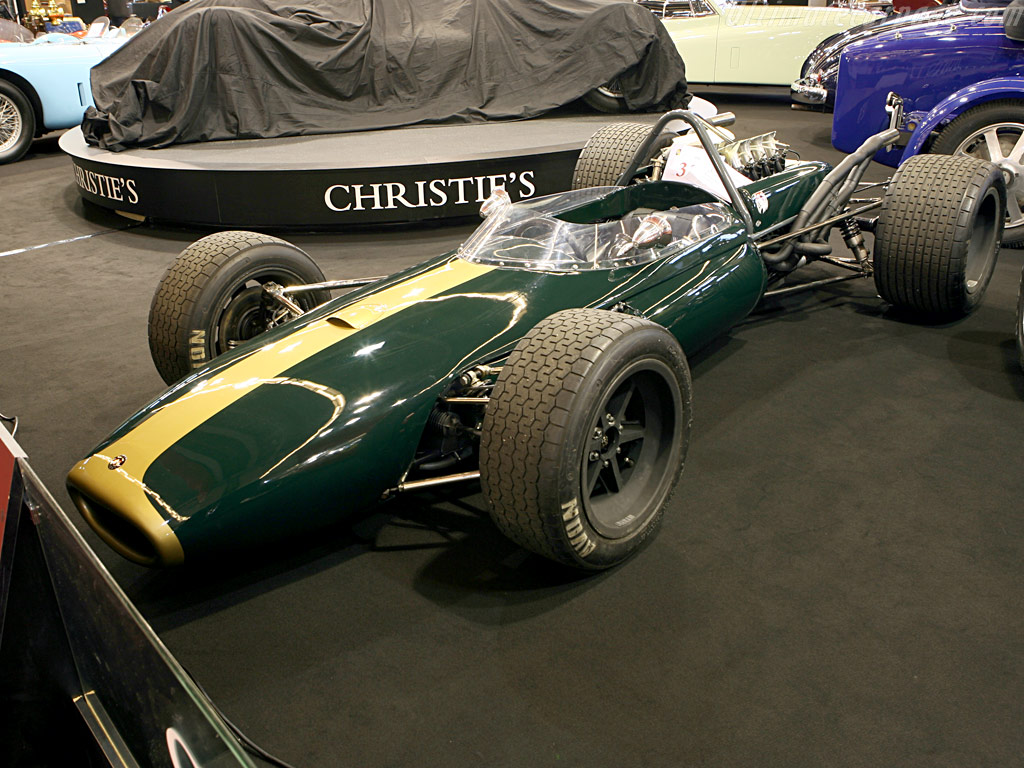

Cool. Here's a matching Brabham in British racing green.rctenracer wrote:here is a pic of RC 10 with a lotus paint job. Based on a composit craft chassis.
- arf
- Approved Member
- Posts: 254
- Joined: Tue Jan 08, 2008 8:48 pm
- Location: LaLaLand
- Been thanked: 7 times
Re: Project RC10GTplus
I used pan car wing mounts to locate the bottom of the front shocks and the shocks clear the nose tubes nicely. They will do for testing until I devise something better. I've been told that the car as it stands will have excessive body roll and that it will need sway bars. I did not plan for that. Anyway I'm pleased that the entire car has been out of the GT parts bin. Now... think about engines, think about...engines...
- arf
- Approved Member
- Posts: 254
- Joined: Tue Jan 08, 2008 8:48 pm
- Location: LaLaLand
- Been thanked: 7 times
Re: Project RC10GTplus

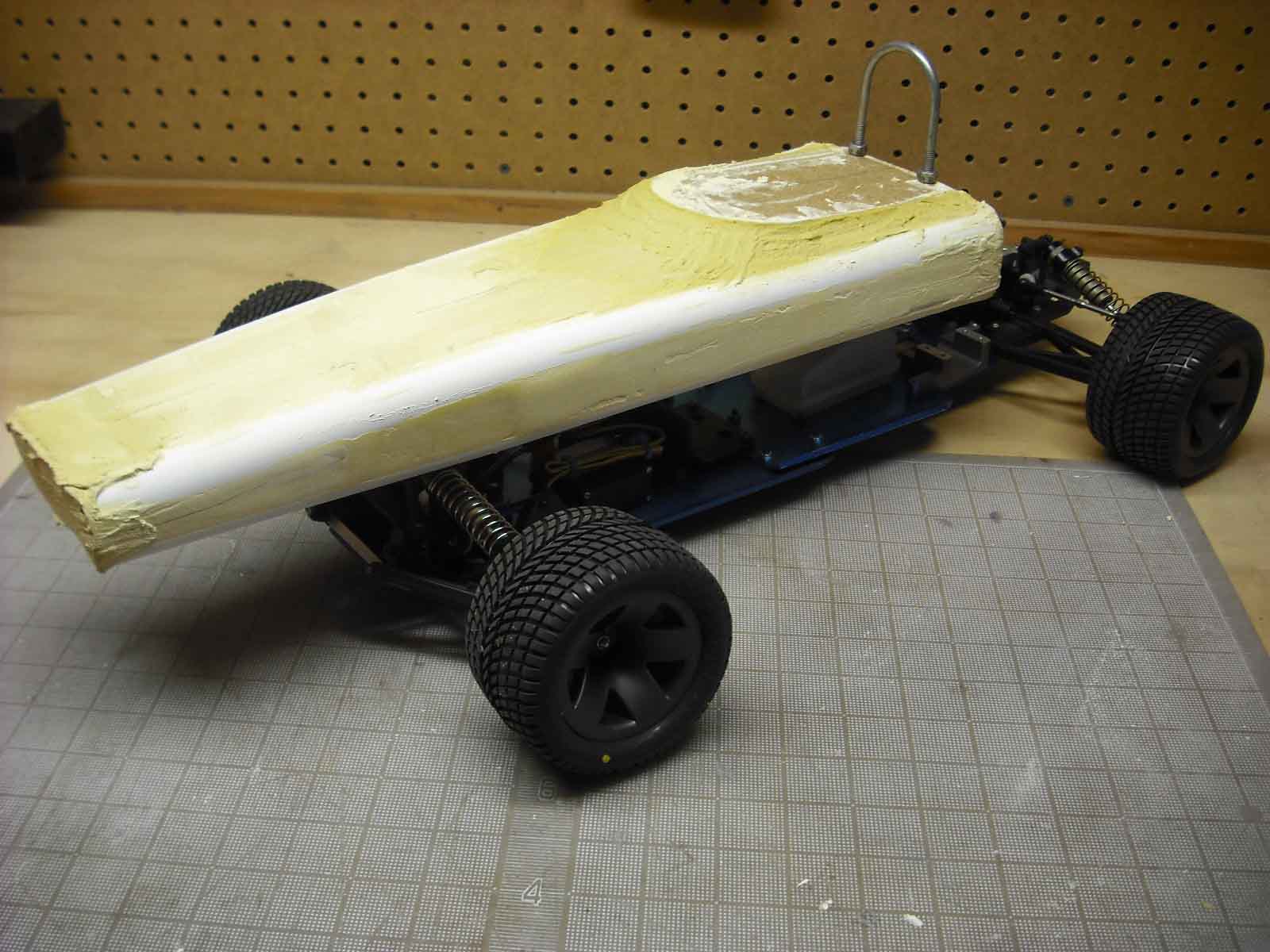

Here's the body roughed out in wood and putty. I will add flares over where the front shocks exit. Sanding and finishing will be the hardest part of this project, then a rubber mold, fiberglas, and paint. Additional parts will be a windscreen, roll bar, mirrors, and I may add a wing to partially hide the pipe and give color to the rear. I've chosen a rear exhaust engine, just haven't shelled out for it yet. The shed out back is freezing right now and my fingers have been too numb to make much progress, figure to complete this by the end of the year.
-
- Approved Member
- Posts: 8921
- Joined: Tue Apr 08, 2008 2:44 pm
- Location: USA
- Been thanked: 8 times
Re: Project RC10GTplus
A rear exhaust engine is going to put the header out the left side. A side exhaust could send it in the right direction, but most likely with a home made or modded header
- arf
- Approved Member
- Posts: 254
- Joined: Tue Jan 08, 2008 8:48 pm
- Location: LaLaLand
- Been thanked: 7 times
Re: Project RC10GTplus

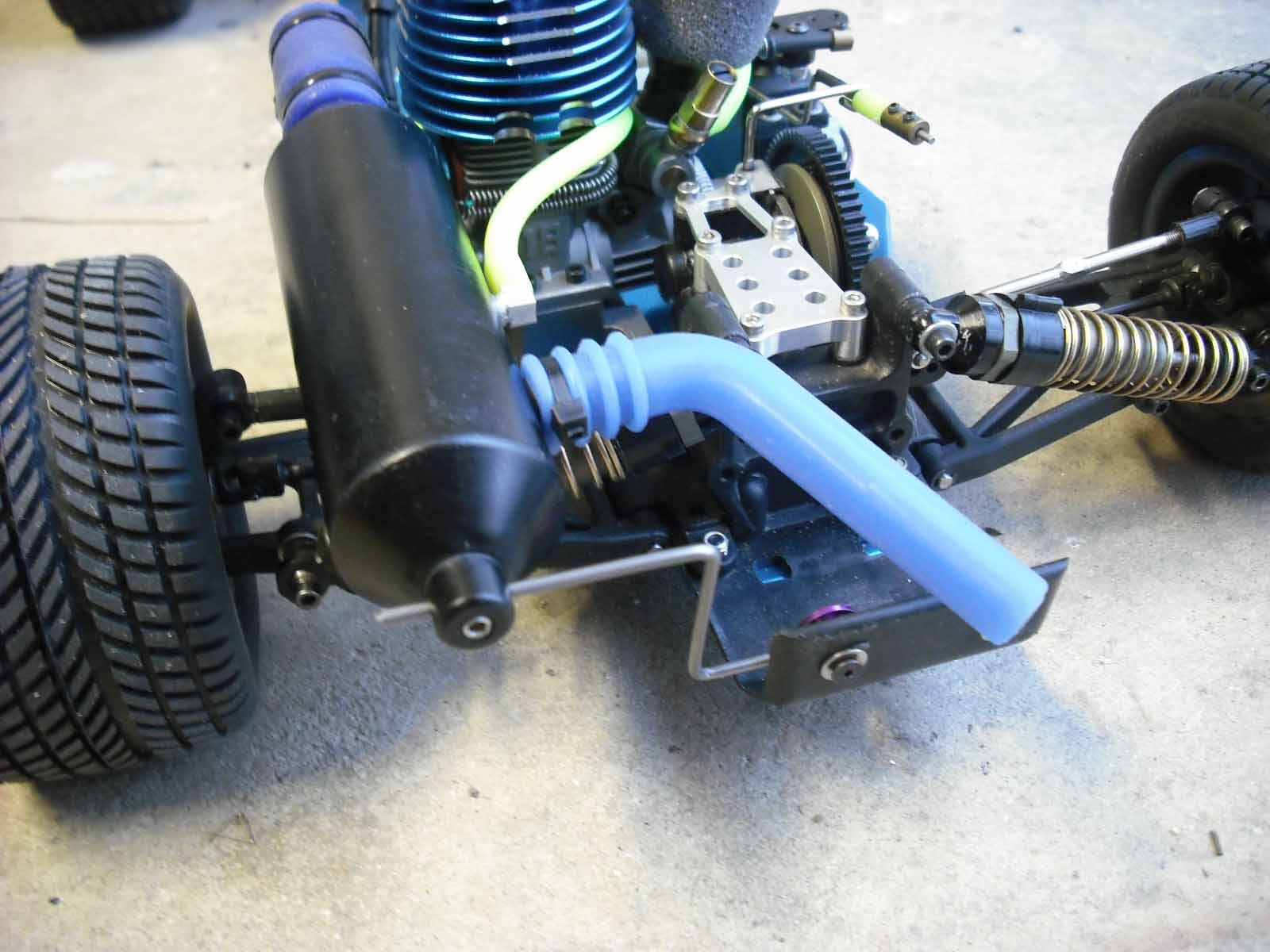

Correct. Both exhaust types provide advantages depending on where I want the pipe to live. I'll post a shot showing the pipe in a good position to take advantage of the rear exhaust setup.Charlie don't surf wrote:A rear exhaust engine is going to put the header out the left side. A side exhaust could send it in the right direction, but most likely with a home made or modded header
Posted. This is exactly the same as the stock GT tuned pipe setup except that it's flipped upside down. Pipe will be higher than I'd like but a wing might help cover it.
- arf
- Approved Member
- Posts: 254
- Joined: Tue Jan 08, 2008 8:48 pm
- Location: LaLaLand
- Been thanked: 7 times
Re: Project RC10GTplus

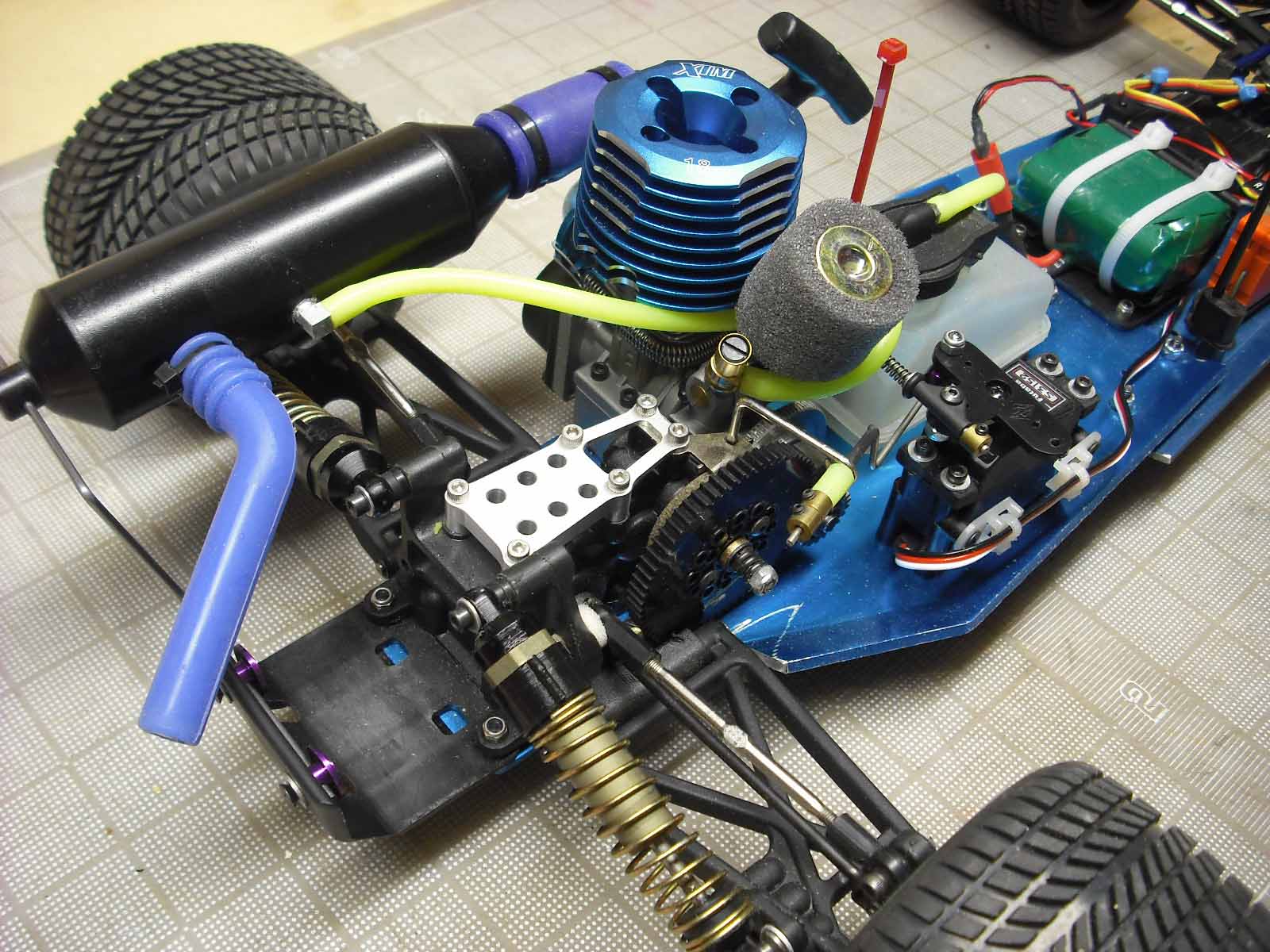

.18 engine installed with the exhaust exiting the back as it ought to. I bent a wire mount for it and relocated the fitting for the pressure line. 18 tooth clutch bell for top end. Not completely happy that the pipe is located so high but I know that a long distance between the pipe and header may cause tuning problems (later i may try a header extension to get the pipe located where I showed it earlier in this thread on the rear battery tray.) I also replaced the stock 30 degree front caster blocks with 20 degree (6214) shouldn't need that much caster on pavement. Now i must go thru it and check all the e-clips, use thread lock and glue the tires. I'll break in the engine when I get a sunny day. Is any of this really gonna work?
- klavy69
- Moderator
- Posts: 5150
- Joined: Thu May 29, 2008 4:11 pm
- Location: Fulton, IL (Land of one stop light but we DO have a windmill!)
- Has thanked: 561 times
- Been thanked: 265 times
Re: Project RC10GTplus
Of course it will...maybe not like you thought at first but if you can make it this far you can tinker it the rest of the way .arf wrote:.. Is any of this really gonna work?
Showed the pix of the your project to the LHS owner and he said if you wanna build a new scratch chassis that he could help in that dept. He's had a couple guys transforming a tmaxx and a savage into weedeater trucks by scratchbuilding longer chassis for them with good success.
Todd
Peace and professionlism.....Kabunga signing off!!!
- arf
- Approved Member
- Posts: 254
- Joined: Tue Jan 08, 2008 8:48 pm
- Location: LaLaLand
- Been thanked: 7 times
Re: Project RC10GTplus
I appreciate the offer, but now I need to concentrate on getting the body done. I know a couple of sculptor/prop makers in L.A. that could do a bang up job if the price was right.... one arm and one leg.klavy69 wrote:Showed the pix of the your project to the LHS owner and he said if you wanna build a new scratch chassis that he could help in that dept.arf wrote:.. Is any of this really gonna work?
Todd
- klavy69
- Moderator
- Posts: 5150
- Joined: Thu May 29, 2008 4:11 pm
- Location: Fulton, IL (Land of one stop light but we DO have a windmill!)
- Has thanked: 561 times
- Been thanked: 265 times
Re: Project RC10GTplus
well, you'll still have one of each left after thatarf wrote: if the price was right.... one arm and one leg.
keep the updates coming. This is starting to look interesting.
Todd
Peace and professionlism.....Kabunga signing off!!!
- TamiyaTony
- Approved Member
- Posts: 42
- Joined: Tue Mar 09, 2010 1:33 am
- Location: New Lenox, IL
Re: Project RC10GTplus
The single damper on the nose reminds me of the Tamiya Hotshot. Pretty neat. Your Lotus project is coming along great! I love those vintage F1 cars. Not nearly as safe as F1 cars of today. You had to be fearless to drive those puppies. I especially love the Ferrari pic.
My son... ask for thyself another kingdom... for that which I leave is too small for thee.
- THEYTOOKMYTHUMB
- Super Member
- Posts: 6814
- Joined: Wed Oct 22, 2008 5:15 pm
- Location: Evansville, IN
- Has thanked: 2122 times
- Been thanked: 1346 times
Re: Project RC10GTplus
Just curious. Any updates on this cool project? Ever find time to complete the body?
"The world looks so much better through beer goggles: Enjoy today, you never know what tomorrow may bring."
Ken
Ken
- arf
- Approved Member
- Posts: 254
- Joined: Tue Jan 08, 2008 8:48 pm
- Location: LaLaLand
- Been thanked: 7 times
Re: Project RC10GTplus
Yes, the whole car went to a friend who works at a special effects shop in LA. They built the robots in the Short Circuit movie and did the commercials with the Energizer Bunny, and the boss restores and races classic Mini Coopers. Last I saw the car was taken apart, calipers were applied to the various components and "improvements" were underway.THEYTOOKMYTHUMB wrote:Just curious. Any updates on this cool project? Ever find time to complete the body?
- THEYTOOKMYTHUMB
- Super Member
- Posts: 6814
- Joined: Wed Oct 22, 2008 5:15 pm
- Location: Evansville, IN
- Has thanked: 2122 times
- Been thanked: 1346 times
Re: Project RC10GTplus
Your money keeps going, and going, and going...arf wrote:Yes, the whole car went to a friend who works at a special effects shop in LA. ... and did the commercials with the Energizer BunnyTHEYTOOKMYTHUMB wrote:Just curious. Any updates on this cool project? Ever find time to complete the body?
Looking forward to seeing it.
"The world looks so much better through beer goggles: Enjoy today, you never know what tomorrow may bring."
Ken
Ken
