Vintage-Modern Build to be Raced

[eR1c]

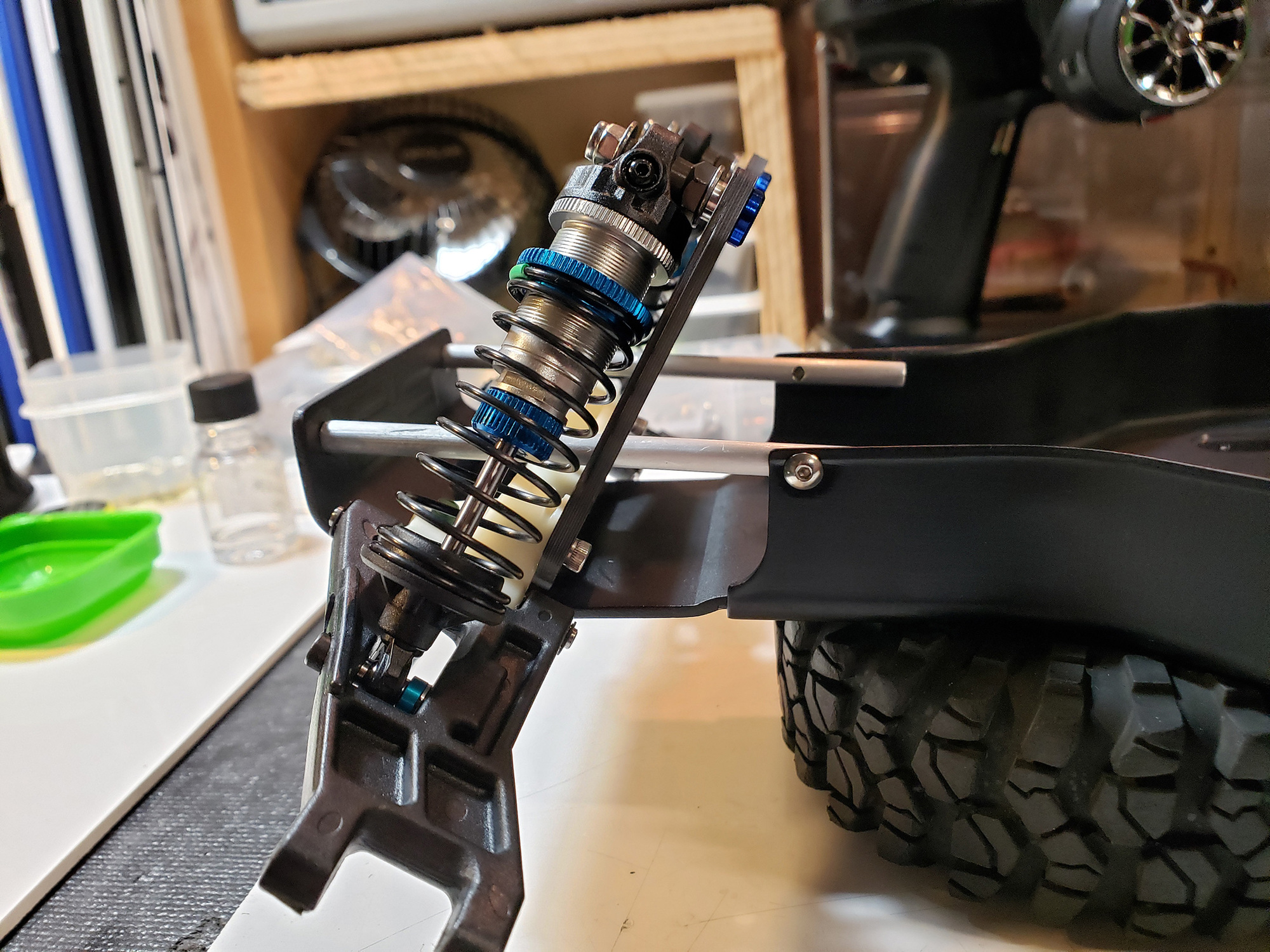

I've got the front and rear shocks mounted,
next up will be the drive shafts ...trying to determine the easiest/best way to do this as there are ton of options it looks like.

[eR1c]

For the rear CVA's I am going to go this route (thank Radioactivity)

“The CVA have an issue also the shafts are too short, AE screwed up!” Agreed!
I haven’t been able to find any of the Associated 9911 or the Associated B2 universal joints for a reasonable price. They may be more available in EU?
Another possibility might be using Yokomo 60.5mm Rear Universal Bone YOKZ2-010RB and Yokomo C-Clip Universal Joint Pin Set YOKBM-010TPC.
That setup uses B4 rear hubs. Search Yokomo CVA in forums.
viewtopic.php?f=35&t=34582&p=385999&hil ... VA#p385999

This seems like a good solution and all the parts are easily available. Most of the other options I've read about all have 1 part that is impossible to find.

the link in that quote doesn't seem to be displaying correctly, -yet its from Radioactive's post a few posts up...

[radioactivity]

Eric

Search - My OIN Worlds whatever you want to call it racer. page4
Odd, when I go to my original post it shows https://www.rc10talk.com/viewtopic.php?f=35&t=34582&p=385999&hilit=Yokomo+CVA#p385999
and it works for me


Chuck

[eR1c]

Thank you Chuck,
Yes, that is what I am following, and I love that all the parts are readily available!
going to go that route, -thanks for outlining how to do this.

[eR1c]

Okay, a few questions:

1) I am following the setup for the rear conversion to 2.2 12mm hex found here:
https://www.rc10talk.com/viewtopic.php?f=35&t=34582&p=385999&hilit=Yokomo+CVA#p385999

Which hub carriers should I use for this setup, I am believe the stock RC10 and/or the Re-Re World's rear hubs will not work. I read that the "B4 hub carriers" are the ones to use, yet there are a few variants.
I've found the following:
https://www.amainhobbies.com/team-associated-rear-hub-carrier-set-2-b4-t4-asc9584/p21094?gclid=EAIaIQobChMIsbqCv7Pl5gIVBRitBh0FmgoIEAQYASABEgI4SfD_BwE
and
https://www.ebay.com/itm/Associated-9730-Rear-Hub-Carrier-B4-B44/164007380396
and a few more by RPM, and such...

2) For the front wheels any recommendations to convert to a hex setup to accept modern wheels? -or is there some preferred setup here? (not finding much info online, yet I am sure it must exist).

thanks,

[jwscab]

any of the b4 hubs will work, you will just need to get the right bearings and spacer and shims for whichever one you choose.

as for front hexes, I believe the recommendation nowadays is to use all of the c-hub/spindle parts from an SC10 and drill out the cross pin to 1/8" for the lower suspension arm.

[eR1c]

Thank you,
okay, gathering the necessary parts so I can continue on this build.

[eR1c]

okay, looks like the front axle piece for the B4 has been discontinued and isn't available anywhere. ..looked on eBay too, nothing.
hmm, ...

[eR1c]

Okay, I found a set of front axles from a B4, ...i'll post photos of my progress once all my parts arrive.

[eR1c]

I am still working on this, got the steering setup...

[Mja75]

Nice build so far.
If the AE hex B4 axles are hard to find JConcepts also did a conversion part.
http://blog.jconcepts.net/2012/11/jconcepts-new-product-release-b4-1-t4-1-and-sc10-front-axle/

[eR1c]

Thanks for the encouragement on the build,
Yes, I went w/ the JC Concepts front axle pieces as that is all I could find, -I had to order from Australia as they are discontinued and found an eBay seller w/ like 5 sets. Paid $8 for them US, then $20 shipping (sucks, but what else could I do)?!!

[KidAgain]

Seems like Australia got most of the hard to find JConcepts RC10 parts, same with the SC10. I can never find in the states but Australia always seems to have them..........................

[eR1c]

Yeah, I've noticed that too. I wonder if maybe the supply gets bought up here in the US quicker? In any case, I wish they'd get the shipping to/from US to Aus more reasonable.

[eR1c]

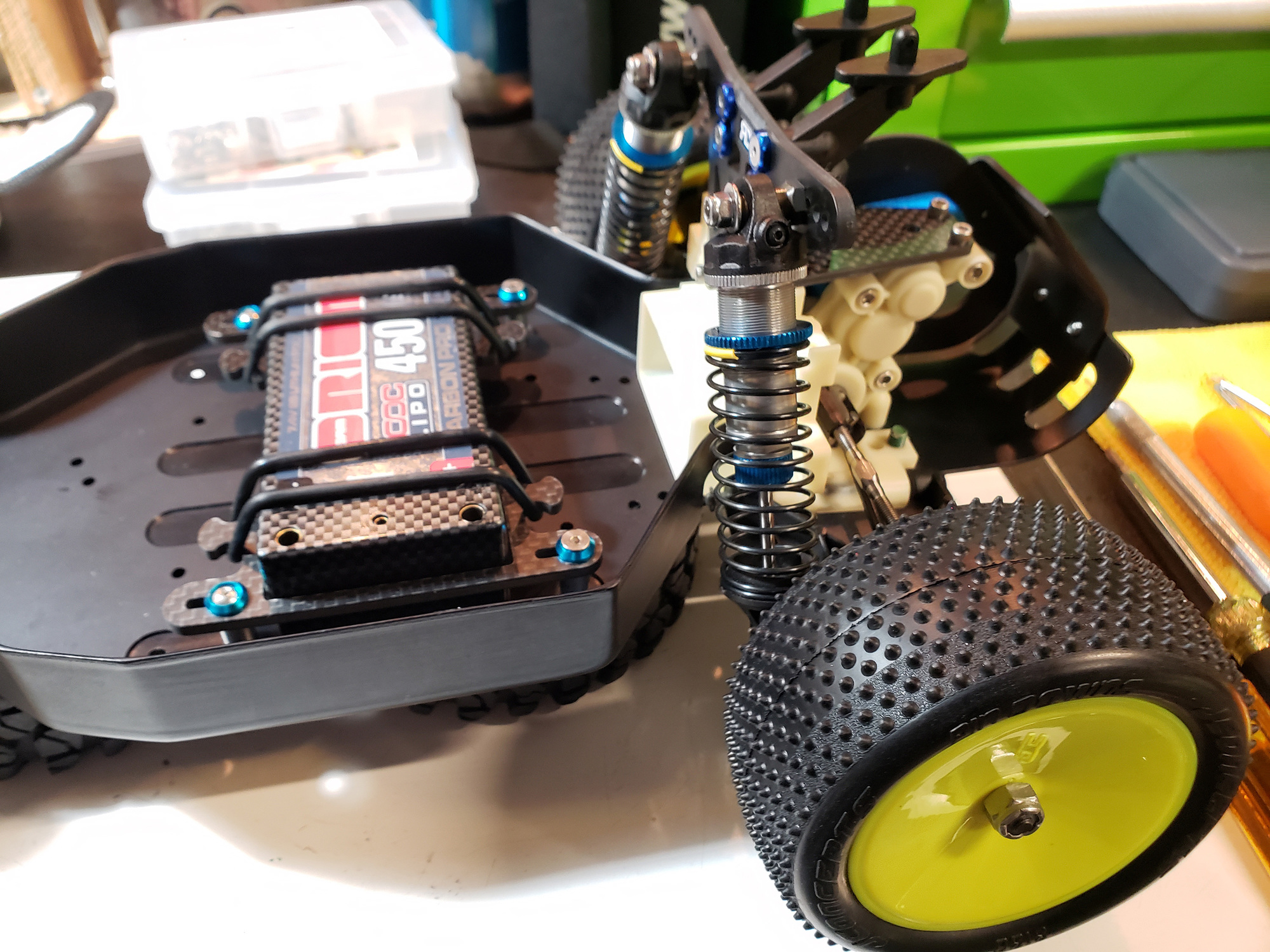

okay, got the back 2.2" wheels mounted, took some back and forth to get them right but there is no binding and everything is smooth and fits well.
I also adjusted the rear camber a little and tightened up the rear diff ever so slightly as it was a tad too loose (I think). Installed a battery holder (and battery) ...
...just waiting for the front axles to arrive, yet may start on the electronics and body while I am waiting.
