All Alloy Tube Chassis (Completed)

General discussion, builds/restorations, etc...

Moderators: scr8p, klavy69

User avatar
mikedealer
Approved Member
Posts: 1778
Joined: Fri May 18, 2007 12:25 am

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by mikedealer »

i thought about making a brazed steering wheel mount originally... but what sure what to do and figure i would use a loop strap.. i think i am going to mold something from clay.. cast it in rubber, and make one out of plastic... might include some guages in there too

noony
Approved Member
Posts: 533
Joined: Thu Sep 14, 2006 12:26 pm
Location: Smiths Creek Mi

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by noony »

Mike sent you a pm did you get it?

User avatar
asashaw
Approved Member
Posts: 321
Joined: Thu Apr 05, 2007 1:27 am
Location: NY

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by asashaw »

mike check this out from the real racing post its bad hoopty's "clone" real racing chassis!

http://pics.montypics.com/badhoopty/2007-03-19/1174352382_tubers.jpg

User avatar
Bormac
Approved Member
Posts: 3112
Joined: Wed Sep 05, 2007 3:52 pm
Location: CENTRAL COAST, NSW AUSTRALIA
Has thanked: 21 times
Been thanked: 3 times

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by Bormac »

MD that rail looks DAMN HOT! These things are the coolest idea ever. Cant wait to see the first production run. Good work!
-Jason.

Still known as- bormac

My collection-http://www.tamiyaclub.com/showroom.asp?id=10980

User avatar
mikedealer
Approved Member
Posts: 1778
Joined: Fri May 18, 2007 12:25 am

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by mikedealer »

working on them this week for sure.. hate to keep everyone in suspense but i have had soo much real life stuff to do

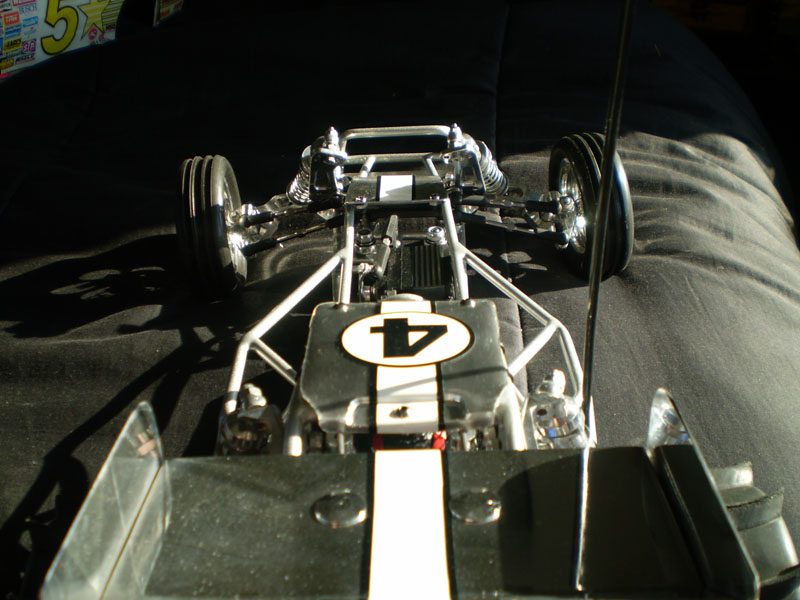

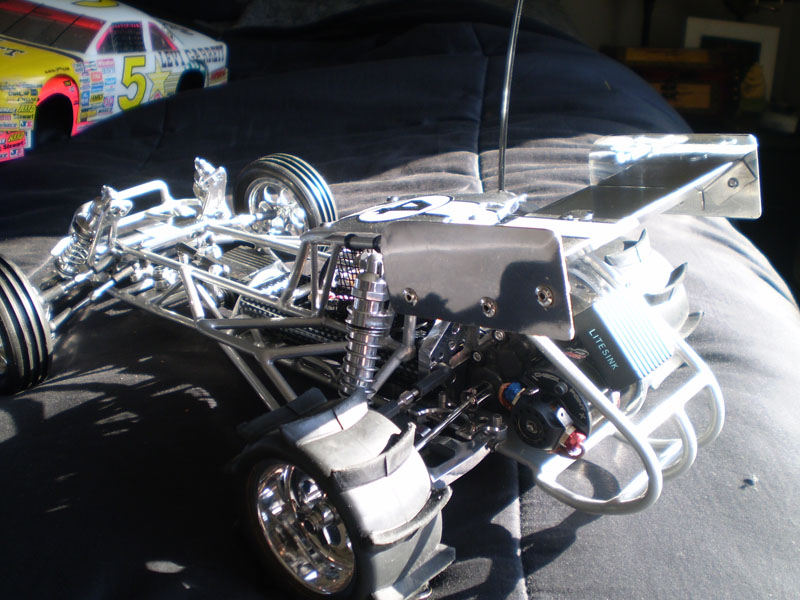

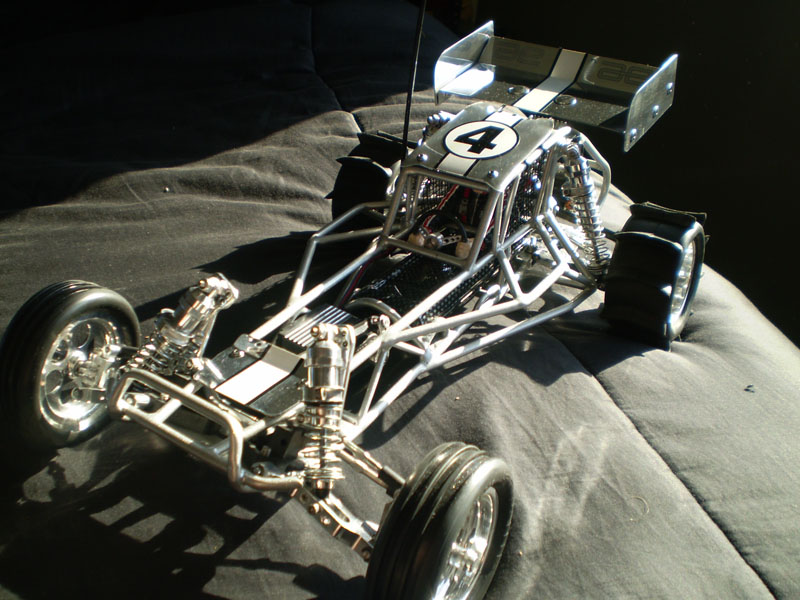

took a couple pictures today after a "final" polish

going to attempt to make a pod guage/steering wheel thing out of a polymer clay today then mold it outta plastic.. we'll see how it goes
Attachments

badhoopty
Approved Member
Posts: 3756
Joined: Tue Feb 07, 2006 2:12 pm
Has thanked: 17 times
Been thanked: 36 times

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by badhoopty »

hey, whats that cheesy protech roof doing on there!!

:wink:

User avatar
mikedealer
Approved Member
Posts: 1778
Joined: Fri May 18, 2007 12:25 am

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by mikedealer »

the metal was just too much to make for me lol.. at least the roof has a little definintion to it lol. painted with mirror chrome i thought it was good enough lol. i tryed at least 7 different metal roofs.. the flat ones looked like crap.. the ones i tryed to bend to give some definition.. came out awful.. so i went with this lol

User avatar
Mr. ED
Approved Member
Posts: 5478
Joined: Thu Dec 21, 2006 1:30 am
Location: Back @ home: Belgium
Has thanked: 58 times
Been thanked: 56 times

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by Mr. ED »

I LIKE these new pictures

User avatar
mikedealer
Approved Member
Posts: 1778
Joined: Fri May 18, 2007 12:25 am

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by mikedealer »

thanks man, and i have another package of those kyosho cups too no worries

littlejohn
Regular Member
Posts: 5
Joined: Fri Jan 18, 2008 10:13 am

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by littlejohn »

MAN I JUST GOT BACK INTO RC AFTER 20 YEARS AND I THINK THAT IS ONE AWESOME CAR YOU BUILT THERE I JUST GOT ALL THE PARTS TO MY JRX PRO SE OFF EBAY AND PUT ALUMINUM A ARMS AND BULK HEAD AND IT LOOKS PRETTY CLEAN BUT NOTHING LIKE THAT..HOW LONG DID IT TAKE ... :D

User avatar
Dr. Robotnik
Approved Member
Posts: 1442
Joined: Wed Oct 11, 2006 11:05 am
Location: Nutterham, United Kingdom
Been thanked: 2 times

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by Dr. Robotnik »

^ Someones excited. Great car mate!

User avatar
Asso_man!
Approved Member
Posts: 3959
Joined: Thu Aug 03, 2006 7:49 am
Location: EU
Has thanked: 40 times
Been thanked: 70 times

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by Asso_man! »

it was worth the pain to wait all these months, you've got a jewel there, no let me put my 8)
_____________________________________________
_____________________________________________
Come and visit the stable

User avatar
mikedealer
Approved Member
Posts: 1778
Joined: Fri May 18, 2007 12:25 am

Re: All Alloy Tube Chassis (VERY VERY near completion)

Post by mikedealer »

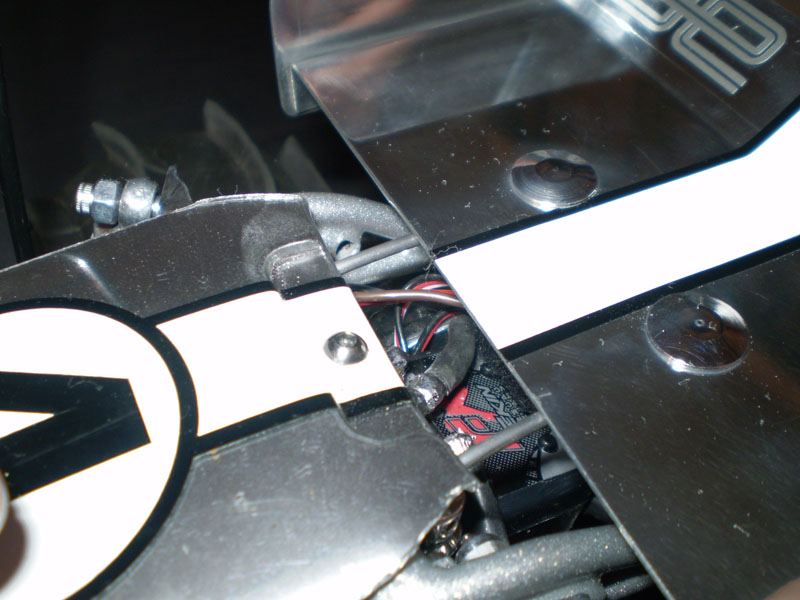

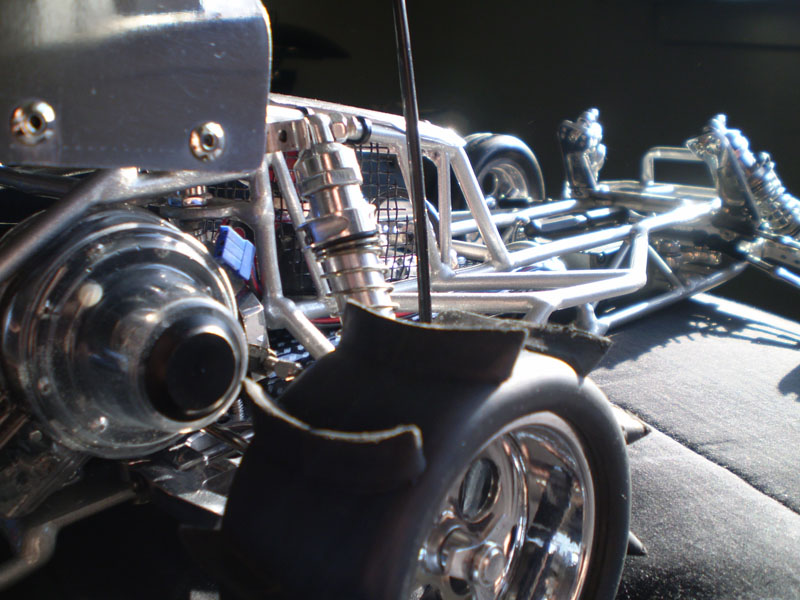

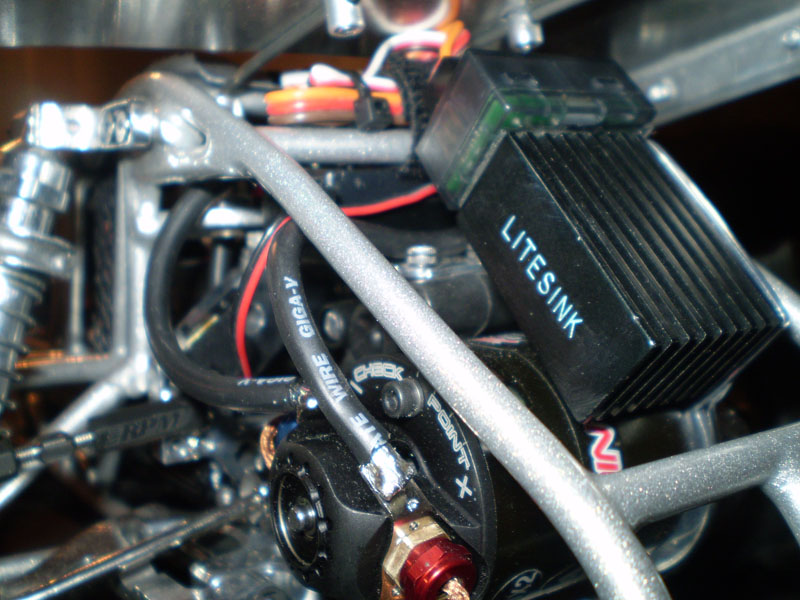

just mounted all the electronics.. used a micro spectrum, tekin fx, checkpoint 10x2, and a rock crusher airtronics servo 94361 (had to use a extension for the servo)

all went in nicely, mounted the speedo on top of HG tranny brace, the spektrum on the side of the lightsink, and it all mounted perfectly.. one thing i didnt plan to well when building was mounting the electronics.. the driver was a "late in build" decision to add, so all the electronics were going to go in the cockpit, but to maintain the look, the driver takes up the whole cockpit now...

i know pics are hard to see lol, but i put the car back together before i took pics lol
Attachments

User avatar
mikedealer
Approved Member
Posts: 1778
Joined: Fri May 18, 2007 12:25 am

Re: All Alloy Tube Chassis (Nearing Total Completion...)

Post by mikedealer »

Well the only things i have left before i call this project a day,

They are to make a new front plate (going to extend it back a inch or so to give it more coverage), i fixed the servo arm and clearance so it wont rub, it was originally.

Then to mount new losi bellcranks (dont attempt to polish these things, they turn out to be a mess lol.. they actually came out ok but i have new ones i am going to leave the default finish on)..

gonna add a few vinyl cut graphic logos and stickers ("team associated" logs onside of the wing, and "Team Associated RC10" in small letters on the front plate).. and thats it!

Any Suggestions or anything are welcome, good or bad.. this project evolves all the time and ive been changing things from day 1 from the look of the side rails, to different stuctural components and parts... any ideas would be great.

User avatar
Asso_man!
Approved Member
Posts: 3959
Joined: Thu Aug 03, 2006 7:49 am
Location: EU
Has thanked: 40 times
Been thanked: 70 times

Re: All Alloy Tube Chassis (Nearing Total Completion...)

Post by Asso_man! »

Mike, I would leave it as is, maybe just fix the small "engineering" details. One thing I don't understand: if you don't plan to run it, why putting in the expensive and modern electronics?
_____________________________________________
_____________________________________________
Come and visit the stable
