Looking at the instructions of the Nichimo 443 WDS which uses the same bumper as the FWD Nichimo cars, i suspect the engineers were relying on the flexibility of the plastic so that it can mount on both cars. On the Spirit, they put spacers, but they did not bother to put them on the Midships/Exceed ... And the flexibility works... Not sure which one was possibly breaking the Bumper fasterDadio wrote: ↑Tue May 03, 2022 3:40 pm Bit more Zerda , cage sections , took longer than I'd like to admit as the originals are soft as noodles and hard to measure , they fit well now though , the long front to back section is to long to print on my printer so I had to do it in two sections , I modelled the rear section not show hear a while ago and I compared it with these parts in Fusion 360 and they don't fit together but in real life they do because they are so flexible
Dadio's 3D Printing Stuff
- silvertriple
- Super Member
- Posts: 1696
- Joined: Sun May 02, 2021 10:31 am
- Location: France, Isere
- Has thanked: 596 times
- Been thanked: 889 times
Re: Dadio's 3D Printing Stuff
I buy kits to build and ru(i)n them
-
- Super Member
- Posts: 678
- Joined: Sun Oct 06, 2019 11:33 pm
- Location: Ill-Noise, USA
- Has thanked: 953 times
- Been thanked: 564 times
Re: Dadio's 3D Printing Stuff
I hope you make those Coyote double wheel bearing adapters next! I’ll buy 2 sets..Dadio wrote: ↑Wed May 25, 2022 3:30 pm Drew these SG Racing Coyote parts , bulkheads and the top suspension mount , just resin prints as proof parts , will be in my shop soon .
The eagle eyes might spot that the bulkheads are not full thickness , I dropped the prints into the bed to get a flat bottom .
-Brad
-
- Approved Member
- Posts: 3877
- Joined: Sun Apr 24, 2016 2:21 pm
- Location: Guildford UK
- Has thanked: 2299 times
- Been thanked: 2001 times
Re: Dadio's 3D Printing Stuff
What I've just done was draw up converted front and rear hubs to take double bearings , thought that might be a better way to go as it does away with the three little screws to retain the bearing or adapter , I can just do adapters if that's what you'd prefer , would be cheaper .BattleTrak wrote: ↑Thu May 26, 2022 4:30 amI hope you make those Coyote double wheel bearing adapters next! I’ll buy 2 sets..Dadio wrote: ↑Wed May 25, 2022 3:30 pm Drew these SG Racing Coyote parts , bulkheads and the top suspension mount , just resin prints as proof parts , will be in my shop soon .
The eagle eyes might spot that the bulkheads are not full thickness , I dropped the prints into the bed to get a flat bottom .
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
A problem shared is a problem halved but an advantage shared is no advantage at all.
-
- Super Member
- Posts: 678
- Joined: Sun Oct 06, 2019 11:33 pm
- Location: Ill-Noise, USA
- Has thanked: 953 times
- Been thanked: 564 times
Re: Dadio's 3D Printing Stuff
I think I would prefer the adapters, just to keep the car as original as possible with the mods on the subtle/hidden side. Your redesigned hubs sound interesting too..
-Brad
-
- Approved Member
- Posts: 3877
- Joined: Sun Apr 24, 2016 2:21 pm
- Location: Guildford UK
- Has thanked: 2299 times
- Been thanked: 2001 times
Re: Dadio's 3D Printing Stuff
No problem , I'll draw them up and test print them , not sure I have the three mil wide bearings to test with but I'll have a did around .BattleTrak wrote: ↑Thu May 26, 2022 6:20 pm I think I would prefer the adapters, just to keep the car as original as possible with the mods on the subtle/hidden side. Your redesigned hubs sound interesting too..
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
A problem shared is a problem halved but an advantage shared is no advantage at all.
-
- Approved Member
- Posts: 3877
- Joined: Sun Apr 24, 2016 2:21 pm
- Location: Guildford UK
- Has thanked: 2299 times
- Been thanked: 2001 times
Re: Dadio's 3D Printing Stuff

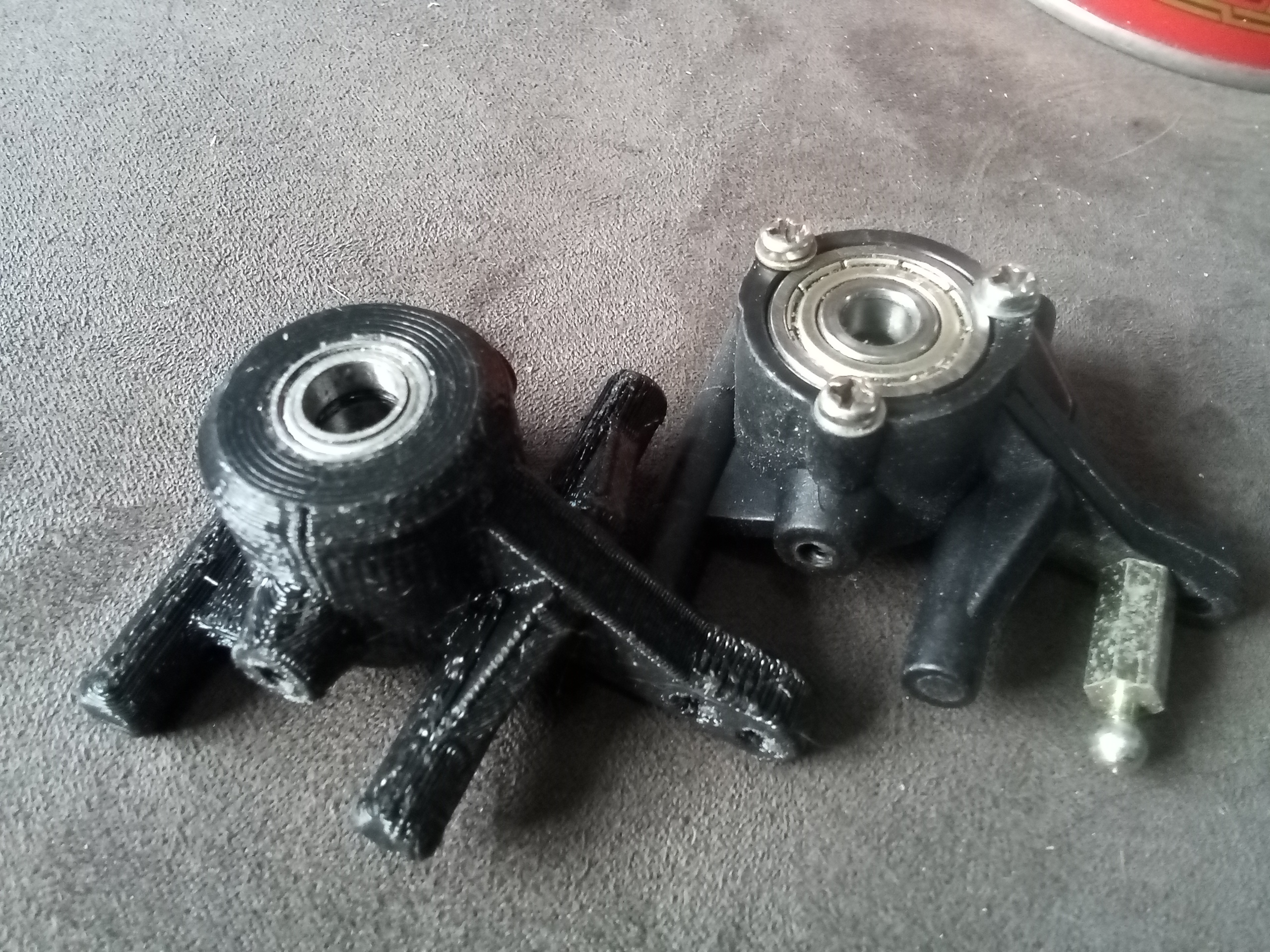

Printed these test pieces last night , they are the front and rear hubs for the SG Tag Coyote with the double bearing mod inbuilt , I don't have any 5x10x3 bearings but I was able to test the fit with some 6x10x3 bearings , all fits well so I'll pop these up later as well as the bearing adapters , these are just printed in PETG and look awful and are to weak to use , I'm just using up rolls of crap filament for test purposes .
Here it is next to the big single bearing original . And
The rear one.
Here it is next to the big single bearing original . And
The rear one.
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
A problem shared is a problem halved but an advantage shared is no advantage at all.
-
- Approved Member
- Posts: 3877
- Joined: Sun Apr 24, 2016 2:21 pm
- Location: Guildford UK
- Has thanked: 2299 times
- Been thanked: 2001 times
Re: Dadio's 3D Printing Stuff

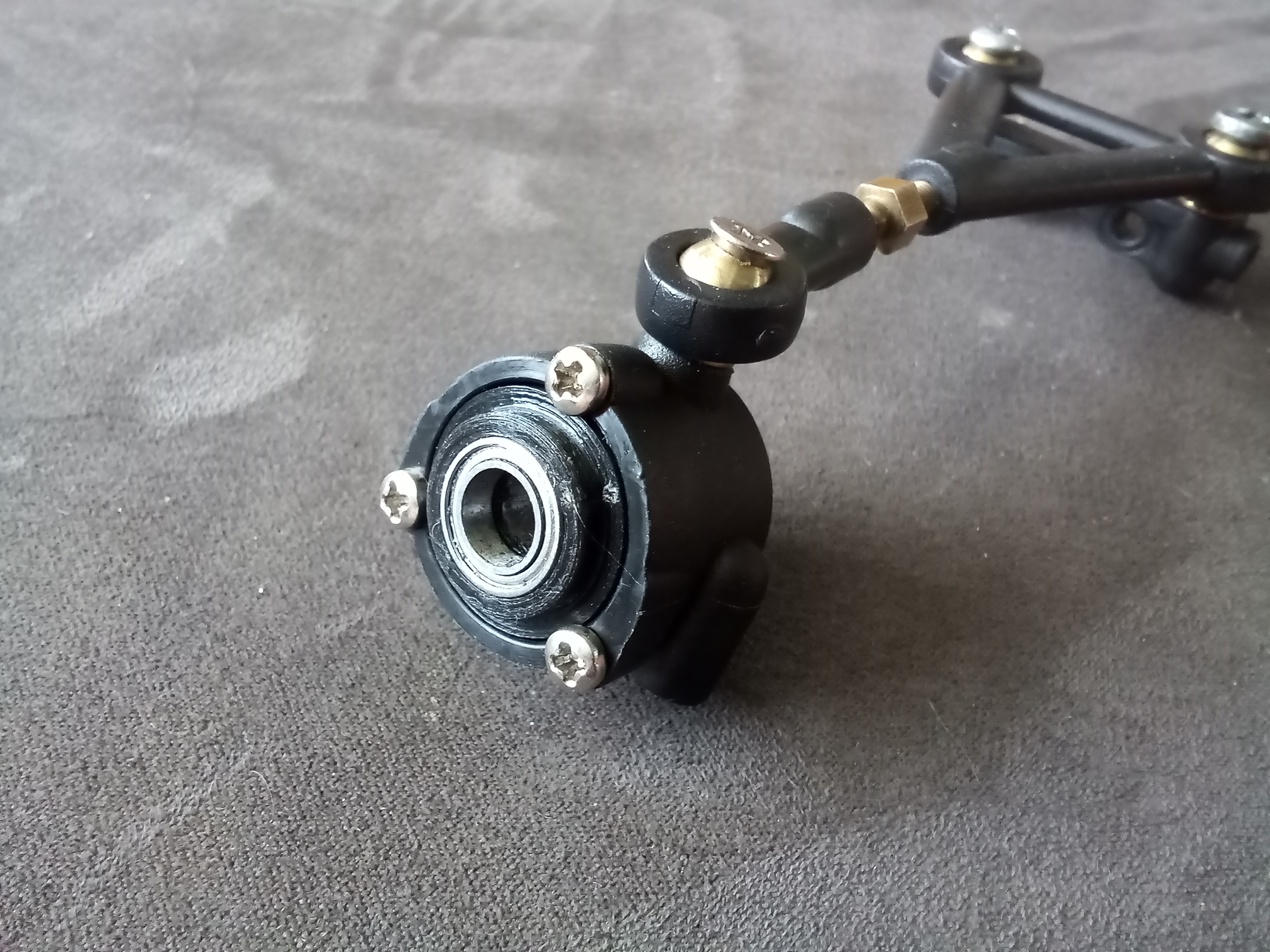

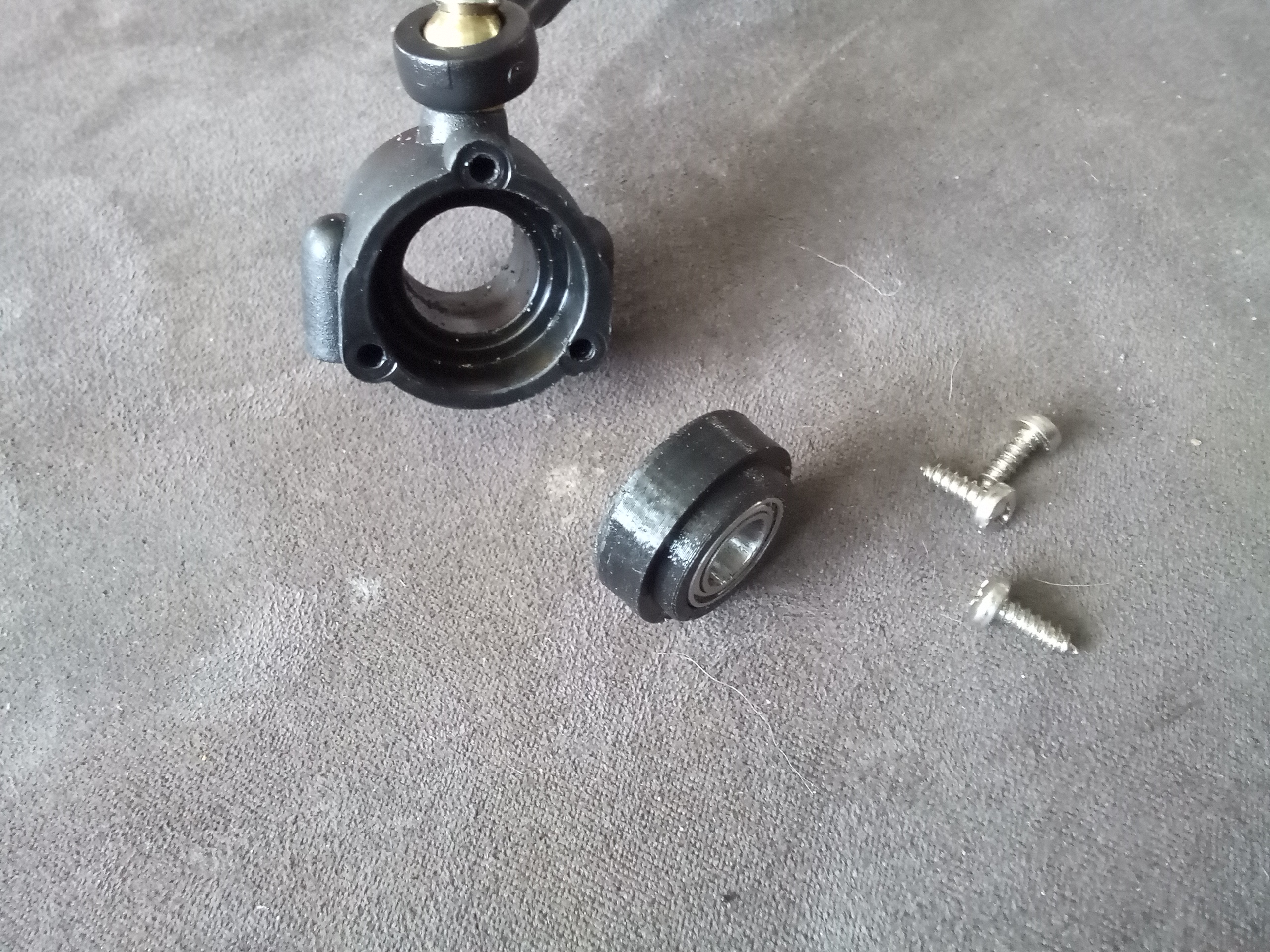

This is the double bearing adaptor for the coyote , works well so it's going to be added soon .
It needs two 5x10x3 bearings per wheel .If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
A problem shared is a problem halved but an advantage shared is no advantage at all.
-
- Super Member
- Posts: 678
- Joined: Sun Oct 06, 2019 11:33 pm
- Location: Ill-Noise, USA
- Has thanked: 953 times
- Been thanked: 564 times
Re: Dadio's 3D Printing Stuff
That looks great! I think I’ve said it before..but thanks for all the work you have put into these Coyote parts.
-Brad
-
- Approved Member
- Posts: 3877
- Joined: Sun Apr 24, 2016 2:21 pm
- Location: Guildford UK
- Has thanked: 2299 times
- Been thanked: 2001 times
Re: Dadio's 3D Printing Stuff
Your welcome , they are up on Shapeways now £6.83 for a set of four in the natural white , hate to think about the shipping costs .
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
A problem shared is a problem halved but an advantage shared is no advantage at all.
- 1300GT
- Super Member
- Posts: 698
- Joined: Fri Feb 01, 2013 6:58 pm
- Location: Clare, Australia
- Has thanked: 338 times
- Been thanked: 276 times
Re: Dadio's 3D Printing Stuff
Legend!
I saw the TAG Pro 10 suspension arms with the extra shock mounts in your Shapeways shop. Really cool stuff.
I saw the TAG Pro 10 suspension arms with the extra shock mounts in your Shapeways shop. Really cool stuff.
Chris.
Toys.............they are!
Toys.............they are!
-
- Approved Member
- Posts: 3877
- Joined: Sun Apr 24, 2016 2:21 pm
- Location: Guildford UK
- Has thanked: 2299 times
- Been thanked: 2001 times
Re: Dadio's 3D Printing Stuff
Finally got round to the much needed spur gear for the Coyote , all the gears I've modelled so far have been 0.8 mod but every time I use the gear generator in Fusion 360 they come out bigger than the original gear in my hand and they have to be scaled down a few % to match , it happened with the Dogfighter as well as the Coyote , in fact I have several sets of original Dogfighter gears and none of them are the same size as each other But none of them as big as those generated in Fusion , if I print the Dogfighter gears at full size the gears bind badly , I tried checking if they were actually a DP gear but the equivalent DP gear is the same over size compared to original parts , I'm thinking that maybe the gear mould is accurate but the nylon shrinks causing this size difference , it's the only thing that makes sense to me .Oddly modern gears are spot on the same as the Fusion 360 gear generator and this causes problems with the Coyote as the modern full size gears just brush the lexan under plate on the Coyote , its not enough to do any harm but enough to mark the lexan slightly

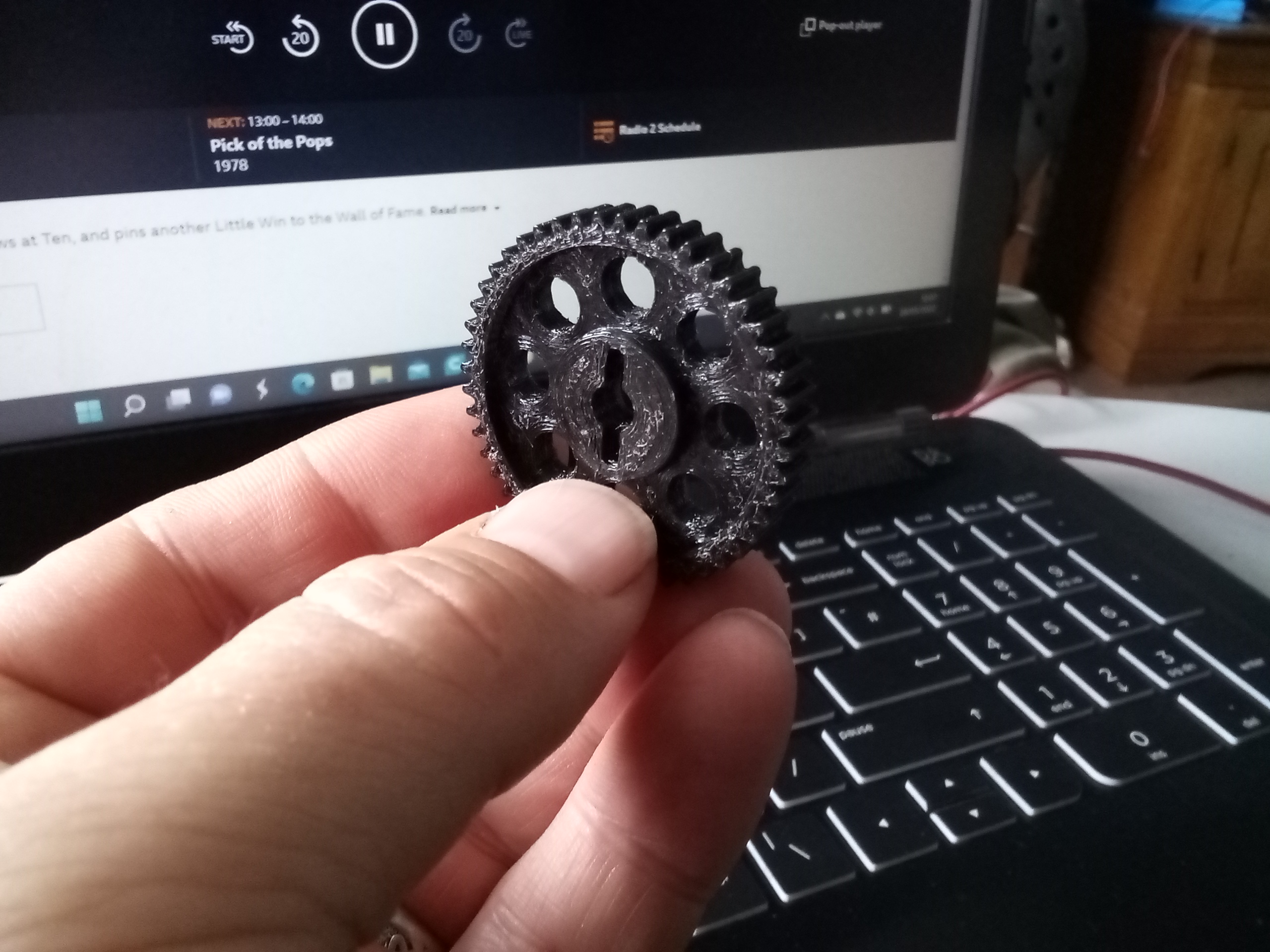

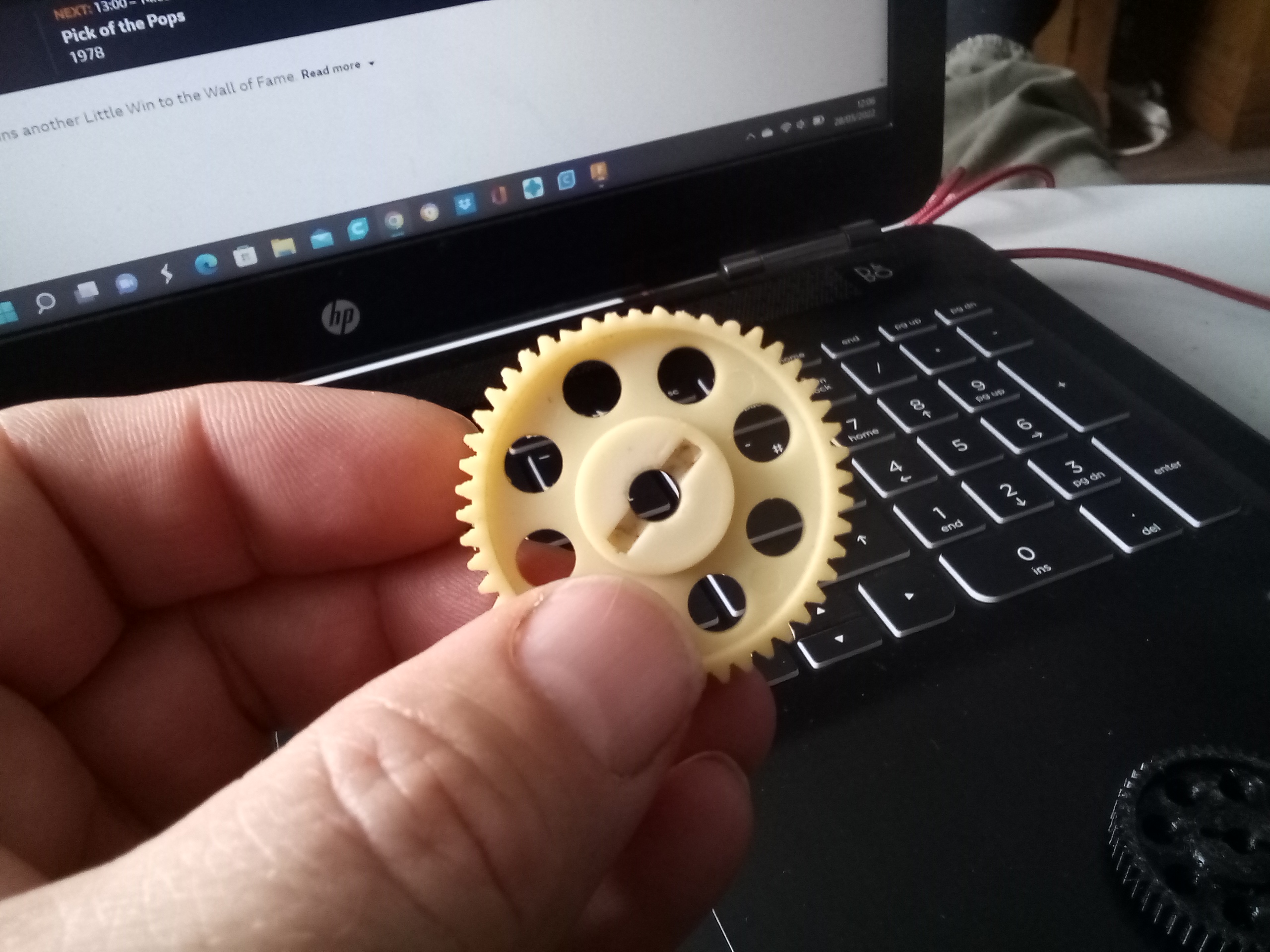

My original chewed up gear . Test printed gear
My original chewed up gear . Test printed gear
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
A problem shared is a problem halved but an advantage shared is no advantage at all.
-
- Super Member
- Posts: 678
- Joined: Sun Oct 06, 2019 11:33 pm
- Location: Ill-Noise, USA
- Has thanked: 953 times
- Been thanked: 564 times
Re: Dadio's 3D Printing Stuff
I just ordered two sets in natural black. Standard Shipping was $9.99 here in the states…total order was $38.
-Brad
-
- Approved Member
- Posts: 3877
- Joined: Sun Apr 24, 2016 2:21 pm
- Location: Guildford UK
- Has thanked: 2299 times
- Been thanked: 2001 times
Re: Dadio's 3D Printing Stuff
That's about £29 for two sets delivered , not to bad I guess , thanks , let me know how they are when the arrive .BattleTrak wrote: ↑Sat May 28, 2022 7:42 amI just ordered two sets in natural black. Standard Shipping was $9.99 here in the states…total order was $38.
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
A problem shared is a problem halved but an advantage shared is no advantage at all.
-
- Super Member
- Posts: 678
- Joined: Sun Oct 06, 2019 11:33 pm
- Location: Ill-Noise, USA
- Has thanked: 953 times
- Been thanked: 564 times
Re: Dadio's 3D Printing Stuff
Just received the Coyote bearing adapters. They look great and arrived in record time..the fastest I have ever got something from Shapeways. I am still waiting waiting for the bearings to see how everything fits up.
-Brad
-
- Approved Member
- Posts: 3877
- Joined: Sun Apr 24, 2016 2:21 pm
- Location: Guildford UK
- Has thanked: 2299 times
- Been thanked: 2001 times
Re: Dadio's 3D Printing Stuff
Thanks for letting me know , bearings should all snap into place .
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
A problem shared is a problem halved but an advantage shared is no advantage at all.
