TRX1 Build
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 830 times
- Been thanked: 2459 times
Re: TRX1 Build
(It's a kickup blank, we are just busting his bawls)
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- peuge73
- Approved Member
- Posts: 126
- Joined: Thu Mar 12, 2009 1:22 pm
- Location: bourg de péage, France
- Has thanked: 1 time
- Been thanked: 1 time
Re: TRX1 Build
this is the one I use on my eagle LS.
The picture on A-main hobbies is better.
http://www.amainhobbies.com/product_info.php/cPath/1_25_1466_926/products_id/185515/n/ST-Racing-Concepts-CNC-Machined-Transmission-Layshaft
I use a V2 Asso slipper on it.
The picture on A-main hobbies is better.
http://www.amainhobbies.com/product_info.php/cPath/1_25_1466_926/products_id/185515/n/ST-Racing-Concepts-CNC-Machined-Transmission-Layshaft
I use a V2 Asso slipper on it.
local club president, but also family team manager - mecanic - official sponsor, and some times cruising my RC cars......YES!!!!!!!!!!
http://www.bmvrc.com/
http://www.bmvrc.com/
- Seabass
- Business Member
- Posts: 1402
- Joined: Mon Jul 27, 2009 8:34 pm
- Location: Mississippi
- Been thanked: 12 times
Re: TRX1 Build
Jeff that is the one. I was going to machine my own but for 10 bucks shipped, not worth the 20 mins it would take.
Jake
Jake
- Seabass
- Business Member
- Posts: 1402
- Joined: Mon Jul 27, 2009 8:34 pm
- Location: Mississippi
- Been thanked: 12 times
Re: TRX1 Build
Did not get much done this weekend on the car. Finally got around to ordering the shocks for the car. Still waiting on the final parts to finish the tranny.
I have the majority of the chassis drawn and ready but until I finish my machine this project is going to stall. Hopefully I can get my machine up and running soon so I can call this one done. Really looking forward to setting this one on the track.
Jake
I have the majority of the chassis drawn and ready but until I finish my machine this project is going to stall. Hopefully I can get my machine up and running soon so I can call this one done. Really looking forward to setting this one on the track.
Jake
- Seabass
- Business Member
- Posts: 1402
- Joined: Mon Jul 27, 2009 8:34 pm
- Location: Mississippi
- Been thanked: 12 times
Re: TRX1 Build

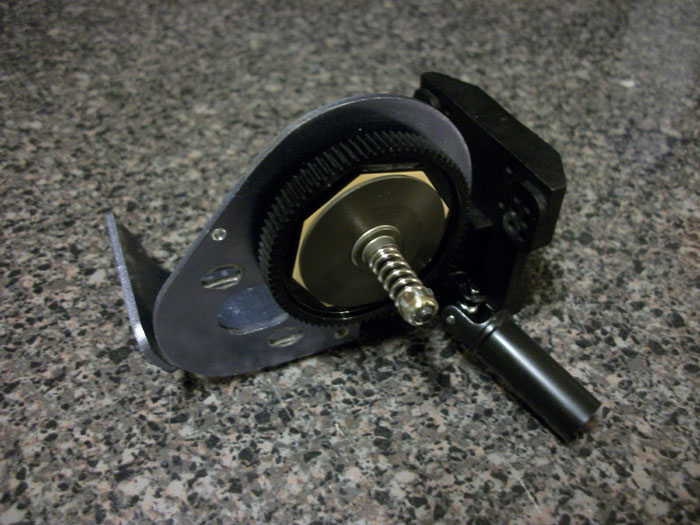

Got the tranny parts in and I was not happy with the STRC layshaft. It spins true and is of high quality. What I did not like was it places the spur gear a considerable distance from the motor plate. After some thinking, I decided to do some quick machining on the layshaft to give me the closer fit I am looking for. The layshaft moved in the machine as I was making a cut and screwed it up .
New layshaft has been paid for...

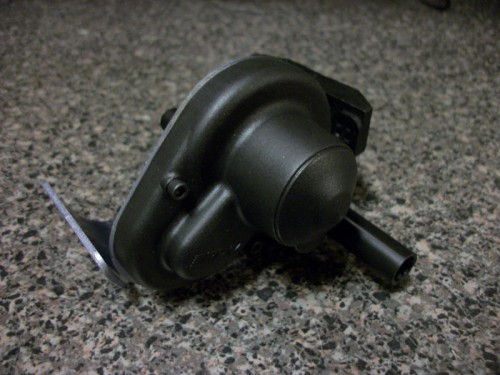

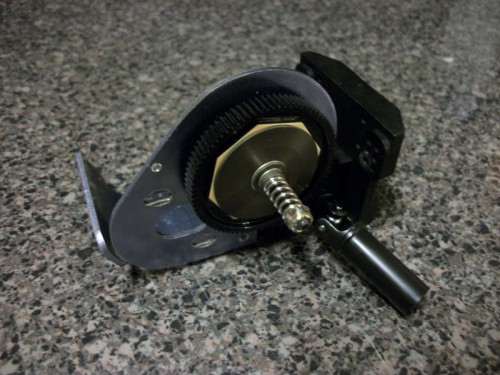

I was able to put the tranny together and was able to fit my B4 gear cover. Fits great and has plenty of room for the gears to mover freely without getting into the cover. After fitting the cover, I milled the tab to use with the OEM Traxxas cover. The B4 cover fits great and looks like it was always meant for the car. Drilled and tapped two new holes.
Hopefully I can have more updates soon.
Jake
New layshaft has been paid for...
I was able to put the tranny together and was able to fit my B4 gear cover. Fits great and has plenty of room for the gears to mover freely without getting into the cover. After fitting the cover, I milled the tab to use with the OEM Traxxas cover. The B4 cover fits great and looks like it was always meant for the car. Drilled and tapped two new holes.
Hopefully I can have more updates soon.
Jake
-
- Approved Member
- Posts: 243
- Joined: Wed Nov 11, 2009 5:41 pm
- Location: NJ
- Been thanked: 3 times
Re: TRX1 Build
I know I've read it a million times by now, but where do you get the carbon fiber sheets with the kick-up? And is it 25 or 30 degrees?
- Seabass
- Business Member
- Posts: 1402
- Joined: Mon Jul 27, 2009 8:34 pm
- Location: Mississippi
- Been thanked: 12 times
Re: TRX1 Build

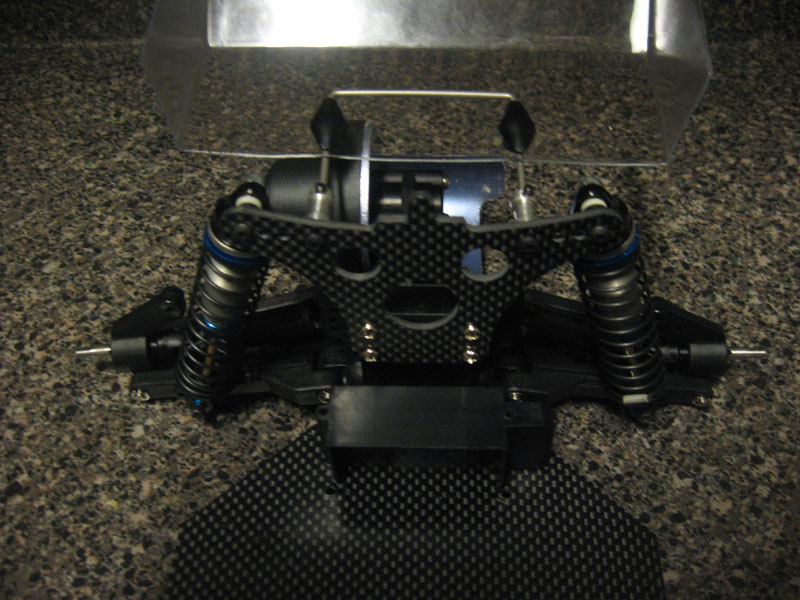

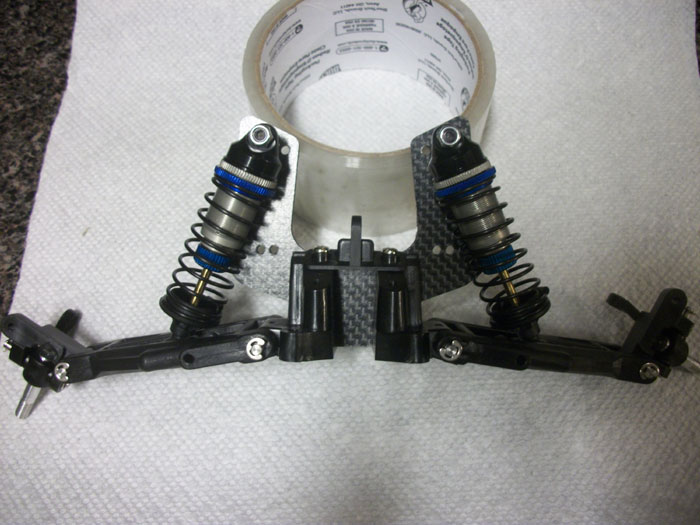

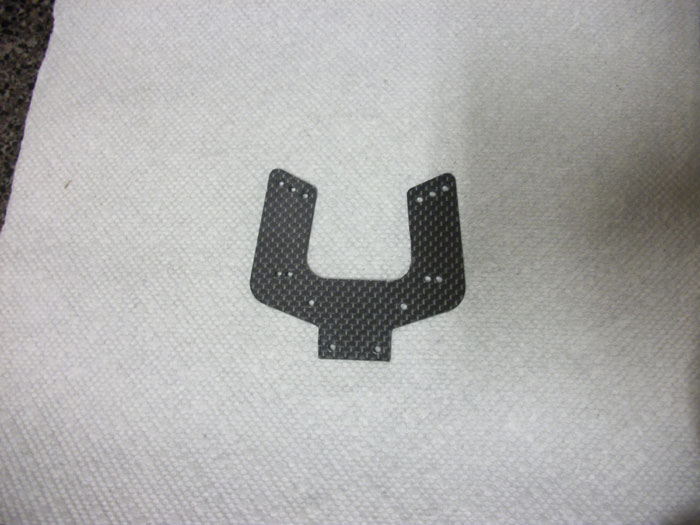

Ok guys first machined part for this car is done. The front tower was too long for what I needed so I machined a new one from CF to fit my AE 12mm big bores which will go on the car. I hope to get the chassis done soon.
Jake
Jake
- Seabass
- Business Member
- Posts: 1402
- Joined: Mon Jul 27, 2009 8:34 pm
- Location: Mississippi
- Been thanked: 12 times
Re: TRX1 Build

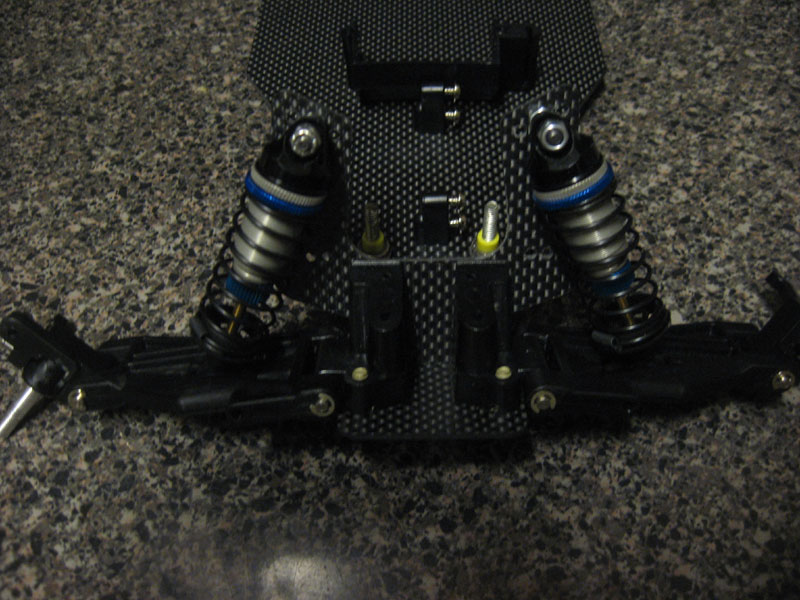

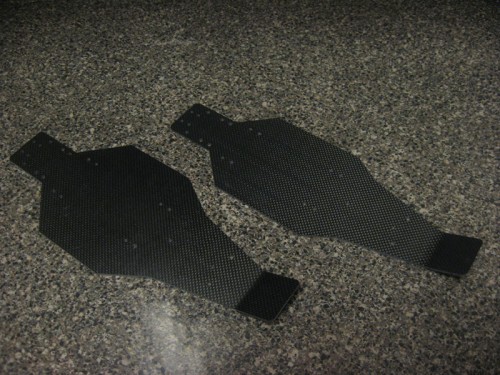

Got the chassis milled today but still have to counter sink the holes and drill the holes for the front bulkhead. The upper deck is next after I assemble the car and double check measurements.
The second chassis you see in the pic is the first one I attempted. I placed my material too far to the one side of the y axis and did not get the full width. That is what I get for trying to save as much material as possible. I ended up modifying the program and made the chassis narrower so I did not waste the material. I will not be using the narrow chassis.
More updates to come.
Jake
The second chassis you see in the pic is the first one I attempted. I placed my material too far to the one side of the y axis and did not get the full width. That is what I get for trying to save as much material as possible. I ended up modifying the program and made the chassis narrower so I did not waste the material. I will not be using the narrow chassis.
More updates to come.
Jake
- Seabass
- Business Member
- Posts: 1402
- Joined: Mon Jul 27, 2009 8:34 pm
- Location: Mississippi
- Been thanked: 12 times
Re: TRX1 Build

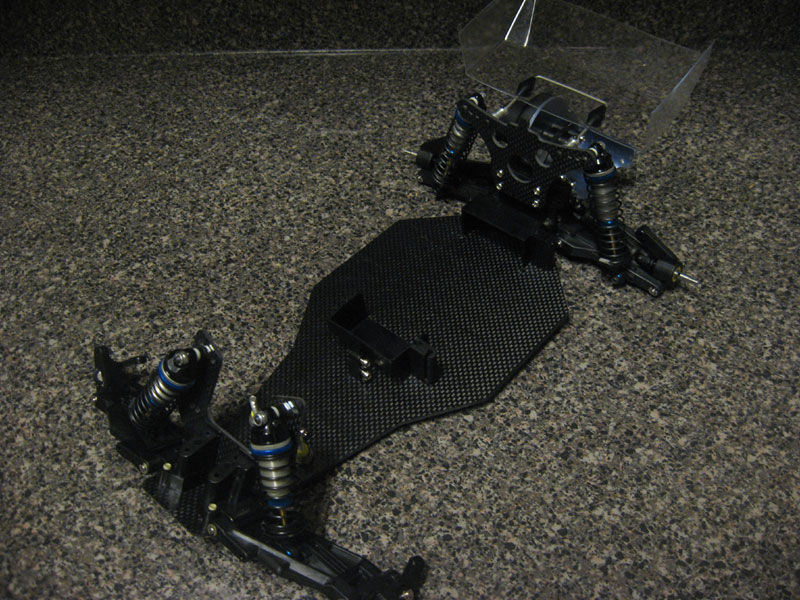

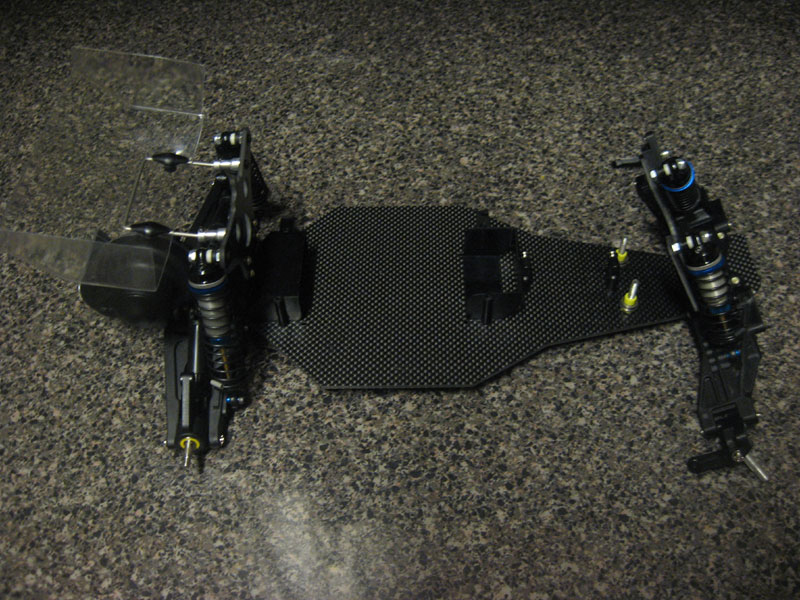

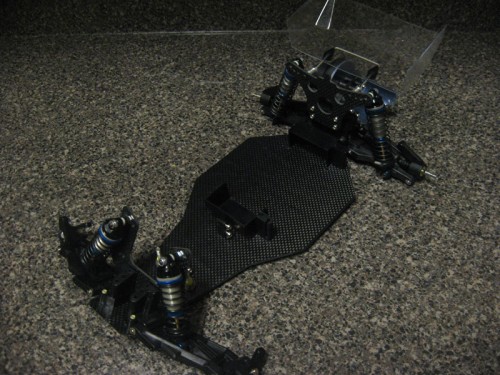

The car is just about complete. Once I get the measurements, I will place an order for a set of Lunsford turnbuckles. I will be installing the electronics in the car and working on getting the body painted later this week.
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 830 times
- Been thanked: 2459 times
Re: TRX1 Build
That's lookin killer Jake!
Those A&L pieces need some black dye
Those A&L pieces need some black dye
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- Seabass
- Business Member
- Posts: 1402
- Joined: Mon Jul 27, 2009 8:34 pm
- Location: Mississippi
- Been thanked: 12 times
Re: TRX1 Build
I am not sure the A&L stuff will stay. I threw it in there for the time being but I may go back to the OEM steering rack on this one.
If the A&L stuff is used, it will no longer be yellow. Kinda sticks out and doesn't fit the build. Should be a pretty decent car to run on the track. Got my Tekin RS and an 8.5 lined up for the car. Should be plenty fast enough...
Jake
If the A&L stuff is used, it will no longer be yellow. Kinda sticks out and doesn't fit the build. Should be a pretty decent car to run on the track. Got my Tekin RS and an 8.5 lined up for the car. Should be plenty fast enough...
Jake
- Lonestar
- Approved Member
- Posts: 4270
- Joined: Wed Dec 12, 2007 5:17 am
- Location: Switzerland, yannow, in Europe (or almost)
- Has thanked: 626 times
- Been thanked: 167 times
Re: TRX1 Build
wow this baby is gorgeous
good job Jake!!!
Paul
good job Jake!!!
Paul
AE RC10 - Made In The Eighties, Loved By The Ladies.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.
