Re: RC10B3 4WD

Post by Mr. ED »

Maybe you can mold some lights on the hood: like the Gallop MK2

User avatar
Bugle
Approved Member
Posts: 465
Joined: Fri Aug 24, 2007 11:40 pm
Location: Sydney Australia

Re: RC10B3 4WD

Post by Bugle »

Yeah headlights would be cool for night racing!

I think i'll just keep it as aerodynamic as possible, shoudl be better than a B44 in that regard..

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 9:52 am
Location: Seoul, Korea

Re: RC10B3 4WD

Post by 59burst »

Bugle wrote:It's all done by hand :)
amazing :!:

User avatar
Bugle
Approved Member
Posts: 465
Joined: Fri Aug 24, 2007 11:40 pm
Location: Sydney Australia

Re: RC10B3 4WD

Post by Bugle »

It's getting there, made the final front and rear tensioner pulleys out of aluminium and finished all the driveshafts. After having a few steel driveshafts bend in the lathe for the front driveshafts I made the CVA end out of steel with a 10mm tube coming off it and the shaft out of aluminium pressed into the tube.

Put all the steering linkages on, just have to make the front brace which will go from the front gearbox to the steering posts and through the middle of the belt to attach to the original front brace posts. Then I can pull it all apart and clean up the alloy bits for anodising and then do the final assembly.

Also for a body to test with, got a stuffed deja vu tu and chopped the front off, bent up a piece of lexan and glued it on as a new front. It didn't need to be much higher than the original, just had to go straight rather than slope down heaps. Bit wider too to clear the pulley.
Attachments

User avatar
Daddeo
Approved Member
Posts: 518
Joined: Fri Sep 01, 2006 10:31 pm
Location: Florida, U.S.A.

Re: RC10B3 4WD

Post by Daddeo »

WOW! :shock:

That looks like it came from the factory that way, great job and keep it up!

User avatar
Mr. ED
Approved Member
Posts: 5478
Joined: Thu Dec 21, 2006 1:30 am
Location: Back @ home: Belgium
Has thanked: 58 times
Been thanked: 56 times

Re: RC10B3 4WD

Post by Mr. ED »

I'm all hot for this one
Are you sure the press-fit will do for the bones?

User avatar
Bugle
Approved Member
Posts: 465
Joined: Fri Aug 24, 2007 11:40 pm
Location: Sydney Australia

Re: RC10B3 4WD

Post by Bugle »

Yeah i've done it before after snapping the dog bone end off some cvd's I turned another end out of aluminium and pressed it over the original shaft. Forgot to mention I use loctite 603 with it too, that stuff is strong!

User avatar
Bugle
Approved Member
Posts: 465
Joined: Fri Aug 24, 2007 11:40 pm
Location: Sydney Australia

Re: RC10B3 4WD

Post by Bugle »

Pulled it apart to anodise those chassis bits, putting it back together for the final time now
Attachments

User avatar
GJW
Approved Member
Posts: 2325
Joined: Mon Oct 15, 2007 7:22 pm
Location: AUSTRALIA!!
Been thanked: 1 time

Re: RC10B3 4WD

Post by GJW »

bugle you are a star dude just amazing work, how was st ives. did ya have a win?

User avatar
Bugle
Approved Member
Posts: 465
Joined: Fri Aug 24, 2007 11:40 pm
Location: Sydney Australia

Re: RC10B3 4WD

Post by Bugle »

Nah no racing because it was too wet. Just mucked around a bit, got clay all over my RC10 and Topcat gonna be fun cleaning it all up :lol:

User avatar
minichamps11
Approved Member
Posts: 377
Joined: Mon Jan 14, 2008 11:49 am
Location: Midlands, UK

Re: RC10B3 4WD

Post by minichamps11 »

That looks ace, some seriously good work has gone into that car 8) Are you going to grind down the chassis ribs and run saddle packs either side of the belt? Otherwise can't work out where the battery will go.

adam lancia
Approved Member
Posts: 1116
Joined: Tue Feb 05, 2008 6:37 pm
Location: Donkin, Nova Scotia, Canada
Has thanked: 7 times
Been thanked: 41 times

Re: RC10B3 4WD

Post by adam lancia »

I gotta say Bugle, that really is great work. Stellar!

User avatar
Bugle
Approved Member
Posts: 465
Joined: Fri Aug 24, 2007 11:40 pm
Location: Sydney Australia

Re: RC10B3 4WD

Post by Bugle »

The battery fits in the standard b3 position underneath the belt. The belt has 2 idler pulleys on the bottom to raise it up enough to clear the battery and the servo.
Attachments

User avatar
minichamps11
Approved Member
Posts: 377
Joined: Mon Jan 14, 2008 11:49 am
Location: Midlands, UK

Re: RC10B3 4WD

Post by minichamps11 »

Cool, that's a neat piece of engineering. I want to see some action photos now :D

RETRO R/C
Approved Member
Posts: 952
Joined: Mon Jan 08, 2007 10:10 pm
Location: Australia
Has thanked: 7 times

Re: RC10B3 4WD

Post by RETRO R/C »

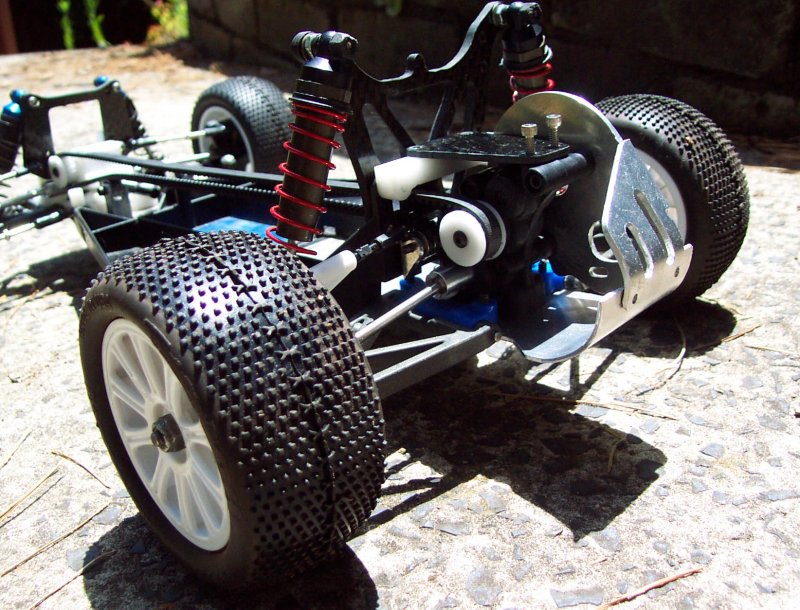

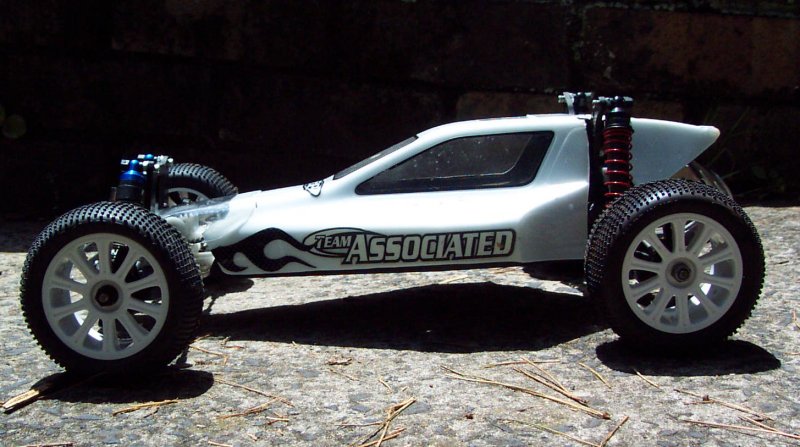

Here is the B3 sitting with my legend on the weekend:



Have some nice close ups too! ;)

Cheers

Darryn
TO KNOW WHERE YOU ARE GOING - YOU HAVE TO KNOW WHERE YOU HAVE BEEN
VENOM International | Factory Pilot - Team SCHUMACHER UK | J-Concepts USA | B-Fast Performance USA | Bugle Boy Racing | MAX Racing Products International
