Nvxwax's B&R Sprint Car (Project) (05/14/12) Got Paint

[nvxwax]

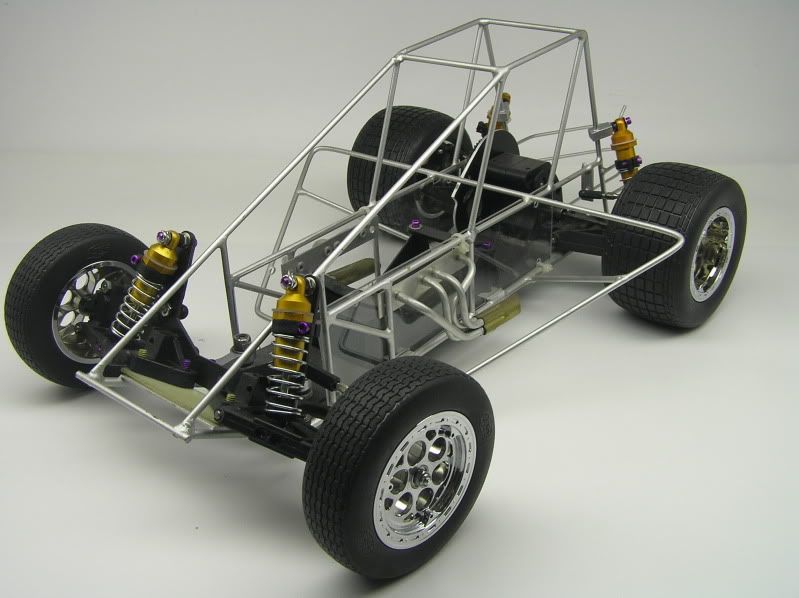

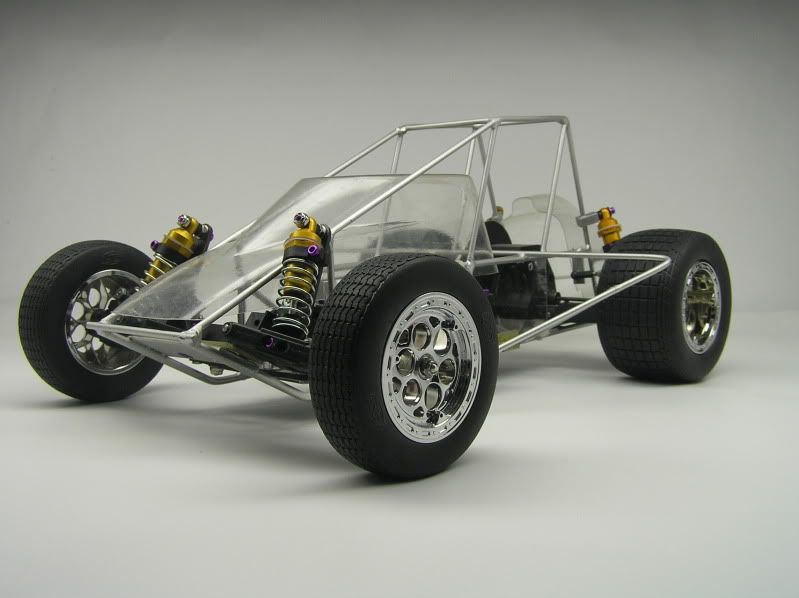

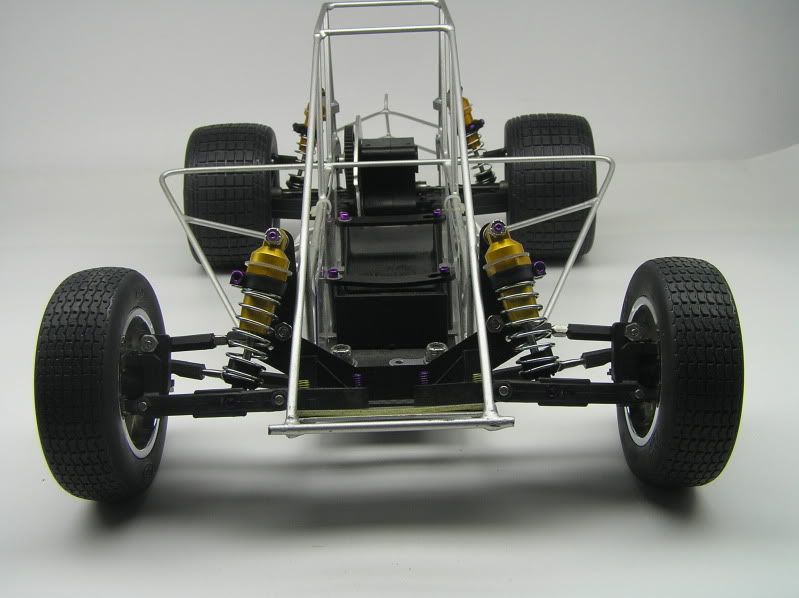

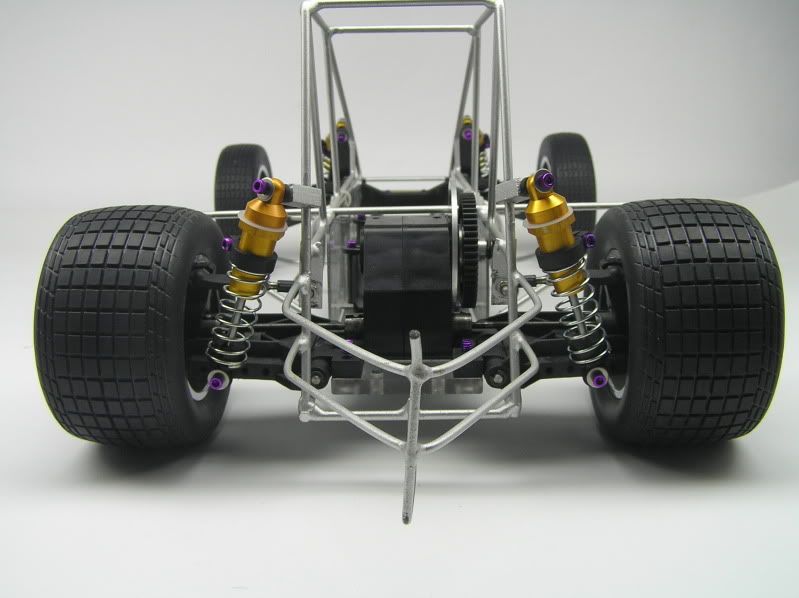

Ok so i have gone back to the slider wheels for now, I have also installed new shocks, .56 Fronts and .71 Rear, I finally found a use for the Buds Racing quick change shock spring holders lol, I needed some black ones and they were already dyed I also touched up the paint on the chassis around the upper rear shock mounts. I am going to remove the graphite plate and bellcrank setup as soon as i relocate the servo mount to the shock tower. I'm trying to stay as original as possible.

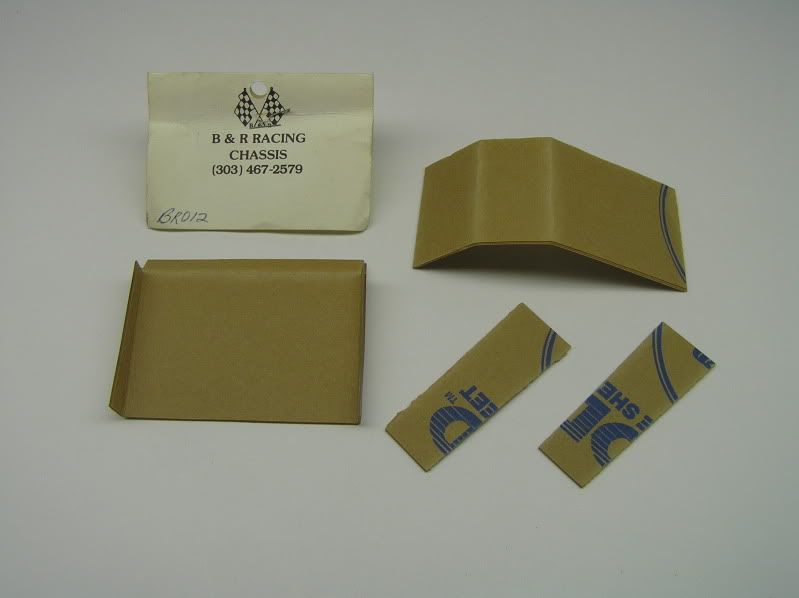

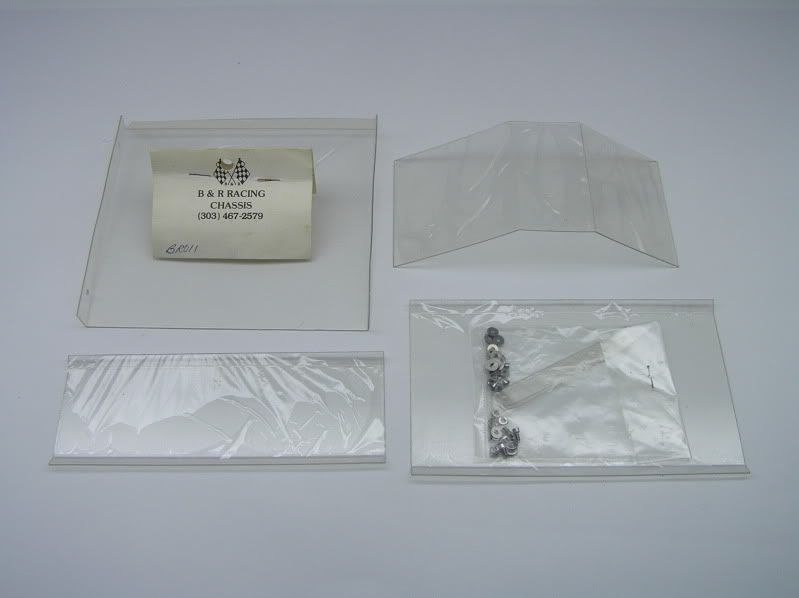

Here is the next mission, Does anybody have a clue how to assemble the wings in the picture below, Or maybe a reference picture? I think i have the basic wing but don't understand the large two bend part, i did notice the tabs on the main part of the large wing had to be re-bent to 90 deg, im wondering if other parts need bending? I am thinking they might have been unbent a little for packaging.

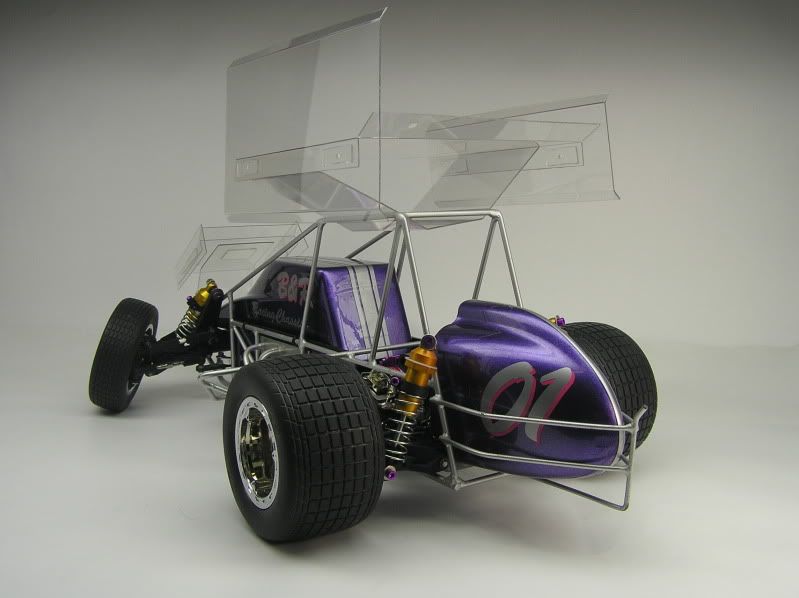

Here are some updated pictures and the wing pictures at the bottom, i cant figure out how either wing is mounted to the car....

[teman]

Super cool sprint I'm pretty sure you can still get Bart's sprint wheels, not sure if you looked into those yet. They look like this...
http://www.bartspartsrc.com/images/slideshow/ss_image20.jpg

[EvolutionRevolution]

Here is the next mission, Does anybody have a clue how to assemble the wings in the picture below, Or maybe a reference picture? I think i have the basic wing but don't understand the large two bend part, i did notice the tabs on the main part of the large wing had to be re-bent to 90 deg, im wondering if other parts need bending? I am thinking they might have been unbent a little for packaging.

Here are some updated pictures and the wing pictures at the bottom, i cant figure out how either wing is mounted to the car....

Maybe the completed wing is supposed to be mounted on the middle part of the two-bended piece, and the 'legs' of the two-bended piece to the forward and aft roof tubes of the frame? Although that would prevent air flowing underneath the wing...

[Mad Racer]

Gee that's one great build up.

Love it. Keep the pic's coming.

[nvxwax]

Thanks for the nice comments,

Im not sure about the wing mounting but looking at the manual for the car a lot was open for custom assembly, I might make a trip to the local hobby shop and look into some RC Plane parts to see if i can come up with an adjustable mounting system for the front and rear wing.

Ill keep my eyes open for some ideas used on other sprint cars.

[teman]

I think I found a photo you could use to make the wing
http://www.rccrawler.com/forum/non-crawler-rcs/140035-b-r-racing-sprint-car-o-i-f-f.html

[nvxwax]

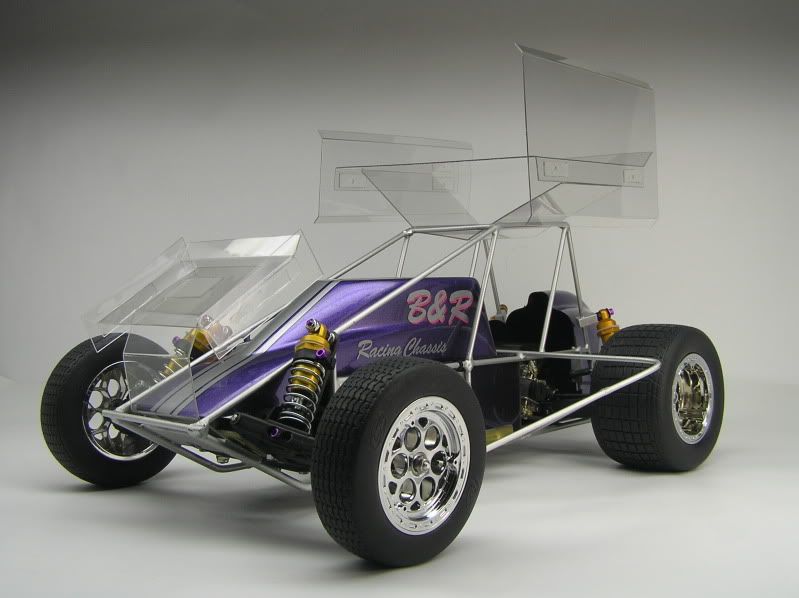

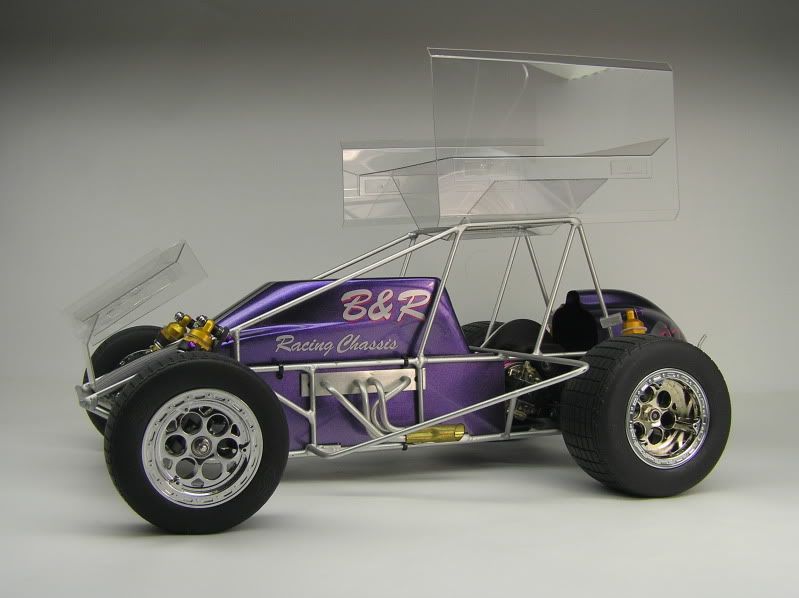

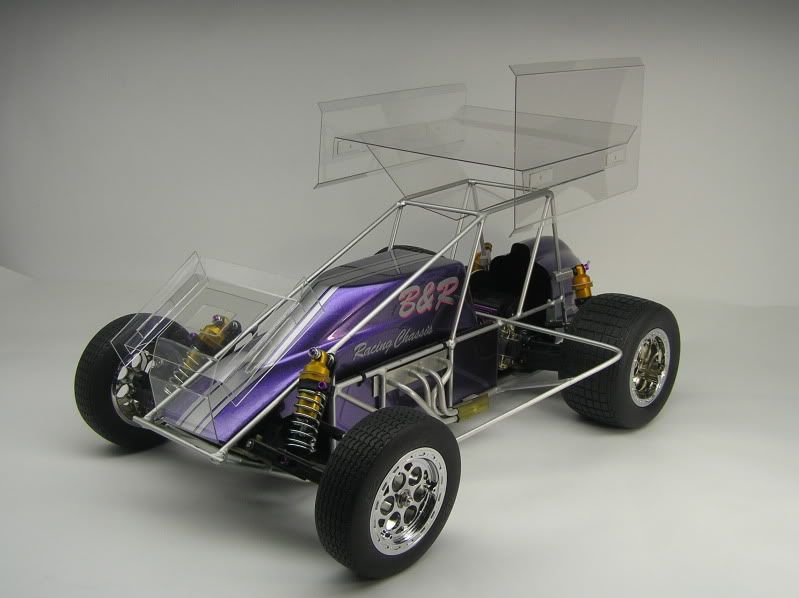

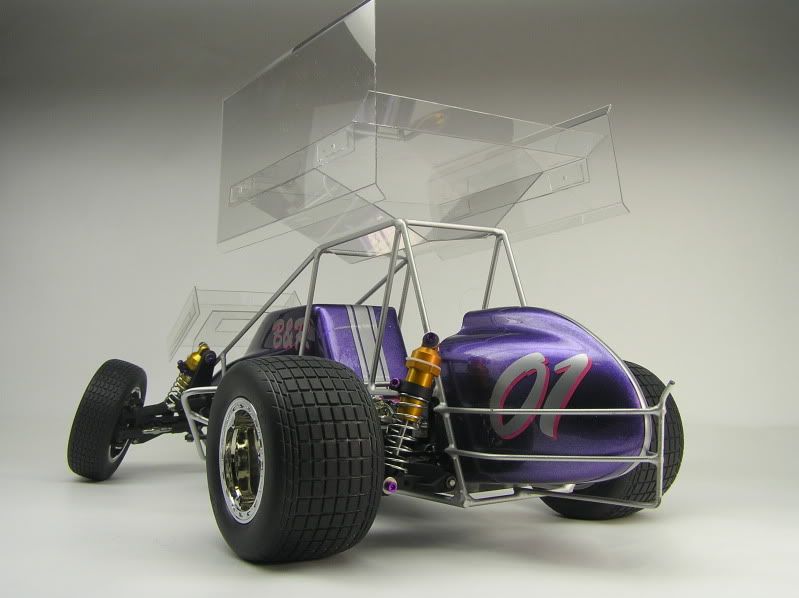

Ok the body was in pretty bad / Fragile shape, I did what i could on the paint lol, I hate painting. I also have the wings just mocked up with some clear servo tape, What do you guys think?

[Phin]

Nice looking paint but that can't be right how that wing's mounted.

[nvxwax]

Nice looking paint but that can't be right how that wing's mounted.

lol no, its just a mockup, just to get an idea for what it will look like, I am going to have to get custom with the mounts lol

[JK Racing]

when the stock mounts broke off my Ascot roll cage, I bought some Dubro ball joints that opened on one end.

http://shop.dubro.com/products/productdetail/4-40+x+5/8+E/Z+Adjust+Ball+Links+for+4-40+Rods+With+Hardware+%282/pkg%29/part_number=2137/101.0.1.1.5176.5163.0.0.0?pp=12& or http://shop.dubro.com/products/productdetail/Heavy+Duty+4-40+Ball+Link+%28QTY/PKG%3A+1+%29/part_number=259/101.0.1.1.5176.5163.0.0.0?pp=12&

then a 4-40 bolt down through the wing.

[scr8p]

you know, not all sprint car have wings. and being as though that cage has no provisions for it, i'd just leave it off (imo).

you could use some 5/10 degree blocks up front too.

[nvxwax]

Thats not a bad idea I might just forget the wing on this car and use it on the BBT ....

You guys always loose me with the different degree blocks, ill have to see if i have a set, I might actually swap the front arms for some short arms also... still undecided...

[scr8p]

if you run 5's it'll stand the tire up and it won't be riding on the edge with the tires turned.

[nvxwax]

if you run 5's it'll stand the tire up and it won't be riding on the edge with the tires turned.

Got ya, I see what you mean now lol

[toyranosaur]

I think it's coming out beautifully! Paint is simple & clean, and where did you get the decals? Did they come with the kit? It seems a pity to not run the wings, there are some interesting pics on Google Images of sprint car wing mounts that may get some ideas flowin'. Chris REC
