"Bastard" Cheetah equipped RC10L

Post by drbelleville »

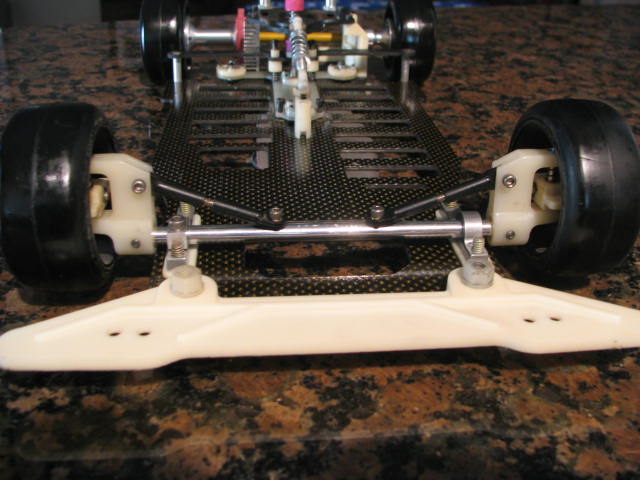

Here is an Oval C&M Cobra Chassis with hybrid T-Plate design
Attachments

User avatar
reign79
Approved Member
Posts: 642
Joined: Sun Aug 31, 2008 12:56 am
Location: cape cod mass
Has thanked: 2 times
Been thanked: 4 times

Re: Vintage C&M Cobra w. Cheetah front end

Post by reign79 »

Nice i was wondering who outbid me on that. The chassis was listed as cobra but im sure that is the tms aftermarket 10l wide chassis. The rear end is a cheetah narrow rear end kit that includes the t plate and cross brace. 8)
Ryan

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 6:44 pm
Location: USA
Been thanked: 7 times

Re: Vintage C&M Cobra w. Cheetah front end

Post by Charlie don't surf »

How about a shot of the underside, that's a slick rear end, even by today's standards 8)

User avatar
drbelleville
Approved Member
Posts: 815
Joined: Wed May 20, 2009 9:03 am
Location: My Adopted state - Texas
Been thanked: 1 time

Re: Vintage C&M Cobra w. Cheetah front end

Post by drbelleville »

Yeah the chassis is actually pretty narrow along the battery tray while the front is wide like a 235mm chassis, I will post some pics of the rear and a shot of it with an 10L chassis below.

THanks for the interest,

User avatar
drbelleville
Approved Member
Posts: 815
Joined: Wed May 20, 2009 9:03 am
Location: My Adopted state - Texas
Been thanked: 1 time

Re: Vintage C&M Cobra w. Cheetah front end

Post by drbelleville »

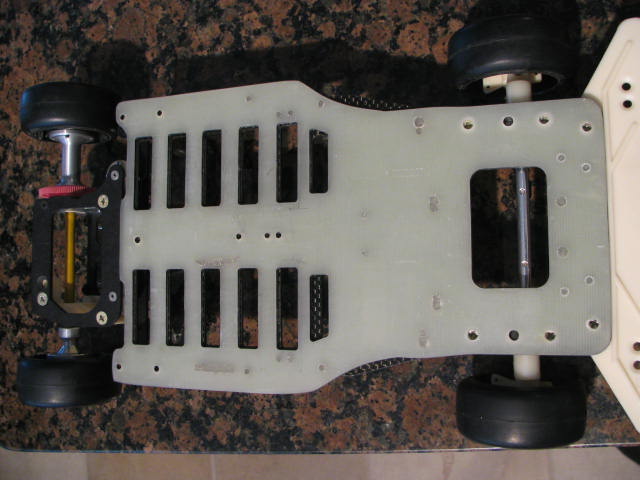

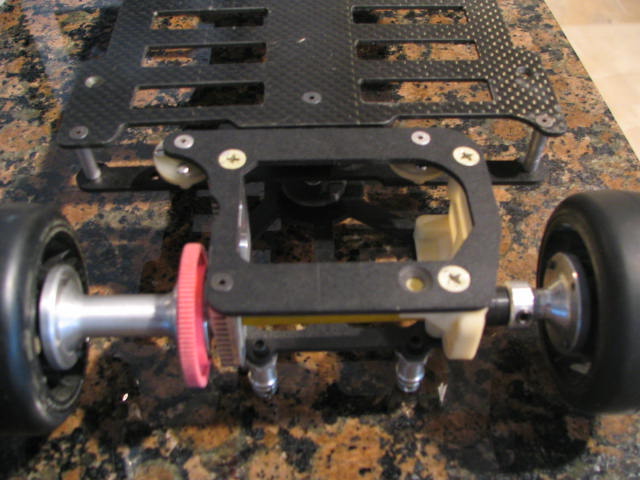

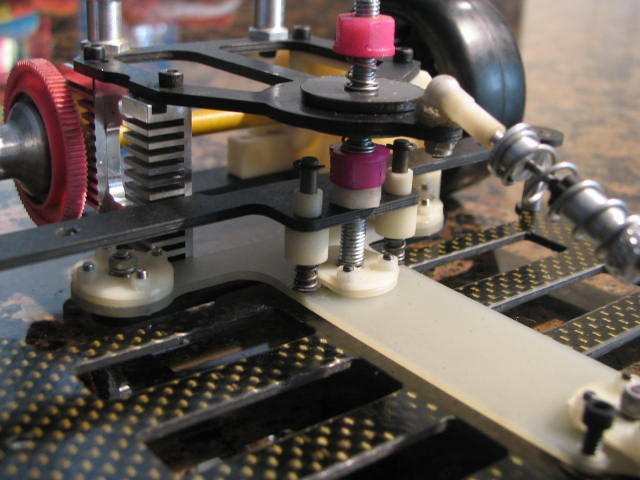

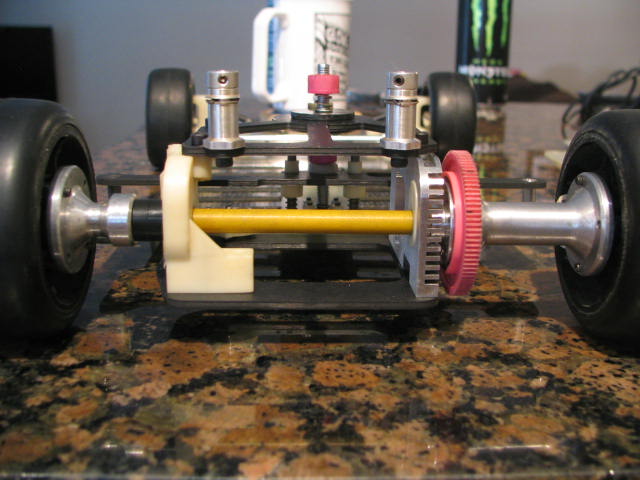

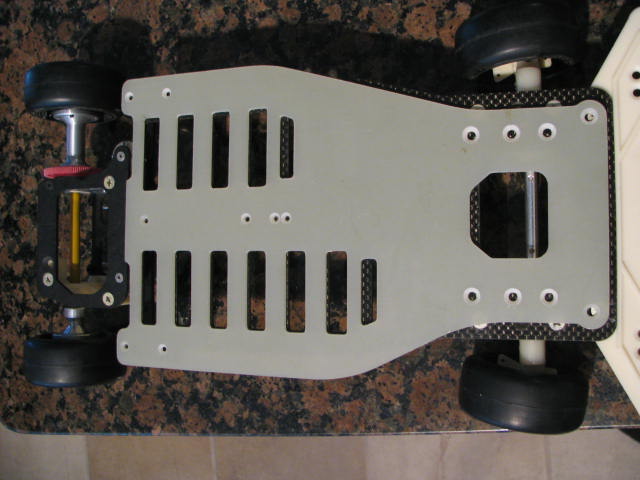

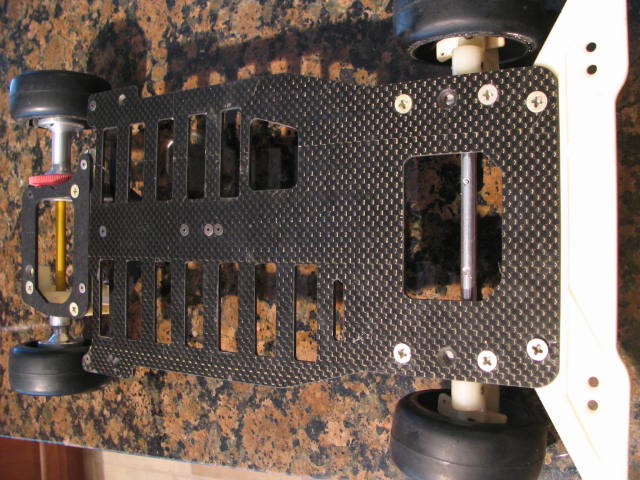

Here are some more pics, included with chassis "comparisons" using a 10L and 10L SS fiberglass chassis. The car is not complete, as it needs some hardware, but no longer smells (like smoke). The chassis does seem to be a replacement chassis as all the bolt holes are the same as the wide 10L, it is a little longer than the 10L SS Chassis. I am wondering was that a rear Pod made to bring the Motor closer to centerline, and meant to be used in Oval racing considering the tweak Springs?

Thank you.

And any information is greatly appreciated.

PS, please apologize the "rough" RC10L Wide FG Chassis, it will be getting some attention later...
Attachments

User avatar
reign79
Approved Member
Posts: 642
Joined: Sun Aug 31, 2008 12:56 am
Location: cape cod mass
Has thanked: 2 times
Been thanked: 4 times

Re: "Bastard" Cheetah equipped RC10L

Post by reign79 »

Yes it was called the cheetah narrow rear end kit it was designed for the wide 10l and meant to center the motor.
Ryan

User avatar
markt311
Approved Member
Posts: 1037
Joined: Thu Mar 06, 2008 3:59 pm
Location: nashville TN

Re: "Bastard" Cheetah equipped RC10L

Post by markt311 »

So this was one of the evolutionary steps to the narrow oval cars of today? Probably came out before narrow stock car bodies were made. At the first insane speed runs guy were cutting wide oval bodies down the middle and overlapping them to make a more narrow body.
Mark

Aaaaahhhh crap! I'm about to get passed by that orange truck!

User avatar
reign79
Approved Member
Posts: 642
Joined: Sun Aug 31, 2008 12:56 am
Location: cape cod mass
Has thanked: 2 times
Been thanked: 4 times

Re: "Bastard" Cheetah equipped RC10L

Post by reign79 »

Yes this kit was out before the narrow ss.
Ryan
