Edinger Kit Manual / Replica of Backpage RC10

Post by scr8p »

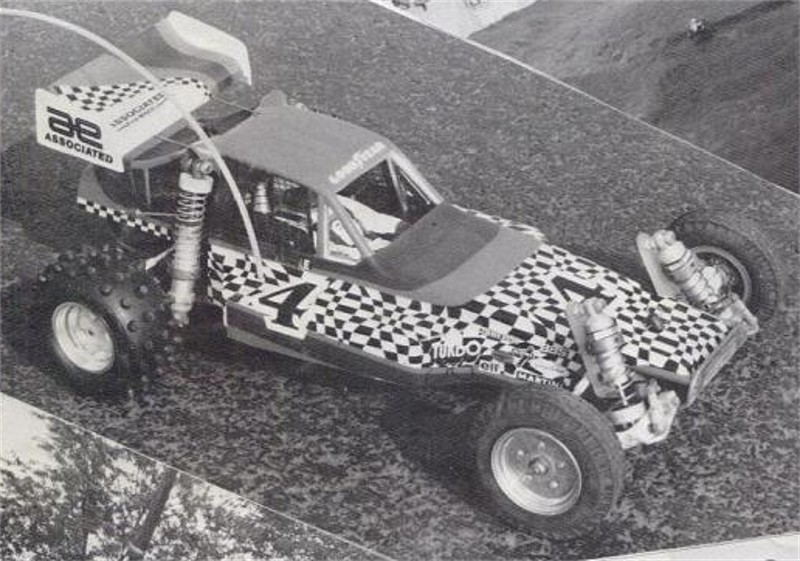

i've been wanting to throw this car together for awhile now. this is the rc10 that's on the back page of the edinger kit manual.

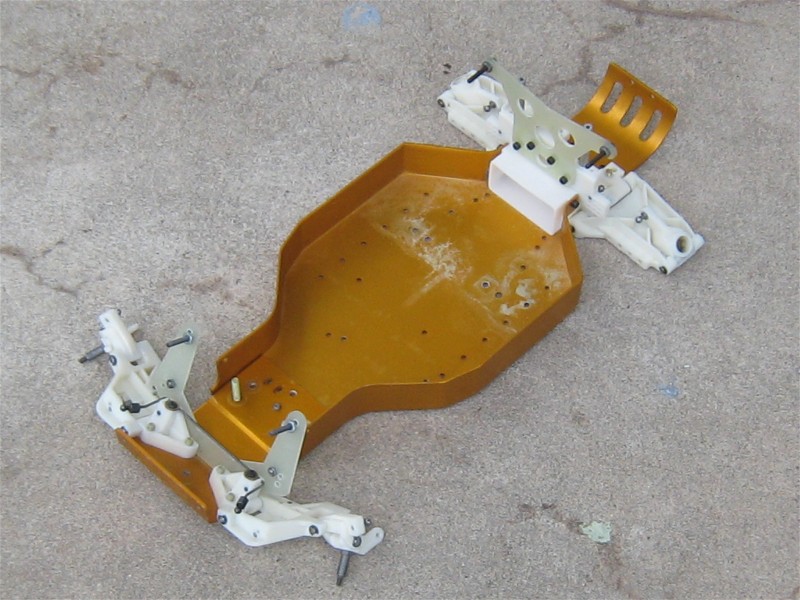

i had one gold tub and one nose plate left that weren't bent or heavily beat up. so i decided to use it as the platform for it. i do plan on using this car, so i don't want to make it too nice, or i won't want too. i also soaked all (and i mean ALL) of the used white parts that i had laying around in peroxide, and picked out the nicest stuff. i'm still missing a couple pieces, but i'll find them eventually. it isn't anything that'll be hard to get.

so here it is so far......... nothing special.
i picked up a set of aluminum spring collars from mikedealer a couple months ago for this car, and the anodizing is very close to the ano on the chassis. i spent some time today stripping the shock bodies and caps and getting them ready to put back together. i still have to do the fronts. i also have to dye a pair of shock rod ends red for the ones on the rear.

User avatar
Y'ernat Al
Approved Member
Posts: 921
Joined: Wed Jan 14, 2009 6:15 am
Location: Spokane WA
Has thanked: 7 times
Been thanked: 16 times

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by Y'ernat Al »

scr8p wrote:...i also have to dye a pair of shock rod ends red for the ones on the rear...
That's the easy way out. :roll:
- Brian -

My Gallery

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 6:44 pm
Location: USA
Been thanked: 8 times

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by Charlie don't surf »

Yeah, backcover replica smackdown :lol: How many shades of grey are in that paint job? :wink:


Oh and Jay, if those are chrome rear Jellybeans I have a set NIP for ya--

User avatar
m_vice
Approved Member
Posts: 1313
Joined: Fri Feb 23, 2007 5:46 pm
Location: Dallas, TX
Been thanked: 1 time

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by m_vice »

This is going to be a cool one Jay. do you plan on finishing it in a couple of years? :D

User avatar
scr8p
Administrator
Posts: 16536
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 973 times

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by scr8p »

Y'ernat Al wrote:
scr8p wrote:...i also have to dye a pair of shock rod ends red for the ones on the rear...
That's the easy way out. :roll:
and i made it even easier on myself because i dyed 2 more shock rod ends red than i actually needed for my masami replica by accident. so now i don't have to dye any. :mrgreen:
Charlie don't surf wrote: How many shades of grey are in that paint job? :wink:
it's atleast 5. :lol:

to be honest, i don't know if they're the chrome rims or an aluminum outer like the rps ones. probably the chrome rims....... they look to be pretty shiney in the pic.
m_vice wrote:This is going to be a cool one Jay. do you plan on finishing it in a couple of years? :D
ya, a couple years sounds about right. :lol:

User avatar
m_vice
Approved Member
Posts: 1313
Joined: Fri Feb 23, 2007 5:46 pm
Location: Dallas, TX
Been thanked: 1 time

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by m_vice »

Seriously :| I think it is a very cool idea Jay. go for it. :D

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 6:44 pm
Location: USA
Been thanked: 8 times

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by Charlie don't surf »

So does that mean you want the chrome ones, or my NIP RPS ones :?: One you can "have", one you can't :wink:

User avatar
Ruffy
Approved Member
Posts: 875
Joined: Mon Jan 11, 2010 11:49 pm
Location: Orlando, Florida
Been thanked: 45 times

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by Ruffy »

Excellent Jason, I am going to look forward to watching this one develop.

:D

User avatar
Y'ernat Al
Approved Member
Posts: 921
Joined: Wed Jan 14, 2009 6:15 am
Location: Spokane WA
Has thanked: 7 times
Been thanked: 16 times

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by Y'ernat Al »

:lol: Good stuff. I think I have my colors picked out. At the end of it I'm going to take only black and white pics for my build thread anyway :wink: Three things though Jason... Is it me or are there no wing buttons visible? That decal scheme had to come from some F1 or Rally car. very European. That will be a task! An to be true, it appears as though we need a rear sway bar, but with the right side (closest in the photo) disconnected. -Brian
- Brian -

My Gallery

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 6:44 pm
Location: USA
Been thanked: 8 times

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by Charlie don't surf »

Rear sway bar is the same kit as the front one, and the pic in the manual shows wing buttons.....of course the diamond you can't ever find kind :roll:

User avatar
scr8p
Administrator
Posts: 16536
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 973 times

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by scr8p »

ya, the decals have me a bit stumped.... except for the numbers.

User avatar
mikedealer
Approved Member
Posts: 1778
Joined: Fri May 18, 2007 4:25 am

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by mikedealer »

when you are ready to paint, i can probably make some sort of checkerboard mask like you asked before, i worked this up in photoshop in about 5 seconds this morning... it wasnt hard.. doug may be able to make something a little better in illustrator... he is better at vector art than i am.
Attachments

User avatar
scr8p
Administrator
Posts: 16536
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 973 times

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by scr8p »

that might work. i just have a feeling that i'll be too lazy to sit there and cut them all out freehand. :lol:

User avatar
Eau Rouge
Approved Member
Posts: 2225
Joined: Sun Jul 30, 2006 3:59 am
Location: Aurora, Illinois
Has thanked: 2 times
Been thanked: 2 times

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by Eau Rouge »

scr8p wrote:ya, the decals have me a bit stumped.... except for the numbers.
I think most of those decals are from an early Associated on road sheet. I might even still have it here in the box o' decal fun.

I wouldn't waste time on a mask for those checks, either. ;) :) Think like 1985—they weren't using plotters for anything on RC cars.

User avatar
scr8p
Administrator
Posts: 16536
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 973 times

Re: Edinger Kit Manual / Replica of Backpage RC10

Post by scr8p »

ya, freehand will be the way to go to be able to get the "look" right. it's just more of a laziness thing with me. :lol: but once i get started laying the tape out, it won't be that bad.
