Old is New Trailing Arm Project

Post by jtwhite312 »

I have been wanting to start a project to race on a large MX style track predominantly used by 1/8 cars and trucks. I love the way a trailing arm car runs and handles. The track is loose and rough with huge jumps. It will be a 10th scale buggy built with either old or inspired by old technologies mixed with some new stuff. My current plan is to use A GT2 front section with b4 arms and shocks on a custom 4mm carbon fiber plate chassis with mounts for A&L trailing arms that i can adjust for camber gain and toe for tuning. the transmission will be somewhat custom mid mounted lethal weapon or 4 gear x factory variant to get the proper rotation and to not fight the trailing arms over squat problems.The chassis with have 1/2" ribs bonded with a 3M aircraft adhesive to add additional longitudinal stability will maintaining a flexible torsion position to assist the trailing arms work a little better. the buggy will need to meet ROAR dimension requirements. If i could get any feedback from some old schoolers that have raced or used trailing am cars and understand the geometry limitations/advantages i would appreciate it. I will post the cad files for the chassis and any parts i need to fabricate to the community so that they can use them for there passion as well.Give me your ideas and have discussions and i will build it! Here are pics of my last fun build.

jtwhite312
Regular Member
Posts: 8
Joined: Thu Jul 29, 2010 2:19 pm

Re: Old is New Trailing Arm Project

Post by jtwhite312 »

Attachments

User avatar
markt311
Approved Member
Posts: 1037
Joined: Thu Mar 06, 2008 3:59 pm
Location: nashville TN

Re: Old is New Trailing Arm Project

Post by markt311 »

Great idea to use the GT2 front clip! this is going to be a cool build. Your ideas sound like they're going in the right direction.
Mark

Aaaaahhhh crap! I'm about to get passed by that orange truck!

User avatar
fastang
Approved Member
Posts: 752
Joined: Mon Aug 04, 2008 11:53 pm
Location: USA

Re: Old is New Trailing Arm Project

Post by fastang »

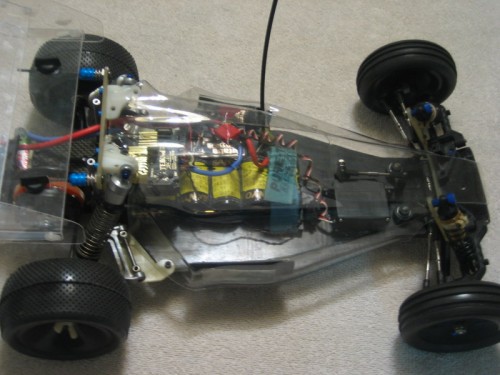

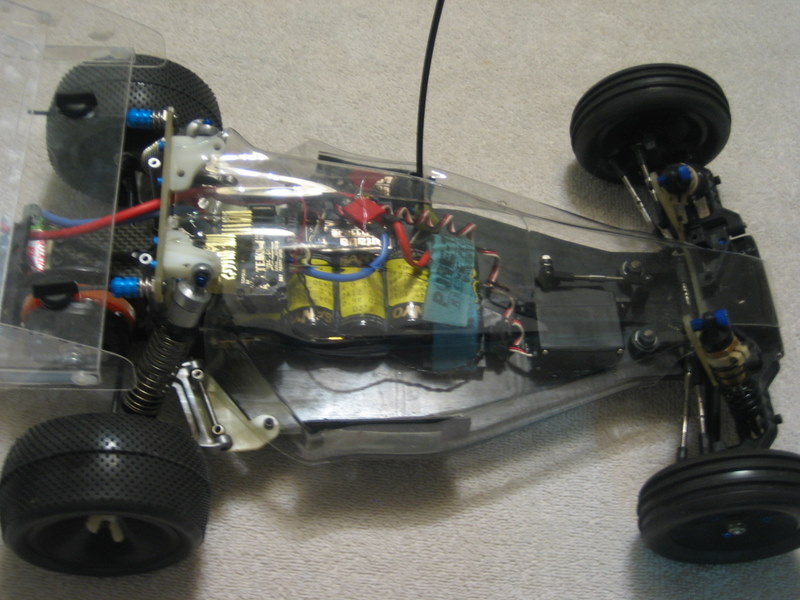

Here's mine. Its a bit different now. I'll have to update the pics.
I've always loved trailing arm cars too. I thought it would be cool to do a mid motored one.


jtwhite312
Regular Member
Posts: 8
Joined: Thu Jul 29, 2010 2:19 pm

Re: Old is New Trailing Arm Project

Post by jtwhite312 »

Here is a basic outline of the chassis setup i plan to cut this week . I am using the steering and nose from a GT2 and B4 front arms and carriers.I have been distracted by a bunch of new vintage parts but should be back on track this week.I have attached the .dwg and pdf files for all

User avatar
Mr. ED
Approved Member
Posts: 5475
Joined: Thu Dec 21, 2006 6:30 am
Location: Back @ home: Belgium
Has thanked: 58 times
Been thanked: 56 times

Re: Old is New Trailing Arm Project

Post by Mr. ED »

What I found with my trailingarm racer was that it's difficult to get enough suspension travel without running into extreme angle or angle changes.
I Think the solution would be to use longer arms but don't have the tools to make something descent.
