New AYK Radiant build.
- besty22
- Approved Member
- Posts: 346
- Joined: Tue Sep 02, 2008 8:21 am
- Location: Central Coast NSW Australia
New AYK Radiant build.
Hi,
I have been collecting the parts for this build for a few months now and have only a few more parts to find so I thought I would build it anyway.
(This is my first build thread besides the Bulldogs which are still in pieces lol)
My parts were mainly sourced from Bormac as part of a trade (more than a little biased in my favour) and some parts from AYKBOBCAT for a very fair price, also a few parts sourced from Udisco in Canada.
Big thanks to the guys for helping me out with the parts.
The original running gear parts are quite hard to come by so I have installed Kyosho Optima chain diffs using custom made adapters.
I had the adapters made up by a mate of mine but unfortunately he doesnt have a mill so he cut rings out of aluminium which I pressed together to make bearing spacers so that optima diffs would fit into the radiant housing.
I had to machine the front gearbox housing to fit the optima diffs also.

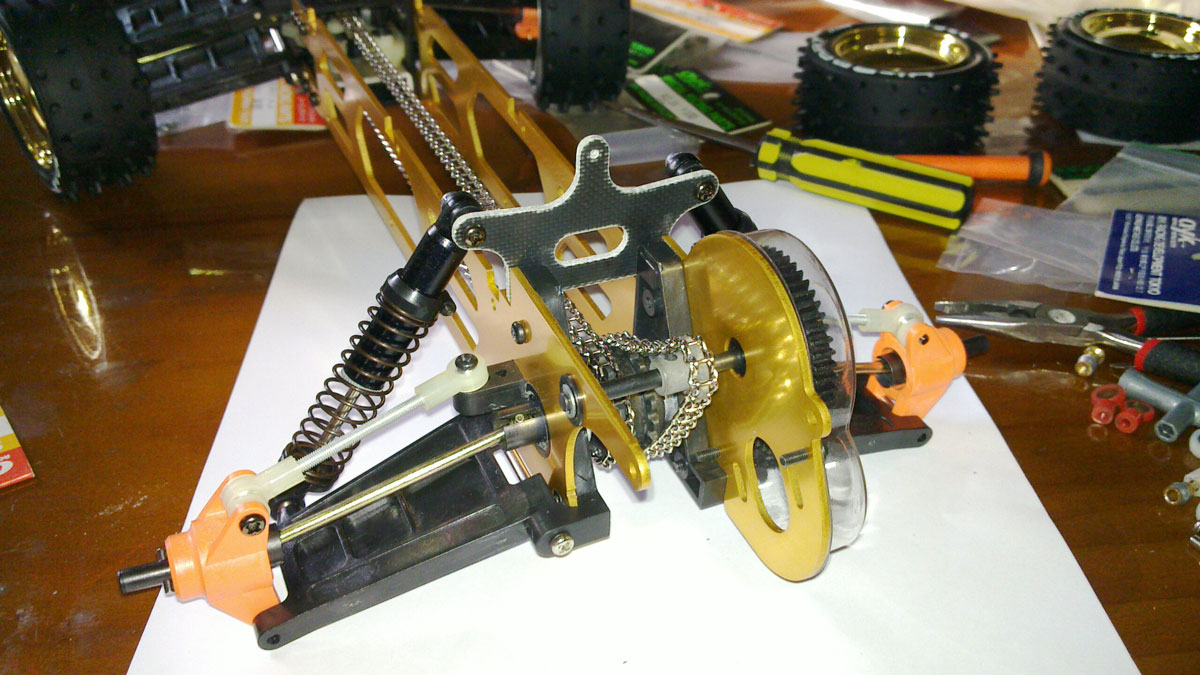

The pictures are as of today and as you can see I just need some chain guides and rear motor cover plate to complete the car. I dont need the top plate as Jason made me one from fibreglass which I wil dye black. The steering mechanism is from a Pro Radiant so I will attach a servo to the side plate if that ever eventuates
Enjoy the pics. I welcome all comments.
I have been collecting the parts for this build for a few months now and have only a few more parts to find so I thought I would build it anyway.
(This is my first build thread besides the Bulldogs which are still in pieces lol)
My parts were mainly sourced from Bormac as part of a trade (more than a little biased in my favour) and some parts from AYKBOBCAT for a very fair price, also a few parts sourced from Udisco in Canada.
Big thanks to the guys for helping me out with the parts.
The original running gear parts are quite hard to come by so I have installed Kyosho Optima chain diffs using custom made adapters.

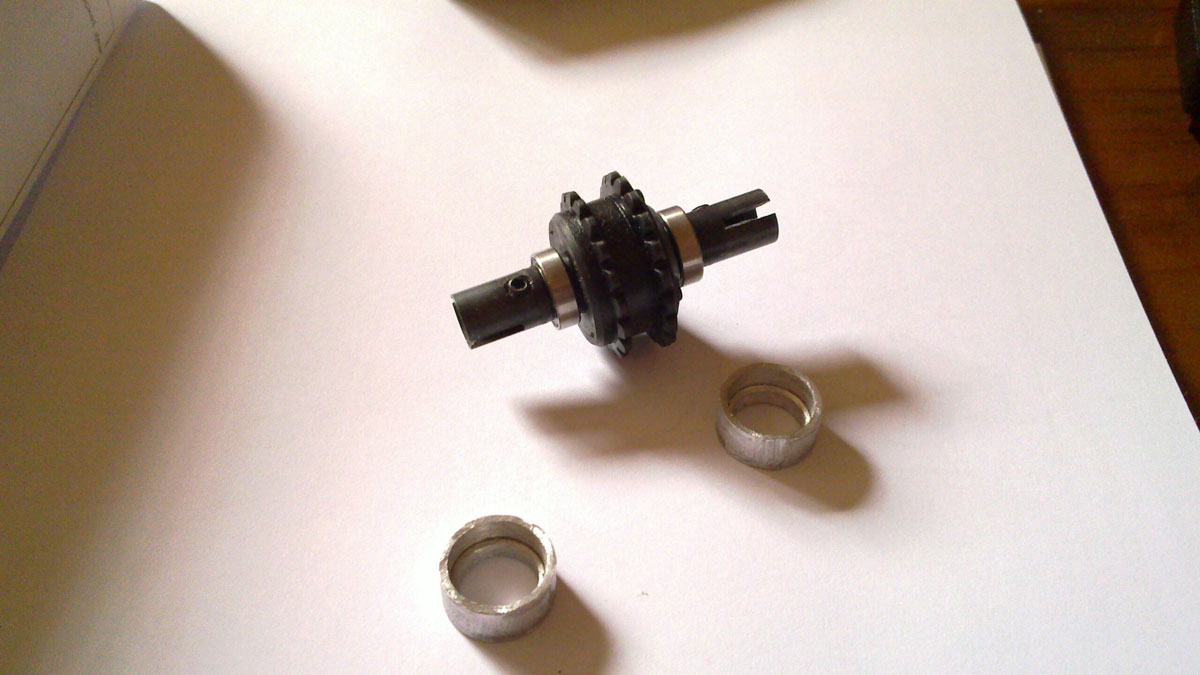

I had the adapters made up by a mate of mine but unfortunately he doesnt have a mill so he cut rings out of aluminium which I pressed together to make bearing spacers so that optima diffs would fit into the radiant housing.
I had to machine the front gearbox housing to fit the optima diffs also.
The pictures are as of today and as you can see I just need some chain guides and rear motor cover plate to complete the car. I dont need the top plate as Jason made me one from fibreglass which I wil dye black. The steering mechanism is from a Pro Radiant so I will attach a servo to the side plate if that ever eventuates
Enjoy the pics. I welcome all comments.
Respect - Hard Earned but Easily Lost
- besty22
- Approved Member
- Posts: 346
- Joined: Tue Sep 02, 2008 8:21 am
- Location: Central Coast NSW Australia
Re: New AYK Radiant build.

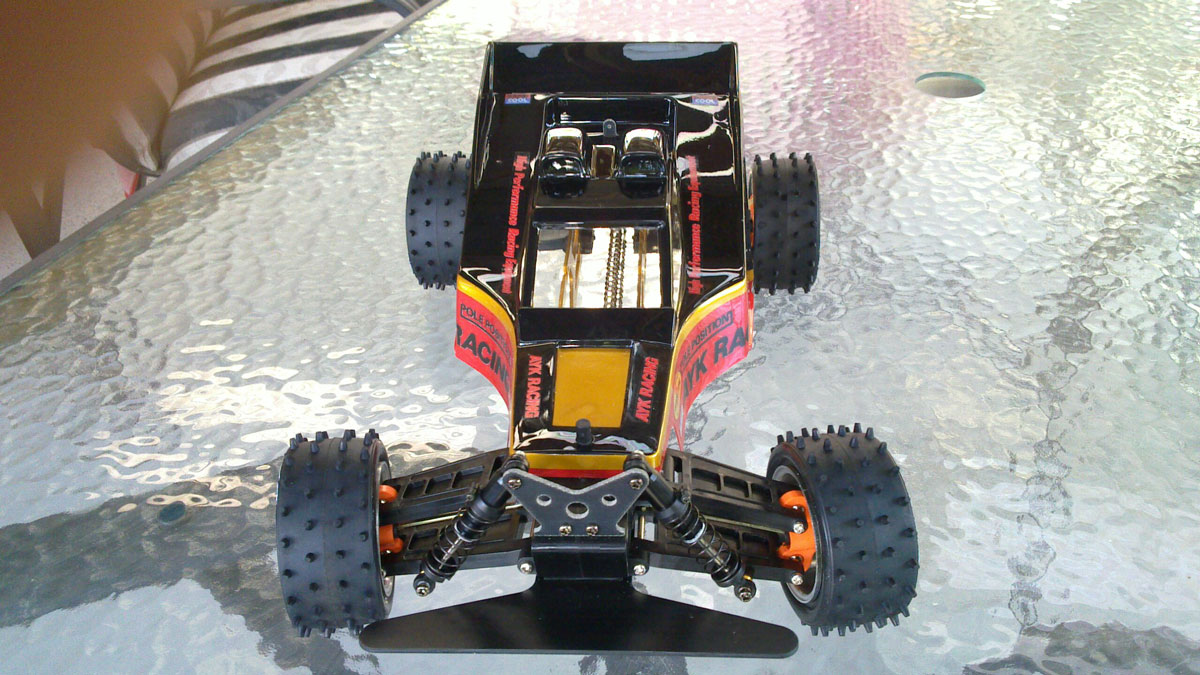

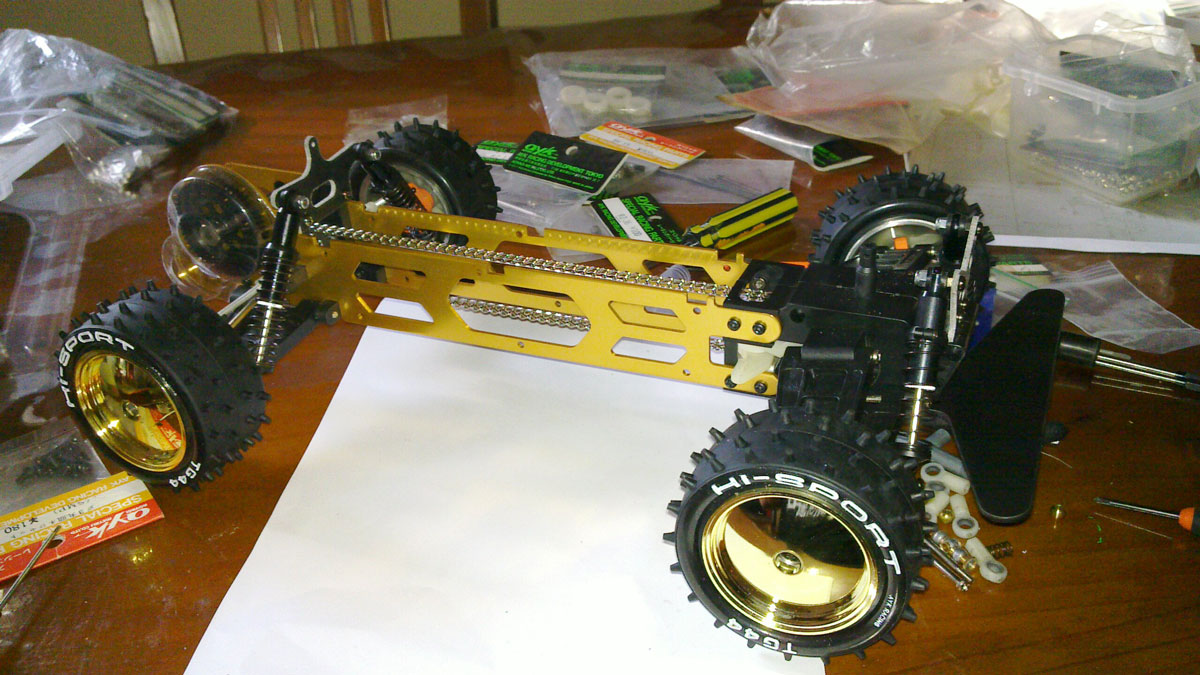

Here are the assembled pictures.
I used some repro decals for the AYK stickers and made up the Radiant stickers from letter set.
I used some repro decals for the AYK stickers and made up the Radiant stickers from letter set.
Respect - Hard Earned but Easily Lost
-
- Regular Member
- Posts: 5
- Joined: Fri Feb 05, 2010 5:31 am
- nvxwax
- Approved Member
- Posts: 1071
- Joined: Tue May 25, 2010 8:28 pm
- Location: Front Royal, VA (AKA: Helltown)
- Been thanked: 1 time
Re: New AYK Radiant build.
Very cool, I like the use of Optima diffs, Very nice work
I have been thinking about doing a PR build using modern running gear, This build just pushed me over the edge lol.
I have been thinking about doing a PR build using modern running gear, This build just pushed me over the edge lol.
- besty22
- Approved Member
- Posts: 346
- Joined: Tue Sep 02, 2008 8:21 am
- Location: Central Coast NSW Australia
Re: New AYK Radiant build.
Thanks guys. The optima gear is smooth as. I had to open up the openings for the outdrives a touch for clearance also.
I am very happy with the way it turned out. Bling Bling Bling
I am very happy with the way it turned out. Bling Bling Bling
Respect - Hard Earned but Easily Lost
- Coelacanth
- Approved Member
- Posts: 7375
- Joined: Thu Jul 29, 2010 6:20 pm
- Location: Alberta, Canada
- Has thanked: 16 times
- Been thanked: 292 times
Re: New AYK Radiant build.
Very nice mod-work using the Optima diff and your spacers.
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
- murphy3428
- Approved Member
- Posts: 579
- Joined: Mon Oct 06, 2008 11:19 am
Re: New AYK Radiant build.
Looks great ...... Any chance of the dimensions on the spacers and did you try a 0ptima belt drive unit?
Re: New AYK Radiant build.
very nice work there, how much of the front gearbox did you need to cut away, have you got any photos ???
cheers Bullfrog
cheers Bullfrog
- besty22
- Approved Member
- Posts: 346
- Joined: Tue Sep 02, 2008 8:21 am
- Location: Central Coast NSW Australia
Re: New AYK Radiant build.
Hi, No I didnt try the belt drive as I dont think a rear belt would be easy to find. I measured it all up with digital calipers but found that sizes were too tight. The measurements were modified to suit. When I pull the layshaft out I will measure the spacers up and post sizes.
The front gearbox halves just needed some extra material cut away from the bottom thickness to clear the chain.
So now the base thickness is approx 1mm in the thinnest part.
Photos to follow.
Thanks Chris
The front gearbox halves just needed some extra material cut away from the bottom thickness to clear the chain.
So now the base thickness is approx 1mm in the thinnest part.
Photos to follow.
Thanks Chris
Respect - Hard Earned but Easily Lost
- GJW
- Approved Member
- Posts: 2325
- Joined: Mon Oct 15, 2007 7:22 pm
- Location: AUSTRALIA!!
- Been thanked: 1 time
Re: New AYK Radiant build.
loving that paint scheme chris, nice mods mate! you running this at castle hill? ill race ya
- Mad Racer
- Approved Member
- Posts: 972
- Joined: Thu Apr 09, 2009 10:50 pm
- Location: Vintage at Boondal. Australia.
- Been thanked: 1 time
Re: New AYK Radiant build.
Very nice Chris.
Will it be be a runner??????
See you at the vintage festival!!!!
Will it be be a runner??????
See you at the vintage festival!!!!
Vintage . Older is Better !!!!!!! Vintage At Boondal, Australia.
http://www.rctech.net/forum/australian-racing/548133-off-road-vintage-boondal.html
http://www.rctech.net/forum/australian-racing/548133-off-road-vintage-boondal.html
-
- Approved Member
- Posts: 952
- Joined: Mon Jan 08, 2007 10:10 pm
- Location: Australia
- Has thanked: 7 times
Re: New AYK Radiant build.
Great work Chris - looks blinkin great!!
Now I know why I never heard back from you - guess you found everything!!
Top work mate - looking forward to seeing it running at the vintage festival.
Cheers
Darryn
Now I know why I never heard back from you - guess you found everything!!
Top work mate - looking forward to seeing it running at the vintage festival.
Cheers
Darryn
- besty22
- Approved Member
- Posts: 346
- Joined: Tue Sep 02, 2008 8:21 am
- Location: Central Coast NSW Australia
Re: New AYK Radiant build.
Hi guys. Thanks for all the good feedback. I really love the look of this car. It is sitting in the Kitchen taking pride of place much to my wifes disgust. lol
I am still chasing top and bottom chain guides and a rear motor cover plate. If anyone has them and are willing to sell Im very interested.
Thanks
Chris
I am still chasing top and bottom chain guides and a rear motor cover plate. If anyone has them and are willing to sell Im very interested.
Thanks
Chris
Respect - Hard Earned but Easily Lost
