Ideas for shortened rear Optima control arms
- Coelacanth
- Approved Member
- Posts: 7375
- Joined: Thu Jul 29, 2010 6:20 pm
- Location: Alberta, Canada
- Has thanked: 16 times
- Been thanked: 291 times
Ideas for shortened rear Optima control arms

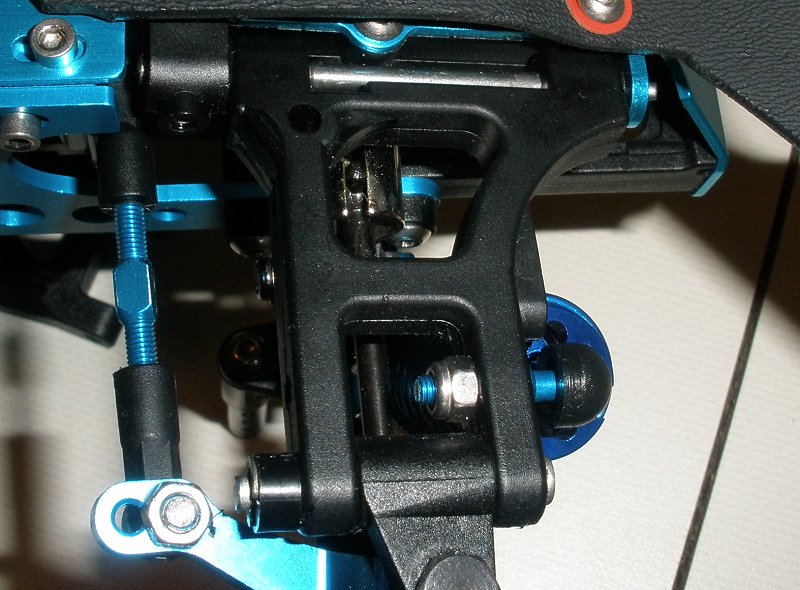

I believe it's possible to widen the Optima's rear stance with longer control arms, but does anybody know if shorter control arms exist, or tried something that worked? I'm thinking of something like the front arms I used from the Spider, which work with 43mm dog-bones (at least with my CYANide Optima). I could use the same-length dog-bones for the rear as with the front.
The control arms would need to have the same width on either end as the stock arms have, use the same suspension pins, rear hub carrier width, and keep the wheel in the same position (i.e. not alter the wheelbase). I wonder if the Spider rear arms would bolt onto the Optima?
Anybody have any ideas? It's times like this I wish I had boxes full of leftover parts...
The control arms would need to have the same width on either end as the stock arms have, use the same suspension pins, rear hub carrier width, and keep the wheel in the same position (i.e. not alter the wheelbase). I wonder if the Spider rear arms would bolt onto the Optima?
Anybody have any ideas? It's times like this I wish I had boxes full of leftover parts...
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
- EvolutionRevolution
- Approved Member
- Posts: 1495
- Joined: Tue Feb 01, 2011 3:24 pm
- Location: Netherlands
- Has thanked: 20 times
- Been thanked: 36 times
Re: Ideas for shortened rear Optima control arms
The Spider rear arms should bolt right on to the Optima, since the first Spider was Optima-based! The original Spider used optima front and rear gearboxes with a different chassis (top deck is I think also the Optima MID SWB top deck), with the shorter Spider suspension to narrow the car to 200 mm.
Basicly the first EP Spider was an evolution of the Optima-based Scale Car/Oval cars (which were LWB Optima MIDs with a wide touring car body), from 235 mm wide to 200 mm wide.
Only from the Spider TF-2 onwards the chassis and gearboxes were different.
Basicly the first EP Spider was an evolution of the Optima-based Scale Car/Oval cars (which were LWB Optima MIDs with a wide touring car body), from 235 mm wide to 200 mm wide.
Only from the Spider TF-2 onwards the chassis and gearboxes were different.
- Coelacanth
- Approved Member
- Posts: 7375
- Joined: Thu Jul 29, 2010 6:20 pm
- Location: Alberta, Canada
- Has thanked: 16 times
- Been thanked: 291 times
Re: Ideas for shortened rear Optima control arms
That's what I thought, thanks for the reply EvoRevo. If Spider rear arms will bolt right on without changing the wheelbase, I'm thinking about trying that out with my on-road project. It would look perfect with the rear wheel width the same as the fronts.
Anybody want to trade some rear Spider arms for some Optima arms or other parts?
Anybody want to trade some rear Spider arms for some Optima arms or other parts?
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
- highwayracer
- Approved Member
- Posts: 1187
- Joined: Wed Dec 12, 2007 9:43 pm
- Location: Illinois, USA
- Been thanked: 3 times
Re: Ideas for shortened rear Optima control arms
Yup, that will work. I converted my mid few years ago using those arms. You can still use the stock optima rear hubs...since those work nicely with your wheels.
When you bought your front arms, didn't it come as a set for all 4?
When you bought your front arms, didn't it come as a set for all 4?
- Coelacanth
- Approved Member
- Posts: 7375
- Joined: Thu Jul 29, 2010 6:20 pm
- Location: Alberta, Canada
- Has thanked: 16 times
- Been thanked: 291 times
Re: Ideas for shortened rear Optima control arms
I received a set of front arms in a trade with someone here, and I bought another 2 sets of fronts-only on eBay. I'd like to upgrade the stock Optima rear hubs with alloy ones, of course. I have plenty of stock glass-filled nylon ones.highwayracer wrote:Yup, that will work. I converted my mid few years ago using those arms. You can still use the stock optima rear hubs...since those work nicely with your wheels.
When you bought your front arms, didn't it come as a set for all 4?
Ideally, I'd like alloy front & rear control arms & hubs/C-carriers. That would totally []D [] []V[] []D the build.
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
- Diggley
- Approved Member
- Posts: 1166
- Joined: Wed Jan 28, 2009 5:44 pm
- Location: is everything...
- Been thanked: 8 times
Re: Ideas for shortened rear Optima control arms
If the rear suspension is similar to the Ultima's, you could easily adapt RC10DS rear arms w/minimal mods*....but you'll have to either custom make dog bones, or find a set of drive axles that are narrow enough..
*bonus: the wheelbase will be adjustable too.
*bonus: the wheelbase will be adjustable too.
Projects and shelfers:
Late Edinger, RC10B2, Dual Sport, GT, Kyosho Turbo Ultima, Triumph, Tamiya Sand Scorcher, Blackfoot/Monster Beetle, '67 Beetle, Nikko Rhino, Traxxas Fiero, Slash, Hand-built Dune Buggy..all on here somewhere...
Late Edinger, RC10B2, Dual Sport, GT, Kyosho Turbo Ultima, Triumph, Tamiya Sand Scorcher, Blackfoot/Monster Beetle, '67 Beetle, Nikko Rhino, Traxxas Fiero, Slash, Hand-built Dune Buggy..all on here somewhere...
- Coelacanth
- Approved Member
- Posts: 7375
- Joined: Thu Jul 29, 2010 6:20 pm
- Location: Alberta, Canada
- Has thanked: 16 times
- Been thanked: 291 times
Re: Ideas for shortened rear Optima control arms
Unfortunately they're different. Ultima rear control arms are much wider at the base.Diggley wrote:If the rear suspension is similar to the Ultima's, you could easily adapt RC10DS rear arms w/minimal mods*....but you'll have to either custom make dog bones, or find a set of drive axles that are narrow enough..
*bonus: the wheelbase will be adjustable too.
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
- EvolutionRevolution
- Approved Member
- Posts: 1495
- Joined: Tue Feb 01, 2011 3:24 pm
- Location: Netherlands
- Has thanked: 20 times
- Been thanked: 36 times
Re: Ideas for shortened rear Optima control arms
Cross made tons of hop-ups for the TF-2 and GP Spider/GP-10 in (light) gold. They'll be hard to find, but they were available in the USA in the mid- to late '90s.
For the c-hubs, you'd want one of the following parts:
AA-139GP Al.hub carrier set 4-degree for GP10,PURE10 3,400yen
AA-140GP Al. hub carrier set 8-degree for GP10,PURE10 3,400yen
AA-142GP Al. hub carrier set for GP10,PURE10 3,400yen
(list pulled off the Cross R/C site through the wayback machine at the Internet Archive)
Re: Ideas for shortened rear Optima control arms
I have a pair of those tech racing t'buckles perfect for the rear of that TO.
I'll think of something to ask for trade.
- Coelacanth
- Approved Member
- Posts: 7375
- Joined: Thu Jul 29, 2010 6:20 pm
- Location: Alberta, Canada
- Has thanked: 16 times
- Been thanked: 291 times
Re: Ideas for shortened rear Optima control arms
Okay--at least for the CYANide Optima, I'm probably going to scrap the idea to install shorter rear control arms as nothing out there lends itself to an easy swap. The Spider rears are almost a centimeter less wide at the hinge-pin end as the Optima arms, and are quite a bit TOO short...about 18 or 19mm shorter, each, than the Optima arms. I'd still dig some alloy rear hub carriers, though.
I think a few options exist for front alloy arms & C-carriers, as some of you have pointed out, Spider/TF2/TF3 arms and carriers should work, and will be quite close to what I've already installed on the CYANide car.
I think a few options exist for front alloy arms & C-carriers, as some of you have pointed out, Spider/TF2/TF3 arms and carriers should work, and will be quite close to what I've already installed on the CYANide car.
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
-
- Approved Member
- Posts: 1304
- Joined: Tue Dec 08, 2009 10:10 pm
- Location: seattle washington
- Coelacanth
- Approved Member
- Posts: 7375
- Joined: Thu Jul 29, 2010 6:20 pm
- Location: Alberta, Canada
- Has thanked: 16 times
- Been thanked: 291 times
Re: Ideas for shortened rear Optima control arms

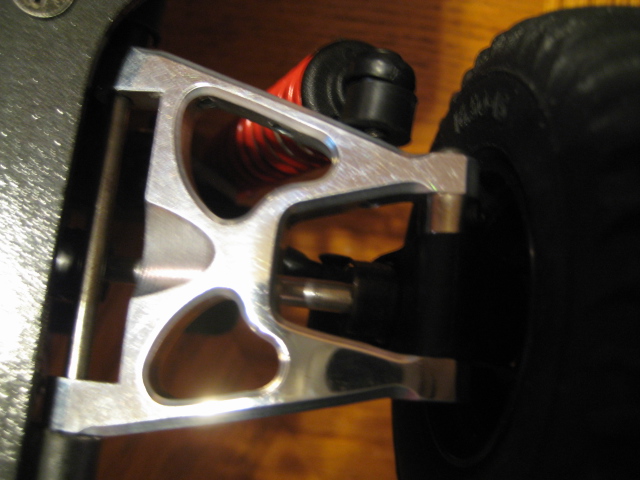

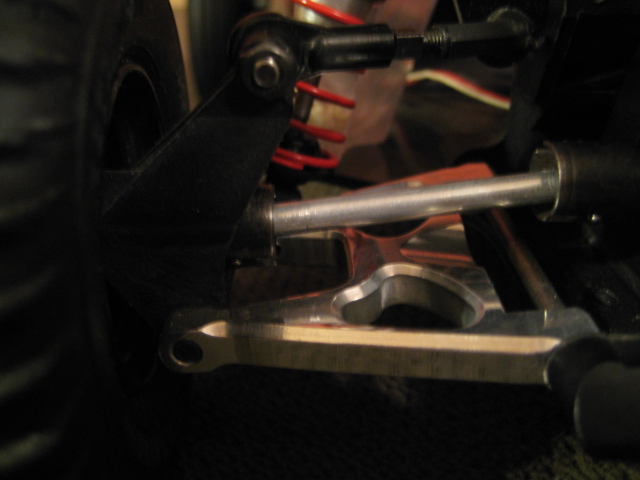

Exactly! Nice goodies there, Paul.
One thing I've learned is that the Spider/TF2/TF3 rear arms won't work to replace the Optima rears, as they're much too short (about 19 mm shorter than the Optima arm) and too narrow at the frame-rail end. The Optima arms are almost 4mm wider.
The fronts would work great, however.
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
-
- Approved Member
- Posts: 616
- Joined: Mon Sep 22, 2008 5:09 am
- Location: Sweden
- Been thanked: 10 times
Re: Ideas for shortened rear Optima control arms
kyosho sells shims in the range of 1 to 4 mm thicknes.
Should make the rear arms fit.
mvh Isobarik
Should make the rear arms fit.
mvh Isobarik
