Barnfind's Kyosho Optima mid

Post by Barnfind »

Hi.. some may have previously seen this car on here before well I decided to buy it. I started the clean up of it and so far it is a pretty clean buggy. This is my first kyosho ever though so I will likely have a lot of questions. first question is if the TBG belt guards would work on this and if so is it the LWB version? Also what body will fit this chassis? does it need to be a repro of a JG body or will any optima mid body work.
Attachments

User avatar
alcyon
Approved Member
Posts: 229
Joined: Fri Mar 07, 2014 5:36 am
Location: Kuala Lumpur

Re: Barnfind's Kyosho Optima mid

Post by alcyon »

Looking at the shape of the chassis it wont fit the lwb body or undertray. You could either replace the chassis with ot122 or cut this one to follow ot122 shape. The lwb mids belt is 254xl. If the belt has that marking then the repro belt covers will fit. I heard from some one that this jg conversion came out before the official kyosho version so the extension might be longer than kyosho extension which is 18mm.

User avatar
j0pp3
Approved Member
Posts: 425
Joined: Tue Apr 17, 2012 2:47 pm
Location: Stockholm, Sweden
Been thanked: 4 times

Re: Barnfind's Kyosho Optima mid

Post by j0pp3 »

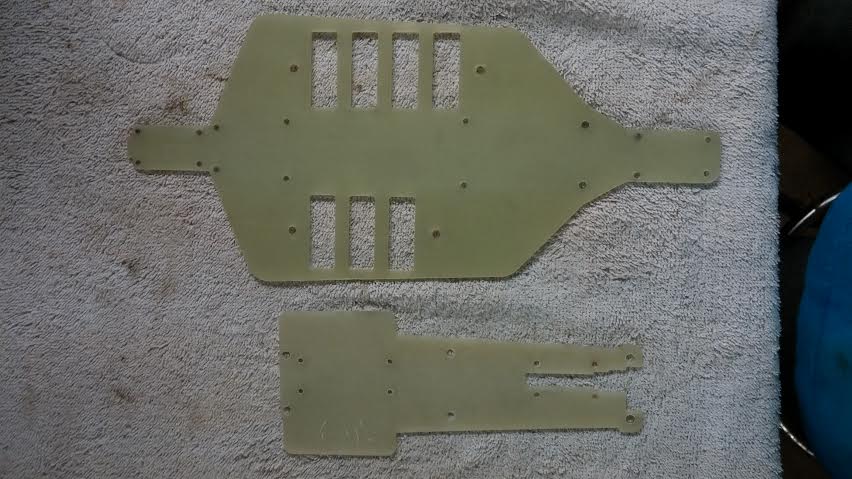

Nice find. Measure it and compare with regular LWB-dimensions below.


Edit: Sorry guys, IGNORE the pic above. Should be 238mm. Brain fart :D
Cheers
Joel

User avatar
RC10Eh
Approved Member
Posts: 507
Joined: Fri Feb 13, 2009 2:19 pm
Location: Ontario Canada
Been thanked: 1 time

Re: Barnfind's Kyosho Optima mid

Post by RC10Eh »

That should be 280 mm I believe .

User avatar
RC10Eh
Approved Member
Posts: 507
Joined: Fri Feb 13, 2009 2:19 pm
Location: Ontario Canada
Been thanked: 1 time

Re: Barnfind's Kyosho Optima mid

Post by RC10Eh »

Here is a friends car with discussion on body fit .[http://www.rc10talk.com/viewtopic.php?f=30&t=9777

User avatar
jwscab
Super Member
Posts: 6473
Joined: Wed Jan 28, 2009 2:42 pm
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 431 times

Re: Barnfind's Kyosho Optima mid

Post by jwscab »

or 28cm :lol:

User avatar
RC10Eh
Approved Member
Posts: 507
Joined: Fri Feb 13, 2009 2:19 pm
Location: Ontario Canada
Been thanked: 1 time

Re: Barnfind's Kyosho Optima mid

Post by RC10Eh »

:lol: I thought of that too lol . I think that both the JG optima mid chassis and the Houge chassis always had a bit sticking out . I've never heard of an available body to cover the whole chassis . Just my 2 cents .

Barnfind
Approved Member
Posts: 136
Joined: Thu Jun 13, 2013 12:23 pm
Location: warrenton virginia

Re: Barnfind's Kyosho Optima mid

Post by Barnfind »

I measured it to be about 240mm does this sound right? Also I was planning on running this at the track so I was wondering if this is a car for that or more something that should go on a shelf? I'm not planning on racing much just having fun when I'm up there and the other car I brought takes a dump.

User avatar
alcyon
Approved Member
Posts: 229
Joined: Fri Mar 07, 2014 5:36 am
Location: Kuala Lumpur

Re: Barnfind's Kyosho Optima mid

Post by alcyon »

Barnfind wrote:I measured it to be about 240mm does this sound right? Also I was planning on running this at the track so I was wondering if this is a car for that or more something that should go on a shelf? I'm not planning on racing much just having fun when I'm up there and the other car I brought takes a dump.
Cant Be ,that's way too short. Even the SWB wont measure up at 240mm. are you sure the measuring points are correct ?

Barnfind
Approved Member
Posts: 136
Joined: Thu Jun 13, 2013 12:23 pm
Location: warrenton virginia

Re: Barnfind's Kyosho Optima mid

Post by Barnfind »

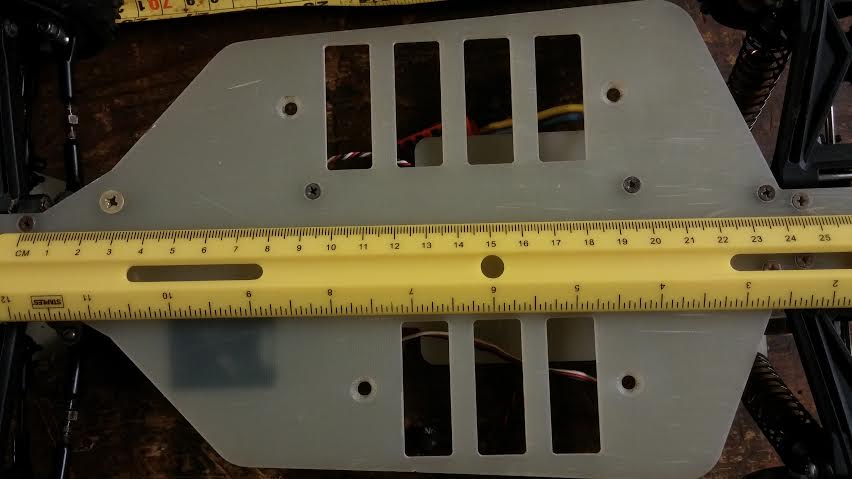

is this right?
Attachments

User avatar
alcyon
Approved Member
Posts: 229
Joined: Fri Mar 07, 2014 5:36 am
Location: Kuala Lumpur

Re: Barnfind's Kyosho Optima mid

Post by alcyon »

245mm. maybe the earlier pic is wrong. I will measure my OT-122 when I go home.

User avatar
j0pp3
Approved Member
Posts: 425
Joined: Tue Apr 17, 2012 2:47 pm
Location: Stockholm, Sweden
Been thanked: 4 times

Re: Barnfind's Kyosho Optima mid

Post by j0pp3 »

LOL, what the hell. I measured it all wrong. A second measure on an LWB chassis resulted in 238mm between the very same chassis holes.

That probably mean that a JG LWB chassis is actually longer.

I now understand what Fireboy means by "JG LWB Chassis Only" for this belt:
http://www.ebay.com/itm/JG-1515-LWB-Belt-for-JG-LWB-Chassis-Only-Kyosho-Optima-Mid-/400760883905?pt=Radio_Control_Parts_Accessories&hash=item5d4f35cac1
Cheers
Joel

User avatar
alcyon
Approved Member
Posts: 229
Joined: Fri Mar 07, 2014 5:36 am
Location: Kuala Lumpur

Re: Barnfind's Kyosho Optima mid

Post by alcyon »

j0pp3 wrote:LOL, what the hell. I measured it all wrong. A second measure on an LWB chassis resulted in 238mm between the very same chassis holes.

That probably mean that a JG LWB chassis is actually longer.

I now understand what Fireboy means by "JG LWB Chassis Only" for this belt:
http://www.ebay.com/itm/JG-1515-LWB-Belt-for-JG-LWB-Chassis-Only-Kyosho-Optima-Mid-/400760883905?pt=Radio_Control_Parts_Accessories&hash=item5d4f35cac1
He is right, if the chassis is 7mm longer probably this belt may have 1 more tooth. It might be 255XL instead of 254XL. Best advice, I think you better change to SWB. I have an extra used chassis if you are interested.

User avatar
DennisM
Approved Member
Posts: 2403
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark
Has thanked: 30 times
Been thanked: 64 times

Re: Barnfind's Kyosho Optima mid

Post by DennisM »

238,5 mm is what I´m getting at the LWB chassis.
Gone fishing

User avatar
RC10Eh
Approved Member
Posts: 507
Joined: Fri Feb 13, 2009 2:19 pm
Location: Ontario Canada
Been thanked: 1 time

Re: Barnfind's Kyosho Optima mid

Post by RC10Eh »

I get 244 mm by eye on an old runner chassis . Checked a SWB chassis and I get about 221 mm .
