Fusion Speed build-up

Post by scr8p »

i was lucky enough to get hooked up with one of these (thanks hoopty :wink: ). it's in real nice shape, all except for the ton of extra holes that were drilled into it, and the LR arm mount hole was ripped out. so, i got them all filled, and the arm mount hole fixed up. a quick coat of sealer, now it's ready to start.

i'm not totally sure what direction i want to go with this, but at least the hard part is done. :)
Attachments

User avatar
JK Racing
Super Member
Posts: 4603
Joined: Thu Jul 19, 2007 2:32 pm
Location: Placentia, CA
Has thanked: 103 times
Been thanked: 200 times

Re: Fusion Speed build-up

Post by JK Racing »

Another magnificent save scr8p. Can I send a chassis or 2 your way? J/K...
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com

wyldbill
Approved Member
Posts: 553
Joined: Tue Apr 24, 2007 11:03 pm
Location: birdsboro,pa
Been thanked: 2 times

Re: Fusion Speed build-up

Post by wyldbill »

wow you sure are the master of reparing graphite chassis scr8p. i just cant believe they didn't counter sink the holes all the way, were all of the chassis like that? the hole you fixed is deeper than the stock holes, anyhow thats awesome regardless. when its done put it on a revolving pedistool with a spotlight on it!

User avatar
RichieRich
Approved Member
Posts: 2352
Joined: Wed Jun 14, 2006 11:42 pm
Location: Los Angeles, CA
Has thanked: 34 times
Been thanked: 19 times

Re: Fusion Speed build-up

Post by RichieRich »

Hey Jason, I think either you or someone else may have covered this before, but what did you use to fill the holes?

User avatar
carloco8
Super Member
Posts: 636
Joined: Sun Jun 04, 2006 2:02 pm
Location: SoCal
Has thanked: 10 times
Been thanked: 27 times

Re: Fusion Speed build-up

Post by carloco8 »

Awesome job as usual! When it comes to chassis repair, YOU DA' MAN 8)
Old school racing all the way!

User avatar
GJW
Approved Member
Posts: 2325
Joined: Mon Oct 15, 2007 7:22 pm
Location: AUSTRALIA!!
Been thanked: 1 time

Re: Fusion Speed build-up

Post by GJW »

at the price those chassis's go for id be repairing to and being very happy with that....excellent job mate......flawless work

User avatar
Dr. Robotnik
Approved Member
Posts: 1442
Joined: Wed Oct 11, 2006 11:05 am
Location: Nutterham, United Kingdom
Been thanked: 2 times

Re: Fusion Speed build-up

Post by Dr. Robotnik »

Excellent mate, woot! 8) Have you thought about maybe painting little grey squares over the hole patches to make them look like CF weave? If you took your time and clour matched the paint I am sure it'd look near new. Either way great save at the moment.

User avatar
rc-10 gold pan
Approved Member
Posts: 72
Joined: Tue Jan 01, 2008 4:39 pm

Re: Fusion Speed build-up

Post by rc-10 gold pan »

THAT IS so cool iv never seen a carbon fiber tub chassis before that is so cool

wyldbill
Approved Member
Posts: 553
Joined: Tue Apr 24, 2007 11:03 pm
Location: birdsboro,pa
Been thanked: 2 times

Re: Fusion Speed build-up

Post by wyldbill »

you can get small carbon fiber tubes at Mcmaster carr if you want to make nose tubes to match.

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Re: Fusion Speed build-up

Post by scr8p »

thanks guys.
JK Racing wrote:Can I send a chassis or 2 your way? J/K...
i'm not sure if this means your joking (J/K), or it's just your initials, but if you have something you want fixed, send me some pics. :wink:
wyldbill wrote:i just cant believe they didn't counter sink the holes all the way, were all of the chassis like that? the hole you fixed is deeper than the stock holes
actually, the problem is they used too big of a drill bit for the holes, and it makes look like they're not countersunk enough. that's why the hole i fixed looks different.
RichieRich wrote:Hey Jason, I think either you or someone else may have covered this before, but what did you use to fill the holes?
ya that was me. i use 3M Automix panel bonding adhesive. being as though i work in a body shop, it's readily accessable.
Dr. Robotnik wrote:Excellent mate, woot! 8) Have you thought about maybe painting little grey squares over the hole patches to make them look like CF weave? If you took your time and clour matched the paint I am sure it'd look near new. Either way great save at the moment.
i did think about that, and i still could. unless i start building it before it would happen. i spent most of the day yesterday at my work (on my own time :wink: ) doing this chassis and 3 others. i just wanted to get them all done and go home.

noony
Approved Member
Posts: 533
Joined: Thu Sep 14, 2006 12:26 pm
Location: Smiths Creek Mi

Re: Fusion Speed build-up

Post by noony »

Jason,
The chassis looks grate, I'm glad you finely got your hands on one. But didn't I just read in one of the other treads that you where done building toy cars? HAHAHAHA LOL I love it ,your addicted and cant stop! :mrgreen:

User avatar
JK Racing
Super Member
Posts: 4603
Joined: Thu Jul 19, 2007 2:32 pm
Location: Placentia, CA
Has thanked: 103 times
Been thanked: 200 times

Re: Fusion Speed build-up

Post by JK Racing »

scr8p wrote:thanks guys.
JK Racing wrote:Can I send a chassis or 2 your way? J/K...
i'm not sure if this means your joking (J/K),
Just Kidding....Keep 'em coming, one of these millienia, I will attempt to do the same!!
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Re: Fusion Speed build-up

Post by scr8p »

JK Racing wrote:Just Kidding....Keep 'em coming, one of these millienia, I will attempt to do the same!!
ok. :)
noony wrote:Jason,
The chassis looks grate, I'm glad you finely got your hands on one. But didn't I just read in one of the other treads that you where done building toy cars? HAHAHAHA LOL I love it ,your addicted and cant stop! :mrgreen:
i said i was gonna finish all of my projects first, then i'm done. hopefully. :mrgreen:

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Re: Fusion Speed build-up

Post by scr8p »

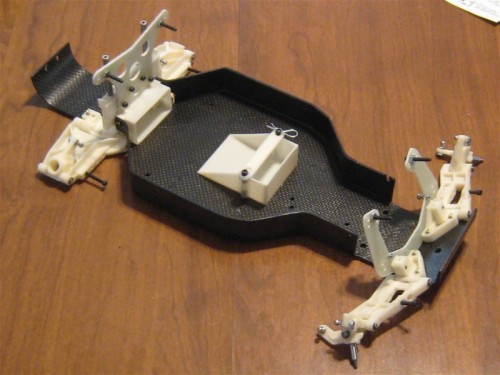

damn, i had to go back over a year to find this one. :lol:

i've been hoarding the last of my new white parts for this build. i still need a set of new white shock bushings, a new pair of white shock rod ends, and i seem to have lost one of my new white spring collars. :evil: i ran out of short ball studs, so i couldn't put the steering bellcrank in. i also need to get bearing for the whole car, too.

it might sit idle again for a little bit, but here it is so far................
Attachments

User avatar
Synergy
Approved Member
Posts: 1787
Joined: Sat Dec 23, 2006 5:57 am
Location: North East England
Has thanked: 127 times
Been thanked: 70 times

Re: Fusion Speed build-up

Post by Synergy »

Hubba and indeed bubba 8)
