Convert RC10T to take Hex Wheel & Tires

[18ri]

There must be a way to Convert RC10T to take Hex Wheel & Tires.

Does anyone have any information on that.

Thanks in advance.

[rctenracer]

In the past they were using the SC10/b4.2 parts for the front , caster blocks I think 25 degree, steering blocks, axles, hex's, bearings etc. You have to drill out the lower hinge pin on the caster block to 1/8 inch. The rear is just a matter of installing a hex adapter but you will need 3/16 axles for the hex's to work. I haven't tried it but custom works makes a hex conversion #CSW7290 from Amain that is said to work also . Hit search and look up hex conversion.
There is also a schumacher conversion as well #SCHU4395. https://www.rc10talk.com/viewtopic.php?f=35&t=44842

[juicedcoupe]

I've used the A&L hex for 1/4" axles a couple times, it does work. It will also require a little finish work to fit snuggly against the axle pin.
- It doesn't leave a lot of thread engagement, so some thread locker wouldn't be a bad idea.
- Several hex wheels don't have enough radial clearance for an 8-32 nut. I put a 4mm serrated nut in the vise and tap it to 8-32, the Dewalt drill/tap bits in an impact make quick work of this.



The SC10 front arrangement is nice, if you can find the axles and correct angle caster blocks. I usually can't, so I've resorted to other options.

1- Traxxas parts, I've only had this work on trucks. With some grinding of the caster blocks and reaming the hinge pins, regulator Stampede/Rustler/Slash parts fit. Even with the material removed, they still have more material than the original parts. I've been pretty rough on this setup without any breakage.

2- Hybrid parts. With some reaming and light grinding, I've used B4 caster blocks with old style 8mm Traxxas Stampede/Rustler steering blocks. You can then use the common Traxxas axles, however I have used Associated Trophy Rat axles with Traxxas steering blocks by using 3X5 shims.

- Note. If you use the 30° caster blocks (most common), you will have a lot of caster and likely have to grind the a arms for clearance. Also, the 8mm steering blocks aren't available new but many long time Traxxas guys will have some laying around.

3- Custom Works conversion kit. I haven't tried it yet but plan on it in the future. From what I've seen, it is likely the best solution with available parts.

[Carknowledge101]

You could also 3D print hex adapters but that might only work for the rear. Just a thought.

[rctenracer]

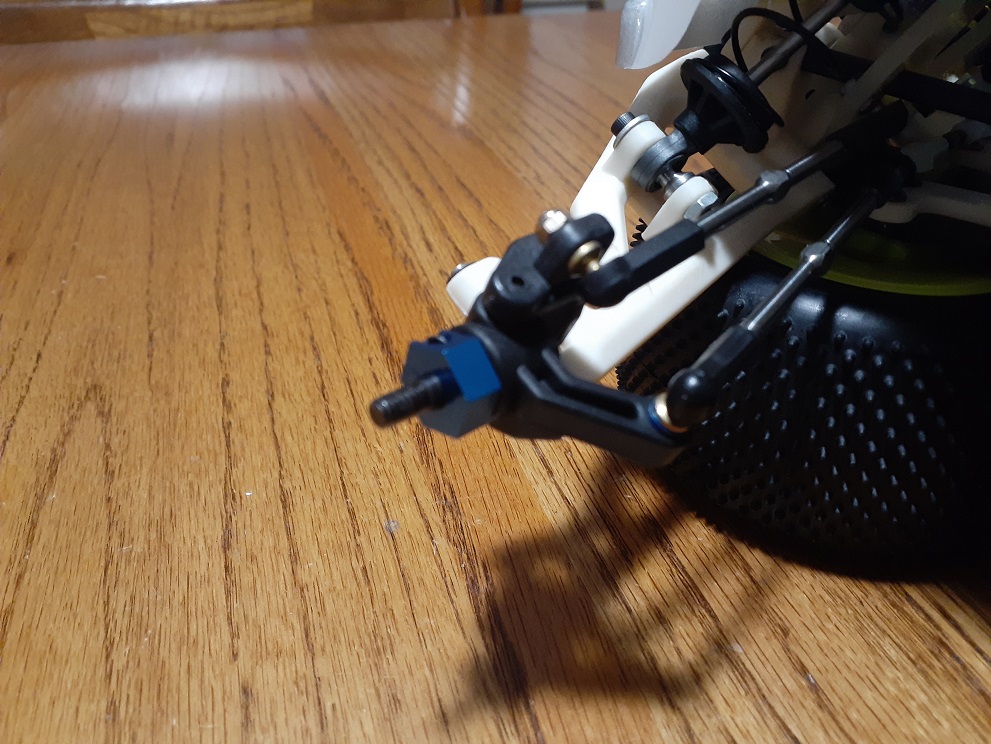

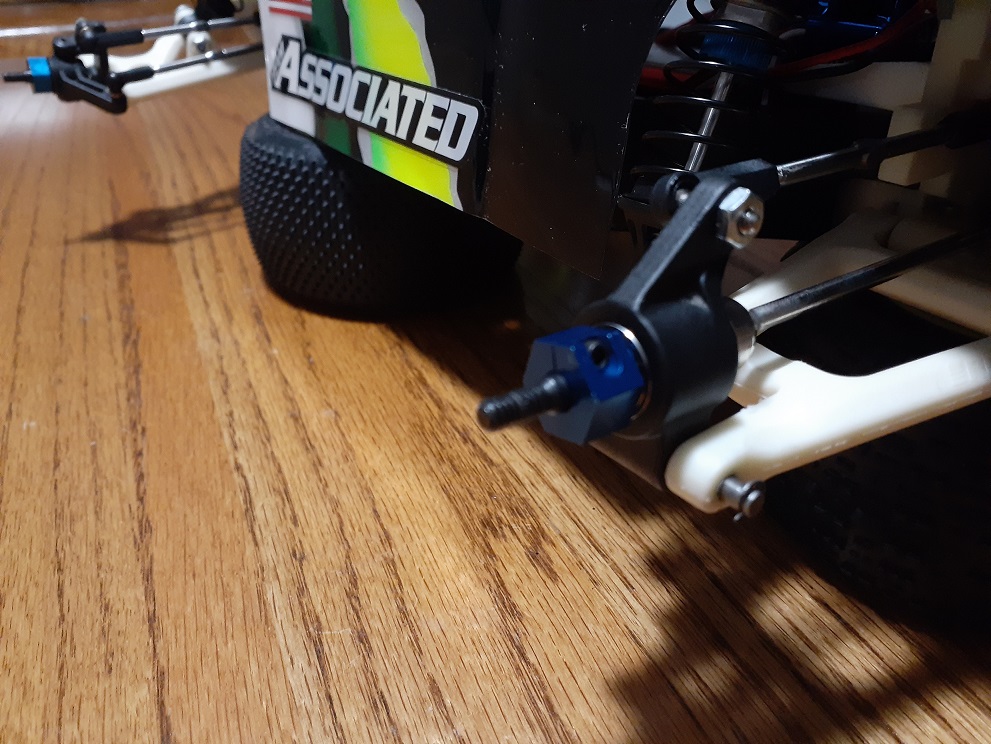

Here is a pic of my RC10T using the B4.2/SC10 front setup and Associated rear hexs #9892. If you have 1/4 axles with dog bones you can get #9670 axle stubs from amain along with bearings, shims CSW7048, pins CSW7204, red orings 5407. I used JConcepts Mono wheels .
