graphite chassis repair

General info, Q&A.

Moderators: scr8p, klavy69

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

graphite chassis repair

Post by scr8p »

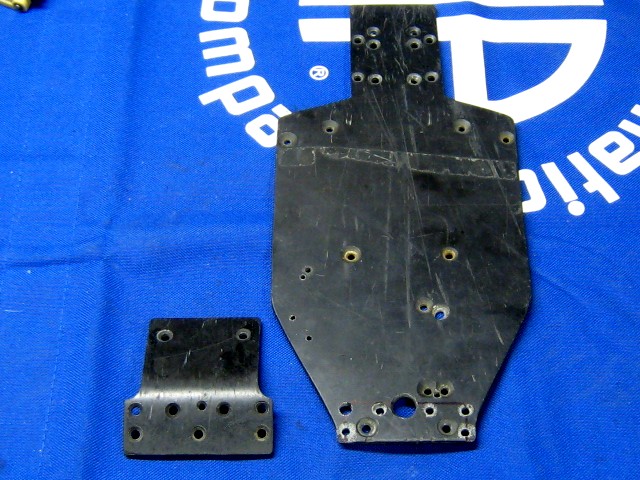

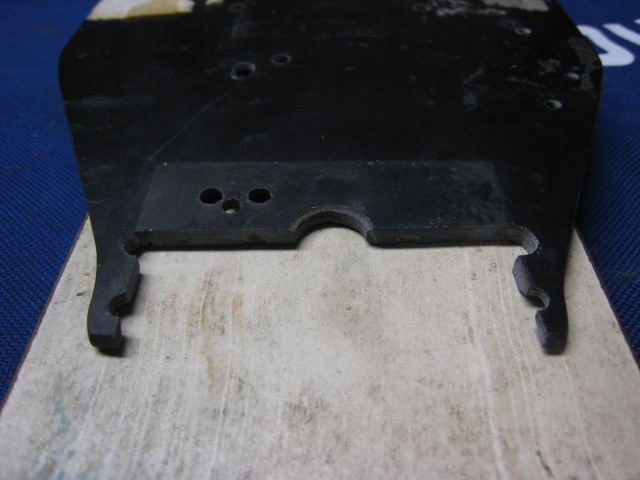

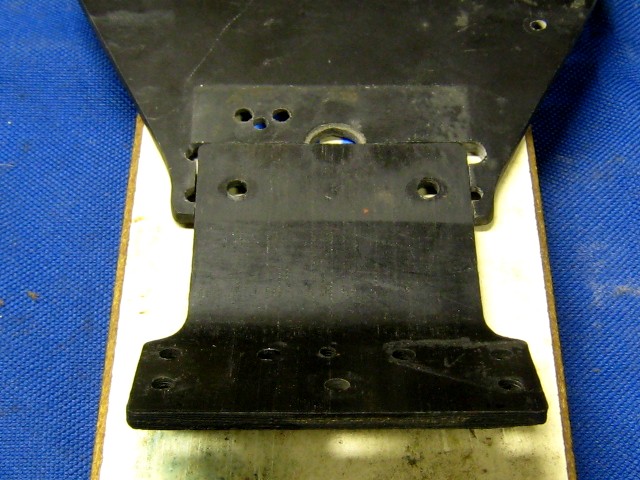

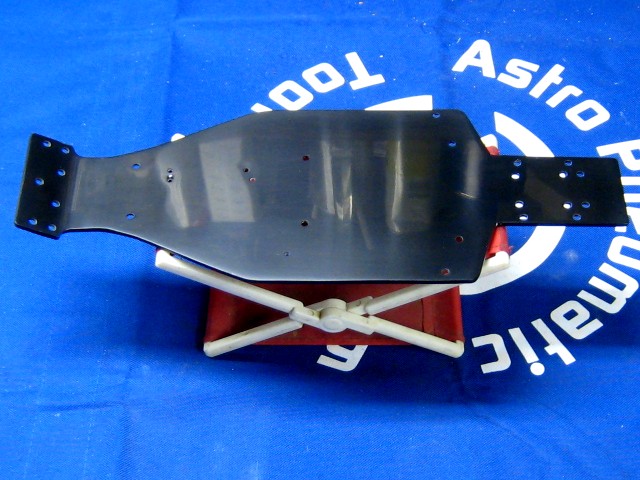

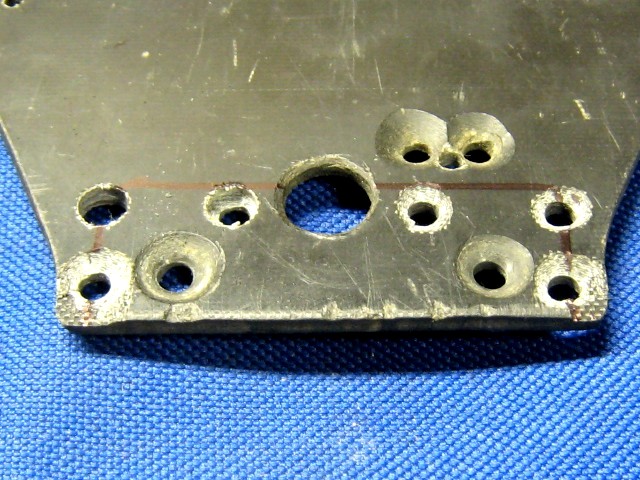

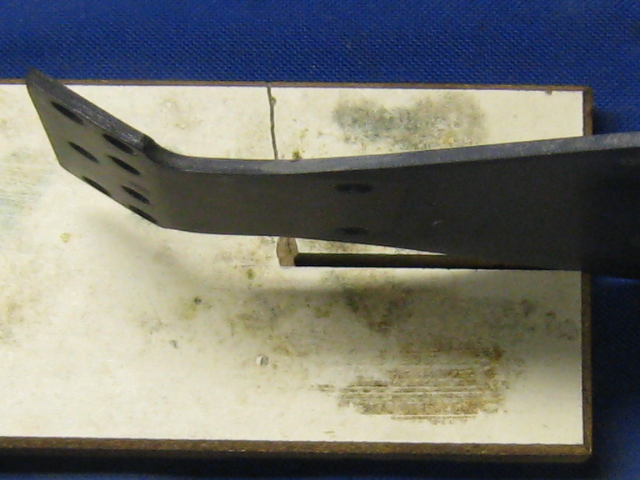

when i got my ebay beater a couple weeks ago, it has a composite craft nose plate mounted to the bottom of the chassis to support the cracked main chassis. skip ahead to 2 days ago. i won an auction with 2 chassis on ebay. both trailing arm chassis. the one chassis is an andy's, the other, i wasn't sure. the one i was unsure of had a nose plate mounted on it, and is full of holes. so, anyways, i decided to try and mount the c.c. noseplate on to this chassis. this is what i got so far. hopefully i'll have time this week after work to bond the 2 together. i'm also going to fill all of the misc. holes in the front, and redrill new ones later. i hope it works out, but if not, oh well. i tried.
Attachments

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Post by scr8p »

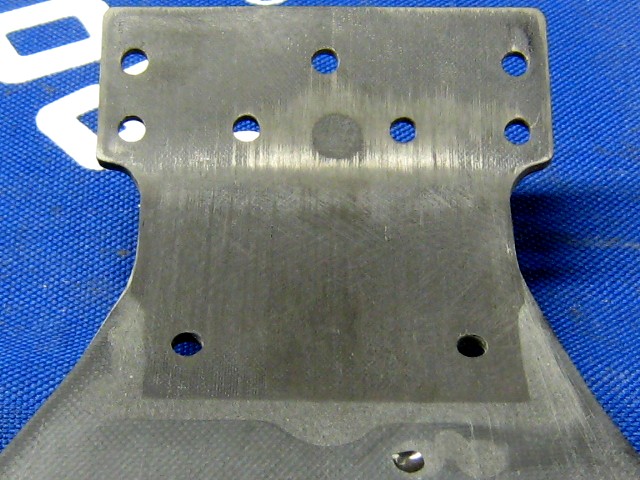

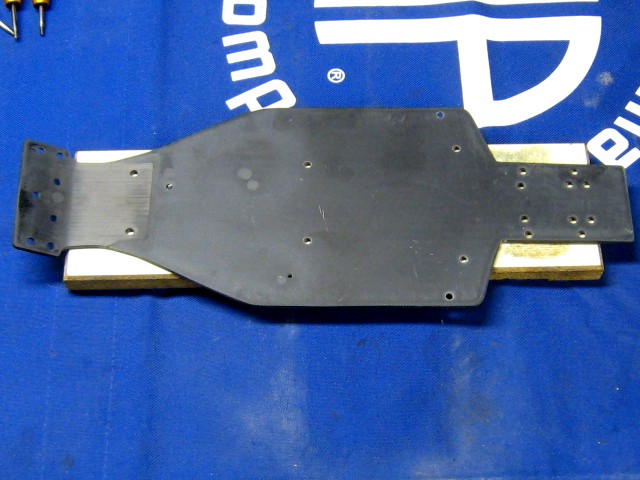

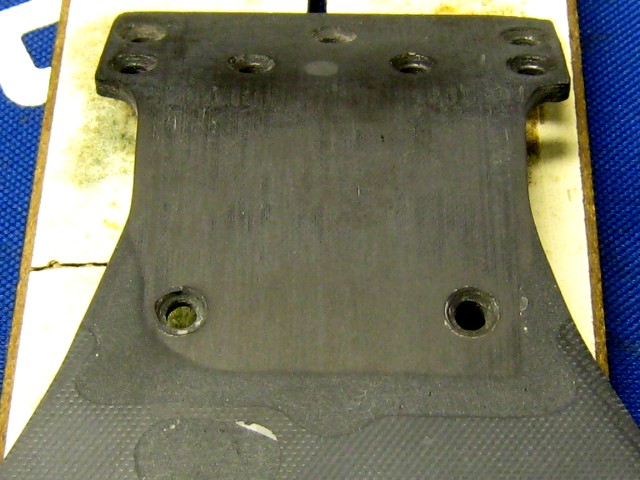

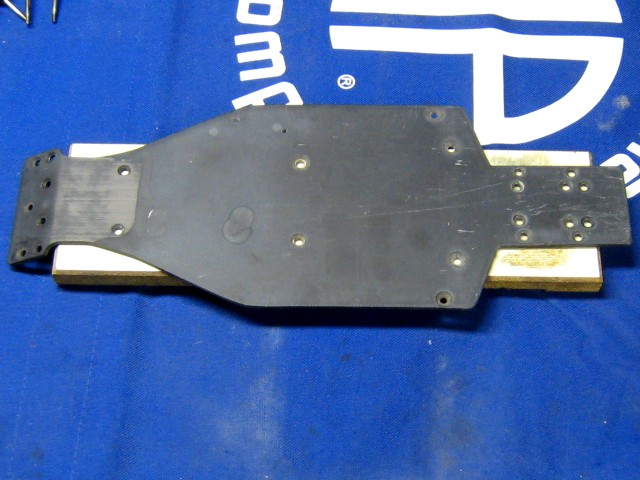

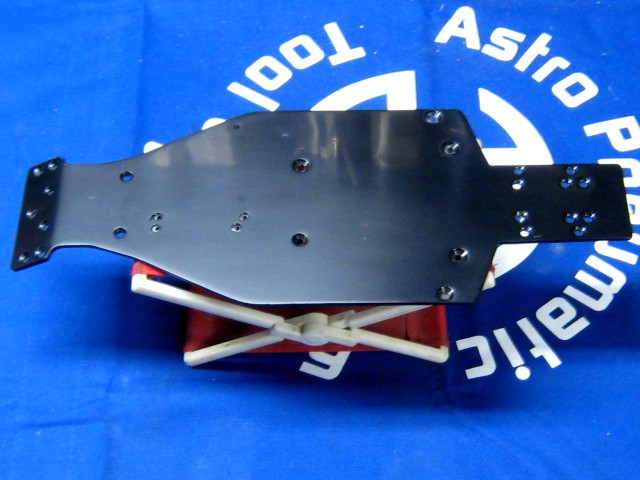

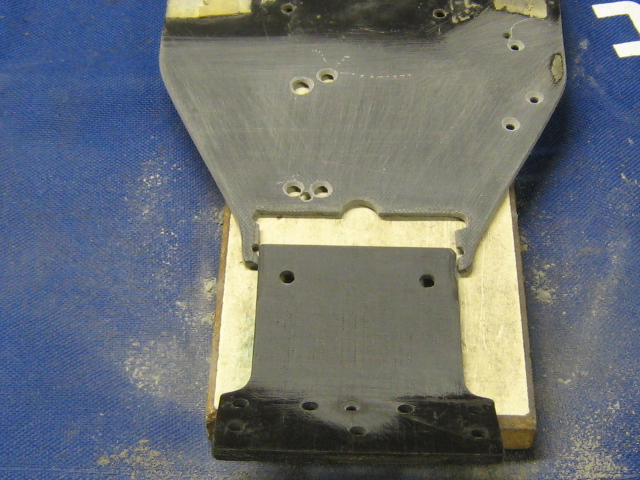

last night after work, i got it bonded together. also, filled all of the screwed up holes. today after work, i got the bonding sanded down and finished up. just need to drill the new servo holes. i am very surprised how strong it is. i had my doubts whether it would work or not.
Attachments

justinspeed79
Approved Member
Posts: 1679
Joined: Sun Aug 13, 2006 10:54 pm
Location: Houston Texas
Has thanked: 2 times
Been thanked: 4 times

Post by justinspeed79 »

Wow, looks good. What did you use to bond them?

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Post by scr8p »

i used 3M Automix panel bonding adhesive. we use it at the shop, depending on the job, for replacing door skins, around the inner lip, before cripping the skin around, and 1/4 panels. 3M says it's just as strong as welding the panel on. we had a car come back, that we had put a 1/4 on before, and it was rear ended the same way again. the bonding did not let go at all. so, i guess they're right. :wink:

User avatar
shodog
Approved Member
Posts: 3816
Joined: Thu Oct 05, 2006 3:09 pm
Location: Washington
Has thanked: 3 times
Been thanked: 86 times

Post by shodog »

That looks like an excelent job of fixing your chassis

User avatar
MelvinsArmy
Approved Member
Posts: 3224
Joined: Tue Feb 07, 2006 10:22 pm
Location: Des Moines, IA
Been thanked: 8 times

Post by MelvinsArmy »

Wow, now that's some impressive work. 8)

User avatar
Asso_man!
Approved Member
Posts: 3959
Joined: Thu Aug 03, 2006 7:49 am
Location: EU
Has thanked: 40 times
Been thanked: 70 times

Post by Asso_man! »

yep congratulations Scr8p, again an amazing repair job, it seems you can't consider trashing any RC10 part, well for me it would be a shame too :wink: now, why don't you change your pseudo for Goldfingers :idea: :lol:
_____________________________________________
_____________________________________________
Come and visit the stable

User avatar
Dr. Robotnik
Approved Member
Posts: 1442
Joined: Wed Oct 11, 2006 11:05 am
Location: Nutterham, United Kingdom
Been thanked: 2 times

Awesome chassis repair

Post by Dr. Robotnik »

Wow :D, yesterday when I saw the parts roughly cut together I was a little sceptical this would work but I kept my fingers crossed. Then today I checked the thread and was amazed :shock:, that's an incredible repair, well done for saving a vintage part. 8)

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Post by scr8p »

thanks guys. i definately have a hard time trowing stuff away, so to speak. i'm just glad it worked out. i got to figure out what i want to do with the finish on it. so that you can't see the repair.

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

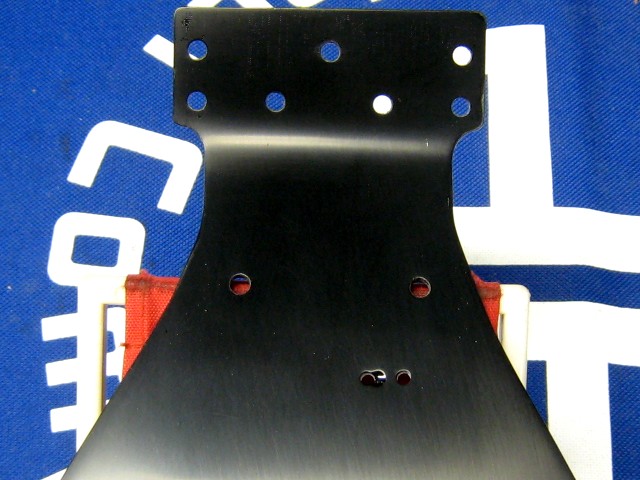

Post by scr8p »

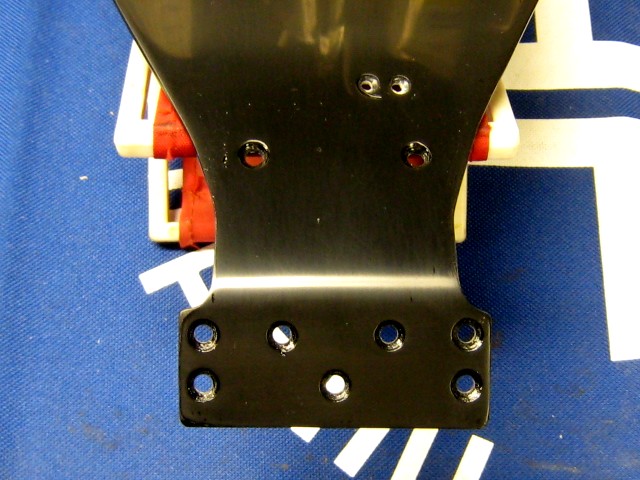

ok. now i'm done with it. i sprayed some black basecoat on it, and a couple coats of lacquer clear. i then sanded it with some 1500 grit paper to get most of the imperfections out of it. there's still some in it, but i can live with them. then i went over it with some 3000 grit paper, and that was it. i didn't want it to shiny. over all, i think it turned out pretty good.
Attachments

justinspeed79
Approved Member
Posts: 1679
Joined: Sun Aug 13, 2006 10:54 pm
Location: Houston Texas
Has thanked: 2 times
Been thanked: 4 times

Post by justinspeed79 »

That is awsome scr8p! Very, very nice work! 8)

knucklebuster
Approved Member
Posts: 822
Joined: Mon Aug 07, 2006 11:05 pm
Location: Florida

Post by knucklebuster »

Nice work scr8p... I can appreciate your squeezing every penny out of the $20 beater. Makes it that much nicer.

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Post by scr8p »

thanks guys. i'm definately please with how it turned out. now i got another chassis to build up. as if i didn't have enough already. :lol:

User avatar
Asso_man!
Approved Member
Posts: 3959
Joined: Thu Aug 03, 2006 7:49 am
Location: EU
Has thanked: 40 times
Been thanked: 70 times

Post by Asso_man! »

:lol: :lol: :lol: it really looks like new and has a black anodized touch that is way cool, maybe the nicest repair job I've ever seen 8)
_____________________________________________
_____________________________________________
Come and visit the stable

User avatar
Dr. Robotnik
Approved Member
Posts: 1442
Joined: Wed Oct 11, 2006 11:05 am
Location: Nutterham, United Kingdom
Been thanked: 2 times

Amazed :shock:

Post by Dr. Robotnik »

:shock: Damn son, where'd you buy that sweet chassis, it looks awesome? :lol:

I am unbelievably impressed it looks so new. Thanks for the blow by blow tips and how to's its great to learn this stuff.

Thanks for sharing

Cheers

Ed

Post Reply

Create an account or sign in to join the discussion

You need to be a member in order to post a reply

Create an account

Not a member? register to join our community
Members can start their own topics & subscribe to topics
It’s free and only takes a minute

Register

Sign in

  • Similar Topics
    Replies
    Views
    Last post
  • Graphite Chassis repair
    by mikea96 » » in Temple's RC10 Tech Forum
    2 Replies
    619 Views
    Last post by mikea96
  • Repair graphite chassis
    by DMAT » » in Temple's RC10 Tech Forum
    15 Replies
    3048 Views
    Last post by DMAT
  • Graphite chassis repair???????Help!!!!!
    by TRX-1-3 » » in Off-Topic / Chit-Chat
    2 Replies
    646 Views
    Last post by TRX-1-3
  • Graphite chassis repair?
    by tallpaul » » in Temple's RC10 Tech Forum
    7 Replies
    1302 Views
    Last post by aconsola
  • Graphite repair
    by Richieflax » » in RC10 Buggy Forum
    10 Replies
    945 Views
    Last post by fastang
  • Help With Chassis Repair
    by ChisaiKuso » » in RC10 Buggy Forum
    10 Replies
    1205 Views
    Last post by jwscab
  • Worlds Chassis Repair :)
    by Charlie don't surf » » in RC10 Buggy Forum
    22 Replies
    2448 Views
    Last post by Charlie don't surf
  • Carbon Fiber Chassis repair
    by JosephS » » in R/C Off-Topic / Chit-Chat
    9 Replies
    848 Views
    Last post by JosephS

Return to “Temple's RC10 Tech Forum”

Who is online

Users browsing this forum: No registered users and 6 guests
