special motor brush？

Post by crusaderlyf »

I have one set 540 motor brush by associated, but I never saw the brush like this,what type of this brush call?

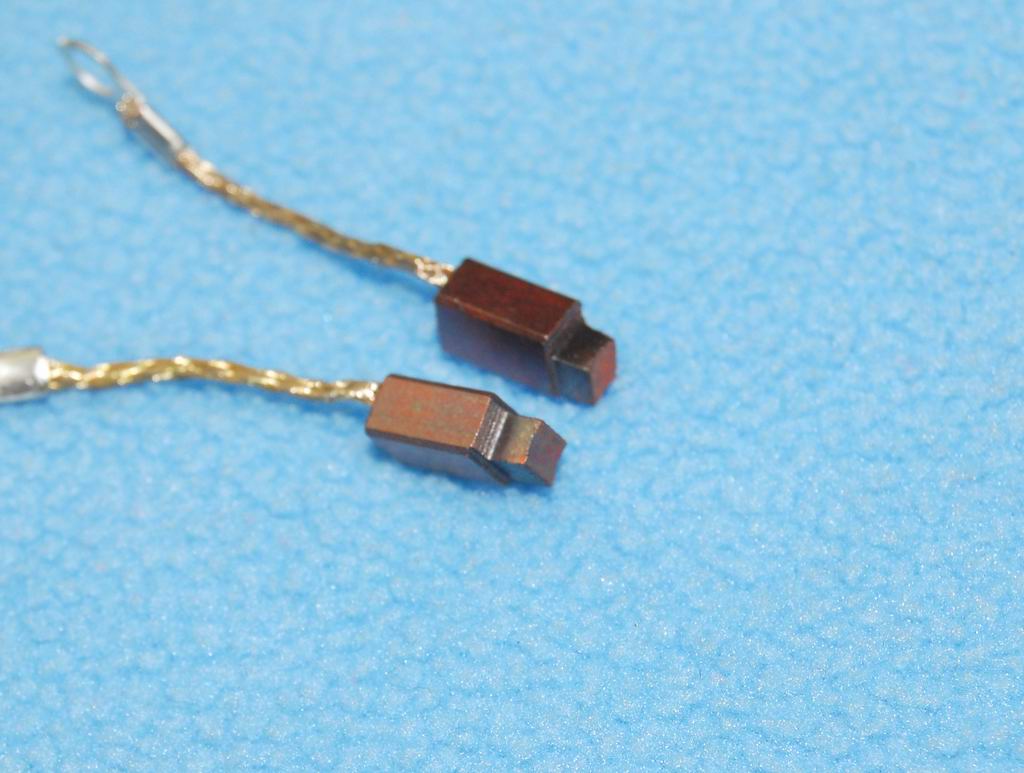

brush 01.JPG

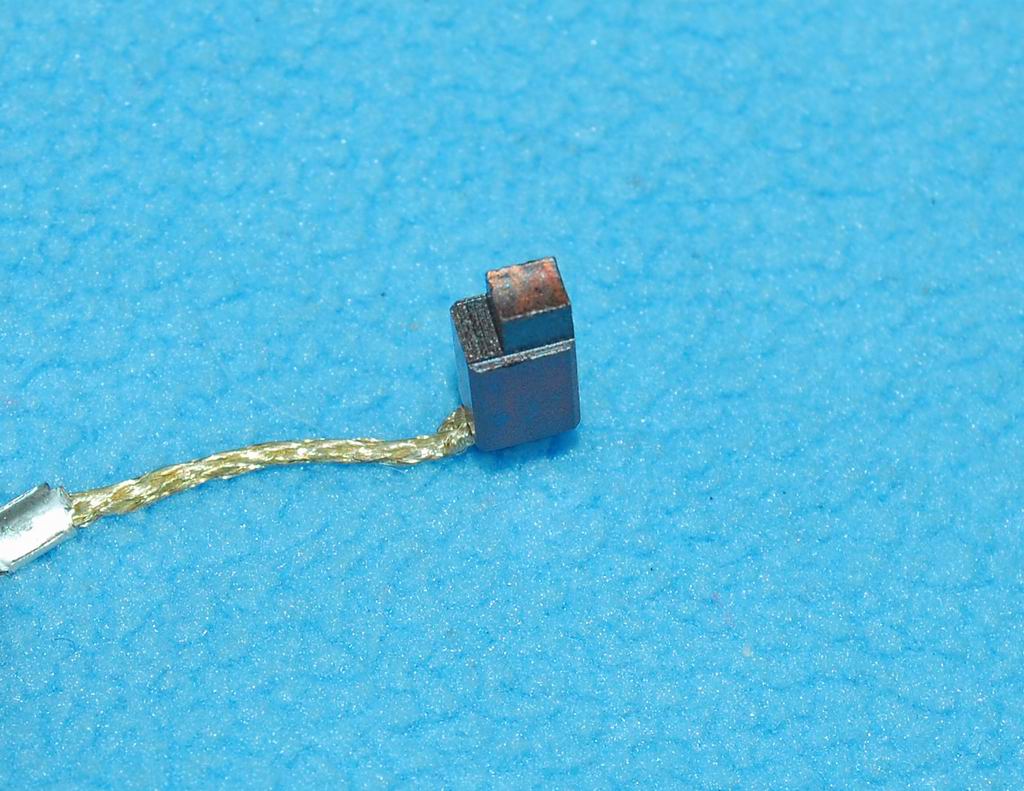

brush 02.JPG
Top
User avatar
GoMachV
Approved Member
Posts: 12214
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 1084 times
Been thanked: 3762 times

Re: special motor brush？

Post by GoMachV »

"Cut" and "timed" both I assume
Top
User avatar
ChisaiKuso
Approved Member
Posts: 526
Joined: Sun Jun 17, 2012 7:50 pm
Location: United States
Has thanked: 5 times
Been thanked: 27 times

Re: special motor brush？

Post by ChisaiKuso »

That is a "cut" brush. In theory you can run one brush up and one brush down to reduce drag and wear on the commutator. It does not appear to be "timed" though.
Something clever goes here...
Top
User avatar
GoMachV
Approved Member
Posts: 12214
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 1084 times
Been thanked: 3762 times

Re: special motor brush？

Post by GoMachV »

Ya got me there, I didn't see it was equal on both sides. :mrgreen:
