When did Kyosho switch from 0.8mod pinion/spur to 48p?
-
- Approved Member
- Posts: 57
- Joined: Sat Sep 26, 2015 8:11 pm
- Location: Västerås, Sweden
- Has thanked: 14 times
- Been thanked: 3 times
When did Kyosho switch from 0.8mod pinion/spur to 48p?
As the subject says I'm looking for insight into when and on which buggy model Kyosho first used 48p gears and which model was the last to use 0.8 mod?
My own research by looking through manuals would indicate it was on the Triumph with the TM-7 spur gear, which was also an option for the Lazer ZX-R. At least that's the first mention of 48p.
All earlier Ultimas and Optimas have similarities when comparing the part numbers of pinions and spur gears.
Then again I might be missing something...
My own research by looking through manuals would indicate it was on the Triumph with the TM-7 spur gear, which was also an option for the Lazer ZX-R. At least that's the first mention of 48p.
All earlier Ultimas and Optimas have similarities when comparing the part numbers of pinions and spur gears.
Then again I might be missing something...
- DennisM
- Approved Member
- Posts: 2403
- Joined: Sun Feb 26, 2012 7:07 am
- Location: Denmark
- Has thanked: 30 times
- Been thanked: 64 times
Re: When did Kyosho switch from 0.8mod pinion/spur to 48p?
Quote: terry TC on Tamiya Club
Ultima:
All the gears in an Ultima were the same 0.8 module in every model, the only difference being the later Pro had a first gear with a 0.6 module spur gear so 0.6 module pinions could be used. This spur gear was part number W-0110. All Kyosho gears were metric.
The Pro II also used the Optima alloy final pinion, instead of the standard plastic Ultima one.
Ultima:
All the gears in an Ultima were the same 0.8 module in every model, the only difference being the later Pro had a first gear with a 0.6 module spur gear so 0.6 module pinions could be used. This spur gear was part number W-0110. All Kyosho gears were metric.
The Pro II also used the Optima alloy final pinion, instead of the standard plastic Ultima one.
Gone fishing
-
- Approved Member
- Posts: 57
- Joined: Sat Sep 26, 2015 8:11 pm
- Location: Västerås, Sweden
- Has thanked: 14 times
- Been thanked: 3 times
Re: When did Kyosho switch from 0.8mod pinion/spur to 48p?
So was W-0110 stock on the Ultima Pro?
When reading the manual I saw it mentioned but thought it was an option as it listed UM-1 with all the regular gears as well.
Actually haven't opened the gearbox on my Pro yet and looked at the spur gear.
Always thought it was the same as the Optimas throughout the Ultima range.
What about the Mids?
When reading the manual I saw it mentioned but thought it was an option as it listed UM-1 with all the regular gears as well.
Actually haven't opened the gearbox on my Pro yet and looked at the spur gear.
Always thought it was the same as the Optimas throughout the Ultima range.
What about the Mids?
DennisM wrote: ↑Fri Mar 13, 2020 1:58 pm Quote: terry TC on Tamiya Club
Ultima:
All the gears in an Ultima were the same 0.8 module in every model, the only difference being the later Pro had a first gear with a 0.6 module spur gear so 0.6 module pinions could be used. This spur gear was part number W-0110. All Kyosho gears were metric.
The Pro II also used the Optima alloy final pinion, instead of the standard plastic Ultima one.
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 830 times
- Been thanked: 2459 times
Re: When did Kyosho switch from 0.8mod pinion/spur to 48p?

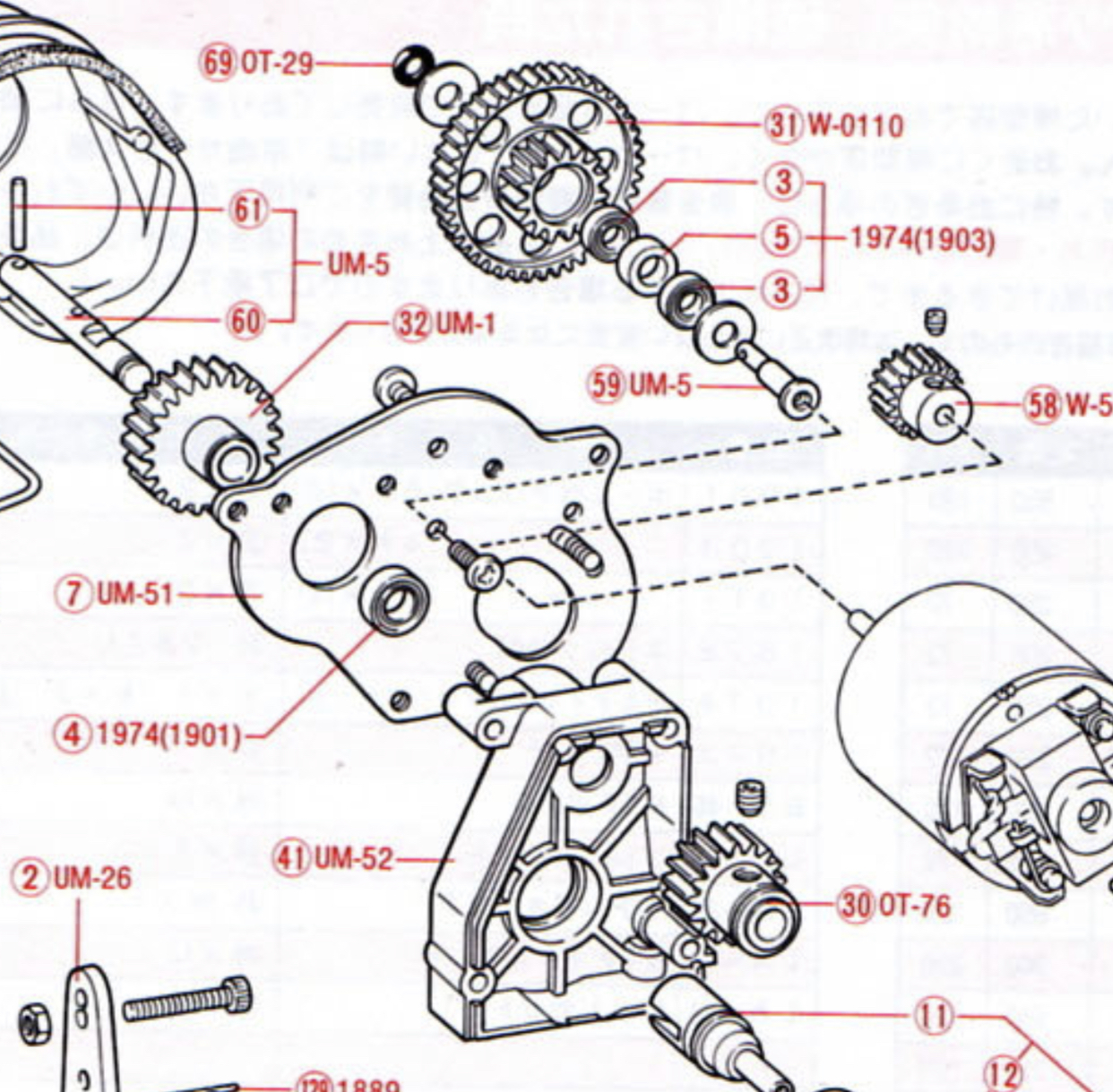

Pro and Pro XL both list is as original. The replacement gear set is still the UM-1, even though two of the gears would not have been used. They didn’t create a new part number for a gear set that was already widely used
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 830 times
- Been thanked: 2459 times
Re: When did Kyosho switch from 0.8mod pinion/spur to 48p?
Not 48p, they were “metric 48p” which is the 0.6 module gear.
But yes- those were the hard pinions for the special counter gear
But yes- those were the hard pinions for the special counter gear
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
-
- Approved Member
- Posts: 57
- Joined: Sat Sep 26, 2015 8:11 pm
- Location: Västerås, Sweden
- Has thanked: 14 times
- Been thanked: 3 times
Re: When did Kyosho switch from 0.8mod pinion/spur to 48p?
You're correct! I realised this shortly after I made the post!
But what about the pinions and spurs on the Mids? What pitch were they?
But what about the pinions and spurs on the Mids? What pitch were they?
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 830 times
- Been thanked: 2459 times
Re: When did Kyosho switch from 0.8mod pinion/spur to 48p?
They were all the same 0.6 module. It was Lazer ZX-R that finally got standard 48p iirc.

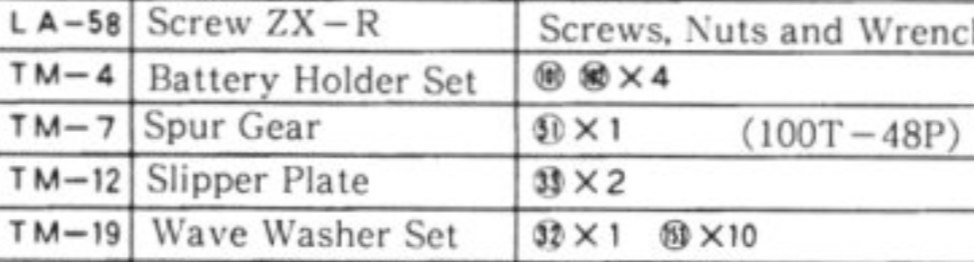

Edit: verified it uses a TM-7 spur which is a standard 48p. So basically the Triumph was the first 2wd buggy and the ZX-R was the first 4wd race buggy to use standard 48p spurs.
Edit: verified it uses a TM-7 spur which is a standard 48p. So basically the Triumph was the first 2wd buggy and the ZX-R was the first 4wd race buggy to use standard 48p spurs.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
-
- Approved Member
- Posts: 57
- Joined: Sat Sep 26, 2015 8:11 pm
- Location: Västerås, Sweden
- Has thanked: 14 times
- Been thanked: 3 times
Re: When did Kyosho switch from 0.8mod pinion/spur to 48p?
Ah, so my findings that I mentioned in the original post were correct!

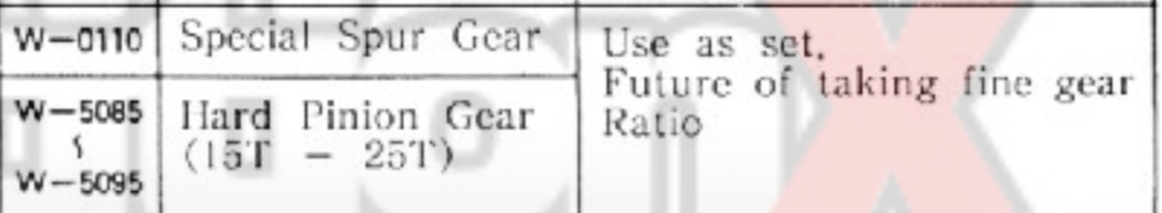

Going back to the W-0110 spur, can that be used on a regular Turbo Optima?
The inner part of that spur was still 0.8 mod right?
Also, what Option House Hard Pinions were available in 0.8 mod that would work with a regular spur gear (looking for the part numbers)?
Going back to the W-0110 spur, can that be used on a regular Turbo Optima?
The inner part of that spur was still 0.8 mod right?
Also, what Option House Hard Pinions were available in 0.8 mod that would work with a regular spur gear (looking for the part numbers)?
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 830 times
- Been thanked: 2459 times
Re: When did Kyosho switch from 0.8mod pinion/spur to 48p?
Yes, the w-0110 can be used on the entire series- from Ultima to the Outlaw Ultima to the Optima, Turbo Optima, Javelin, Salute, and into the Outrage and 2wd scale car series. Anything with that came with a UM-1 or OT-27 (sprockets and gears for optima series)

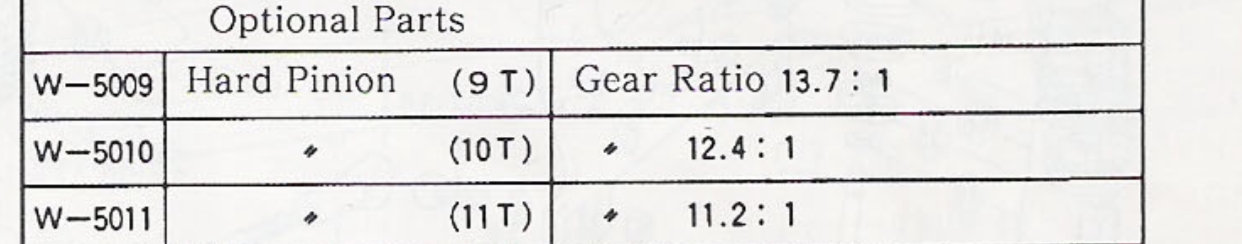

I only see three hard pinions for .8 module. If you forecast out more part numbers in that numerical series, they are for other non-pinion parts.
I only see three hard pinions for .8 module. If you forecast out more part numbers in that numerical series, they are for other non-pinion parts.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
