Do I need different tired lengths with the rpm long cups
-
- Super Member
- Posts: 1546
- Joined: Thu Mar 23, 2017 5:31 pm
- Has thanked: 1014 times
- Been thanked: 472 times
Do I need different tired lengths with the rpm long cups
I’ve been reading through the forum history on this and I keep seeing reference to tie-rod length and the rpm long cups.
I’ve already purchased the long cups in white for my rc10 team car build and I am going to to purchase the Lunsford worlds kit tie-rods. Can I just thread them deep, or will the links be to long?
I’ve already purchased the long cups in white for my rc10 team car build and I am going to to purchase the Lunsford worlds kit tie-rods. Can I just thread them deep, or will the links be to long?
- juicedcoupe
- Super Member
- Posts: 2989
- Joined: Sun Aug 16, 2020 4:05 pm
- Location: Pascagoula, MS
- Has thanked: 231 times
- Been thanked: 1747 times
Re: Do I need different tired lengths with the rpm long cups
They will be way too long. Those are much longer than the AE or Lunsford cups.
Always looking for new and interesting ways to waste money.
-
- Super Member
- Posts: 1546
- Joined: Thu Mar 23, 2017 5:31 pm
- Has thanked: 1014 times
- Been thanked: 472 times
- juicedcoupe
- Super Member
- Posts: 2989
- Joined: Sun Aug 16, 2020 4:05 pm
- Location: Pascagoula, MS
- Has thanked: 231 times
- Been thanked: 1747 times
Re: Do I need different tired lengths with the rpm long cups

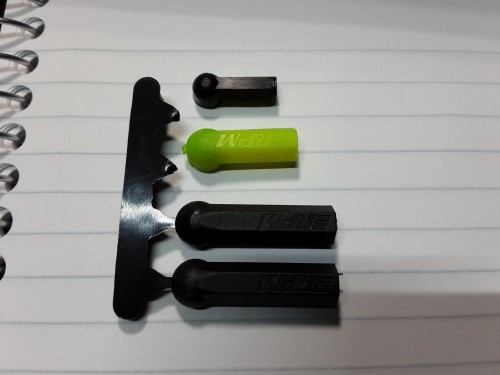

This is all three sizes.
The AE 6274 cups are 16mm OAL, 6mm wide, and have 9mm thread depth. These were recently discontinued but can still be found.
The standard RPM cup is 20mm OAL, 7.5mm wide, and have 13mm thread depth.
The long RPM cup is 26mm OAL, 7.5mm wide, and have 19mm thread depth. They also have additional clearance on the bottom for travel.
The AE 6274 cups are 16mm OAL, 6mm wide, and have 9mm thread depth. These were recently discontinued but can still be found.
The standard RPM cup is 20mm OAL, 7.5mm wide, and have 13mm thread depth.
The long RPM cup is 26mm OAL, 7.5mm wide, and have 19mm thread depth. They also have additional clearance on the bottom for travel.
Always looking for new and interesting ways to waste money.
- jwscab
- Super Member
- Posts: 6495
- Joined: Wed Jan 28, 2009 9:42 am
- Location: Chalfont, PA
- Has thanked: 10 times
- Been thanked: 447 times
Re: Do I need different tired lengths with the rpm long cups
associated also made the low friction versions, which are narrow like the ones shown, with a longer shank:
https://www.michaelsrchobbies.com/team-associated-asc7499-low-friction-ball-cups-b4.html
https://www.michaelsrchobbies.com/team-associated-asc7499-low-friction-ball-cups-b4.html
