Replacement of 870C and 834B front knuckles: FOUND!!

The place for all things Yokomo.

Moderators: scr8p, klavy69

User avatar
jwscab
Super Member
Posts: 6506
Joined: Wed Jan 28, 2009 9:42 am
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 453 times

Re: Replacement of 870C and 834B front knuckles: FOUND!!

Post by jwscab »

I picked up some knuckles/c-hubs/cvd joints on ebay a long while ago, couldn't ever figure out what they were until I happened to find them on tower one day. I know these kinda fit the same way the tamiya parts fit in the c-hub, you need to trim them down, the c-hubs I had were broken, but I think the also fit in the yokomo arms, maybe with a bit of trimming:

http://www3.towerhobbies.com/cgi-bin/wti0001p?&W=001336483&I=LXTU47&P=K
http://www3.towerhobbies.com/cgi-bin/wti0001p?&W=001336483&I=LXTT75&P=K
http://www3.towerhobbies.com/cgi-bin/wti0001p?&W=001336483&I=LXTT76&P=K
http://www3.towerhobbies.com/cgi-bin/wti0001p?&W=001336483&I=LXTT55&P=K

the only thing I can't recall is if the axle length is right. I was trying to convert the yoke axles to threaded axles for 2.2" wheels. the dogbones would need to be lengthened for a buggy.

User avatar
Coelacanth
Approved Member
Posts: 7375
Joined: Thu Jul 29, 2010 6:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 291 times

Re: Replacement of 870C and 834B front knuckles: FOUND!!

Post by Coelacanth »

Those TA04 front knuckles look almost identical to Kyosho Lazer ZX-5 knuckles...and since we already know regular Optima pot-metal knuckles will fit the Yoke, I suppose these would fit too:

http://www.ebay.co.uk/itm/3Racing-ZX5-17-V2-BU-Aluminum-Blue-Knuckle-Arms-Ver-2-For-Kyosho-Lazer-ZX-5-TF5-/350713106819?pt=UK_ToysGames_RadioControlled_JN&hash=item51a8215183

3Racing P/N: ZX5-17/V2/BU
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
Coelacanth
Approved Member
Posts: 7375
Joined: Thu Jul 29, 2010 6:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 291 times

Re: Replacement of 870C and 834B front knuckles: FOUND!!

Post by Coelacanth »

jwscab wrote:I picked up some knuckles/c-hubs/cvd joints on ebay a long while ago, couldn't ever figure out what they were until I happened to find them on tower one day. I know these kinda fit the same way the tamiya parts fit in the c-hub, you need to trim them down, the c-hubs I had were broken, but I think the also fit in the yokomo arms, maybe with a bit of trimming:

http://www3.towerhobbies.com/cgi-bin/wti0001p?&W=001336483&I=LXTU47&P=K
http://www3.towerhobbies.com/cgi-bin/wti0001p?&W=001336483&I=LXTT75&P=K
http://www3.towerhobbies.com/cgi-bin/wti0001p?&W=001336483&I=LXTT76&P=K
http://www3.towerhobbies.com/cgi-bin/wti0001p?&W=001336483&I=LXTT55&P=K

the only thing I can't recall is if the axle length is right. I was trying to convert the yoke axles to threaded axles for 2.2" wheels. the dogbones would need to be lengthened for a buggy.
Yep, you're onto something. These Duratrax knuckles are a direct-fit replacement for Kyosho Optima knuckles, and therefore I'd imagine they'd fit the Yoke too. They're quite a bit more pricey than the 3Racing units, though, but the quality is noticeably better...and I found the 3Racing ones had to have the kingpin standoffs filed down a bit to fit perfectly. I used the 3Racing ones on CYANide and the Duratrax ones--which I managed to find for $19.99 on eBay a long time ago--on Barney, after deanodizing & reanodizing them. As I said, the Duratrax units are a perfect swap-in for the Optima series, no filing required.

http://www3.towerhobbies.com/cgi-bin/wti0001p?&I=LXVFJ0&P=7
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
stickboy007
Approved Member
Posts: 695
Joined: Sun Sep 16, 2012 6:13 pm
Location: Mahopac, NY
Been thanked: 17 times

Re: Replacement of 870C and 834B front knuckles: FOUND!!

Post by stickboy007 »

tiger1 wrote:Then how about Ta01? Can it be a replacement?? :D
TA01 and TA02 knuckles are exactly the same. In fact, the TA01 and TA02 are almost exactly the same chassis, with the only real difference being the wheelbase - the TA01 was longer. In any case, if you combine the tamiya C-hub and steering knuckles from that generation of chassis, they should fit the YZ10 870c without modification.

tiger1
Approved Member
Posts: 777
Joined: Sun Sep 07, 2008 12:38 pm
Location: Singapore
Been thanked: 2 times

Re: Replacement of 870C and 834B front knuckles: FOUND!!

Post by tiger1 »

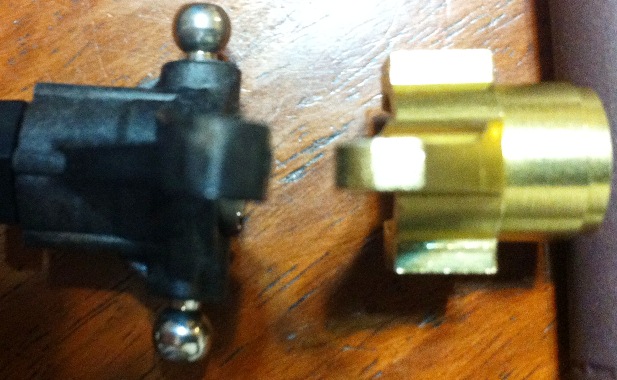

left was the TA04 knuckle with a hex for wheels and top + bottom ball end attached.

right was a GPM 870C knuckle :mrgreen:
Attachments

User avatar
stickboy007
Approved Member
Posts: 695
Joined: Sun Sep 16, 2012 6:13 pm
Location: Mahopac, NY
Been thanked: 17 times

Re: Replacement of 870C and 834B front knuckles: FOUND!!

Post by stickboy007 »

Again, use the Tamiya C-hubs with the Tamiya steering knuckle and you won't need to modify anything. Only difference is that the outer camber link will be mounted a bit higher, which will change the roll center.

aip47-2008
Approved Member
Posts: 1186
Joined: Sun Feb 08, 2009 9:20 pm
Location: Spokane, WA
Has thanked: 135 times
Been thanked: 23 times

Re: Replacement of 870C and 834B front knuckles: FOUND!!

Post by aip47-2008 »

stickboy007 wrote:Again, use the Tamiya C-hubs with the Tamiya steering knuckle and you won't need to modify anything. Only difference is that the outer camber link will be mounted a bit higher, which will change the roll center.
This Kyosho Part is still readily available and is the replacement part for the OT-16 from Kyosho.

Aaron


User avatar
Synergy
Approved Member
Posts: 1787
Joined: Sat Dec 23, 2006 5:57 am
Location: North East England
Has thanked: 127 times
Been thanked: 70 times

Re: Replacement of 870C and 834B front knuckles: FOUND!!

Post by Synergy »

I decided to look into fitting this conversion onto my 870C, I also wanted to replace the carriers with something currenrly available.

It appears that Tamiya TA01/02 hubs and carriers won't work easily, the hubs use a 15mm bearing inboard and a 12mm bearing outboard, both tricky to get down to 5mm id. The inboard bearing are also too far inboard and cause drive shaft binding in the outdrives.

TA04 hubs and carriers look a little easier, I'll be trying those out this week.
Experience is that marvelous thing that enables you to recognize a mistake when you make it again.

Here's my TC Showroom
http://www.tamiyaclub.com/showroom.asp?id=18028

User avatar
Synergy
Approved Member
Posts: 1787
Joined: Sat Dec 23, 2006 5:57 am
Location: North East England
Has thanked: 127 times
Been thanked: 70 times

Re: Replacement of 870C and 834B front knuckles: FOUND!!

Post by Synergy »

It looks like the TA04 carriers add an additional 5º ish of caster, to overcome this you can of course just file down the TA04 knuckles to fit in the original carriers and this is pretty close to the original geometry, it adds a couple of mm each side to the track width.

However in my case (as I am using one off wheel hubs made by Jake) the spacing of the bearings in the knuckles cause binding between the UJ and wheel hub. So I have a couple of choices, I can either extend the flat on the drive shaft, take a little off the inside of the wheel hub or use a 5x10x3 rather than a 5x10x4 bearing on the inside and or outside of the knuckle. Before I do any of these things I'm going see how the Kyosho SD032 knuckle work out.
Experience is that marvelous thing that enables you to recognize a mistake when you make it again.

Here's my TC Showroom
http://www.tamiyaclub.com/showroom.asp?id=18028
