nTC3 electric/brushless rally conversion- DONE!
- mk-Zero
- Business Member
- Posts: 1678
- Joined: Fri Jan 03, 2014 2:14 pm
- Location: Orange, CA
- Has thanked: 4 times
- Been thanked: 19 times
Re: nTC3 electric/brushless rally conversion
Thanks for the the PM and your help.
For now, I'm going with the above wheels and tires since I already bought them but hey, they'll wear out someday Maybe I'll give those a try next time.
Have any ideas for a front bumper, other than the stock nTC3 one (http://www3.towerhobbies.com/cgi-bin/wti0001p?&I=LXKNY1&P=7) , which sits basically horrizontal?
Maybe this one http://www3.towerhobbies.com/cgi-bin/wti0001p?&I=LXBLX5&P=7, then I could make an aluminum skid plate that would sweep upward?
For now, I'm going with the above wheels and tires since I already bought them but hey, they'll wear out someday Maybe I'll give those a try next time.
Have any ideas for a front bumper, other than the stock nTC3 one (http://www3.towerhobbies.com/cgi-bin/wti0001p?&I=LXKNY1&P=7) , which sits basically horrizontal?
Maybe this one http://www3.towerhobbies.com/cgi-bin/wti0001p?&I=LXBLX5&P=7, then I could make an aluminum skid plate that would sweep upward?
- klavy69
- Moderator
- Posts: 5150
- Joined: Thu May 29, 2008 4:11 pm
- Location: Fulton, IL (Land of one stop light but we DO have a windmill!)
- Has thanked: 561 times
- Been thanked: 265 times
Re: nTC3 electric/brushless rally conversion
thats one thing I never addresed. I hacked the crap outta the one but never went any further I'm not a big fan of aluminum bumpers since one hit and they stay that way but there are bumpers out there that can be modded to fit...just gotta find the right one
Todd
Todd
Peace and professionlism.....Kabunga signing off!!!
- mk-Zero
- Business Member
- Posts: 1678
- Joined: Fri Jan 03, 2014 2:14 pm
- Location: Orange, CA
- Has thanked: 4 times
- Been thanked: 19 times
Re: nTC3 electric/brushless rally conversion

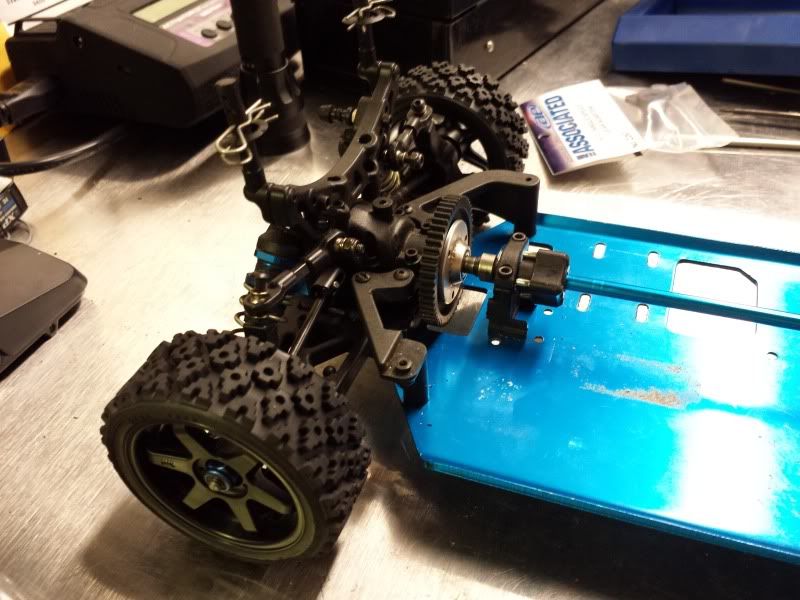

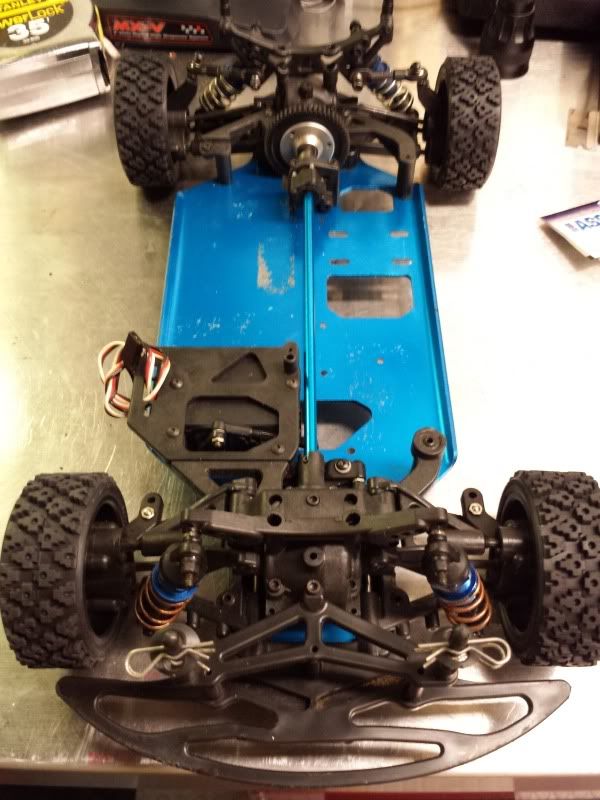

Got the new shoes mounted! I really like the way it looks

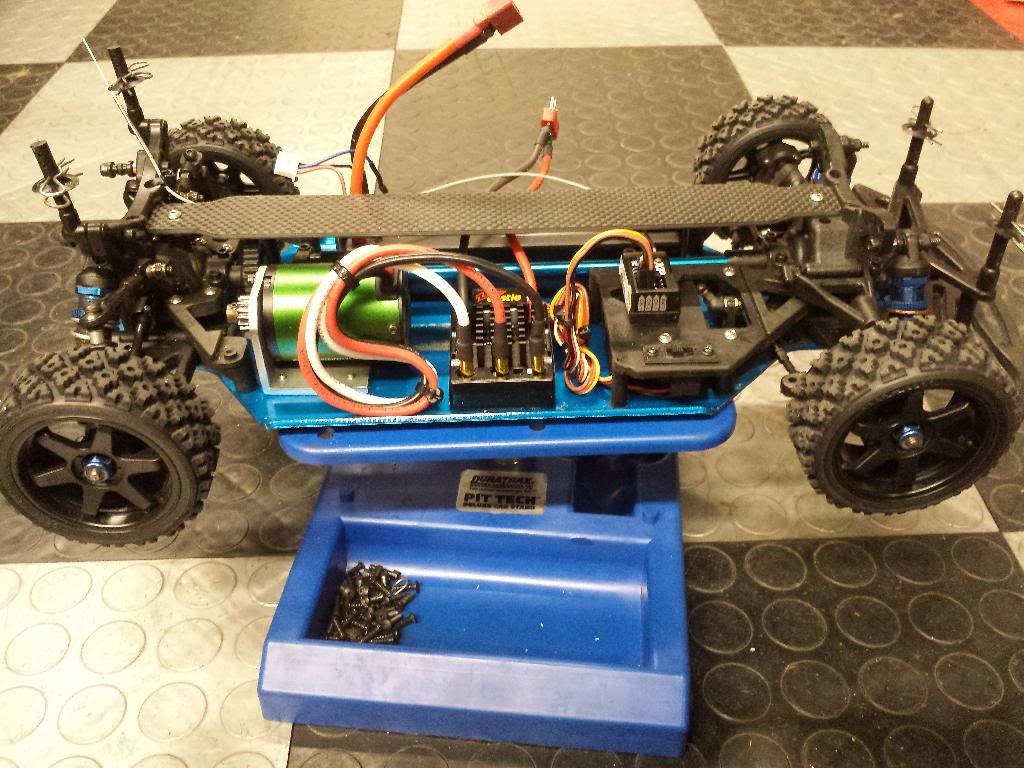

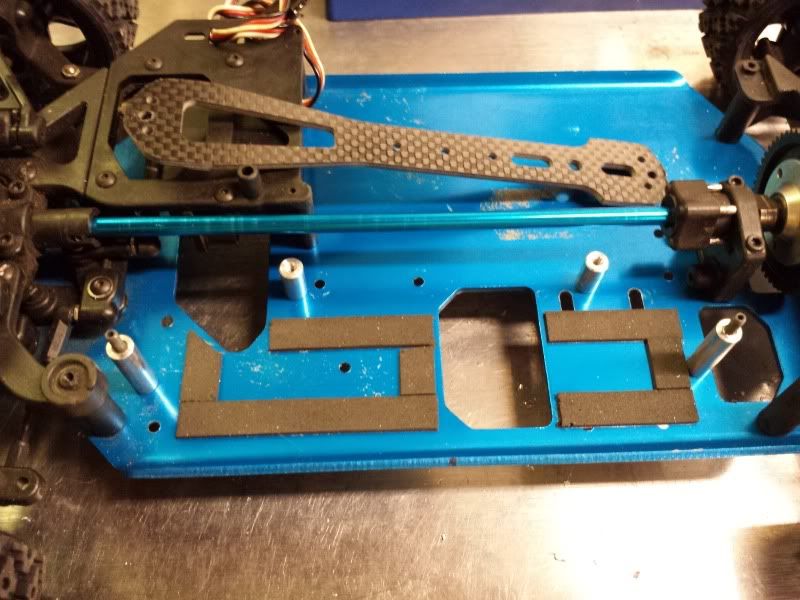

I also got the battery mounting all sorted out. I put a couple short aluminum standoffs in the inboard side to keep the battery in place, on the outboard side its constrained by the lip on the chassis. On the two ends I put standoffs to mount the cf strap I made from a chassis brace. I added foam tape to the chassis too to keep from rubbing off all that blue anodizing. That battery ain't going nowhere!

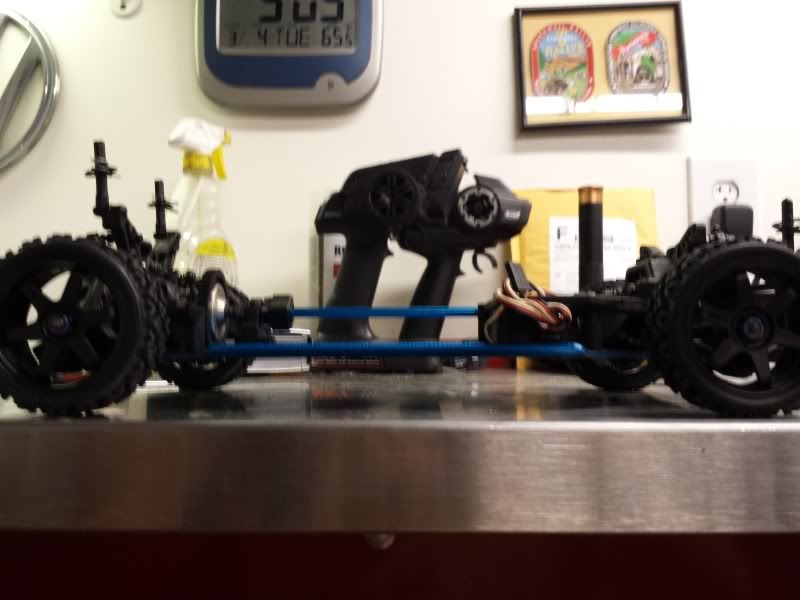

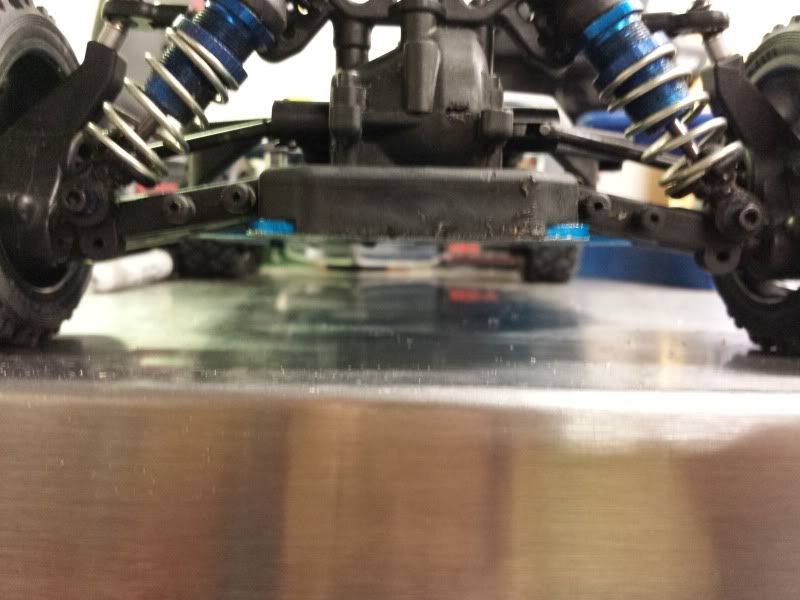

The ride height looks pretty good, although its maxed out here, so it will be a little lower when I dial it in.

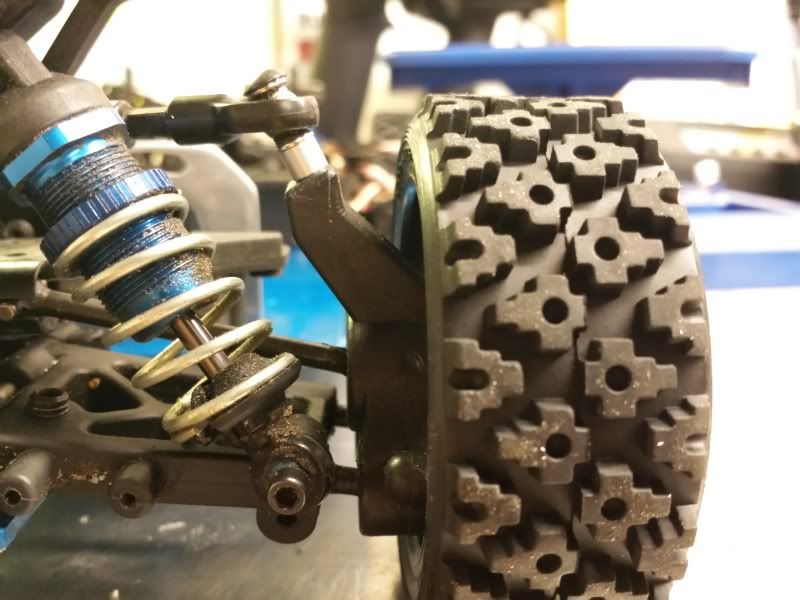

On the rear suspension, after a lot of experimentation, I figured out that if I space the camber links at the hub end by at least .140", it will have the full range of travel without them binding. And this is on the upper hole on the inboard side, which seems to maintain the suspension geometry best through the travel range. Basically, I just added 5/32 spacers between the ball joint and the hub, problem solved:
I also got the battery mounting all sorted out. I put a couple short aluminum standoffs in the inboard side to keep the battery in place, on the outboard side its constrained by the lip on the chassis. On the two ends I put standoffs to mount the cf strap I made from a chassis brace. I added foam tape to the chassis too to keep from rubbing off all that blue anodizing. That battery ain't going nowhere!
The ride height looks pretty good, although its maxed out here, so it will be a little lower when I dial it in.
On the rear suspension, after a lot of experimentation, I figured out that if I space the camber links at the hub end by at least .140", it will have the full range of travel without them binding. And this is on the upper hole on the inboard side, which seems to maintain the suspension geometry best through the travel range. Basically, I just added 5/32 spacers between the ball joint and the hub, problem solved:
- PlastiZapCA+
- Approved Member
- Posts: 746
- Joined: Mon Jun 11, 2012 1:41 am
- Location: Watauga,TX
Re: nTC3 electric/brushless rally conversion
Those tires and wheels look perfect on there! That car should be able to handle some serious abuse.
- knixdad
- Approved Member
- Posts: 397
- Joined: Thu Jun 06, 2013 3:48 pm
- Location: Califon, New Jersey
- Has thanked: 2 times
- Been thanked: 4 times
Re: nTC3 electric/brushless rally conversion
Those tires are hardcore.
I miss brushed motors in that hazy, everything seemed better when I was a kid, kind of way.
- mk-Zero
- Business Member
- Posts: 1678
- Joined: Fri Jan 03, 2014 2:14 pm
- Location: Orange, CA
- Has thanked: 4 times
- Been thanked: 19 times
Re: nTC3 electric/brushless rally conversion

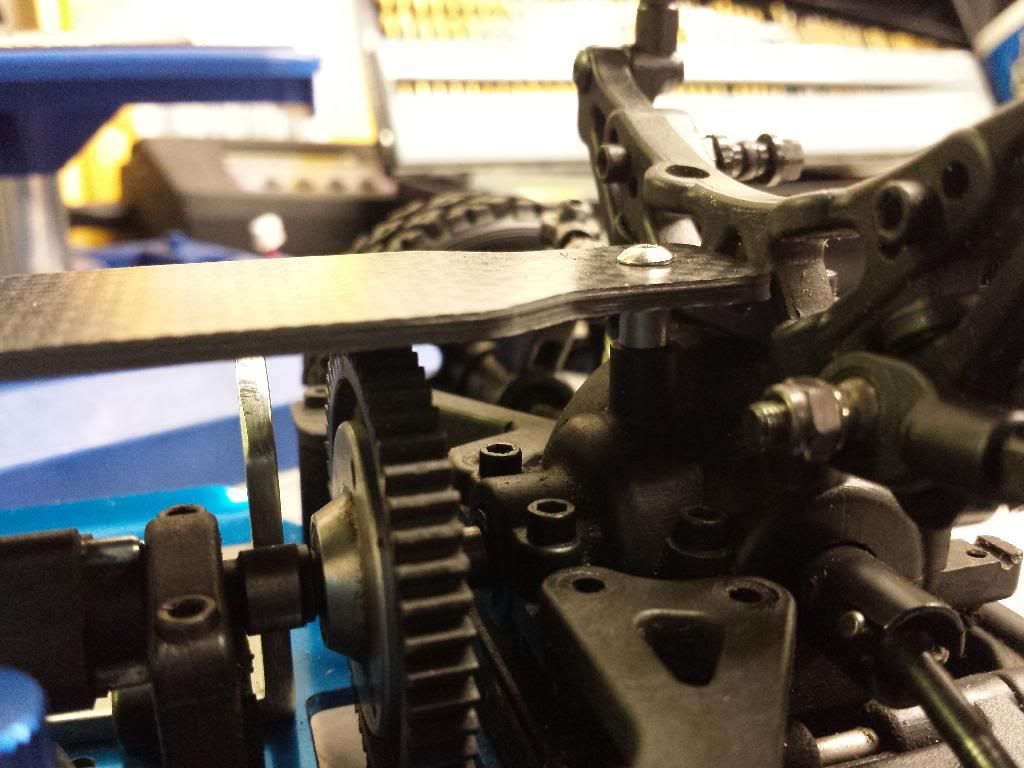

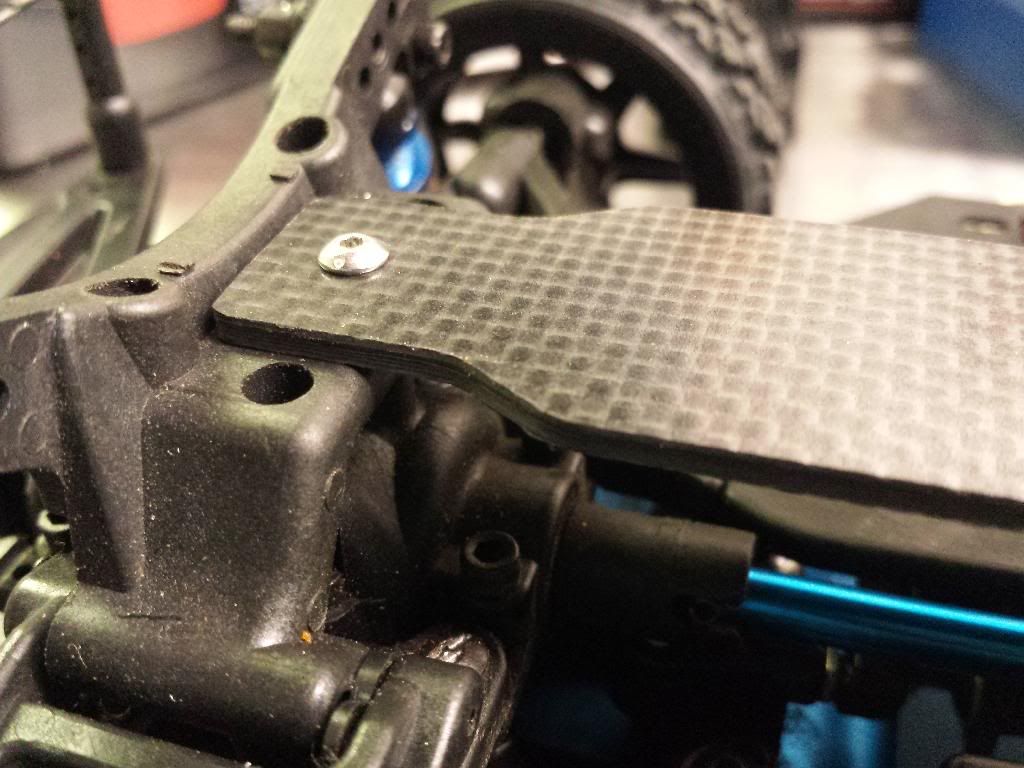

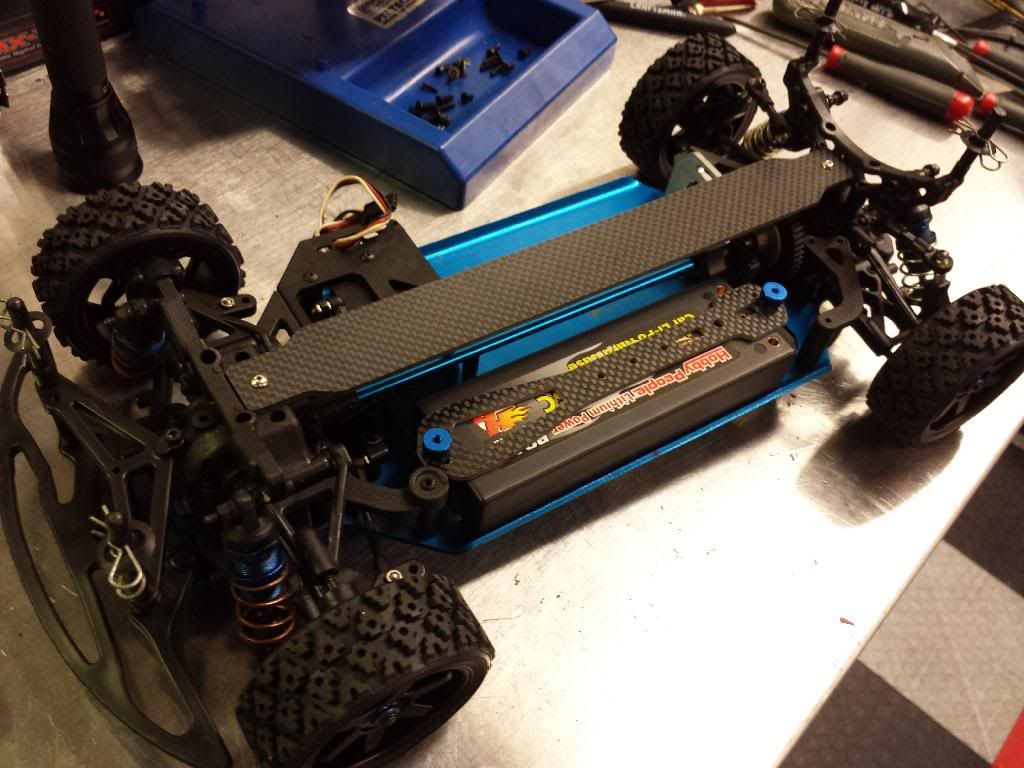

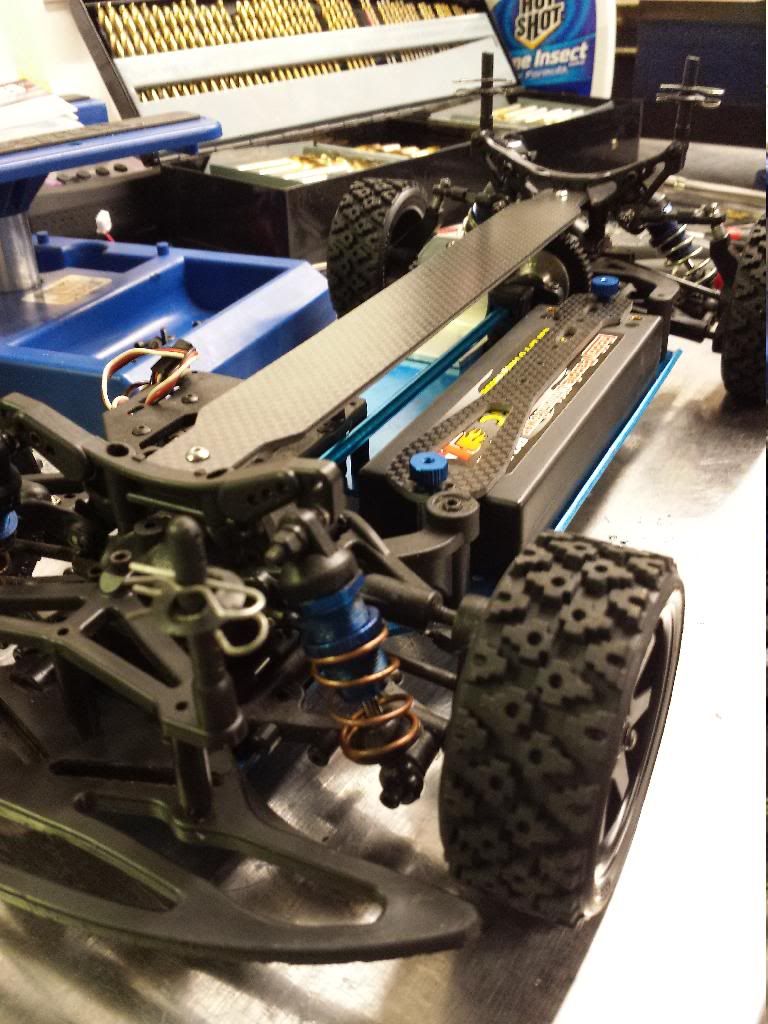

I got my cf chassis brace yesterday made by Seabass. It bolts to tbe front and rear trans cases. Fits perfect! The chassis is *really* stiff with the brace on, stiffer than my b4 by far
- Seabass
- Business Member
- Posts: 1402
- Joined: Mon Jul 27, 2009 8:34 pm
- Location: Mississippi
- Been thanked: 12 times
Re: nTC3 electric/brushless rally conversion
Looks good and it makes me even happier to have another person on the books that I have helped out.
If there is anything else you may need, you know how to reach me, now get this car finished
Jake
If there is anything else you may need, you know how to reach me, now get this car finished
Jake
- mk-Zero
- Business Member
- Posts: 1678
- Joined: Fri Jan 03, 2014 2:14 pm
- Location: Orange, CA
- Has thanked: 4 times
- Been thanked: 19 times
Re: nTC3 electric/brushless rally conversion

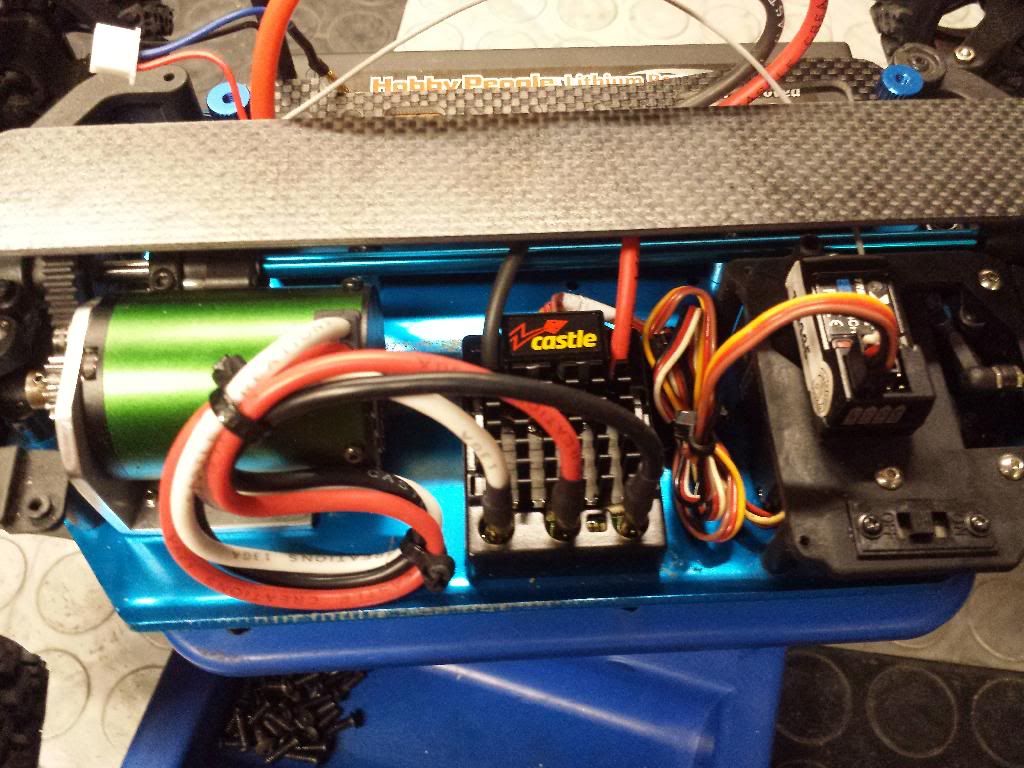

Thanks Jake. Hopefully I'll have it running by next weekend. I just need to tap the holes in the motor mount, swap in the .56 stroke shock shafts, mount the esc and receiver, and wire it up. I ended up buying a 4600 kV Sidewinder for it, should be pretty fast.
- mk-Zero
- Business Member
- Posts: 1678
- Joined: Fri Jan 03, 2014 2:14 pm
- Location: Orange, CA
- Has thanked: 4 times
- Been thanked: 19 times
Re: nTC3 electric/brushless rally conversion

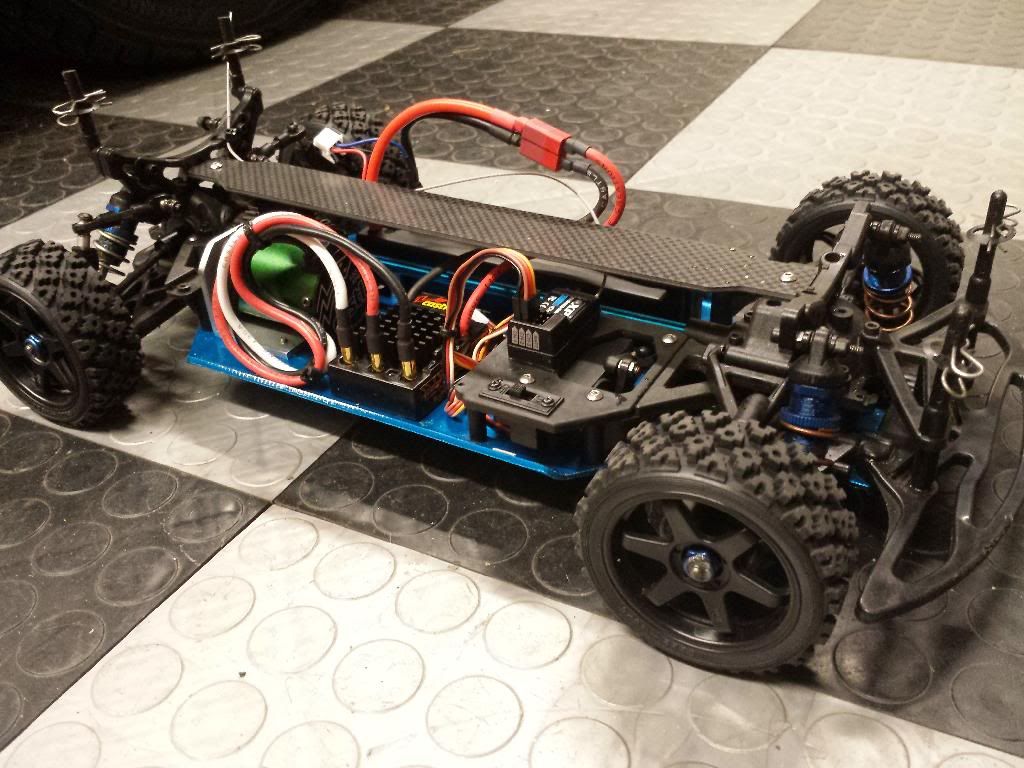

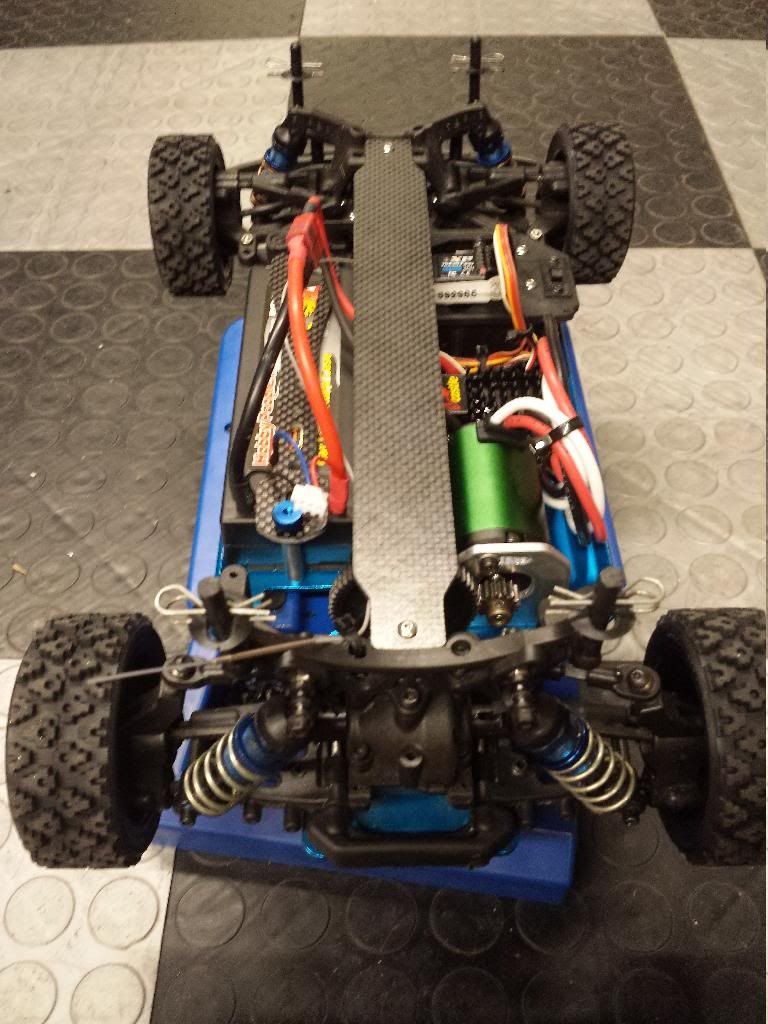

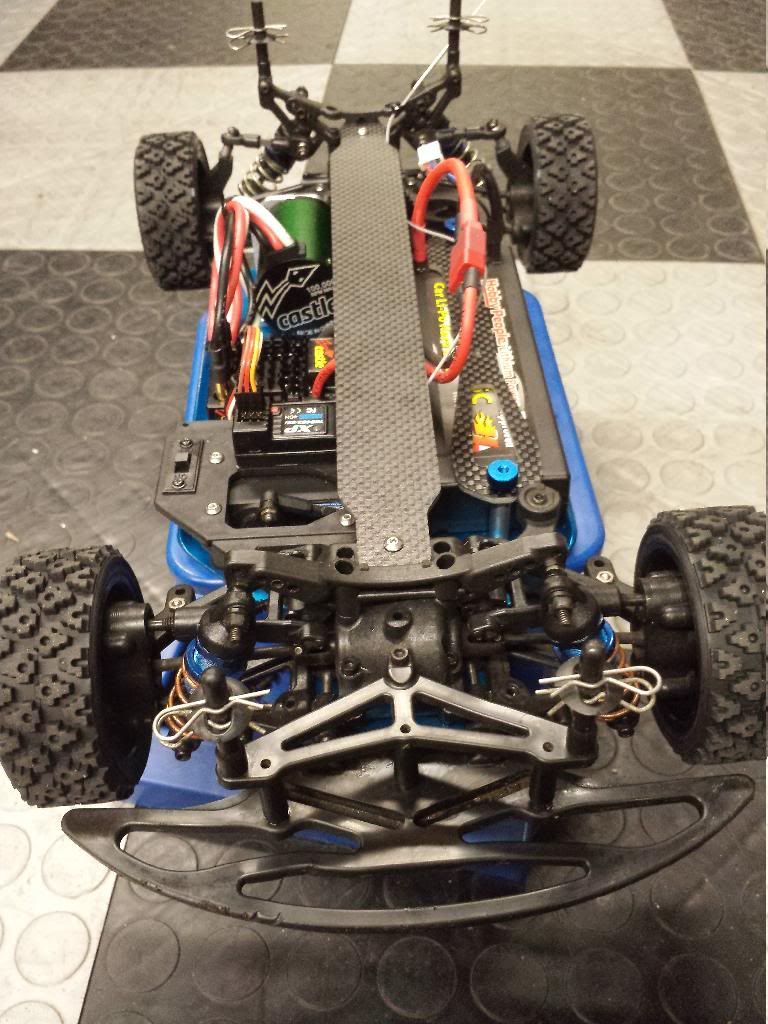

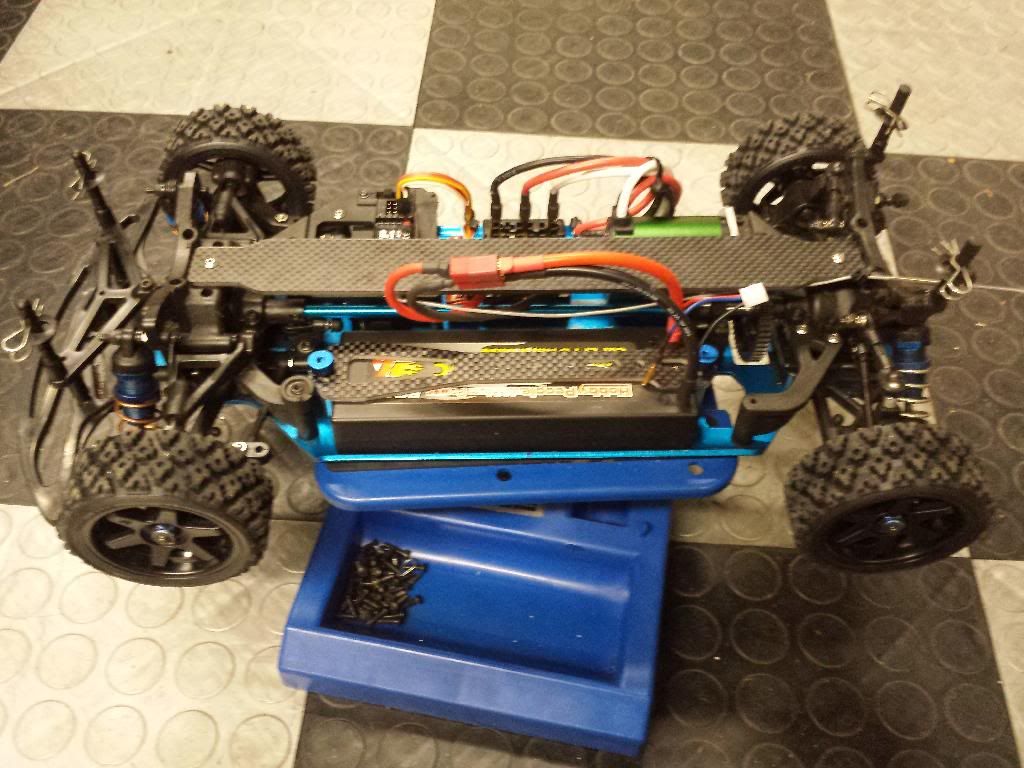

IT LIVES!
I drove it around the street for about 5 minutes in the dark last night It's pretty fast and handles great considering I haven't dialed it in yet. The acceleration is "bat out of hell."
Still left do do:
Rebuild shocks with .56 stroke shafts
Antena mount
Make new front bumper
Replace suspension pivot balls with titanium ones
Buy and paint new body (still planning to go Porsche 911)
I drove it around the street for about 5 minutes in the dark last night It's pretty fast and handles great considering I haven't dialed it in yet. The acceleration is "bat out of hell."
Still left do do:
Rebuild shocks with .56 stroke shafts
Antena mount
Make new front bumper
Replace suspension pivot balls with titanium ones
Buy and paint new body (still planning to go Porsche 911)
- mk-Zero
- Business Member
- Posts: 1678
- Joined: Fri Jan 03, 2014 2:14 pm
- Location: Orange, CA
- Has thanked: 4 times
- Been thanked: 19 times
Re: nTC3 electric/brushless rally conversion
I rebuilt the shocks with the longer shafts and put in the lightest springs from my ft set and took it to the track on Saturday night. I took it off a couple pretty big jumps and it flies nice and level. The main problem I had with the car on the track was that the front bumper was plowing into the ground a lot since its basically level to the ground. I have plans to make a bumper that sweeps upward. Other than that it handled the track surprisingly well. The guys at the track were all flipping out over it when they saw me running it, since it looks like a touring car (for now still running the Crowd Pleaser body).
- mk-Zero
- Business Member
- Posts: 1678
- Joined: Fri Jan 03, 2014 2:14 pm
- Location: Orange, CA
- Has thanked: 4 times
- Been thanked: 19 times
Re: nTC3 electric/brushless rally conversion
Thanks!sandkil wrote:You've done a really nice conversion on that TC3. Nice and clean. Would love to see some video footage.
Maybe I'll video it one of these days.
-
- Approved Member
- Posts: 1679
- Joined: Sun Aug 13, 2006 10:54 pm
- Location: Houston Texas
- Has thanked: 2 times
- Been thanked: 4 times
Re: nTC3 electric/brushless rally conversion
+1 Nice work.sandkil wrote:You've done a really nice conversion on that TC3. Nice and clean. Would love to see some video footage.
- mk-Zero
- Business Member
- Posts: 1678
- Joined: Fri Jan 03, 2014 2:14 pm
- Location: Orange, CA
- Has thanked: 4 times
- Been thanked: 19 times
- THEYTOOKMYTHUMB
- Super Member
- Posts: 6814
- Joined: Wed Oct 22, 2008 5:15 pm
- Location: Evansville, IN
- Has thanked: 2122 times
- Been thanked: 1346 times
Re: nTC3 electric/brushless rally conversion
That looks great! I have a TC3 Factory Team NIB that I've never bothered to build. Kinda makes me think I should. I really like the way that looks.
"The world looks so much better through beer goggles: Enjoy today, you never know what tomorrow may bring."
Ken
Ken
