Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by Charlie don't surf »

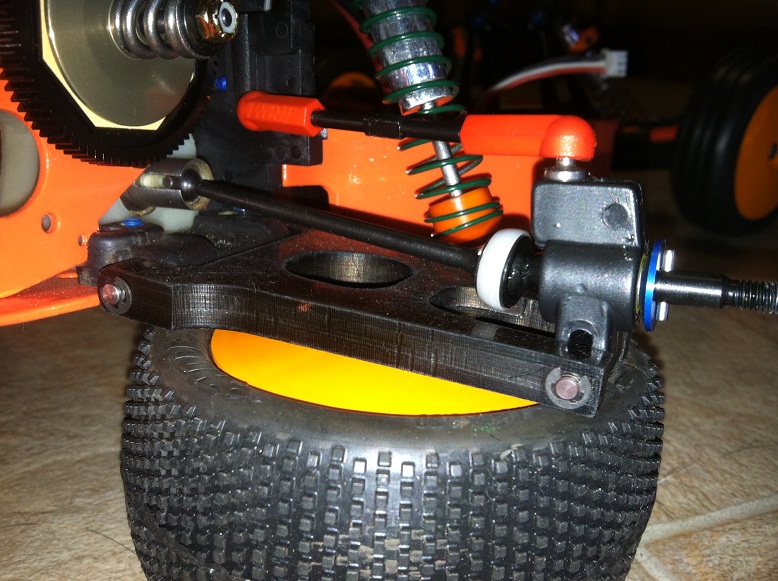

Holy crap, my 10t doesn't have that much droop

User avatar
farmer
Approved Member
Posts: 553
Joined: Mon Mar 19, 2012 9:06 pm
Location: bakersfield,CA
Been thanked: 1 time

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by farmer »

scr8p wrote:using that mip trans your outdrives are higher off the chassis than a standard stealth. that's most likely why you're having that problem.
yup
11/16 top of the outdrive to the bottom of the case stealth
3/4 top of the outdrive to the bottom of the case MIP
1/16 causing probs have to work with it
i guess thats things we run into when we do custom
builds
farmer
my spelling not so good! but i can DRIVE the wheels off anything!

User avatar
GoMachV
Super Member
Posts: 11351
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by GoMachV »

Make a 1/16 shim for under the blocks?
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
farmer
Approved Member
Posts: 553
Joined: Mon Mar 19, 2012 9:06 pm
Location: bakersfield,CA
Been thanked: 1 time

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by farmer »

gomachv wrote:Make a 1/16 shim for under the blocks?
need to loose 1/16 :?
off the tranny
raising the blocks wont bring the cvds into the outdrive
farmer
my spelling not so good! but i can DRIVE the wheels off anything!

User avatar
JK Racing
Super Member
Posts: 4603
Joined: Thu Jul 19, 2007 2:32 pm
Location: Placentia, CA
Has thanked: 103 times
Been thanked: 200 times

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by JK Racing »

farmer wrote: what r u getting joey
farmer

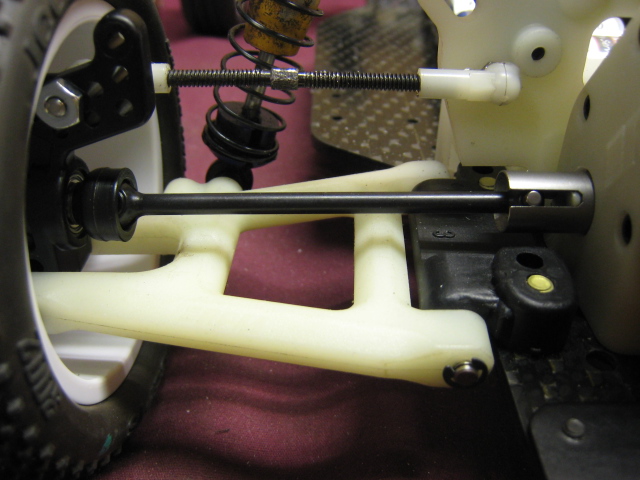

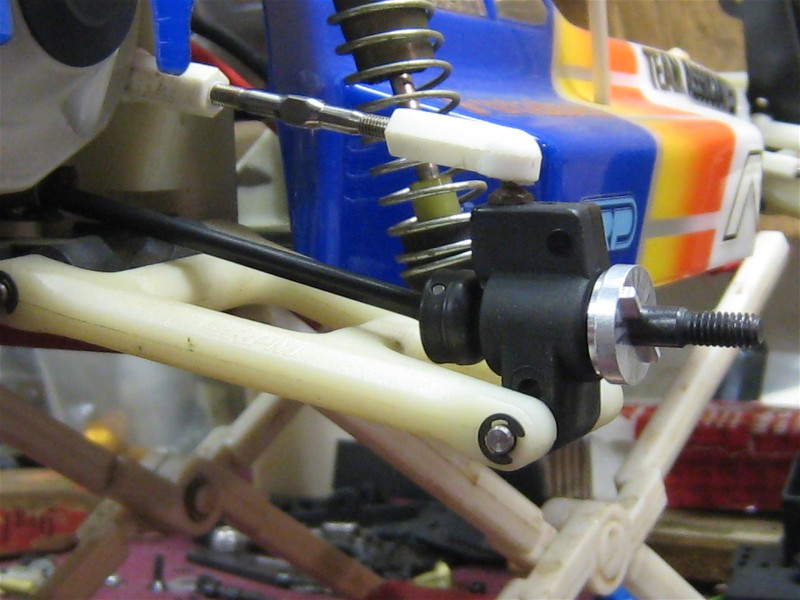

I am using the Losi LXT rear carriers, on the lower hole (which raises the CVD up), this may be the difference.

--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com

User avatar
GoMachV
Super Member
Posts: 11351
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by GoMachV »

farmer wrote: raising the blocks wont bring the cvds into the outdrive
farmer
It may not, but if your trying to fix the relationship between the out drive and the inner pivot point, that's how "I" would do it. If the out drive is 1/16" high, its 1/16" high from the suspension pivot, right? That's what is throwing it off. I like the losi carrier idea tho 8) that would do it too
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by scr8p »

gomachv wrote:I like the losi carrier idea tho 8) that would do it too
farmers car has the CW hubs, which are identical to the losi hubs (except for the camber locations). the relationship between the axle and hinge pins are the same.

User avatar
GoMachV
Super Member
Posts: 11351
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by GoMachV »

Does the losi have a slightly different offset then? Something must be different?
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by scr8p »

his whole issue is that mip changebox.

User avatar
jwscab
Super Member
Posts: 6506
Joined: Wed Jan 28, 2009 9:42 am
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 452 times

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by jwscab »

1/16" shims under the arm mounts should wrap up the issue then.

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by scr8p »

farmer, going back through your earlier pics, you have the hinge pin in the top hole in the hub carrier. use the lower one.

User avatar
JK Racing
Super Member
Posts: 4603
Joined: Thu Jul 19, 2007 2:32 pm
Location: Placentia, CA
Has thanked: 103 times
Been thanked: 200 times

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by JK Racing »

scr8p wrote:you have the hinge pin in the top hole in the hub carrier. use the lower one.
JK Racing wrote:on the lower hole (which raises the CVD up), this may be the difference.
I agree, use the lower hole on the rear carrier.
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com

User avatar
farmer
Approved Member
Posts: 553
Joined: Mon Mar 19, 2012 9:06 pm
Location: bakersfield,CA
Been thanked: 1 time

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by farmer »

JK Racing wrote:
scr8p wrote:you have the hinge pin in the top hole in the hub carrier. use the lower one.
JK Racing wrote:on the lower hole (which raises the CVD up), this may be the difference.
I agree, use the lower hole on the rear carrier.
it was changed awile back to the lower hole
adding shims under the mounts
would not bring the cvds IN
a longer bone part of the cvd would possibly
be the answer
i would like to find something that could be used
for i would like to be able to use the upper hole on the hub if needed
farmer
Attachments

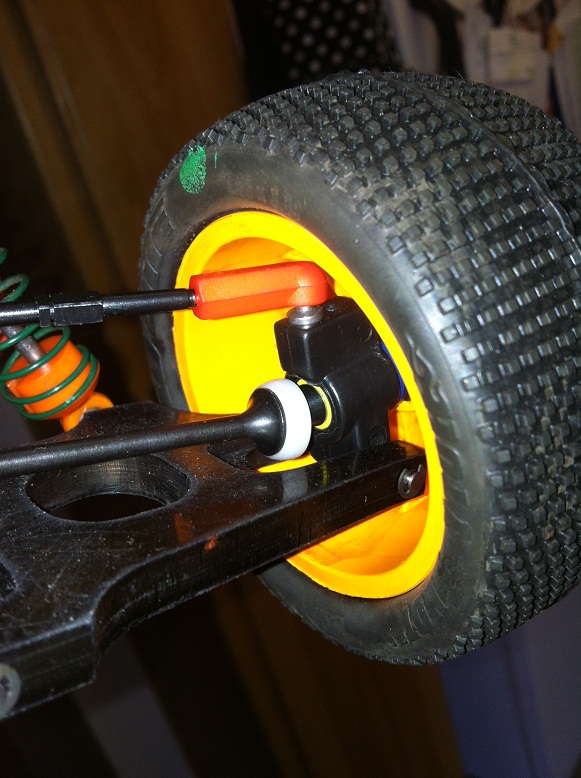

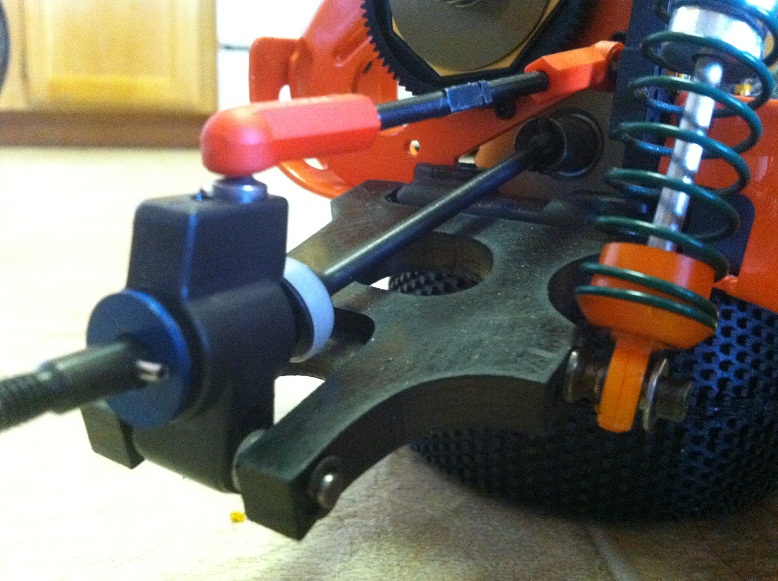

rear hubs 003.JPG
rear hubs 005.JPG
rear hubs 001.JPG
my spelling not so good! but i can DRIVE the wheels off anything!

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by scr8p »

then it all goes back to the outdrive height with that trans. not much your're gonna do about it except reduce your droop so they don't pop out.

User avatar
farmer
Approved Member
Posts: 553
Joined: Mon Mar 19, 2012 9:06 pm
Location: bakersfield,CA
Been thanked: 1 time

Re: FARMERS Official ORANGE RACER Build Thread update 7/21/1

Post by farmer »

scr8p wrote:then it all goes back to the outdrive height with that trans. not much your're gonna do about it except reduce your droop so they don't pop out.
yup i agree ganna call MIP see if they have a longer bone part
farmer
my spelling not so good! but i can DRIVE the wheels off anything!
