Jamin's Losi XX4 - Heavy Metal!

[jamin]

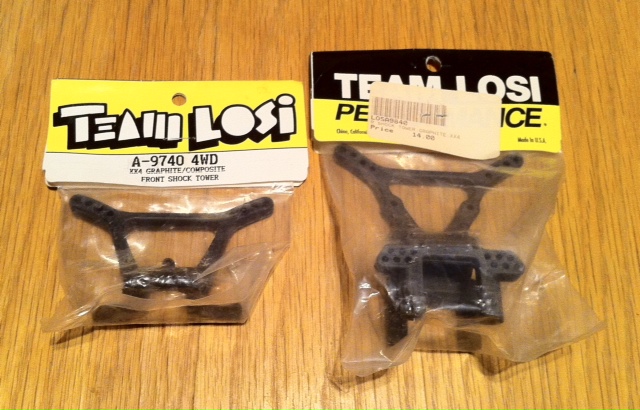

These have both been a long time coming, after spending a couple of hours modifying the updated ones a while back, I've managed to find 2 originals

[jamin]

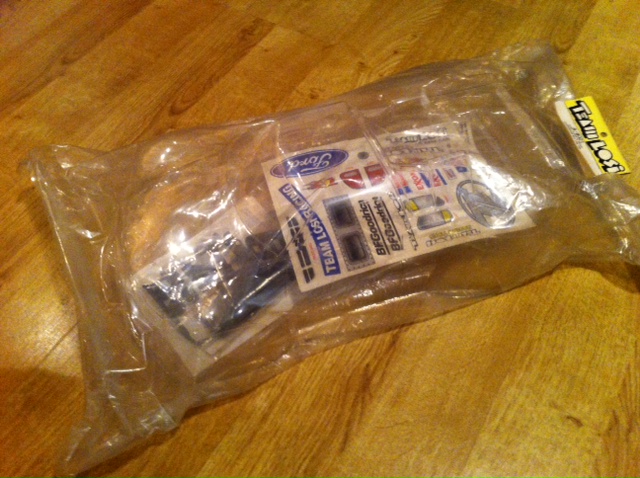

The build has started! I'll post up some pics at some point, but its coming along nicely. This landed on my doorstep today, an original Losi heavy metal body & conversion kit, from the good ol' UK

Now I am in 2 minds whether to go buggy or truck

[slapshot1979]

I did both . If you have a xx4 already Id say go with truck.

[jamin]

I did both . If you have a xx4 already Id say go with truck.

Hehehe! I am only doing one (its too expensive and time consuming for me to gather another car!) so I'll do both, but using just one chassis

[DerbyDan]

The build has started! I'll post up some pics at some point, but its coming along nicely. This landed on my doorstep today, an original Losi heavy metal body & conversion kit, from the good ol' UK

Now I am in 2 minds whether to go buggy or truck


I'm glad you got that, I must admit I thought of you when I saw it on the old Bay-of-E, I should have let you know but it's obvious that you had already seen it anyway

The good thing about this conversion is that so long as you have both sets of parts you can build it as a heavy metal truck then when you fancy a change convert it into a buggy?

[jamin]

I'm glad you got that, I must admit I thought of you when I saw it on the old Bay-of-E, I should have let you know but it's obvious that you had already seen it anyway

The good thing about this conversion is that so long as you have both sets of parts you can build it as a heavy metal truck then when you fancy a change convert it into a buggy?

I was the only bidder, couldn't believe my luck! There is another one on there now, but for £35....

Yeah, the conversion is easy, just swap the front bumper and rear wing mounts to posts

[jamin]

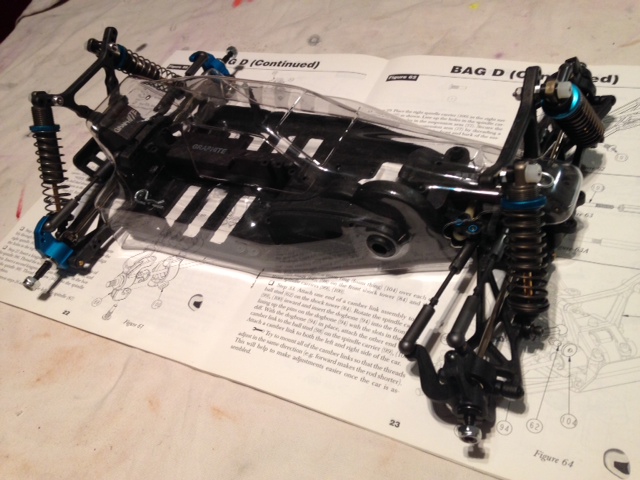

This build is coming along nicely, apologies for the crappy phone pic, but I just wanted to show quickly the progress of the build and the fact I have now got the body mounted up correctly.

I remember BITD that it was a b1tch to cut out around the slipper because before you made the hole, it looked like the marking was nowhere near where it should be. After trying a few combinations and removing the shock towers I bit the bullet and actually made the hole directly where the marking was, as it looked like it should work when you put the top cover in the shell. Turns out it was correct, it just looks way out to start with. I really didn't want to mess this up as its an original mk1 body shell and not the readily available HW version. So glad it turned out ok and I needn't of worried so much.

Anyway, here it is mounted on the car, its looking like a great build, could be my best yet, hard to see from the pics but its running shiny CVDs front and rear, so happy to of got them

As you can see I've mixed up the build, mainly going for non worlds edition look by using mk1 towers and body shell, but I just had to put those Trinity threaded shock collars on it and also remove the paint from the springs.

Forgive me for the awful turnbuckles , they are temporary until I get my grubby hands on some Lunsford ones

[urpaldan]

Wow, that looks really great! Loving the hubs and shock collars. And shiny cvds x4

Body looks like it fits like a glove

Forgive me for the awful turnbuckles

I noticed those turnbuckles before I read your post Will look awesome with lunsfords

[jamin]

Wow, that looks really great! Loving the hubs and shock collars. And shiny cvds

Body looks like it fits like a glove

Forgive me for the awful turnbuckles

I noticed those turnbuckles before I read your post

It had to have the hubs Dan, wouldn't be one of my builds without them

Those turnbuckles are proving hard to find. I may have to order the direct from Lunsford

[urpaldan]

Very true about the hubs!

Seems a lot to pay for just turnbuckles. They will look the part tho.....

[slapshot1979]

Which ones are the lunsfords? the ones with holes or square? I think have a set of squares from a xx-cr here would they work?

[jamin]

Which ones are the lunsfords? the ones with holes or square? I think have a set of squares from a xx-cr here would they work?

They are the square ones like this:



I think for the XX-CR the sizes are the same but there are 4 of the smaller ones and 2 of the larger ones, the sizes I need are:

Front x4: 1 - 5/8ths (1.625)

Rear x2: 1 - 3/8ths (1.375)

If they are new and at a good price I might have them...

[aip47-2008]

Which ones are the lunsfords? the ones with holes or square? I think have a set of squares from a xx-cr here would they work?

They are the square ones like this:


I think for the XX-CR the sizes are the same but there are 4 of the smaller ones and 2 of the larger ones, the sizes I need are:

Front x4: 1 - 5/8ths (1.625)

Rear x2: 1 - 3/8ths (1.375)

If they are new and at a good price I might have them...

These are still on the wall at my LHS


2 - 1 3/8" Punisher Turnbuckles (Rear Camber)
4 - 1 5/8" Punisher Turnbuckles (Front Camber & Steering)
1 - 3 1/4" Off-set Punisher Turnbuckle

[jamin]

These are still on the wall at my LHS


2 - 1 3/8" Punisher Turnbuckles (Rear Camber)
4 - 1 5/8" Punisher Turnbuckles (Front Camber & Steering)
1 - 3 1/4" Off-set Punisher Turnbuckle

How much are they Aaron? I don't need the long steering linkage, I have a few spare of them already

[alien3t]

http://www.lunsfordracing.com/mm5/merchant.mvc?Screen=CTGY&Store_Code=LUNS&Category_Code=CARS-XX4
