Re: making alloy rims - 2.2" F/R 3-piece jelly bean

Post by Mr. ED »

Oh, I see.
Now most of the 2.0 wheels had quite an offset in the rear while the front is rather neutral. If he copies the offsets from the original rc10 wheels it will look good on most cars of the same generation.
Ofcourse a wider front than rear would look awfull, but the opposite is not so exceptional even with stock wheels.

I did say one-design-fits all and you're right, that's not correct.
Still, he could sell to a somewhat larger group using those adapters

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 9:52 am
Location: Seoul, Korea

Re: making alloy rims 2.2" F/R 3-piece jelly bean

Post by 59burst »

I just got some pics from pargu2000. I sent my RC10 with bunch of wheels and old/modern tires to make these wheels.
thanks for sharing your ideas :D
everything looks fine to me. but, I'm afraid that the screw holes look metric. I mailed him to check this out.
I'll post at the B/S/T area after I get the real one. it's just a quick view
and, he didn't make the plstic rings for front. and, will not. you need sotck 2.1" rings for front. and, work fine with 2.1/2.2 tires
Attachments

User avatar
bearrickster
Approved Member
Posts: 4375
Joined: Thu Mar 06, 2008 11:36 am
Location: Hollywood Maryland
Been thanked: 5 times

Re: making alloy rims - 2.2" F/R 3-piece jelly bean W/PICS

Post by bearrickster »

They look great :D
LOSI RULES!!

Bearrickster's Rides
http://www.rc10talk.com/viewtopic.php?f=77&t=16714

User avatar
mrlexan
Approved Member
Posts: 6251
Joined: Wed Dec 06, 2006 6:49 pm
Location: Upstate SC
Been thanked: 10 times

Re: Made alloy rims - 2.2" F/R 3-piece jelly bean PICS in page 4

Post by mrlexan »

Agreed, nicely done. I see a run of those at next years Vintage Nationals. Good call on the large sized tires.
I am not here cause I am playing photographer and on my mountain bike.
www.gojammedia.com

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 9:52 am
Location: Seoul, Korea

Re: 2.2" F/R 3-piece jelly bean alloy rims - PICS in the page 4

Post by 59burst »

thanks bearrickster, mrlexan
one bad news is the screws are 3mm ones. but, I still like these rims. I'll get the price soon.

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 9:52 am
Location: Seoul, Korea

Re: 2.2" F/R 3-piece jelly bean alloy rims - PICS in the page 4

Post by 59burst »

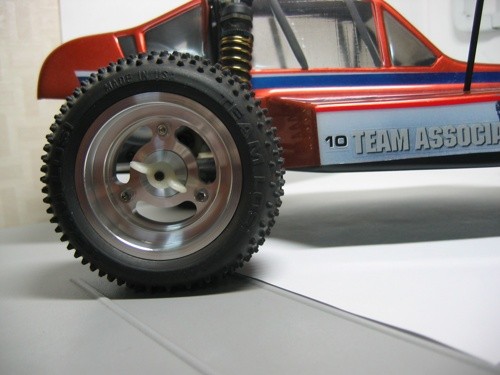

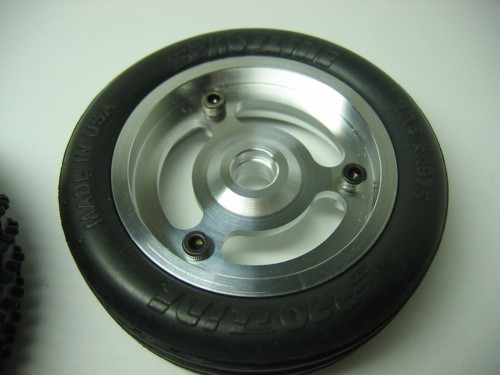

go the rims a few hours ago.
the 3mm black coated stainless screws look fine. but it's much heavier than expected.
I put Proline dirt hawg tires on rear. and had a play between them. a single layer of 3M tape worked fine for covering the gap.

User avatar
murphy3428
Approved Member
Posts: 579
Joined: Mon Oct 06, 2008 11:19 am

Re: 2.2" F/R 3-piece jelly bean alloy rims - PICS in the page 4

Post by murphy3428 »

59burst wrote:go the rims a few hours ago.
the 3mm black coated stainless screws look fine. but it's much heavier than expected.
I put Proline dirt hawg tires on rear. and had a play between them. a single layer of 3M tape worked fine for covering the gap.
that is the one problem I find with his wheels that he makes I don't know what he is leaving for a wall thickness but he needs to thin them down some on his other wheels I see that he removed some of the ribs on his optima wheels anyway he could probably get away with a .032 wall thickness to remove some of the weight

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 9:52 am
Location: Seoul, Korea

Re: 2.2" F/R 3-piece jelly bean alloy rims - PICS in the page 4

Post by 59burst »

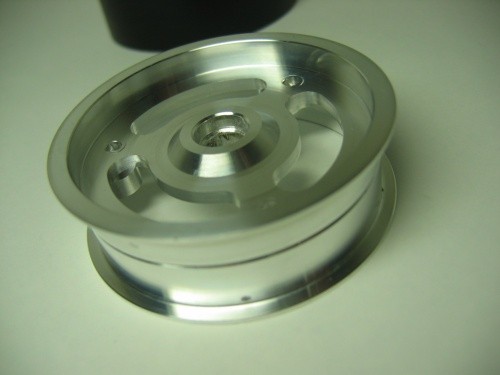

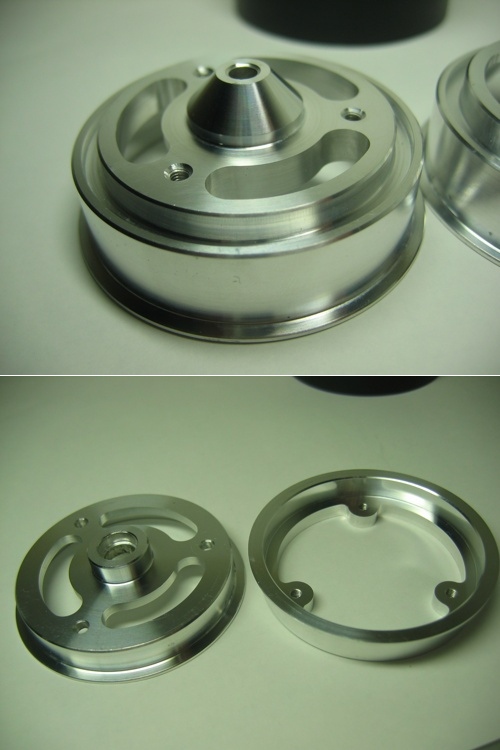

disks' thickness gain extra weight on F/R both
I found these between the pics he sent me
Attachments

User avatar
murphy3428
Approved Member
Posts: 579
Joined: Mon Oct 06, 2008 11:19 am

Re: 2.2" F/R 3-piece jelly bean alloy rims - PICS in the page 4

Post by murphy3428 »

well they look great, maybe he needs to do a little fine tuning on the weight issue which he should be able to machine those walls thinner the center of the wheels look pretty thick I can understand the threaded side needing the extra thick wall but not the outer side,I wounder if all of the wall thickness on those wheels are as heavy as the center.

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 9:52 am
Location: Seoul, Korea

Re: 2.2" F/R 3-piece jelly bean alloy rims - PICS in the page 4

Post by 59burst »

the outsides and ribs are fine. only the center areas gain the weight. I'll update later

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 9:52 am
Location: Seoul, Korea

Re: 2.2" F/R 3-piece jelly bean alloy rims - PICS in the page 4

Post by 59burst »

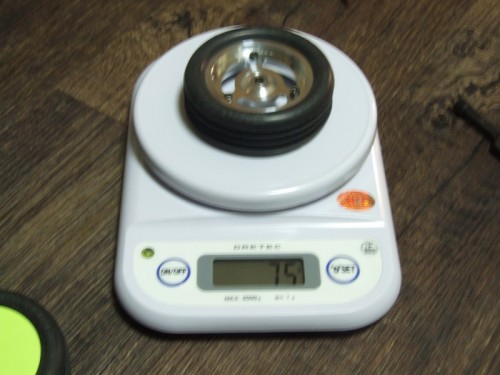

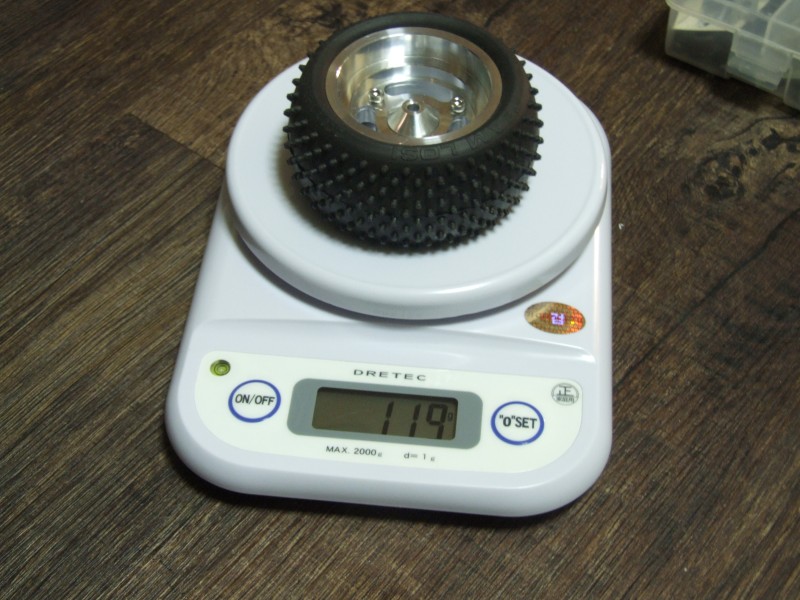

too heavy
Attachments

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 9:52 am
Location: Seoul, Korea

Re: 2.2" F/R 3-piece jelly bean alloy rims - PICS in the page 4

Post by 59burst »

fine tuning started. making the disks thin

User avatar
aeiou
Approved Member
Posts: 1071
Joined: Fri Apr 13, 2007 4:04 pm
Location: Atlanta, GA
Been thanked: 1 time

Re: 2.2" F/R 3-piece jelly bean alloy rims - PICS in the page 4

Post by aeiou »

These are looking great!

Something else you guys might want to consider is a one-piece version of these in some form of plastic with 2.2" on front and back. I'd think these would be popular with vintage racers for actual track use. You could have a durable lightweight wheel - with the proper offsets - yet still have that vintage feel. Perhaps the one-piece design and less expensive material would bring the cost down as well. Just a thought…

User avatar
Mr. ED
Approved Member
Posts: 5478
Joined: Thu Dec 21, 2006 1:30 am
Location: Back @ home: Belgium
Has thanked: 58 times
Been thanked: 56 times

Re: 2.2" F/R 3-piece jelly bean alloy rims - PICS in the page 4

Post by Mr. ED »

As it is all handwork I think the material is a smaller part of the end-price

User avatar
murphy3428
Approved Member
Posts: 579
Joined: Mon Oct 06, 2008 11:19 am

Re: 2.2" F/R 3-piece jelly bean alloy rims - PICS in the page 4

Post by murphy3428 »

I see that pargu is already selling these on ebay for 115.00 a set. I think I will weifgt to see if he is able to cut some fat off of these wheels
