870c project

Post by Bugle »

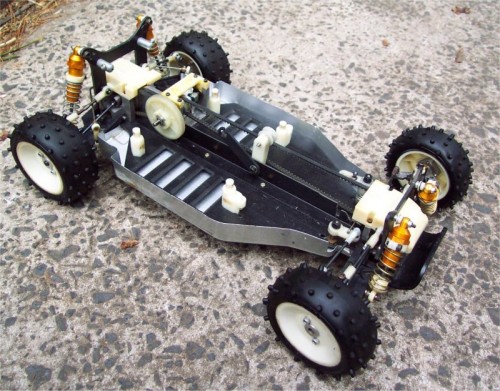

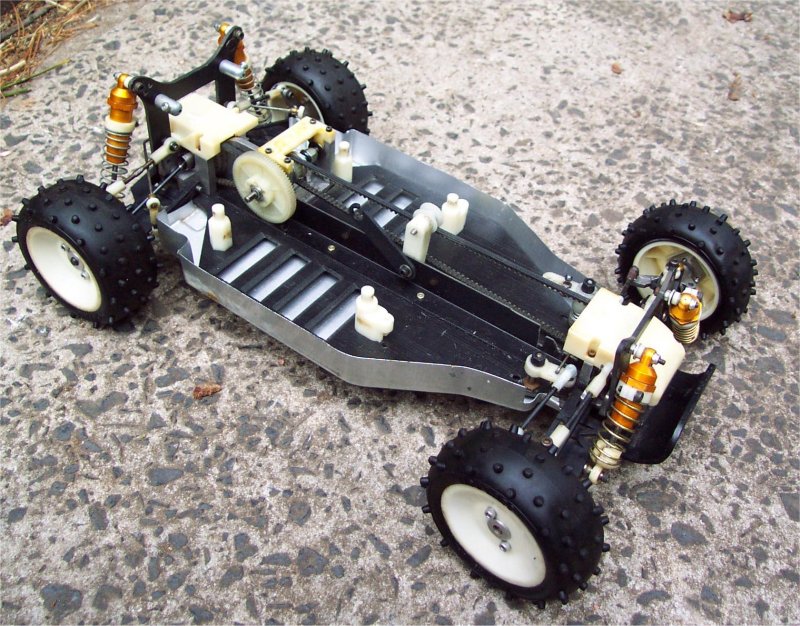

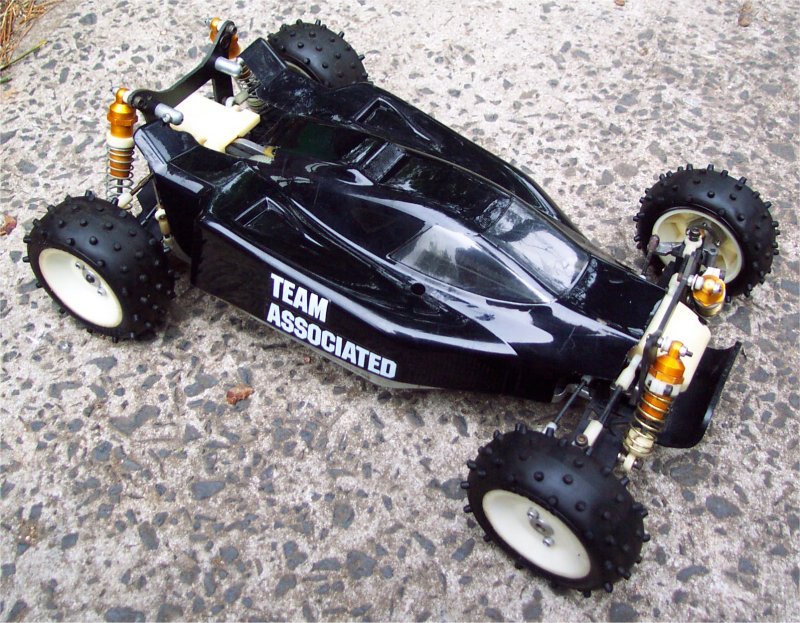

Just got this, needs a bit of work. The rear diff pulley is screwed. Rear shock tower seems to have been broken and repaired by gluing a washer to each side. Not a huge fan of the body that came with it!

Bulkheads look to be ok. Is the only place the bulkheads crack the shock tower mounts? I was thinking of making some new bulkhead caps which have small ears sticking out the side for the shock towers to attach to.
Attachments

uzzi
Approved Member
Posts: 374
Joined: Tue May 27, 2008 12:29 am
Location: Perth, Western Australia
Been thanked: 1 time

Re: 870c project

Post by uzzi »

Looks like an Andy's body.....nice pick up on the Yoke mate :D

User avatar
Bormac
Approved Member
Posts: 3112
Joined: Wed Sep 05, 2007 3:52 pm
Location: CENTRAL COAST, NSW AUSTRALIA
Has thanked: 21 times
Been thanked: 3 times

Re: 870c project

Post by Bormac »

Glad to see you finaly have your Yoke'. I'll have a look to see if i can help you with a spare belt pulley. If I dont have one Chris (BESTY) might have a spare to get you going. :mrgreen:
-Jason.

Still known as- bormac

My collection-http://www.tamiyaclub.com/showroom.asp?id=10980

User avatar
59burst
Approved Member
Posts: 1011
Joined: Sat Jul 26, 2008 9:52 am
Location: Bothell, WA

Re: 870c project

Post by 59burst »

white wheels match the body. nice

User avatar
Bormac
Approved Member
Posts: 3112
Joined: Wed Sep 05, 2007 3:52 pm
Location: CENTRAL COAST, NSW AUSTRALIA
Has thanked: 21 times
Been thanked: 3 times

Re: 870c project

Post by Bormac »

Is there any way the front one ways can be locked out? I want to run mine at St Ives but you realy need the front wheels to brake if you want to get the front end back down after the jumps.
Any idea's guys?
-Jason.

Still known as- bormac

My collection-http://www.tamiyaclub.com/showroom.asp?id=10980

User avatar
Bugle
Approved Member
Posts: 465
Joined: Fri Aug 24, 2007 11:40 pm
Location: Sydney Australia

Re: 870c project

Post by Bugle »

Gonna get a body from mr lexan, haven't decided whether to get the protech or 870c body, probably have to get both!

It's the same tooth profile as the B34 pulleys so I should be able to make a pulley out of delrin :D

I was looking at locking the one way, looks pretty simple. I'd just need to make a thing which sits on the end of the shaft, locks onto the shaft with a grub screw and locks into the spur gear with pins going into the holes in the spur gear. So it'd be easy to change between one-way or locked.

Is it hard to get original spur gears for these things?

pedro
Approved Member
Posts: 239
Joined: Thu Jun 12, 2008 4:24 am
Location: Australia
Been thanked: 76 times

Re: 870c project

Post by pedro »

bormac wrote:Is there any way the front one ways can be locked out? I want to run mine at St Ives but you realy need the front wheels to brake if you want to get the front end back down after the jumps.
Any idea's guys?
Jase, in the original 870c kits they came with both one way and a solid alloy adapter to lock the drive to the spur gear, is this what you are after? You can only do it if you have the stock one piece spur and rear drive pulley.
Peter

karnivool
Approved Member
Posts: 295
Joined: Thu May 14, 2009 11:49 pm

Re: 870c project

Post by karnivool »

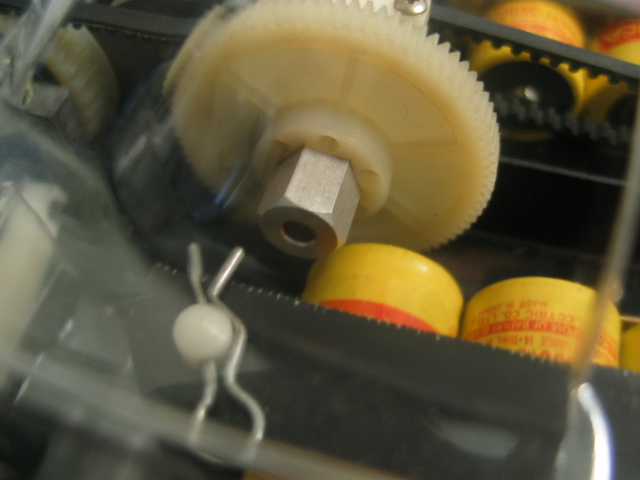

here is a pic of what your after. :wink:
Attachments

User avatar
besty22
Approved Member
Posts: 346
Joined: Tue Sep 02, 2008 8:21 am
Location: Central Coast NSW Australia

Re: 870c project

Post by besty22 »

Hi , don't think I have a pulley spare.
I think I do have the one way Jason.
Respect - Hard Earned but Easily Lost

Konich
Approved Member
Posts: 226
Joined: Wed Jul 30, 2008 8:47 pm
Location: Denver, Colorado
Been thanked: 1 time

Re: 870c project

Post by Konich »

I have a new rear shock tower and I might have a new spur gear assembly in package. If your interested send me a PM

User avatar
Bormac
Approved Member
Posts: 3112
Joined: Wed Sep 05, 2007 3:52 pm
Location: CENTRAL COAST, NSW AUSTRALIA
Has thanked: 21 times
Been thanked: 3 times

Re: 870c project

Post by Bormac »

Thomas I have a spare used belt pulley you can have. To be honest Im thinking the 501X looks to be the same unit. I will need to cross check.
-Jason.

Still known as- bormac

My collection-http://www.tamiyaclub.com/showroom.asp?id=10980

User avatar
Bugle
Approved Member
Posts: 465
Joined: Fri Aug 24, 2007 11:40 pm
Location: Sydney Australia

Re: 870c project

Post by Bugle »

It's alright Konich i'm going to have to make a custom rear shock tower along with the new bulkhead caps. For the spur gear i'm just going to make a custom shaft & slipper clutch to suit B4 spur gears. Trying to make it as reliable a runner as possible.

Yeah Jason looks like the front tamiya pulley is 35 teeth so it might work. Do tamiya use the same rounded belt teeth? It has less diff balls which might not be good though. Most important thing for it to actually work would be that the centre hole is the same diameter and the diff balls are the same diameter. Don't worry about giving me one of your Yoke ones you might need it, making one from scratch isn't very hard, just a bit tedious milling all those teeth!

I'm thinking I might need to make a rear belt tensioner for it aswell along with a top deck, probably something like the 94 YZ10 with the turnbuckle thing..

User avatar
Mr. ED
Approved Member
Posts: 5478
Joined: Thu Dec 21, 2006 1:30 am
Location: Back @ home: Belgium
Has thanked: 58 times
Been thanked: 56 times

Re: 870c project

Post by Mr. ED »

I have played around with several pulleys to obtain some kind of overdrive on the front. It didn't work out with the tamiya pulley. Because it uses larger diffballs the diffunit became too wide to fit in the bearing houses

User avatar
highwayracer
Approved Member
Posts: 1187
Joined: Wed Dec 12, 2007 9:43 pm
Location: Illinois, USA
Been thanked: 3 times

Re: 870c project

Post by highwayracer »

Mr. ED wrote:I have played around with several pulleys to obtain some kind of overdrive on the front. It didn't work out with the tamiya pulley. Because it uses larger diffballs the diffunit became too wide to fit in the bearing houses
hey Erik,

What size are the diff balls on the 870c? and is there a modern car that uses the same size? What size were the tamiya diff balls?

Regards,
Roger

User avatar
Bugle
Approved Member
Posts: 465
Joined: Fri Aug 24, 2007 11:40 pm
Location: Sydney Australia

Re: 870c project

Post by Bugle »

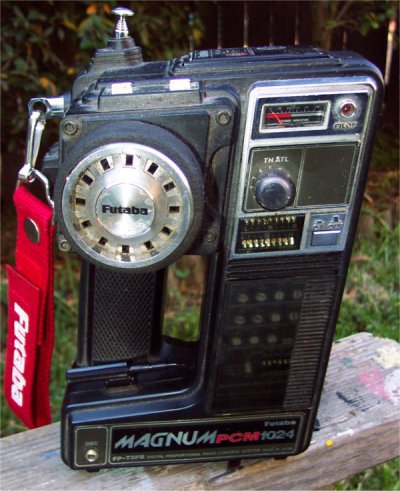

Recently discovered the most awesome transmitter ever made, so I got one to use with this car. 75MHz is illegal to use in Australia though so i'm going to convert it to spread spectrum with a Corona 2.4GHz module.
Attachments
