New Yokomo 870c 89 wcs project

Post by mikea96 »

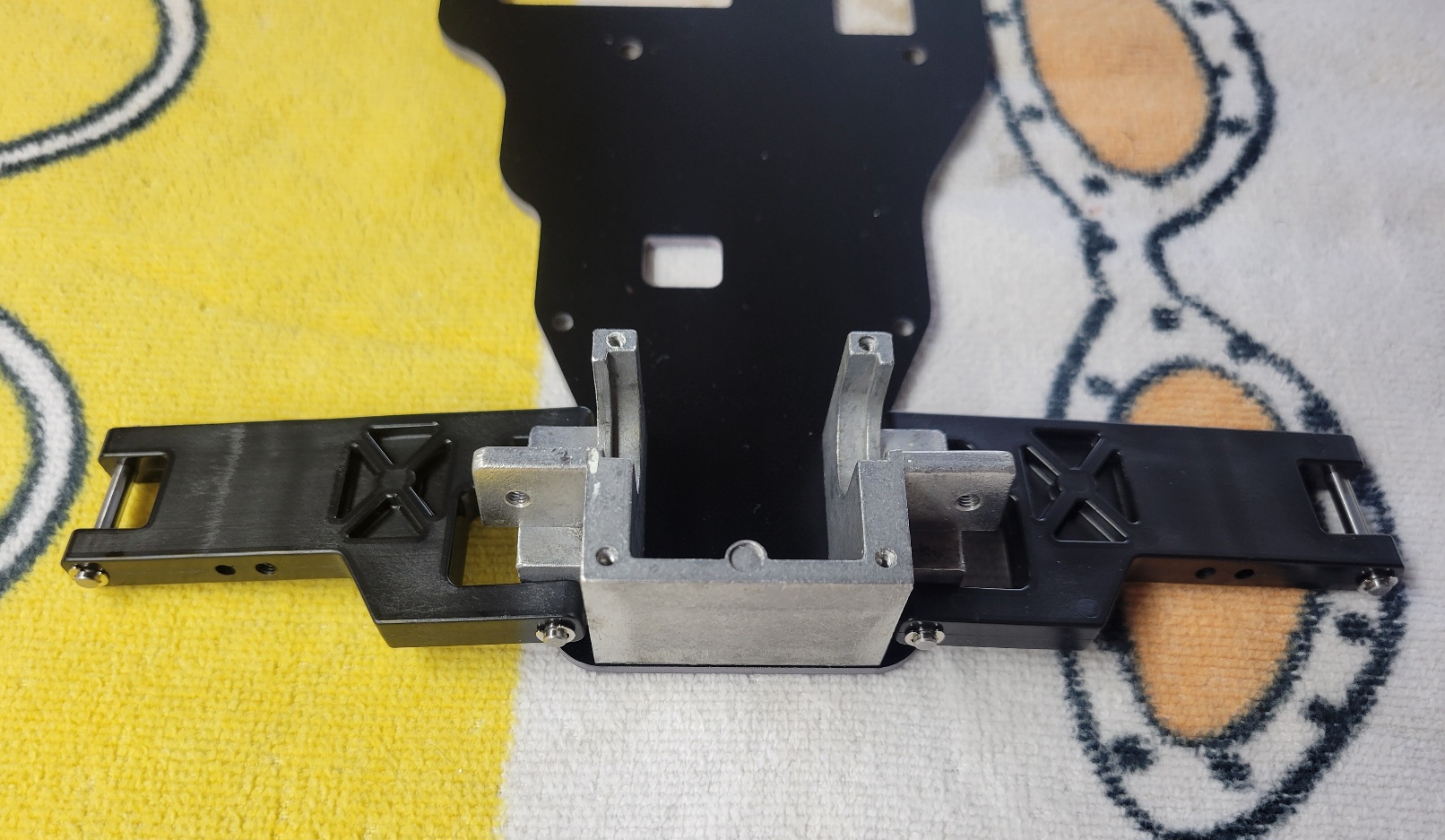

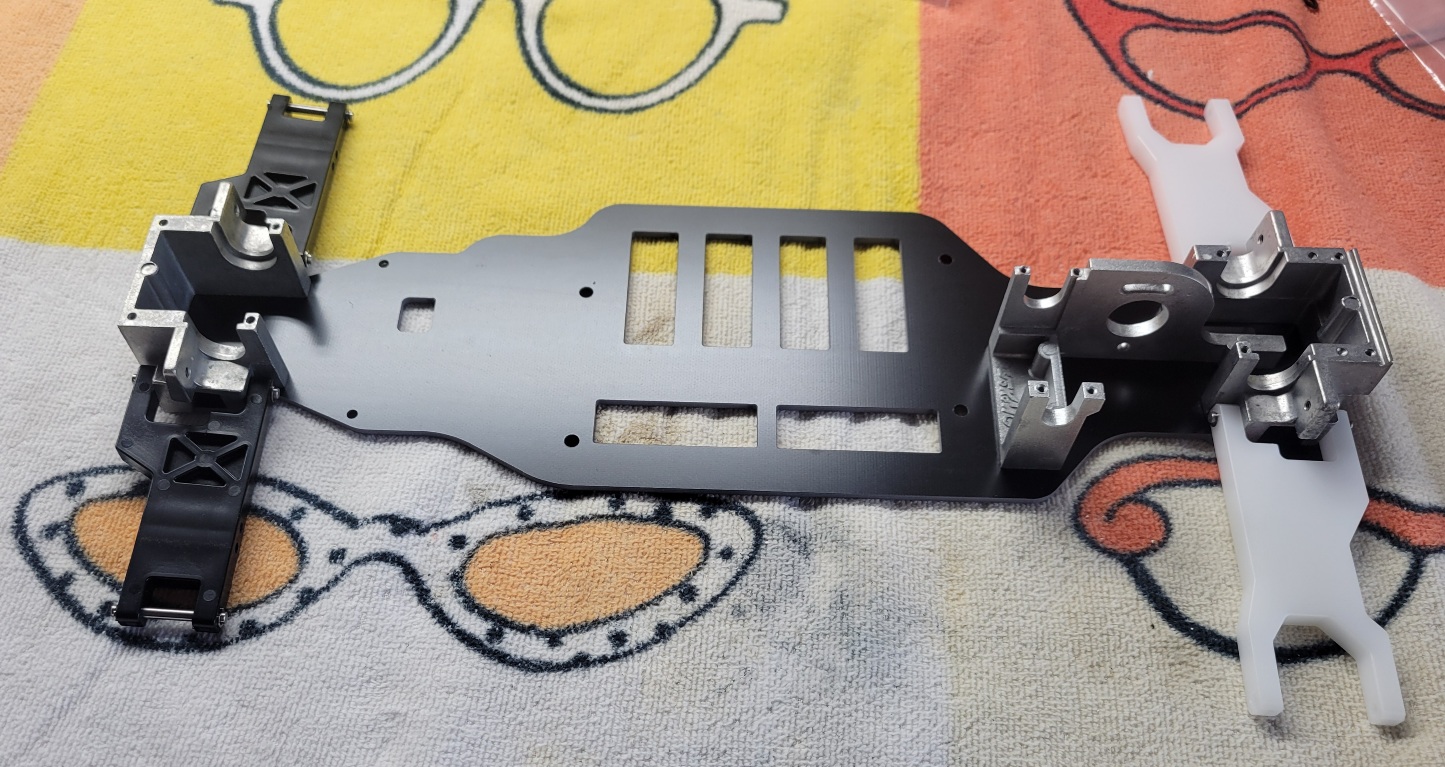

Something new I started on. Fanrc chassis kit and a works 91 donor car. Cleaned up the aluminum bulkheads, finishing up on motor mount and the caps are painted and drying. Next rebuild diffs with new pulleys and install with new 2mm pitch belts.
Attachments

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

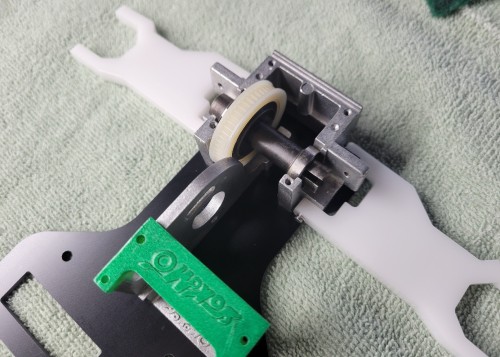

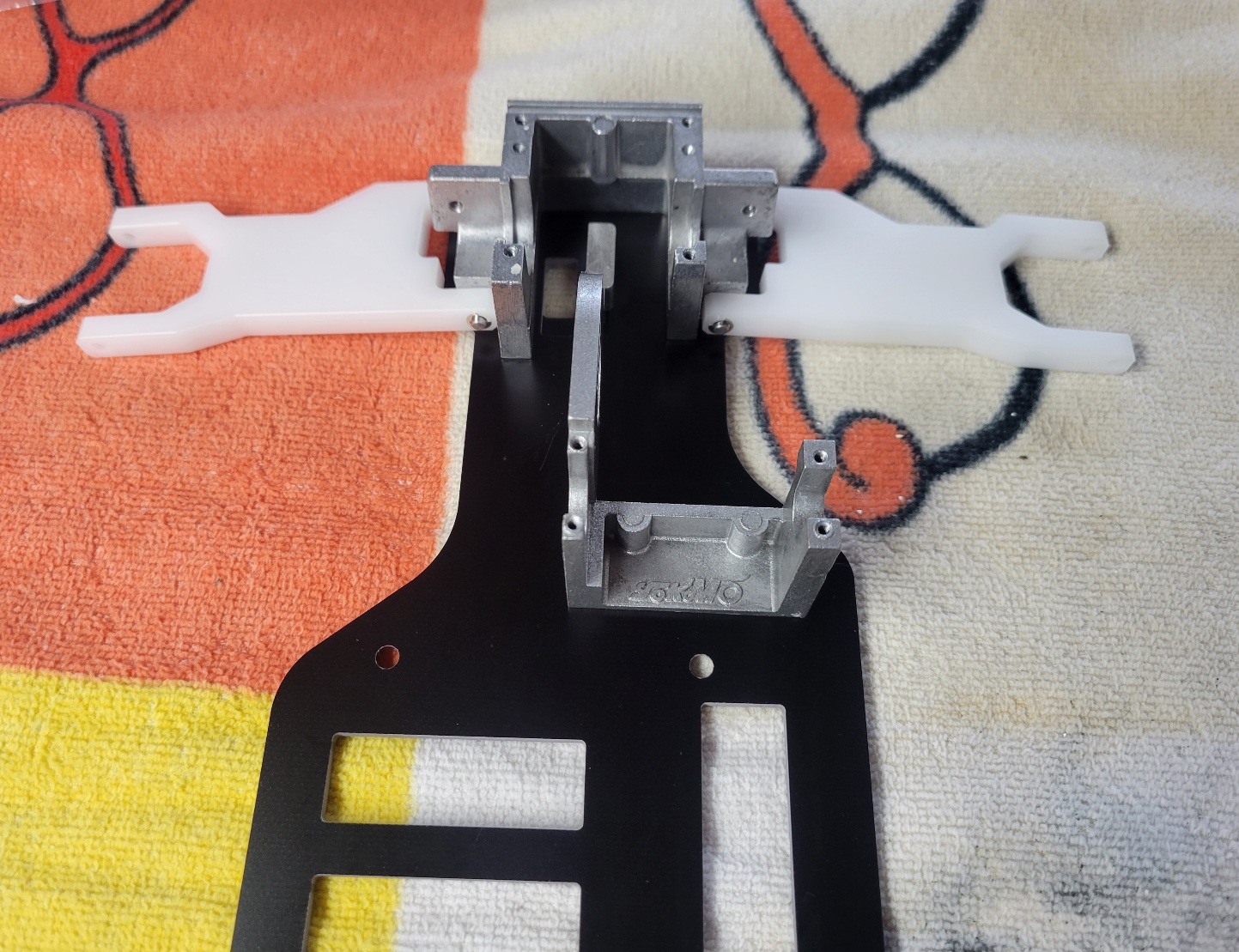

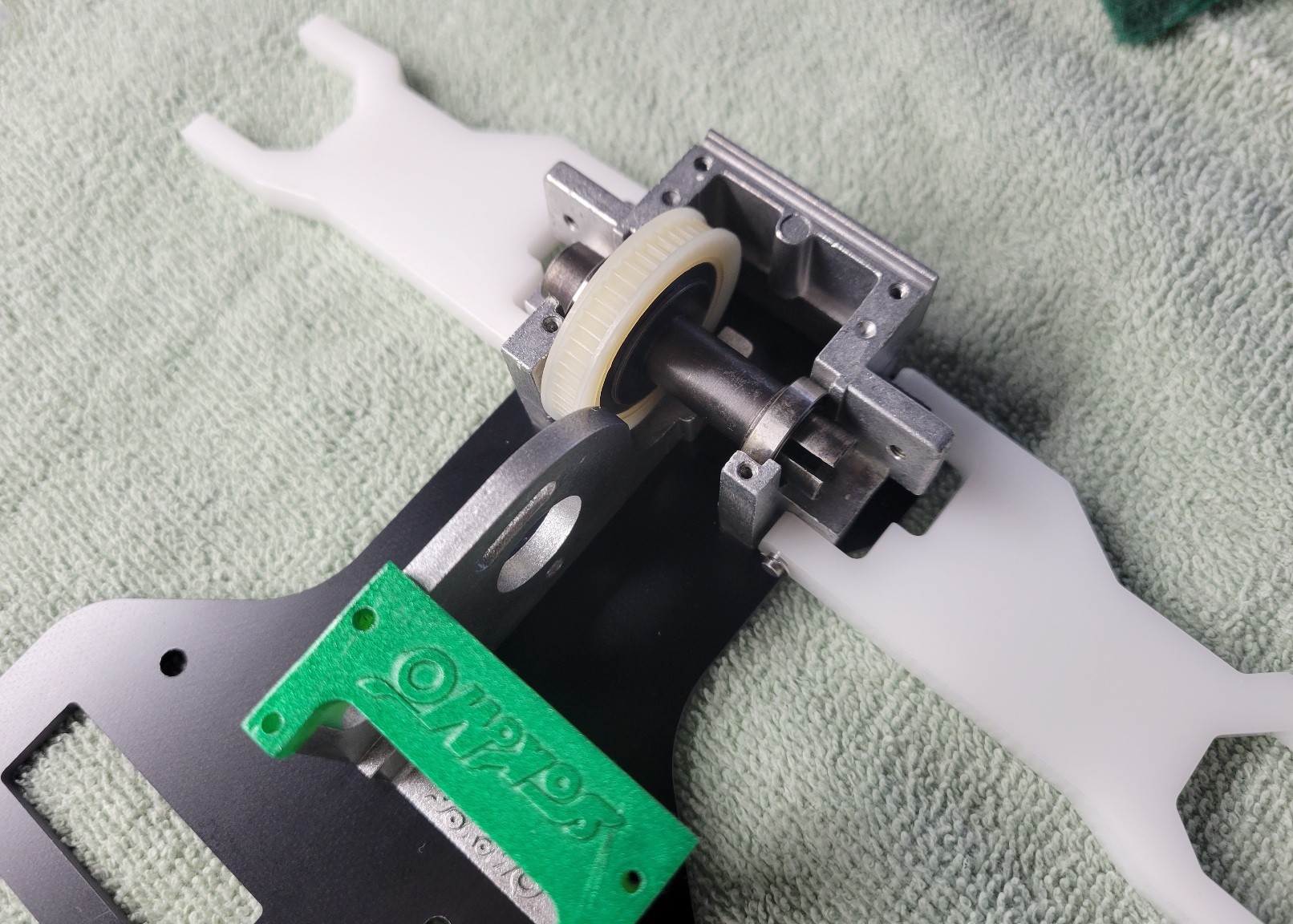

Attached the arms with new hinge pins. And added motor plate.
Attachments

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

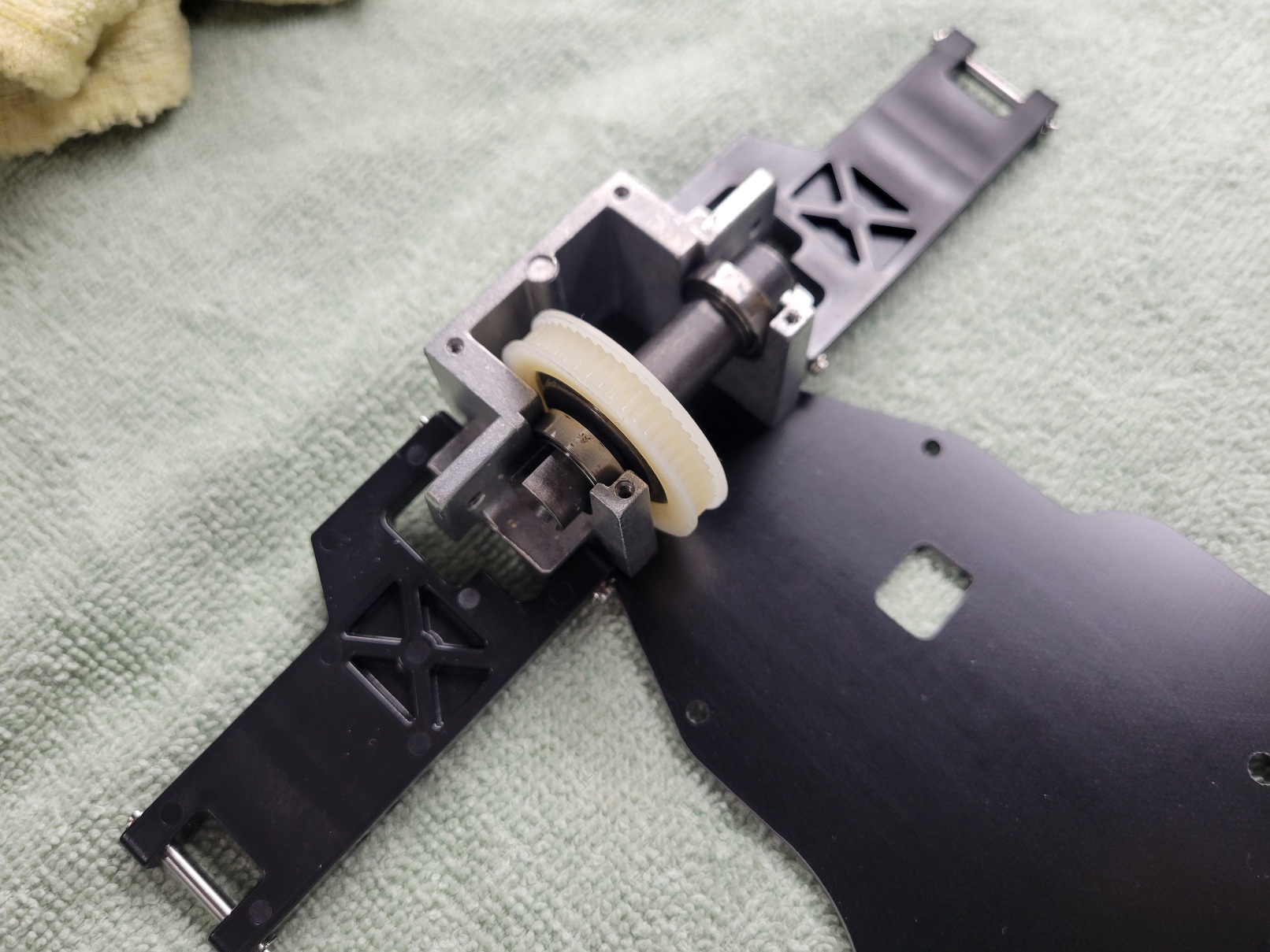

Front and rear diffs rebuilt. The rings didn't even have a mark on them.
Attachments

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

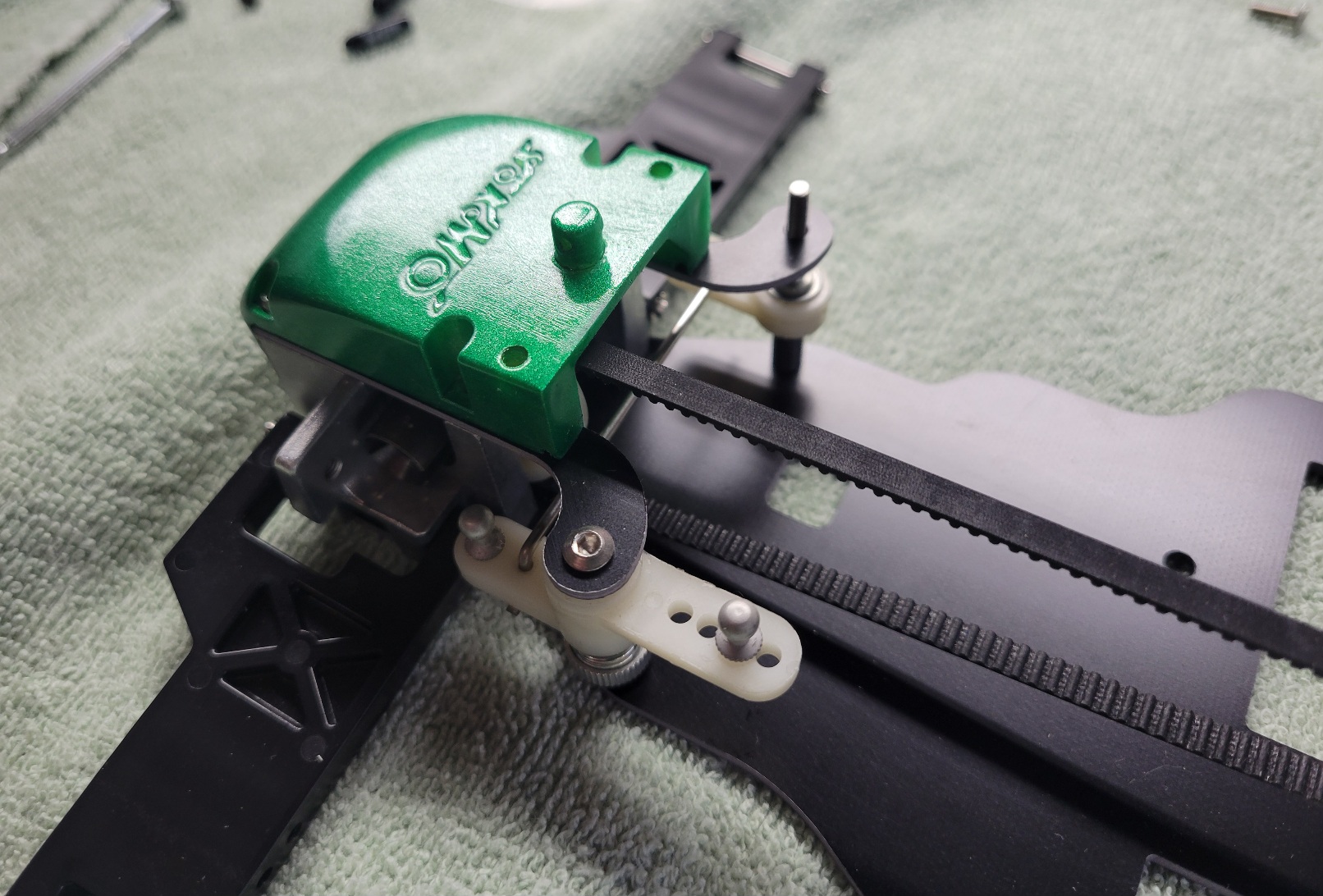

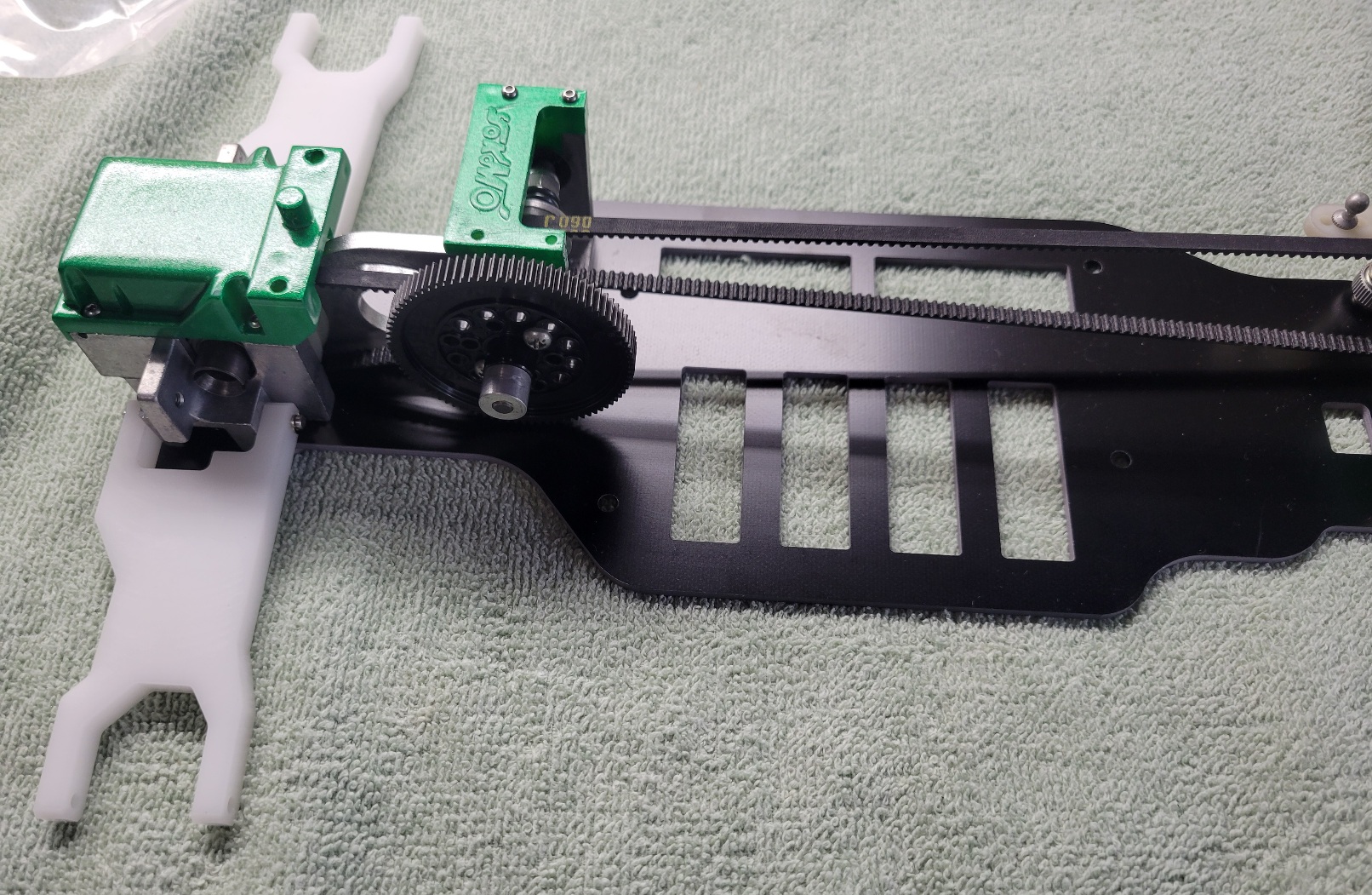

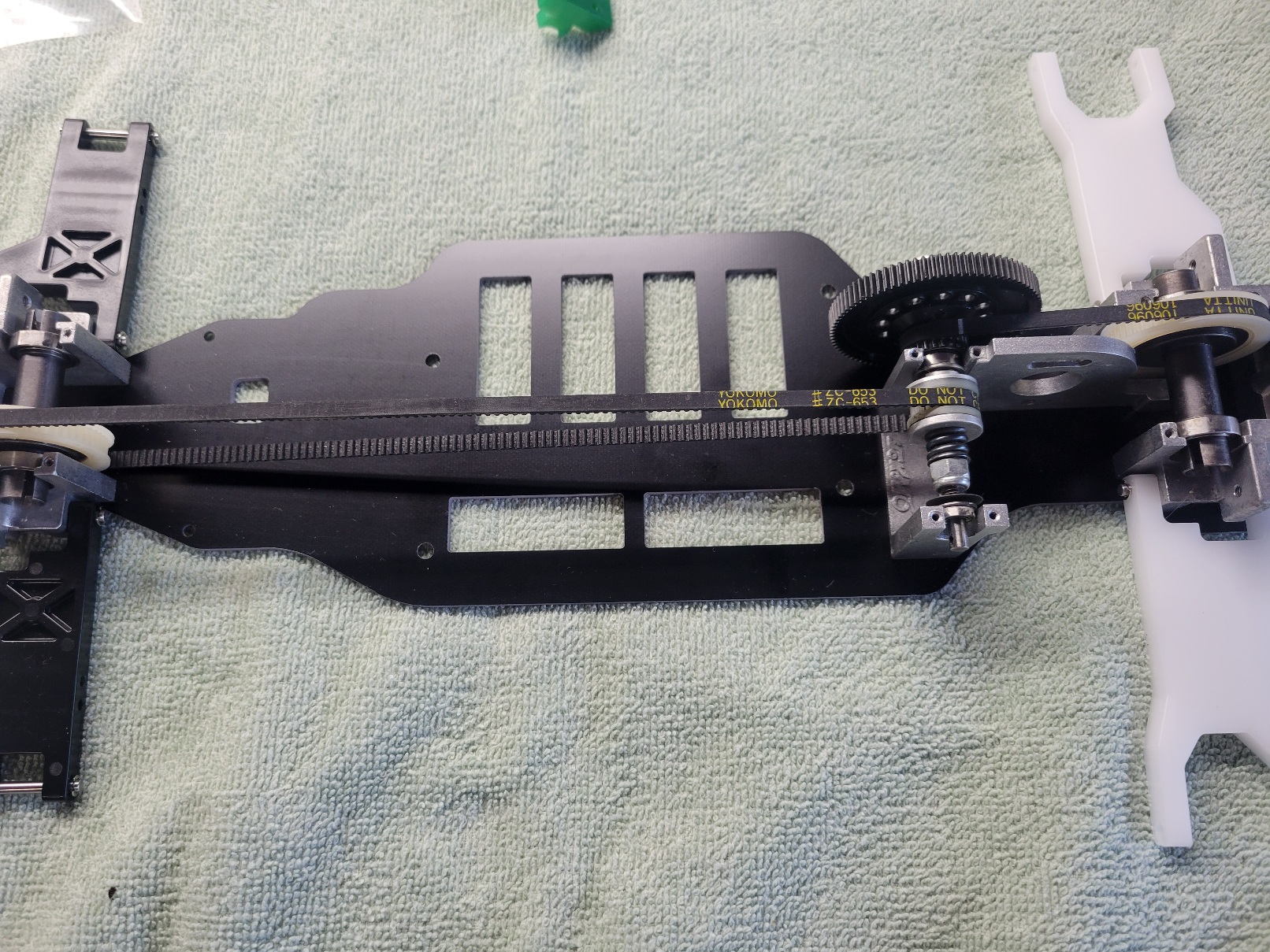

Added new 2mm belts and final coat of clear on the bulkhead caps.
Attachments

User avatar
Alex B
Approved Member
Posts: 418
Joined: Tue Dec 30, 2008 10:23 am
Location: Wales
Has thanked: 13 times
Been thanked: 33 times

Re: New Yokomo 870c 89 wcs project

Post by Alex B »

Looking awesome.

Did you use the re-re rear arms? I changed the FAN-RC ones to those on my build. I also used the re-re steering hub carriers.
:shock:

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

Thanks and yes I used the re-re rear arms and haven't decided on the steering arms yet.

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

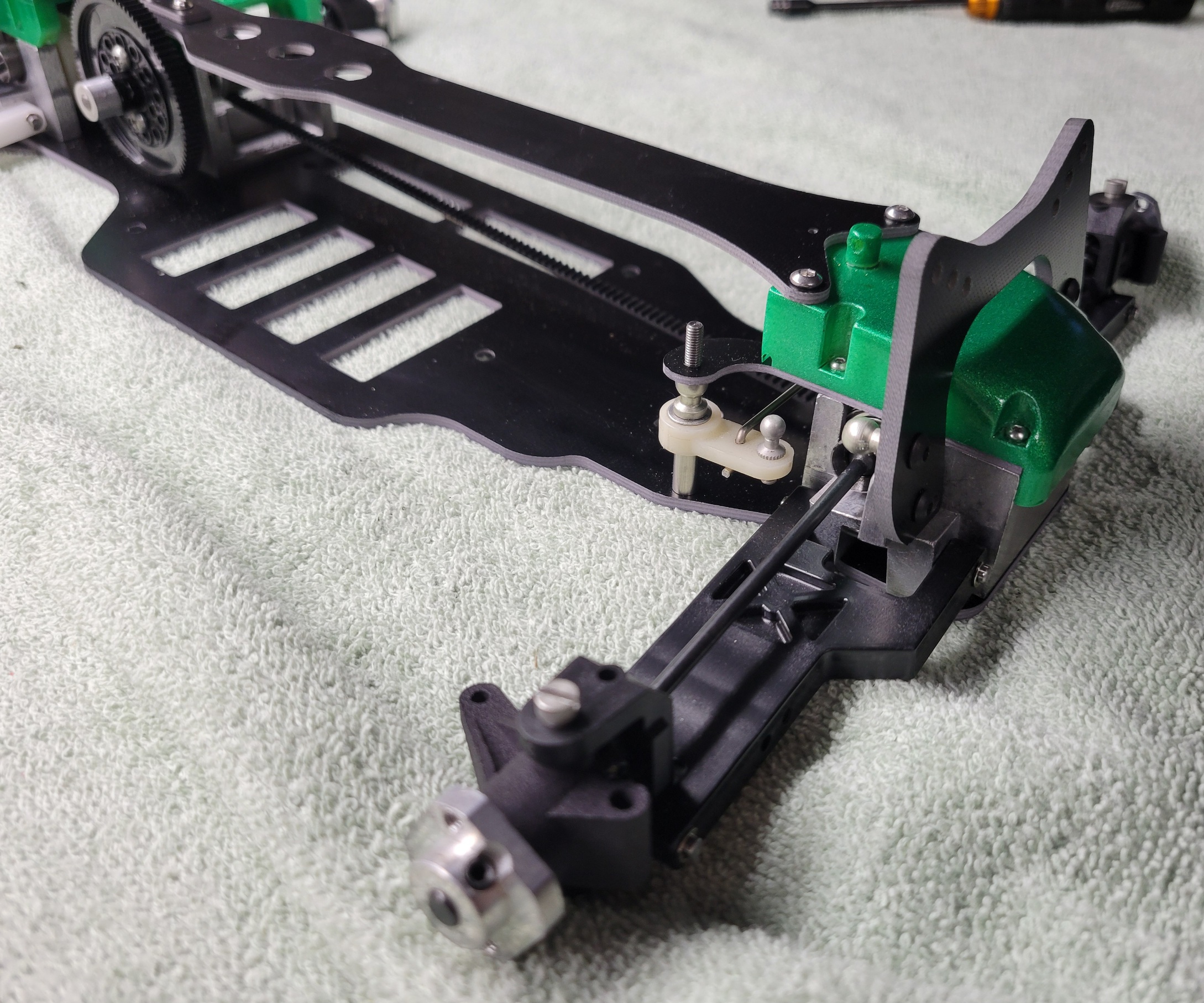

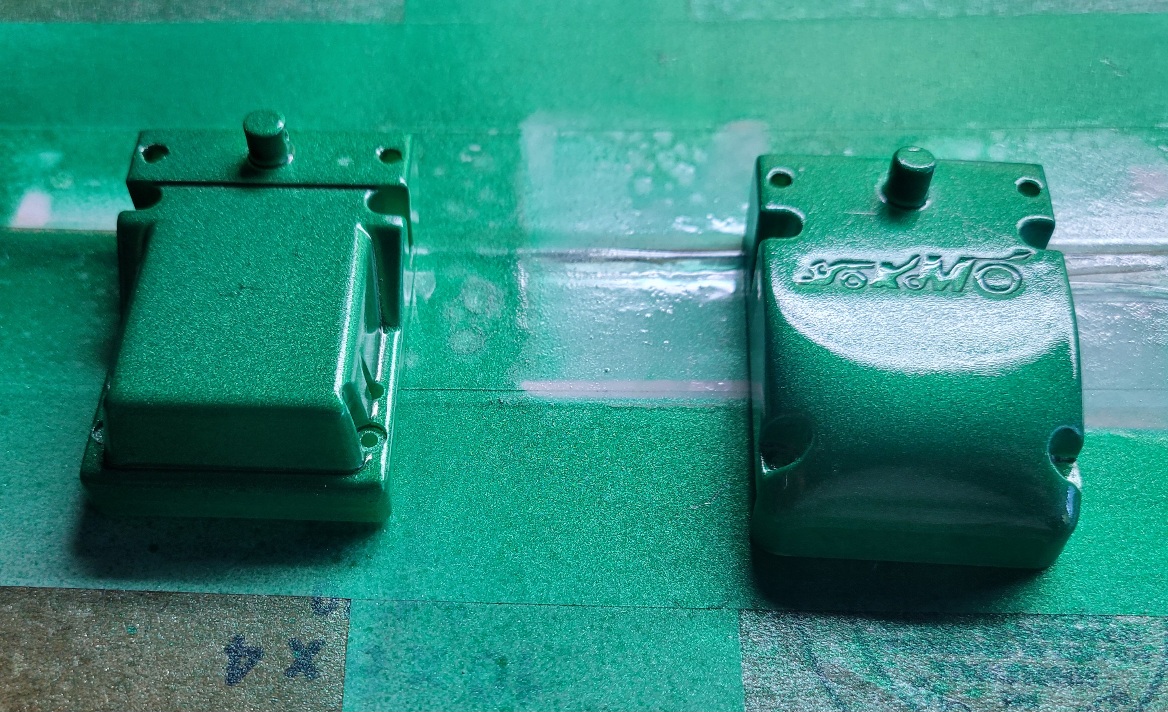

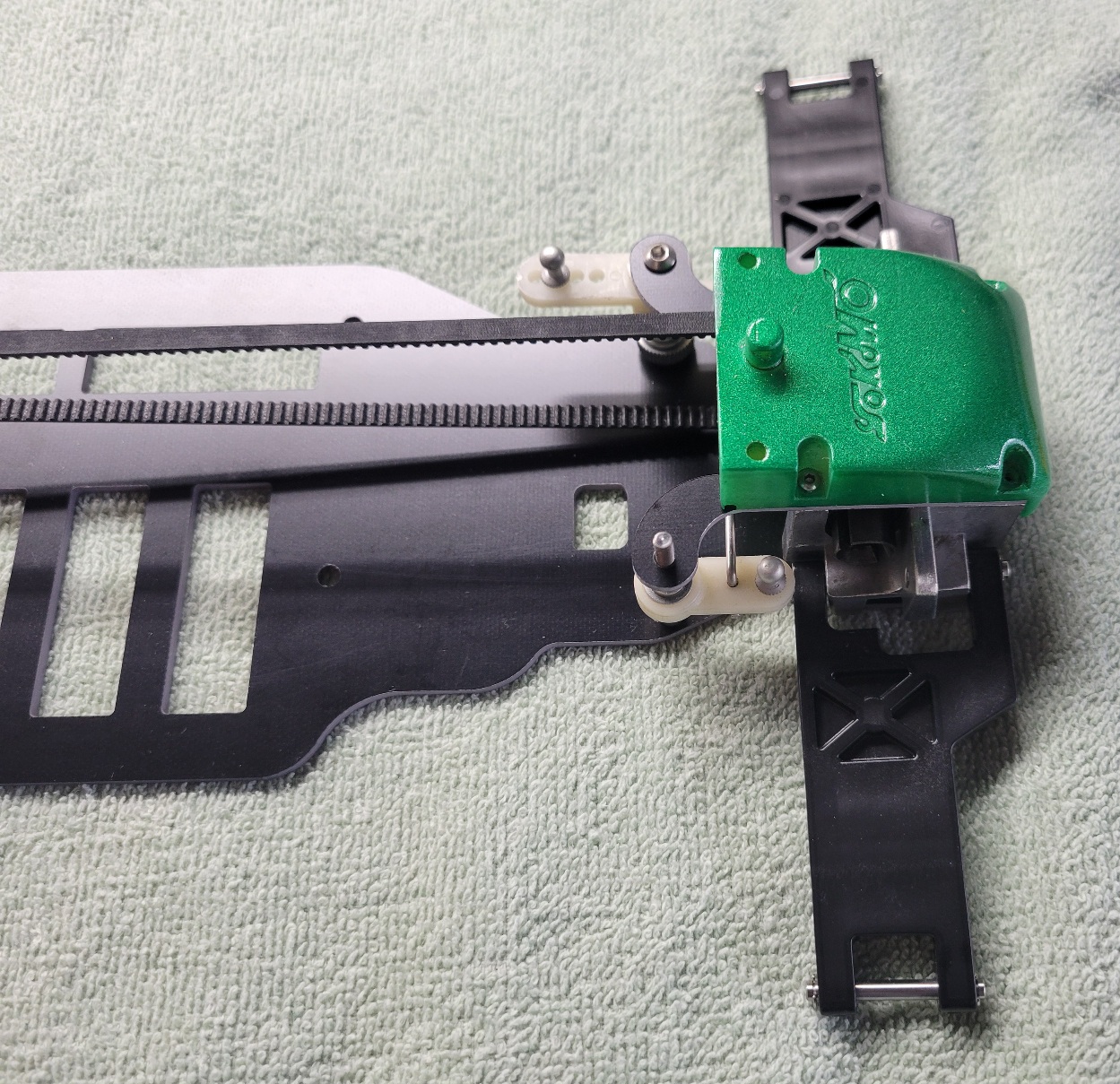

Installed steering and painted bulkhead caps.
Attachments

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

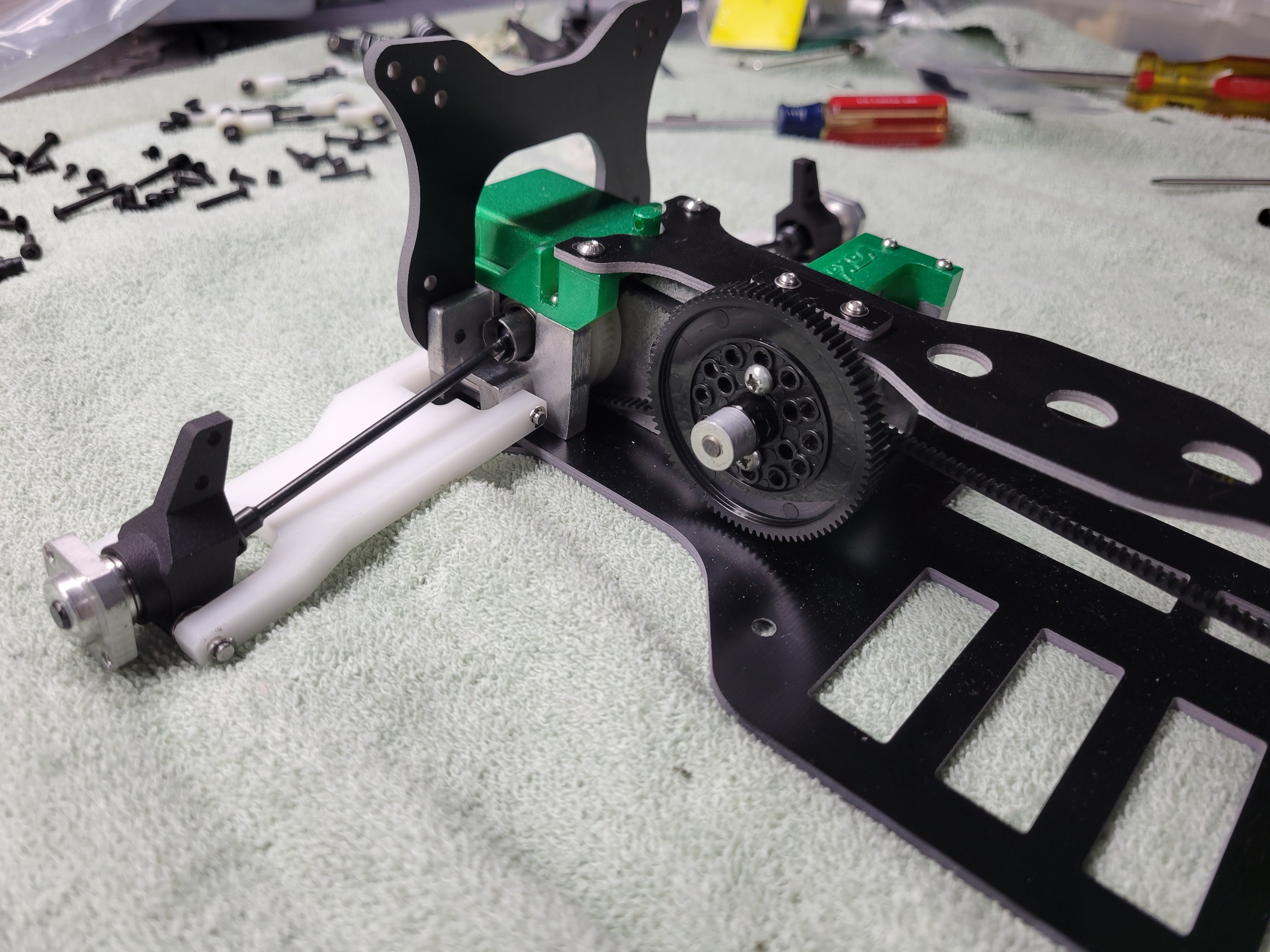

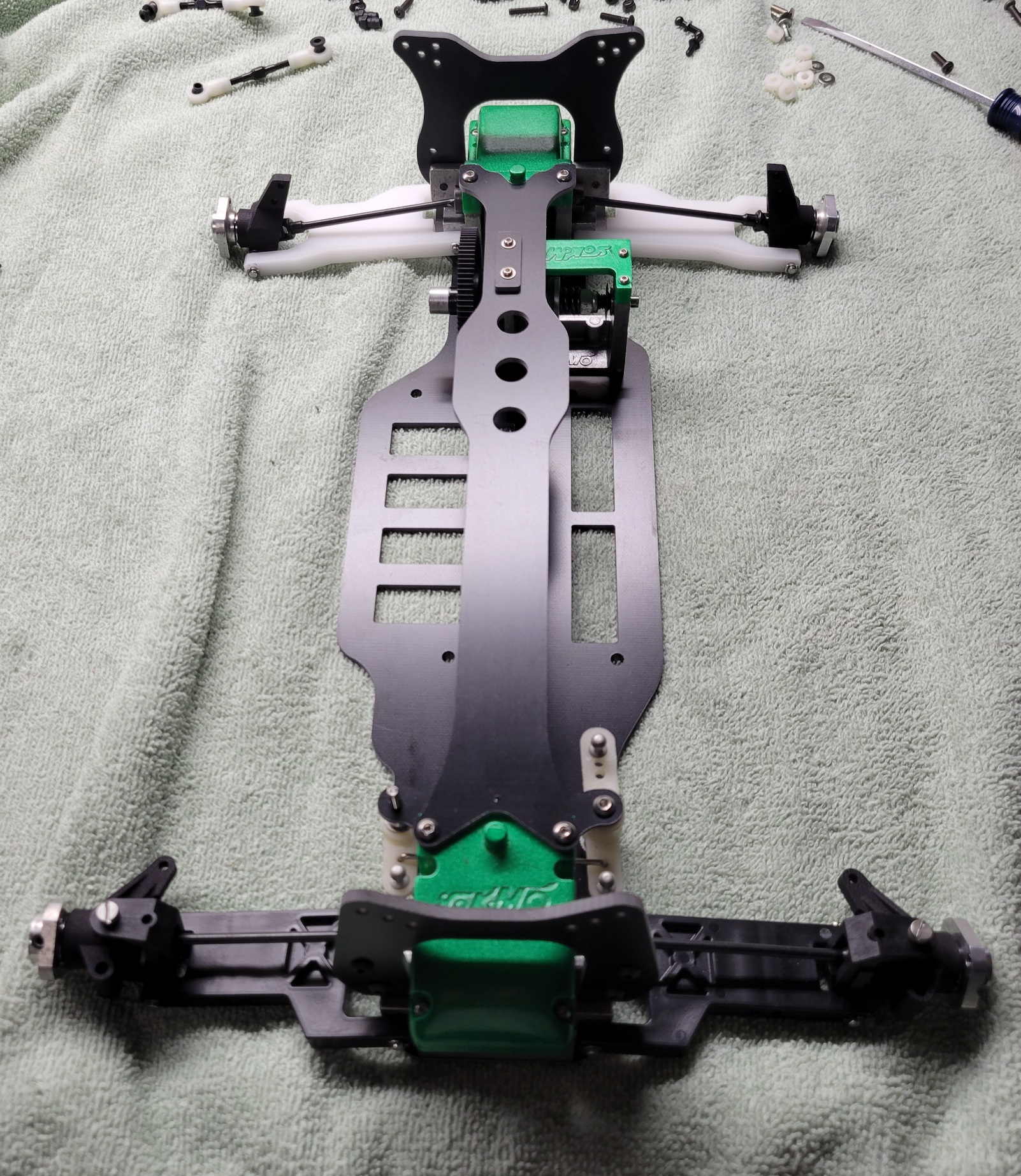

I mounted front and rear shock towers and played around with the drivetrain a little.
Attachments

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

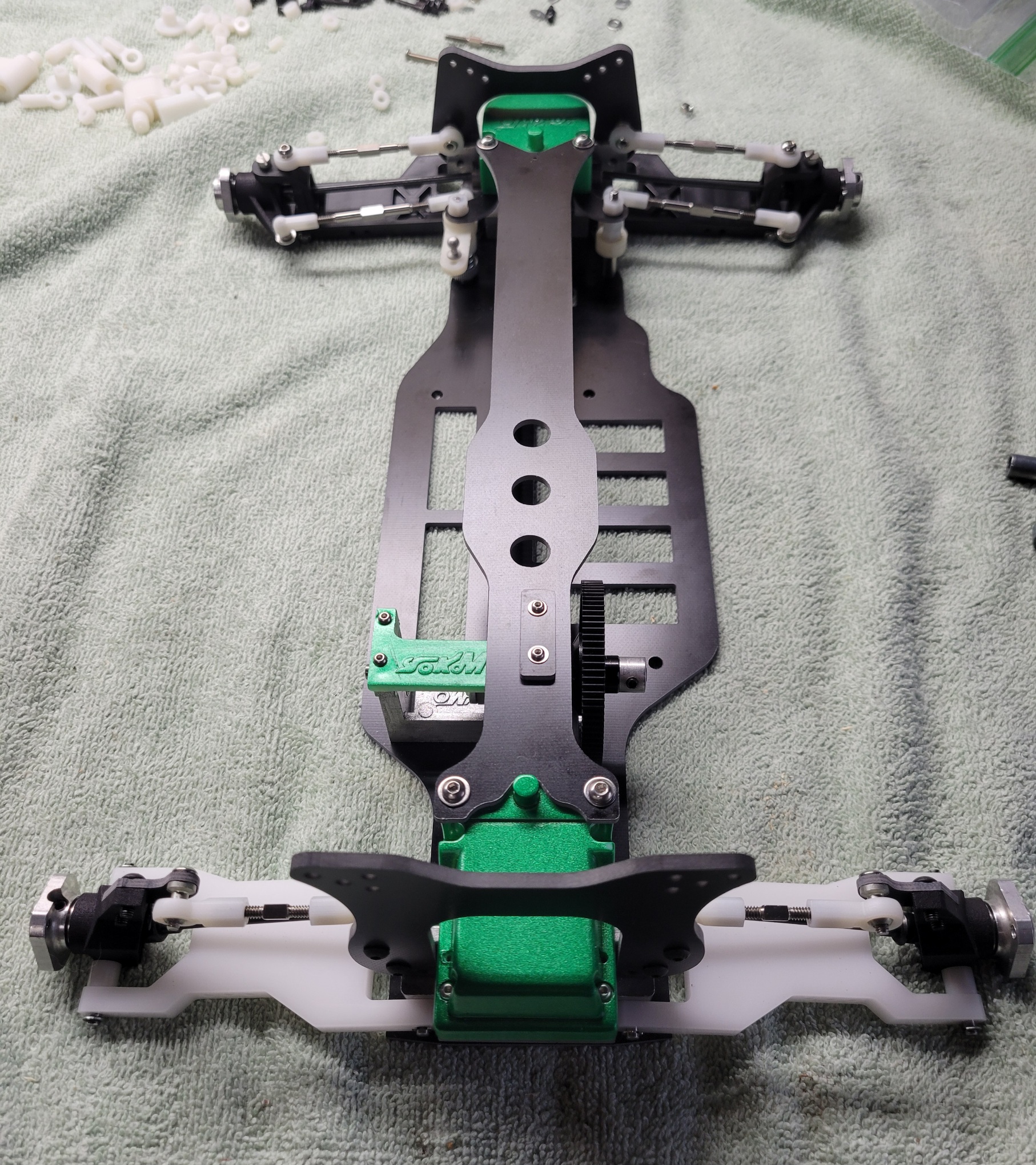

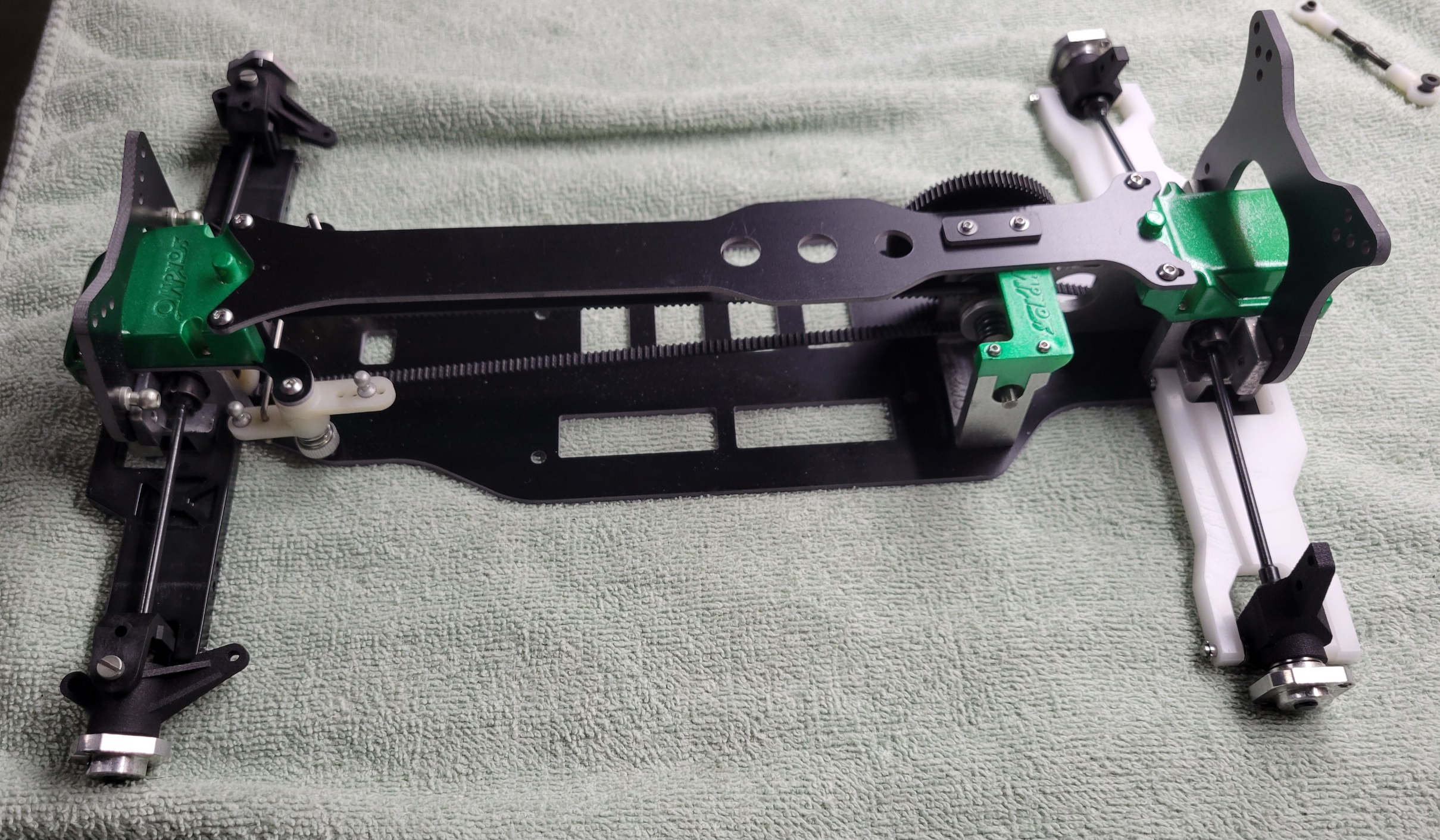

Finished up front and rear hubs and universals and mounted the topdeck. My turnbuckles were supposed to be here today but are delayed until Monday.
Attachments

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

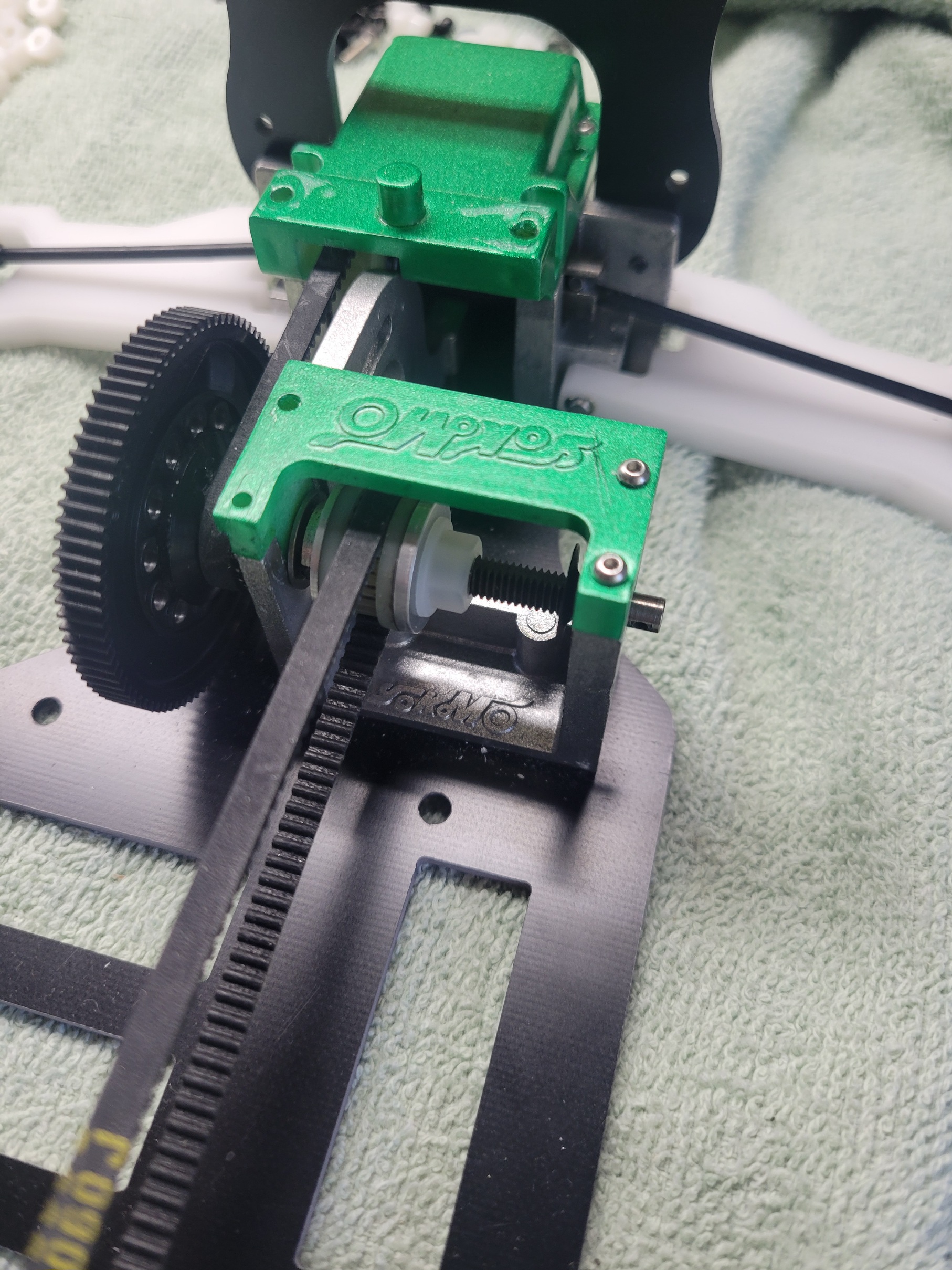

I switched out the nut on the center shaft but haven't had much time for rc lately.
Attachments

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

Bunch more done today. Added turbuckles, switched out center wire link on steering for a turnbuckle and a couple other minor details. Now onto the shocks.
Attachments

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

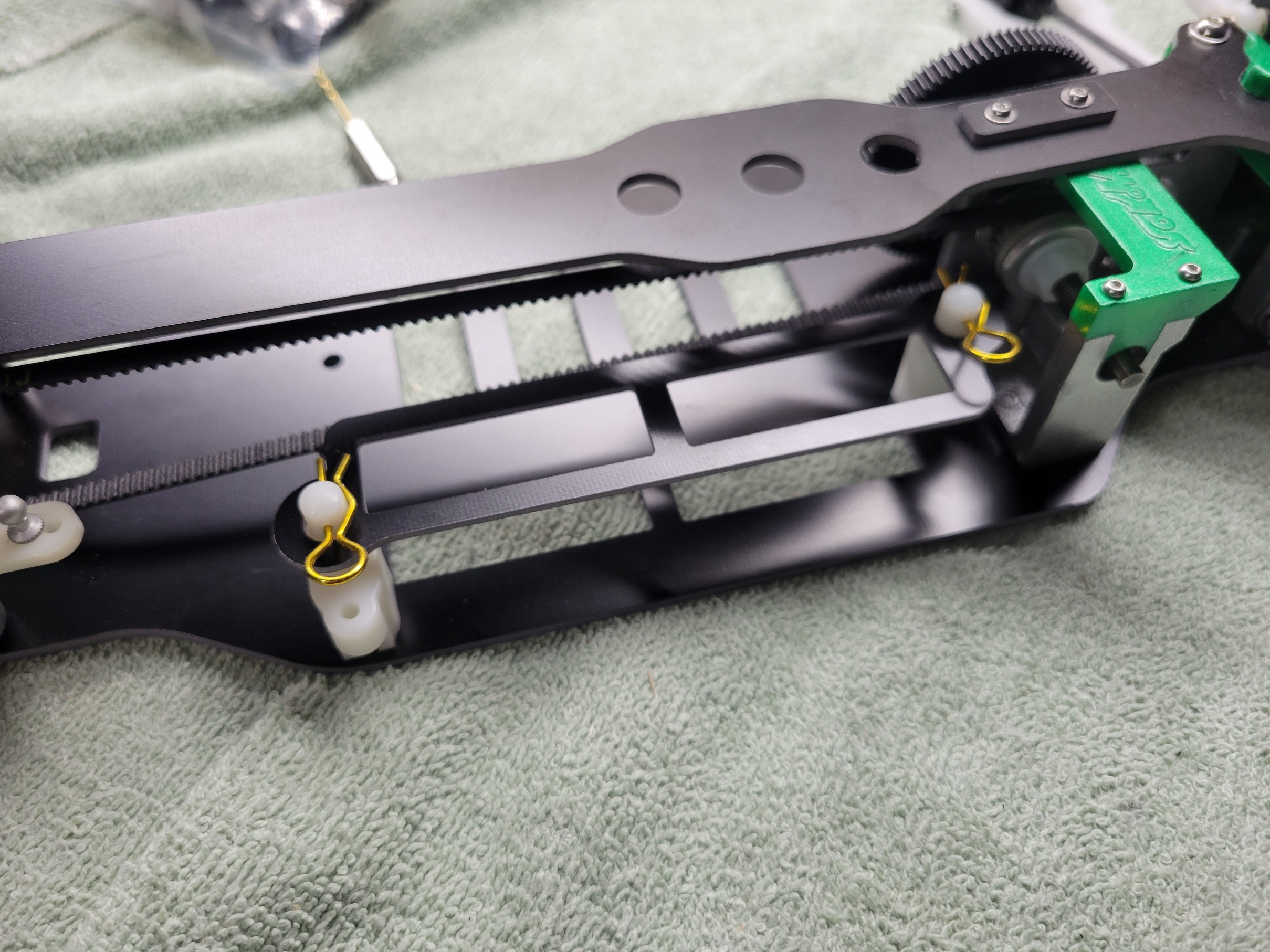

I drilled the holes in 2 of the battery posts and installed 2 cell strap. The gold body pins were just to check hole size.
Attachments

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

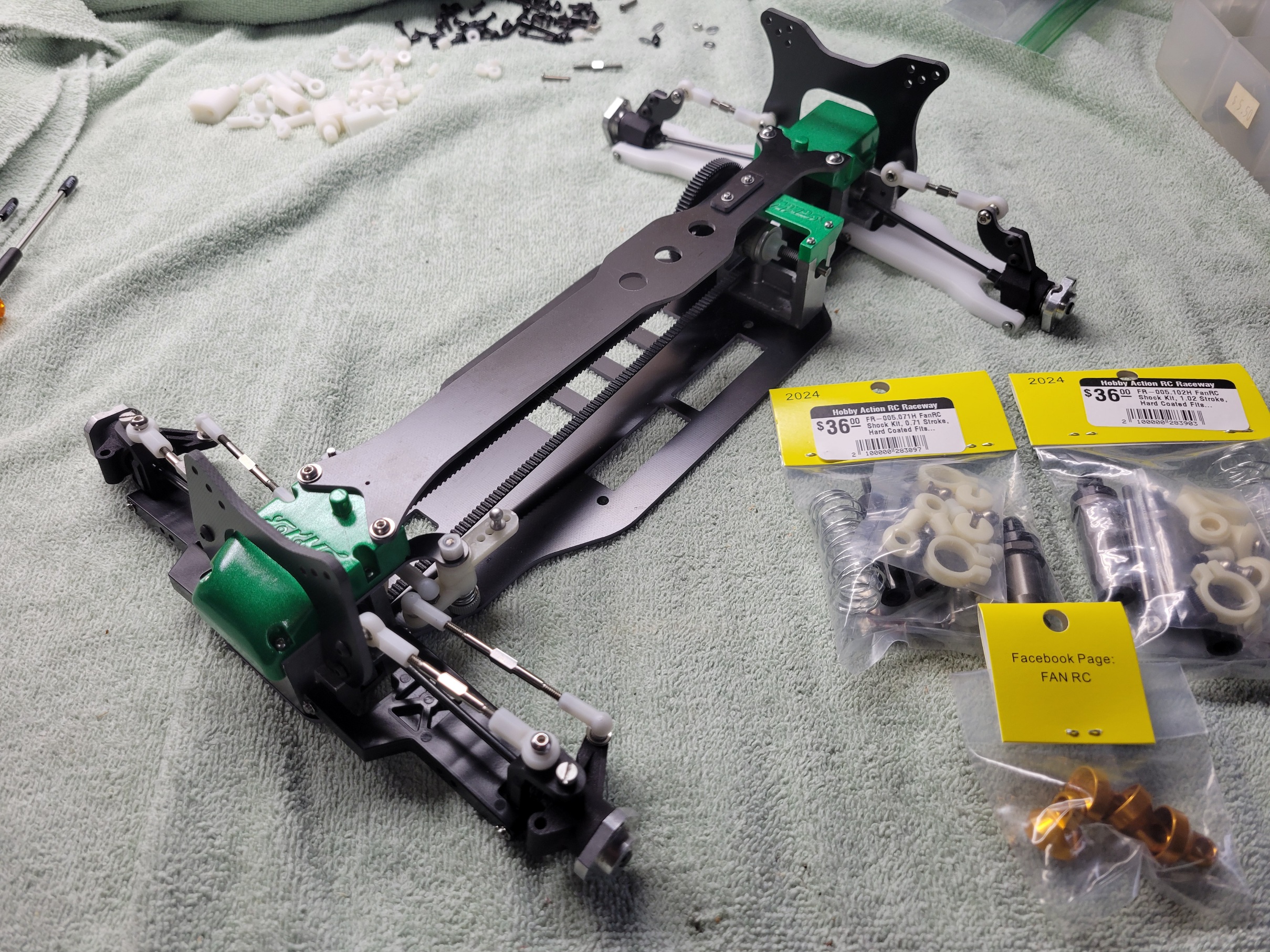

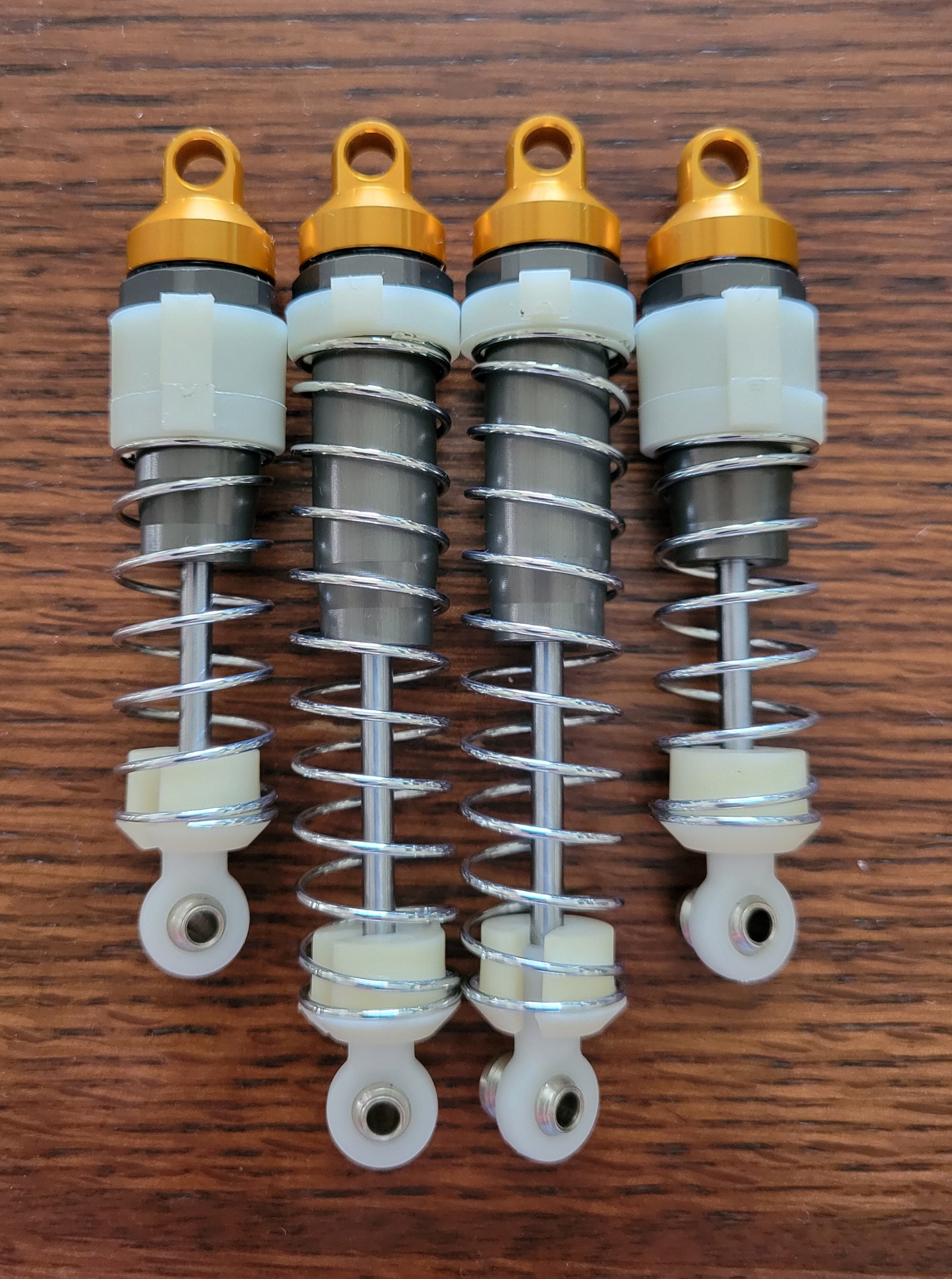

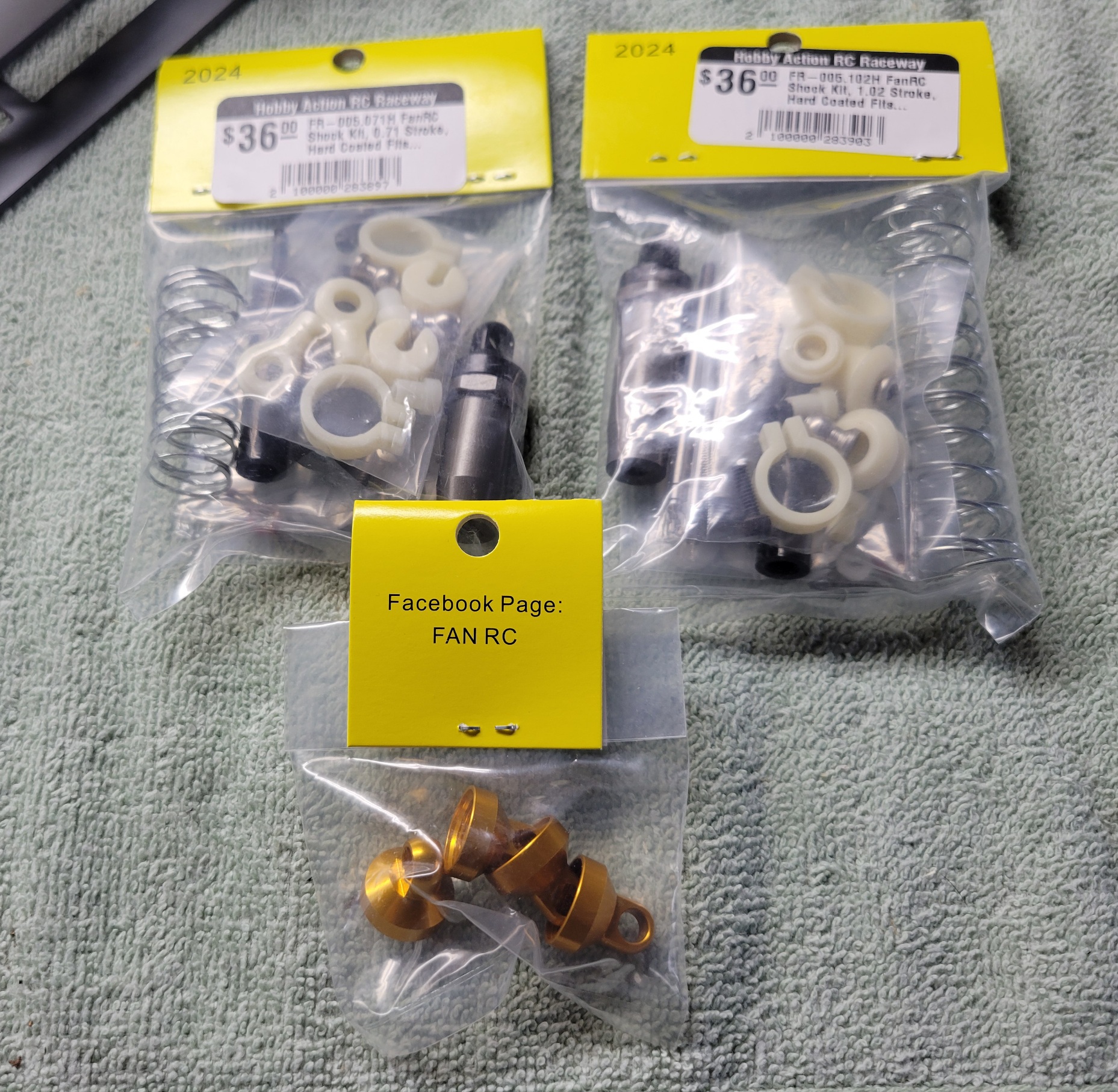

Alright I built the shocks but realized I didn't have any good 4/40 hardware for installing them, so i ordered some.
Attachments

mikea96
Approved Member
Posts: 3359
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 235 times
Been thanked: 634 times

Re: New Yokomo 870c 89 wcs project

Post by mikea96 »

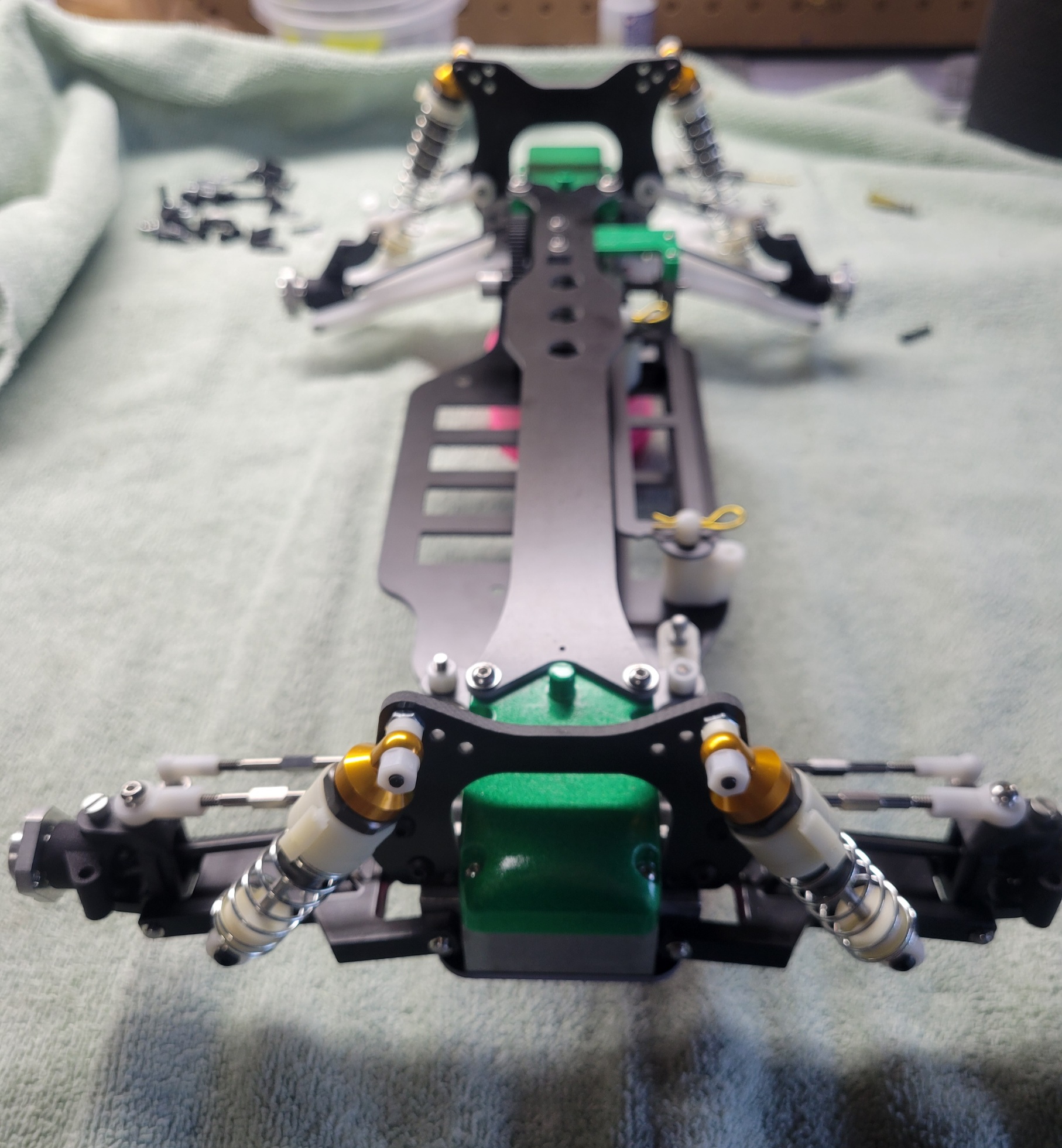

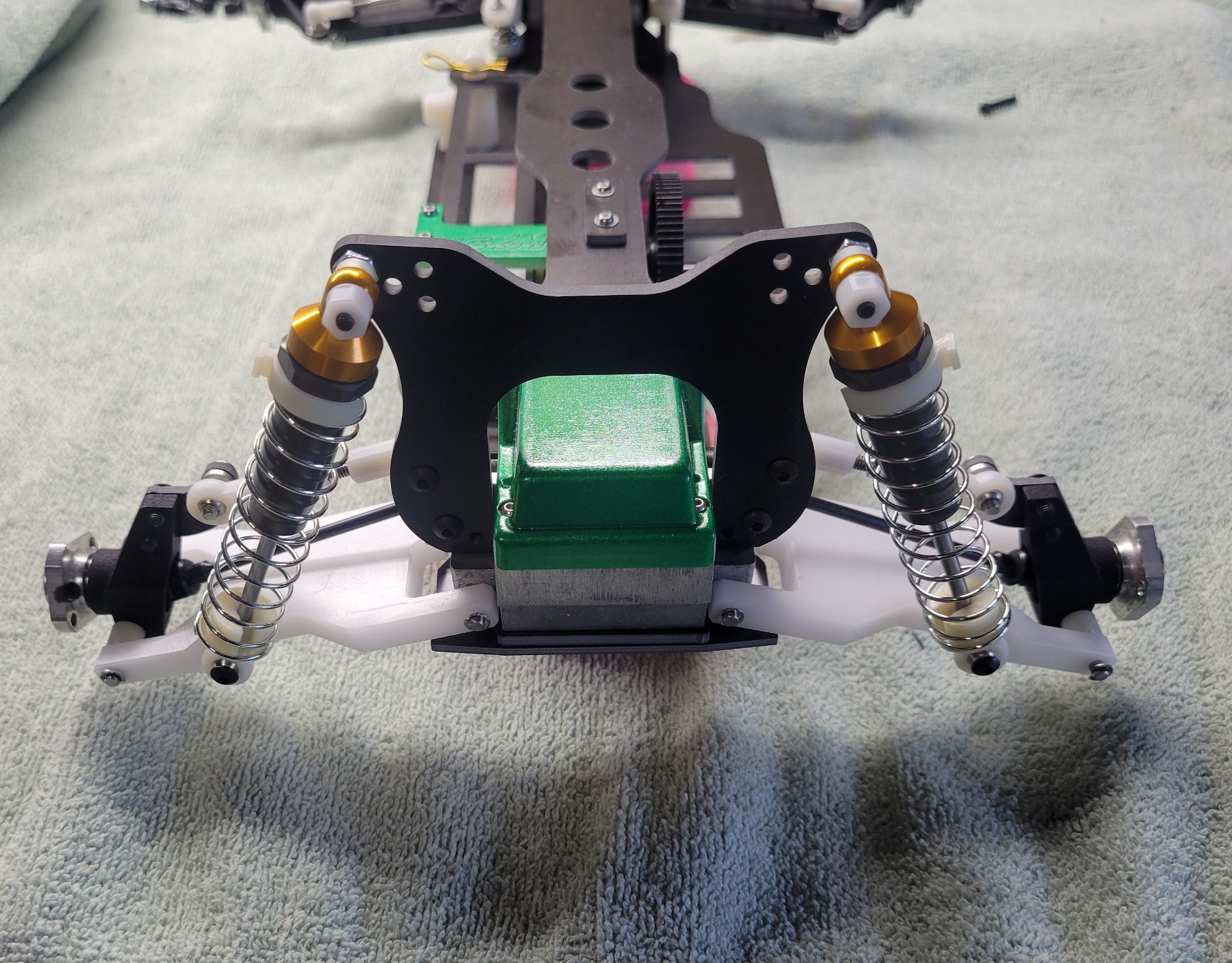

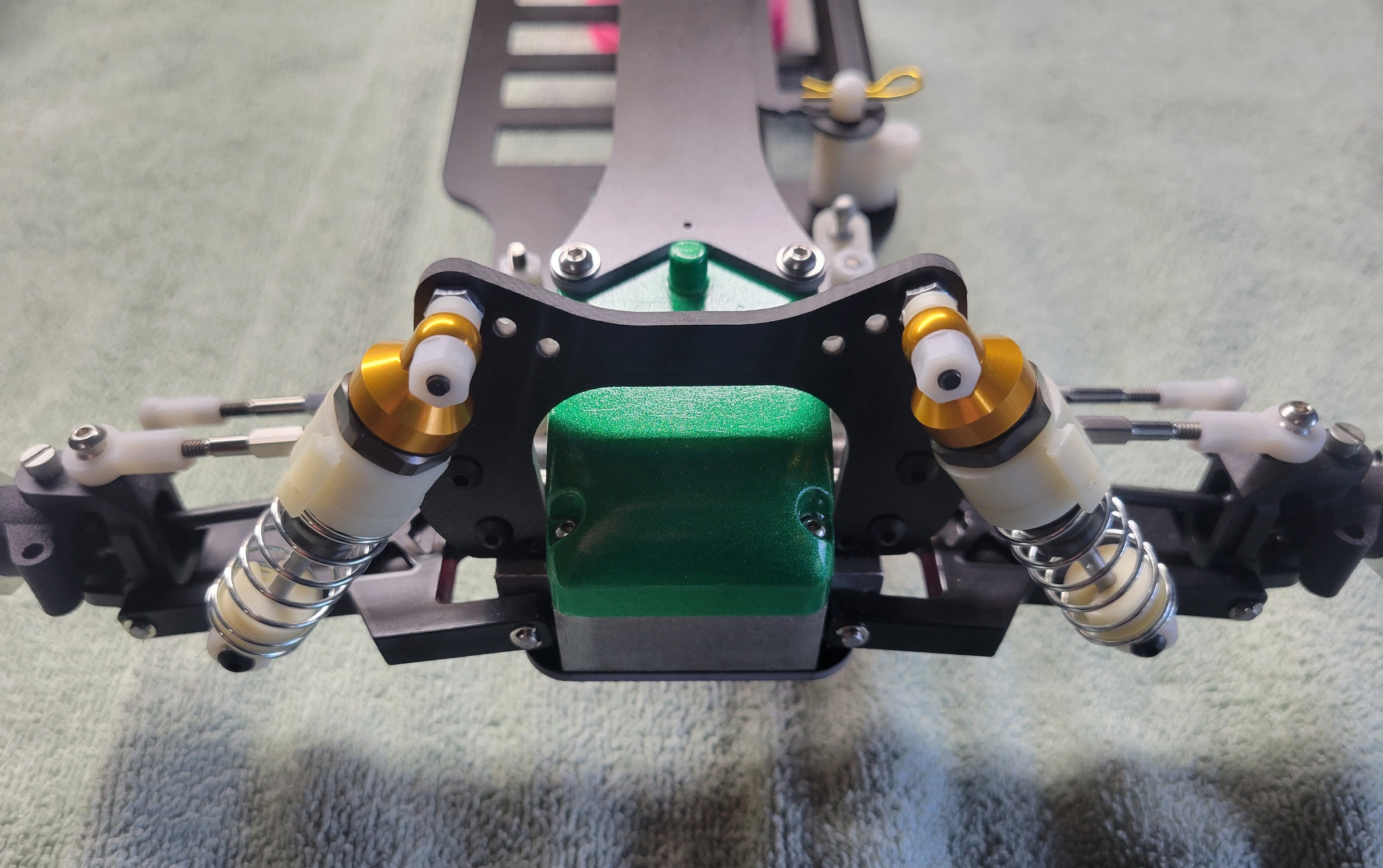

I installed the shocks and have front and rear black springs to install. I need to add an internal limiter to the rear shocks. I have ordered the correct front tires and now need to find some tr31 rear tires.
Attachments

User avatar
jwscab
Super Member
Posts: 6517
Joined: Wed Jan 28, 2009 2:42 pm
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 456 times

Re: New Yokomo 870c 89 wcs project

Post by jwscab »

Looks awesome Mike! If you find anyone selling TR31's and they want to sell more than one pair, I'm looking for a set. About a year ago a seller had three pairs plus a set of something else and I just couldn't swing buying all of them. From Japan of course. I asked if he would split em up but he wouldn't.
