FINALLY won an LXT...few questions

Post by adam lancia »

Hi all,

Well I've finally won myself an LXT: http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=160384883640&_trksid=p2761.l1259

As you can see, the left rear arm and possibly the inner arm mount seem to be broken. I'm going to run it so I'd like to put together a XX-Retro-Fit transmission for it, anyone have one lying around that's in raceable shape? I could use a bunch of spares to go with it too ;) Maybe a new body too.... Do the current Losi truck rims fit the LXT? I'll post a few before and after pics once I get it (in the proper forum of course).

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 2:44 pm
Location: USA
Been thanked: 8 times

Re: FINALLY won an LXT...few questions

Post by Charlie don't surf »

Shameless plug, but I have a NIP LXT body :wink:

adam lancia
Approved Member
Posts: 1116
Joined: Tue Feb 05, 2008 6:37 pm
Location: Donkin, Nova Scotia, Canada
Has thanked: 7 times
Been thanked: 41 times

Re: FINALLY won an LXT...few questions

Post by adam lancia »

Not shameless at all! What other old bodies ya got that'd fit my new money pit, er, I mean, my new truck....?

User avatar
vintage racer
Approved Member
Posts: 390
Joined: Wed Mar 19, 2008 9:50 am
Location: NSW Australia
Been thanked: 1 time

Re: FINALLY won an LXT...few questions

Post by vintage racer »

I have a set of used rear arms and unis.PM me if you need them.

User avatar
highwayracer
Approved Member
Posts: 1187
Joined: Wed Dec 12, 2007 9:43 pm
Location: Illinois, USA
Been thanked: 3 times

Re: FINALLY won an LXT...few questions

Post by highwayracer »

A broken rear like that may be an indication that the rear bulkhead may also have some damage.

If this is the case, buy some brass tube (k&s) to use as a bushing. There's a size that's just a little bit bigger the the 1/8 inch hinge pin. You'll only need about a 1/4 inch for each side. It can then be glued into place.

I've used this trick before during my "basement" racing phase where my buddies and I would easily go through a few sets of rear h-arms in one evening. The bulkheads were pricey ($7) back in the day...let alone on today's market.

Good luck on the project...

Regards,
highwayracer

aip47-2008
Approved Member
Posts: 1186
Joined: Sun Feb 08, 2009 9:20 pm
Location: Spokane, WA
Has thanked: 135 times
Been thanked: 23 times

Re: FINALLY won an LXT...few questions

Post by aip47-2008 »


User avatar
JK Racing
Super Member
Posts: 4603
Joined: Thu Jul 19, 2007 2:32 pm
Location: Placentia, CA
Has thanked: 103 times
Been thanked: 200 times

Re: FINALLY won an LXT...few questions

Post by JK Racing »

The rear rims from the XXXT fit fine. For the front, the offset is wrong. Order a set of GTX/NXT front axles, and you can run XXXT front rims also. Be advised, the track width of the front is a touch wider than the rear after using the GTX axles. I was going to attempt to use the XXTCR rear hub carriers and bones to make the truck wider in the rear.

I have "sleeved" the rear hinge pin area in both the rear bulkhead and toe bar many times. Works like a charm!
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com

adam lancia
Approved Member
Posts: 1116
Joined: Tue Feb 05, 2008 6:37 pm
Location: Donkin, Nova Scotia, Canada
Has thanked: 7 times
Been thanked: 41 times

Re: FINALLY won an LXT...few questions

Post by adam lancia »

Cool, tons of good info there guys! I'm starting up a Word document as we speak to keep track of the info ;)

adam lancia
Approved Member
Posts: 1116
Joined: Tue Feb 05, 2008 6:37 pm
Location: Donkin, Nova Scotia, Canada
Has thanked: 7 times
Been thanked: 41 times

Re: FINALLY won an LXT...few questions

Post by adam lancia »

Could one of you cool mod-like dudes move this thread into the Losi section for me? Thanks! :mrgreen:

User avatar
mrlexan
Approved Member
Posts: 6251
Joined: Wed Dec 06, 2006 6:49 pm
Location: Upstate SC
Been thanked: 10 times

Re: FINALLY won an LXT...few questions

Post by mrlexan »

done
I am not here cause I am playing photographer and on my mountain bike.
www.gojammedia.com

adam lancia
Approved Member
Posts: 1116
Joined: Tue Feb 05, 2008 6:37 pm
Location: Donkin, Nova Scotia, Canada
Has thanked: 7 times
Been thanked: 41 times

Re: FINALLY won an LXT...few questions

Post by adam lancia »

You're my favourite lexan-fetish-having mod on this board Jay, thanks!

adam lancia
Approved Member
Posts: 1116
Joined: Tue Feb 05, 2008 6:37 pm
Location: Donkin, Nova Scotia, Canada
Has thanked: 7 times
Been thanked: 41 times

Re: FINALLY won an LXT...few questions

Post by adam lancia »

As promised...
Attachments

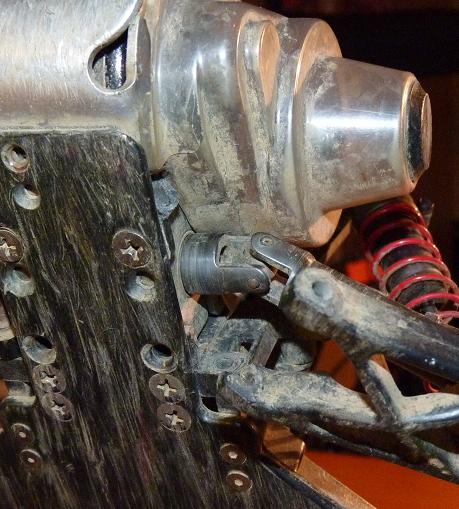

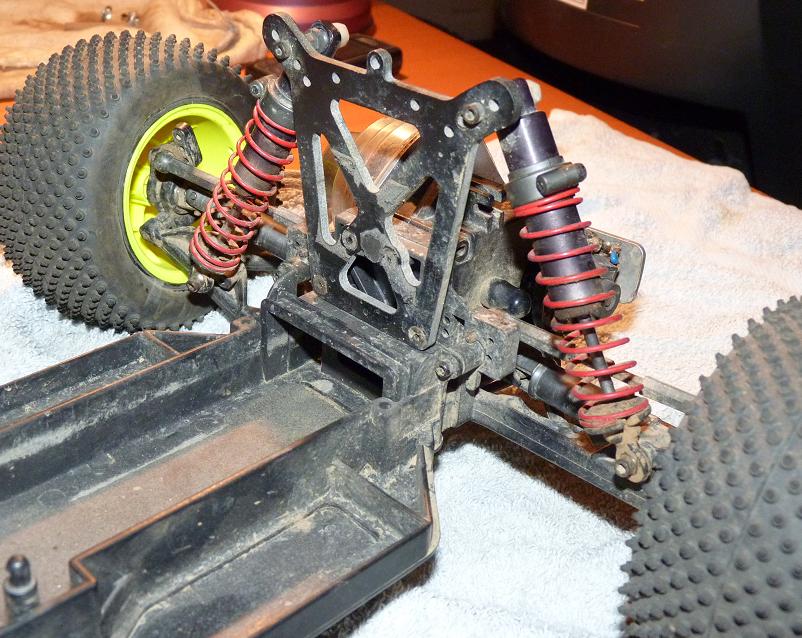

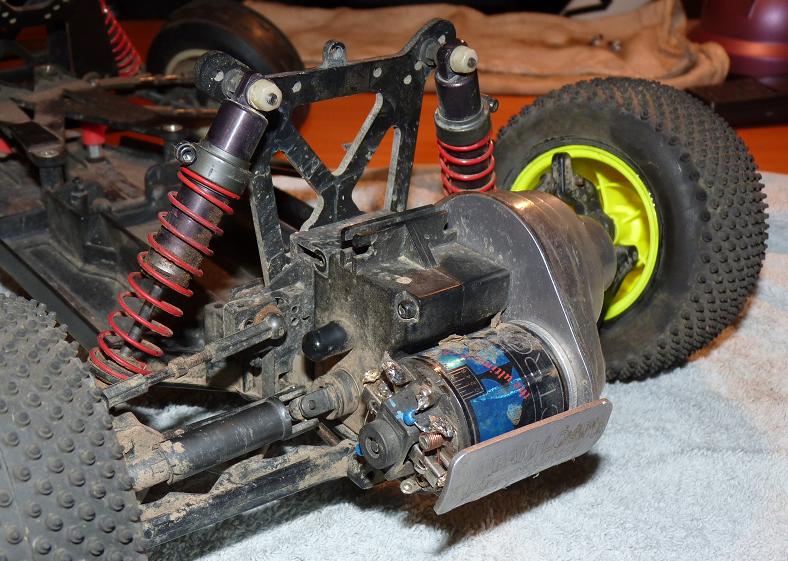

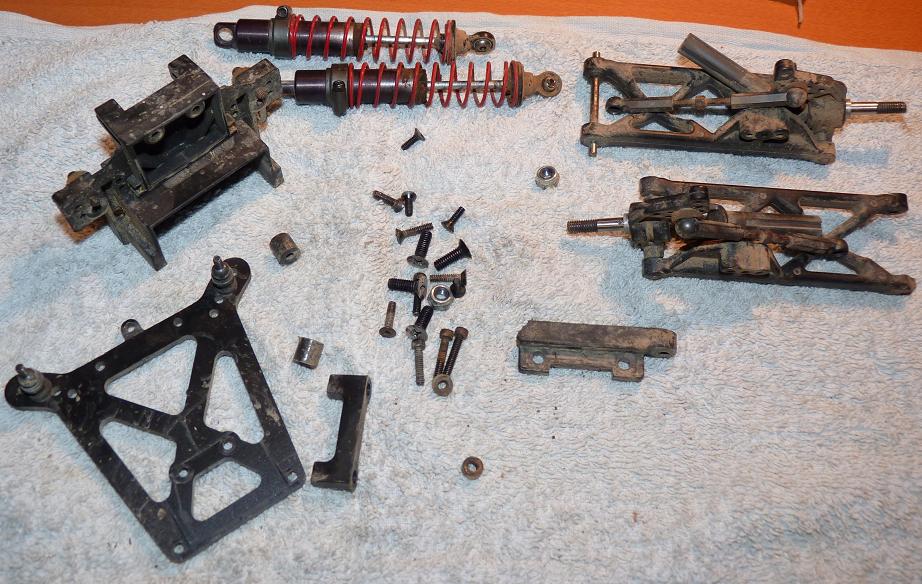

LXT Rear End 1 small.jpg
LXT Rear End 2 small.jpg
LXT Rear End 3 small.jpg
LXT Rear end 4 small.jpg

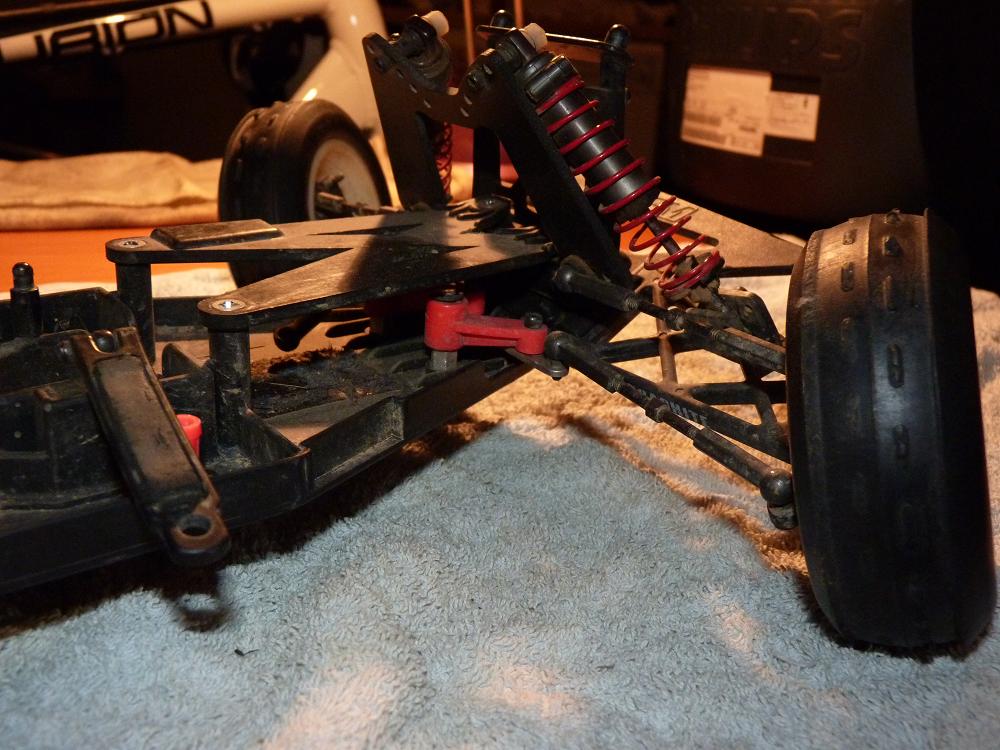

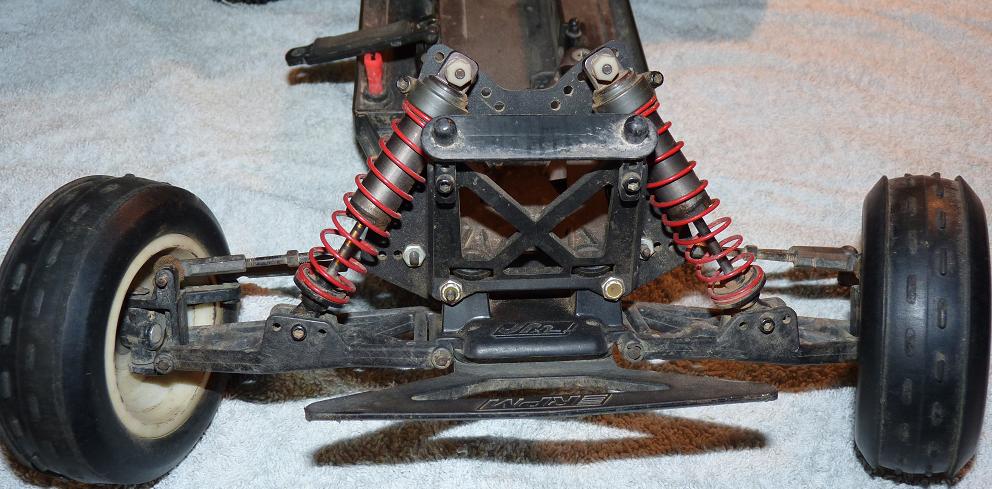

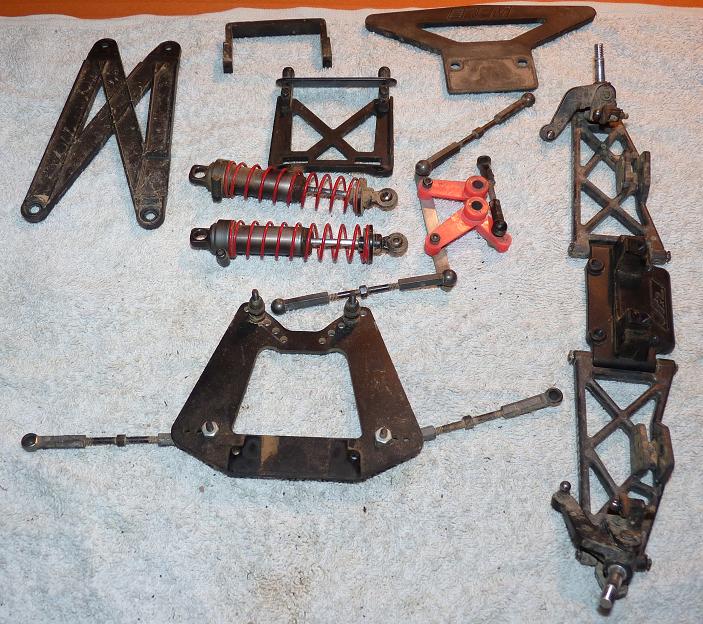

LXT Front End 1 small.jpg
LXT Front End 2 small.jpg
LXT Front end 3 small.jpg
BONUS!
BONUS!
DOUBLE BONUS!
DOUBLE BONUS!

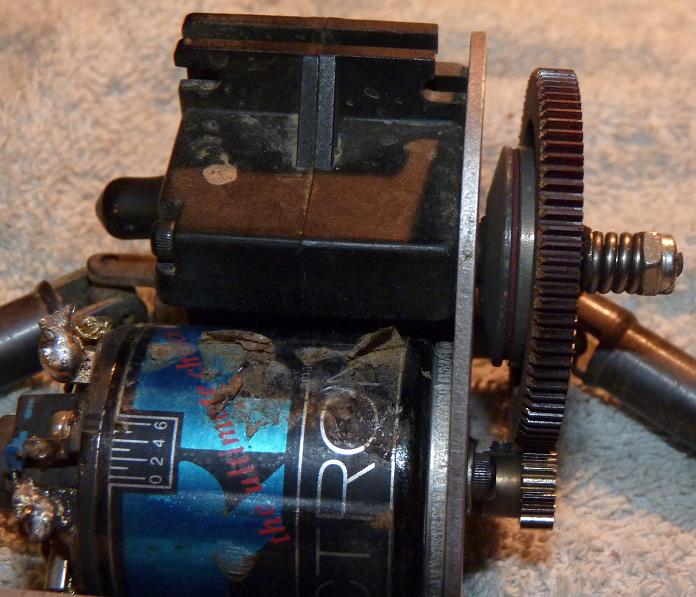

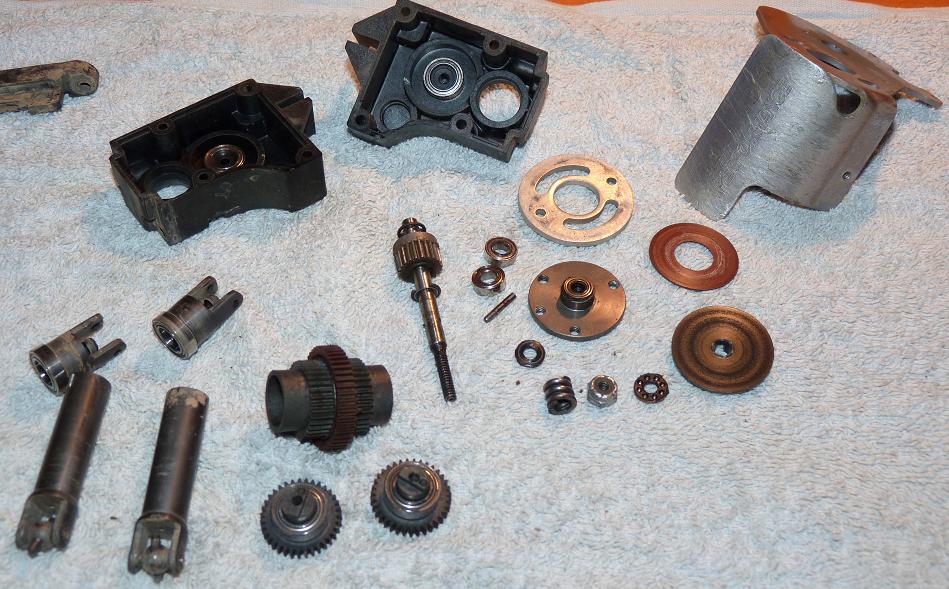

LXT Gear cover and trans small.jpg

adam lancia
Approved Member
Posts: 1116
Joined: Tue Feb 05, 2008 6:37 pm
Location: Donkin, Nova Scotia, Canada
Has thanked: 7 times
Been thanked: 41 times

Re: FINALLY won an LXT...few questions

Post by adam lancia »

...
Attachments
RC10T Narrow Front tires and 3 piece rims small.jpg
These don't belong to this truck, anyone in need?
RC10T Narrow Front tires and 3 piece rims small.jpg (47.14 KiB) Viewed 1321 times
These don't belong to this truck, anyone in need?
These don't belong to this truck, anyone in need?
RC10T Narrow Front tires and 3 piece rims small.jpg (47.14 KiB) Viewed 1321 times

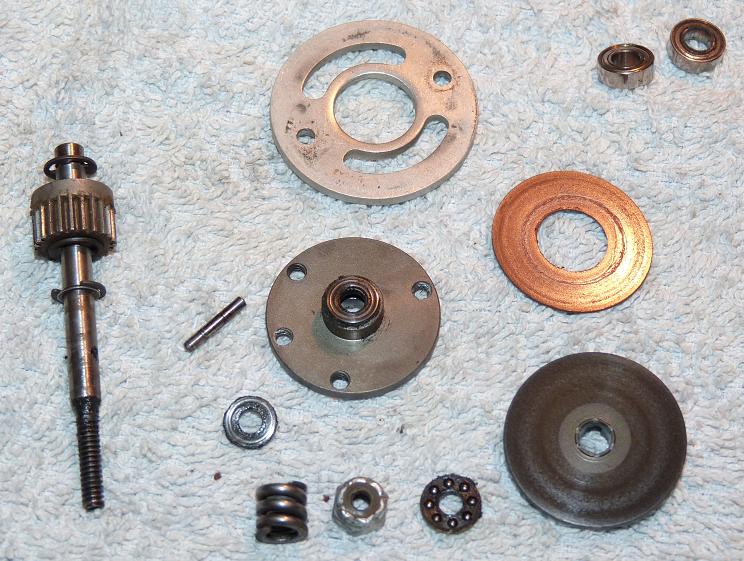

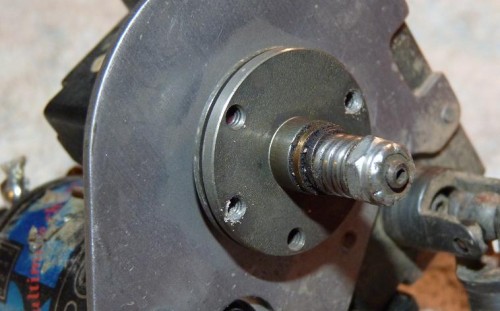

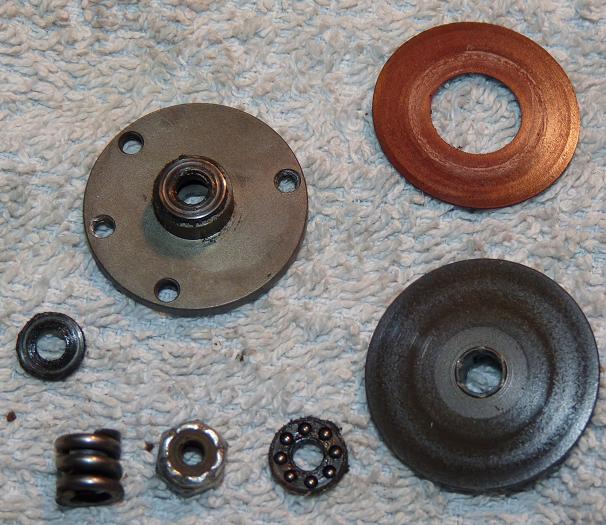

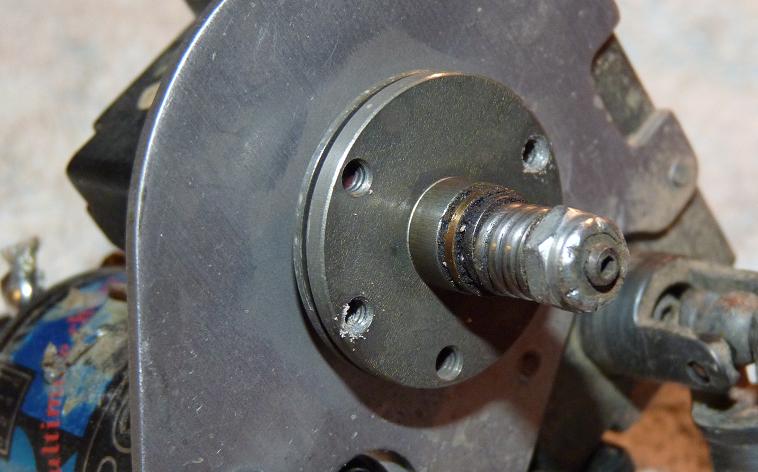

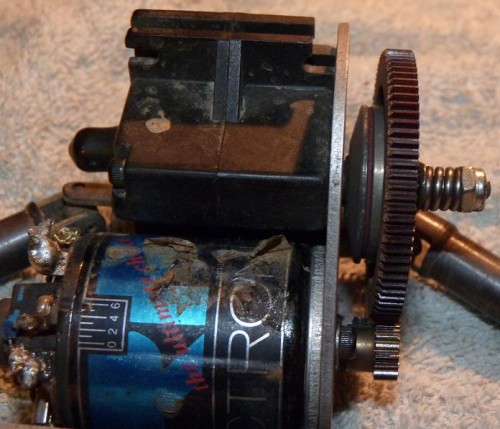

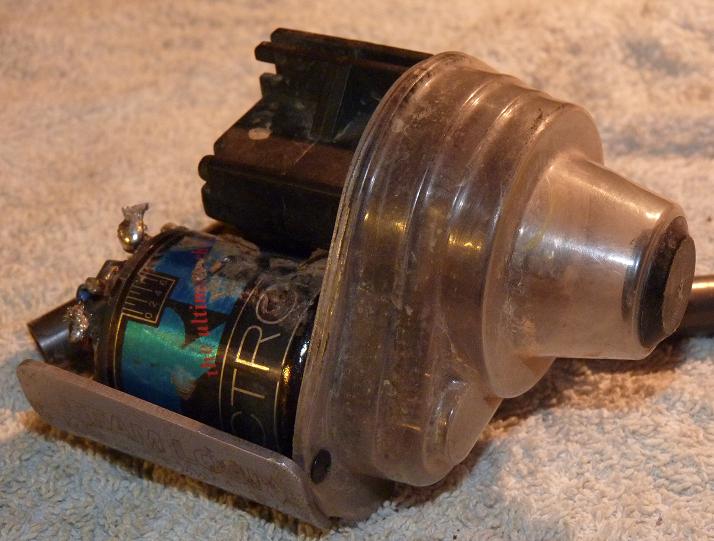

Pleasant surprise, A&L Power Clutch!
Pleasant surprise, A&L Power Clutch!
A&L Power Clutch (2) small.jpg
A&L Power Clutch (3) small.jpg
A&L Power Clutch (4) small.jpg
A&L Power Clutch (5) small.jpg

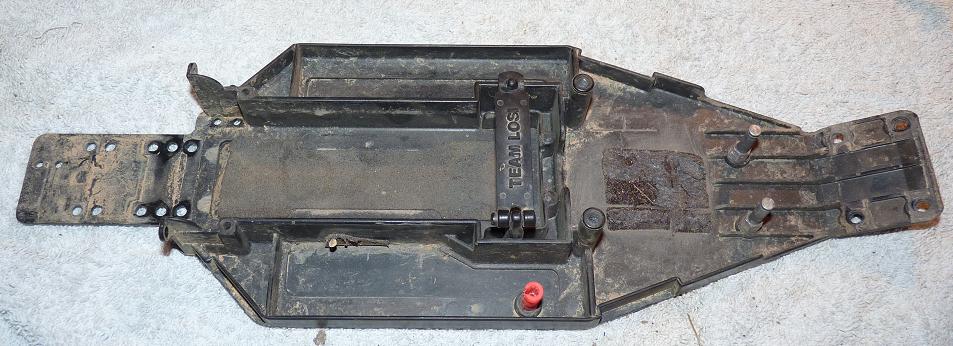

LXT Chassis small.jpg

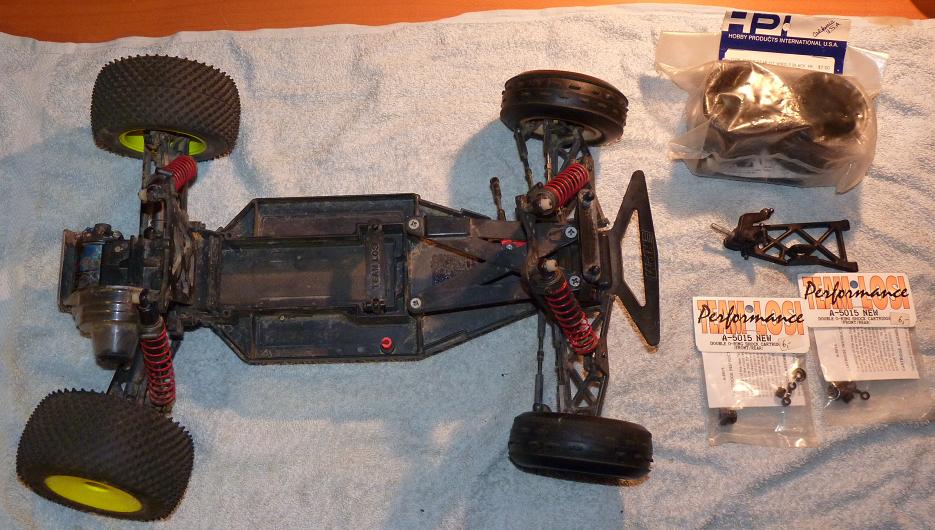

LXT 1 small.jpg

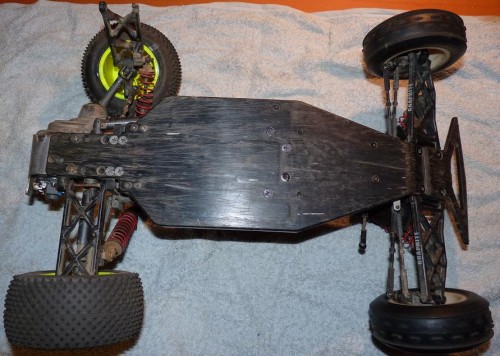

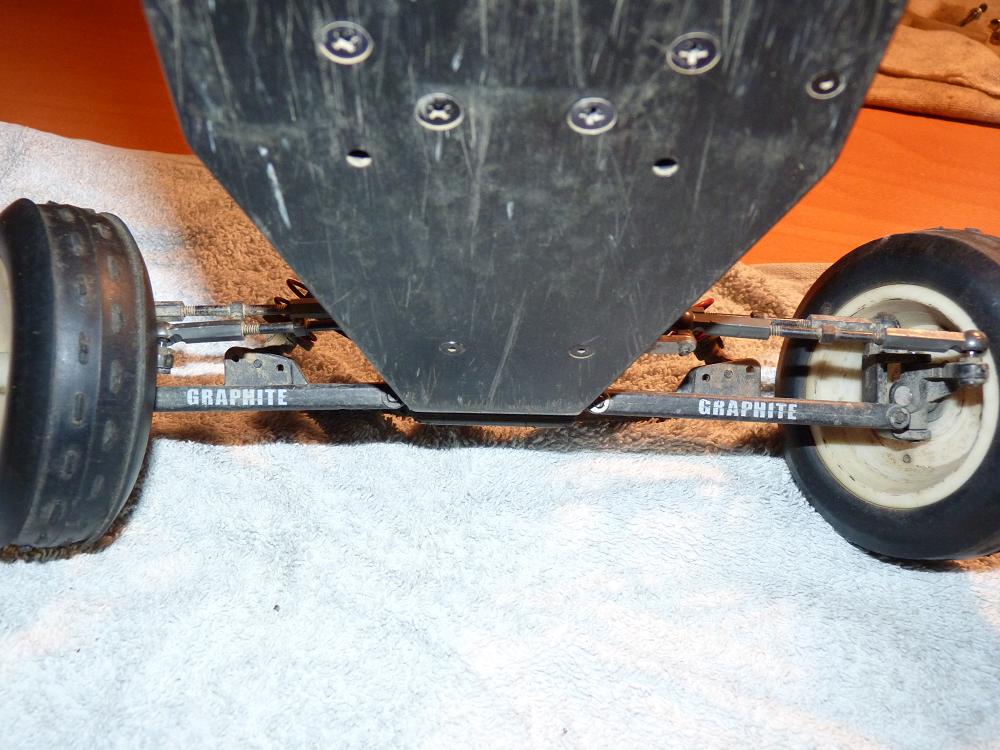

LXT Under chassis small.jpg
LXT Under chassis 1 small.jpg

User avatar
cyberded
Approved Member
Posts: 70
Joined: Sat Nov 21, 2009 1:08 pm
Location: Mascouche,quebec,canada

Re: FINALLY won an LXT...few questions

Post by cyberded »

Wow,nice find...lots of cleaning ahead of you have fun there a blast to built..
ill try to post pict of mine if i get around to it.good luck

adam lancia
Approved Member
Posts: 1116
Joined: Tue Feb 05, 2008 6:37 pm
Location: Donkin, Nova Scotia, Canada
Has thanked: 7 times
Been thanked: 41 times

Re: FINALLY won an LXT...few questions

Post by adam lancia »

cyberded wrote:Wow,nice find...lots of cleaning ahead of you have fun there a blast to built..
ill try to post pict of mine if i get around to it.good luck
Thanks! It's dirty but as far as I can tell, it's also not really sloppy or beat up.

The A&L Power Clutch was a SWEET surprise, there was no mention of a slipper in the auction although the slipper gear cover *could* have been a tell tale sign... Anyhow, The only thing I need to make it whole is a new right rear arm and a rear inner arm mount. The rear bulkhead is intact along with the front upper chassis brace.

The disassembly has left me with a few questions:

The diff gear: are they normally a reddish colour and not a dark gray like the rest of the gears?

Are there universals available to replace the sliders?

Is the steering servo just taped/shoe-goo'd in place or do I have a one-off chassis with no servo mounting holes? :roll:

I'm sure once I get it more torn apart and cleaned up I'll have some more questions and definitely more pics. THanks guys!
