Rebuilding a RC10 Graphite
-
- Regular Member
- Posts: 6
- Joined: Sat Nov 06, 2010 7:08 pm
Rebuilding a RC10 Graphite

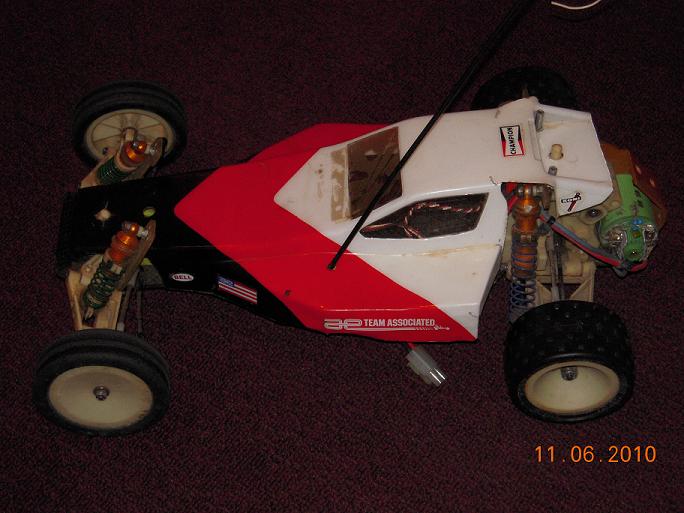

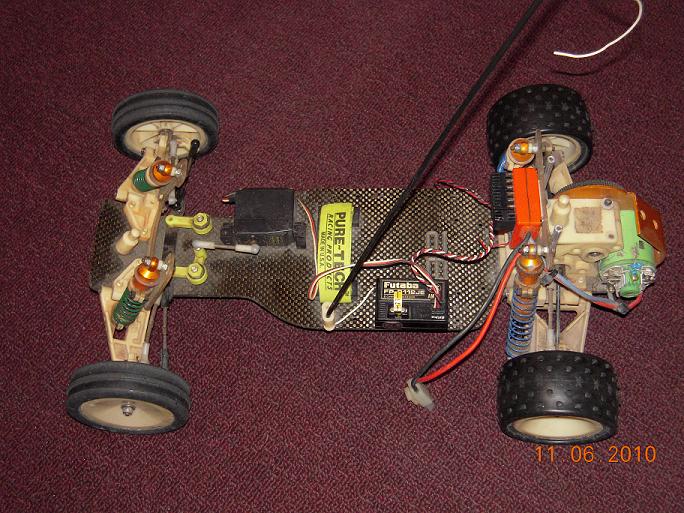

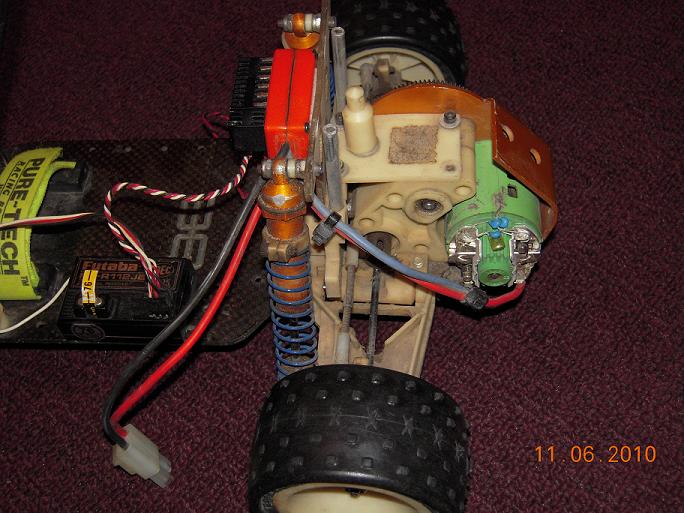

I Have Had A RC10 Graphite Since 1990 Or 1991.Everything works In It Runs Great. Just Checking To See If I Can Upgrade The Motor To A bushless And Witch One Would Fit. And I Like To Up Grade The Electronics In It What Would Be Good Upgrades That Will Fit In It. Even If I Can Not Upgrade To Brushless I still Like To Upgrade The Electronics And The Motor I Have A Green Machine 2 In It. Could I Put A Orion Billit v2 Element 19t Spec Mod Brushed Motor or a Orion 22022 Orbital 2r pro bb 11t Tpl Motor
Thanks
Thanks
- CamplinP
- Approved Member
- Posts: 763
- Joined: Mon Aug 31, 2009 11:43 pm
- Location: Midwest Husker, USA
- Been thanked: 2 times
Re: Rebuilding a RC10 Graphite
Welcome. All the 1/10 brushless motors will fit. You have the six gear transmission which will not hold up very long with a hot brushless. I think if you use a 4600kv motor or lower you should be OK. Most new brushless ESC's have a start limit or initial torque limiting feature. Reducing the initial torque will greatly help the longevity of your transmission. These cars don't handle worth a crap with the front wheels in the air anyway.
The Fox, Falcon, 9 RC10s black/gold/graph, Optima Mid SE EXT, Losi XXXT, B3, B4, 3 T4s, Evader BX, Evader ST, Buggy Champ '09, Sand Scorcher '10, RC10T, RC10DS
- THEYTOOKMYTHUMB
- Super Member
- Posts: 6819
- Joined: Wed Oct 22, 2008 5:15 pm
- Location: Evansville, IN
- Has thanked: 2142 times
- Been thanked: 1353 times
Re: Rebuilding a RC10 Graphite
I personally think you have a great looking graphite car there and would take the money you were going to spend on a brushless system and get a cheap runner off ebay. Clean this one up and enjoy it with a nice 27t for leisurely memorable drives in the park. IMHO
"The world looks so much better through beer goggles: Enjoy today, you never know what tomorrow may bring."
Ken
Ken
-
- Approved Member
- Posts: 114
- Joined: Tue Sep 07, 2010 3:50 am
- Location: Maui
Re: Rebuilding a RC10 Graphite
ive always want to take a sheet of graphite and cut a flat chassis , and screw on the front nose plate of an rc10. i never seen one ,but im sure some one has done it. i think itd be the ultimate fix for a wrecked graphite rc10
- realoldschooldude
- Approved Member
- Posts: 58
- Joined: Tue Nov 02, 2010 1:48 pm
Re: Rebuilding a RC10 Graphite
I don't know why people insist on saying the old rigs can't handle brushless power. Back in the day we ran hot motors with the 6-gear trannies, so unless you go nuts and try and drop one of the super high-powered BL motors into it you won't have any more problems running a 10.5T BL motor than you would installing a 19T brushed motor in it. There ARE plenty of lower-powered BL options available, that will offer all the low-maintenance advantages of BL systems while still allowing you to upgrade the electronics to something more current.
- drbelleville
- Approved Member
- Posts: 815
- Joined: Wed May 20, 2009 5:03 am
- Location: My Adopted state - Texas
- Been thanked: 1 time
Re: Rebuilding a RC10 Graphite
Who said anything about not handeling a brushless here ???realoldschooldude wrote:I don't know why people insist on saying the old rigs can't handle brushless power. Back in the day we ran hot motors with the 6-gear trannies,
- realoldschooldude
- Approved Member
- Posts: 58
- Joined: Tue Nov 02, 2010 1:48 pm
Re: Rebuilding a RC10 Graphite
Second poster pretty much said it, as well as the one that suggested keeping a leisurely 27T stock motor in it. I've seen it other places as well.drbelleville wrote:Who said anything about not handeling a brushless here ???realoldschooldude wrote:I don't know why people insist on saying the old rigs can't handle brushless power. Back in the day we ran hot motors with the 6-gear trannies,
Just sayin'
- realoldschooldude
- Approved Member
- Posts: 58
- Joined: Tue Nov 02, 2010 1:48 pm
Re: Rebuilding a RC10 Graphite
We did it "back in the day."pattywagon34 wrote:ive always want to take a sheet of graphite and cut a flat chassis , and screw on the front nose plate of an rc10. i never seen one ,but im sure some one has done it. i think itd be the ultimate fix for a wrecked graphite rc10
- soniccj5
- Approved Member
- Posts: 1210
- Joined: Thu Jan 10, 2008 3:23 pm
- Location: Massachusetts
- Been thanked: 2 times
Re: Rebuilding a RC10 Graphite
I raced mine back in the day with hot motors, and needed to replace the idler gears often.
Sure it will run for a while, but if you really want to run a brushless motor I suggest installing a stealth transmission. You can find them used for around $30.00 on the bay.
ED
Sure it will run for a while, but if you really want to run a brushless motor I suggest installing a stealth transmission. You can find them used for around $30.00 on the bay.
ED
- THEYTOOKMYTHUMB
- Super Member
- Posts: 6819
- Joined: Wed Oct 22, 2008 5:15 pm
- Location: Evansville, IN
- Has thanked: 2142 times
- Been thanked: 1353 times
Re: Rebuilding a RC10 Graphite
I was talking more about conserving the overall condition of this particular RC10. Not that it wouldn't handle the power, but more in relation to the severity of and likelihood of crashes. If you want to go with really big power maybe put it in a model in lesser condition. I think that one would clean up great and one extreme speed crash could change that immensely. And yes a 2200kv or 17.5 brushless would be great for cruises in the park. Everyone gets the urge for some insane speed at some point. It's best to do it and get it out of your system, but I'd hate to see someone trash a good looking piece in the process. Get a cheap beater and rag the hell out of it...realoldschooldude wrote:Second poster pretty much said it, as well as the one that suggested keeping a leisurely 27T stock motor in it. I've seen it other places as well.drbelleville wrote:Who said anything about not handeling a brushless here ???realoldschooldude wrote:I don't know why people insist on saying the old rigs can't handle brushless power. Back in the day we ran hot motors with the 6-gear trannies,
Just sayin'
"The world looks so much better through beer goggles: Enjoy today, you never know what tomorrow may bring."
Ken
Ken
-
- Regular Member
- Posts: 6
- Joined: Sat Nov 06, 2010 7:08 pm
Re: Rebuilding a RC10 Graphite

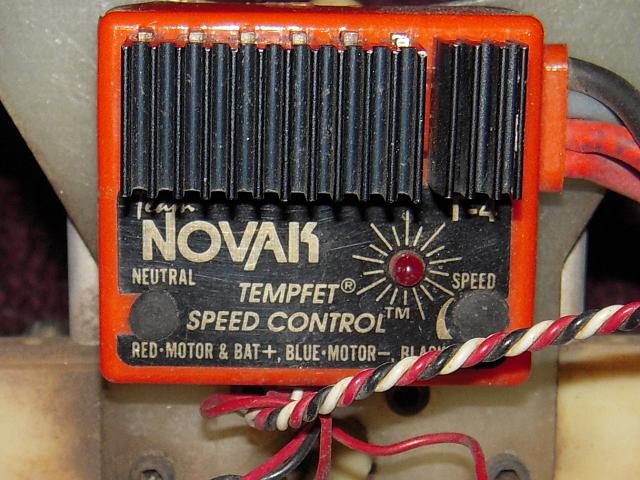

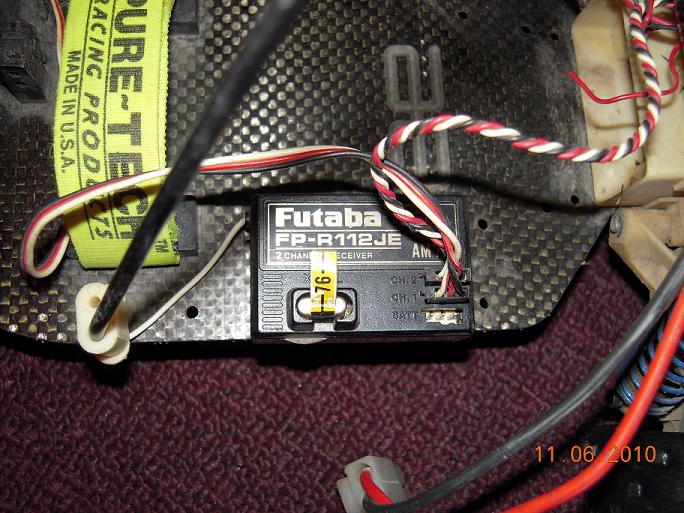

What Would Be A Good 27T Brand To Run In It.What Can I Use To Clean It Up With. I have Another RC10 It Looks Like The RC10 Gold But Instead Of Gold It Is Black It Has Never Been Ran It Has A Steel Transmission Caseing. What Model Is This,Is It A Good Model Or A Junk Model? Witch Model Is Worth More? I Took It To The Hobby Shop To Get A Speed Controll Put In It And I Had Two Ventage Servos Made By Novak And One Made By Futaba I'm Not Sure Witch One He Will Put In.
- THEYTOOKMYTHUMB
- Super Member
- Posts: 6819
- Joined: Wed Oct 22, 2008 5:15 pm
- Location: Evansville, IN
- Has thanked: 2142 times
- Been thanked: 1353 times
Re: Rebuilding a RC10 Graphite
Any brand you can find is fine really. The market is considerably depleted due to the ease and reliability of brushless. The Orion that you mentioned above would be fine also. Sorry, your thread sort of went astray. To answer your question, yes, pretty much any brushless system would fit fine. What will you be doing with the car and what type of area will you be running in? That may help for more specific answers.hookedtarpon wrote:What Would Be A Good 27T Brand To Run In It
"The world looks so much better through beer goggles: Enjoy today, you never know what tomorrow may bring."
Ken
Ken
- realoldschooldude
- Approved Member
- Posts: 58
- Joined: Tue Nov 02, 2010 1:48 pm
Re: Rebuilding a RC10 Graphite
OK, but I was considering the fact the OP had owned the particular vehicle for 20 years and could drive and he hadn't destroyed it back in the day. The early RC10s were pretty bulletproof, not like they were some plastic tamiya cars or anything. I was talking about that people try to infer that the cars couldn't handle it, whether it be the trannies or the inevitable crashes.THEYTOOKMYTHUMB wrote: I was talking more about conserving the overall condition of this particular RC10. Not that it wouldn't handle the power, but more in relation to the severity of and likelihood of crashes.
If you're that worried about it, shelf it.
-
- Regular Member
- Posts: 6
- Joined: Sat Nov 06, 2010 7:08 pm
Re: Rebuilding a RC10 Graphite
I have Another RC10 It Looks Like The RC10 Gold But Instead Of Gold It Is Black It Has Never Been Ran It Has A Steel Transmission Caseing. What Model Is This,Is It A Good Model Or A Junk Model? Witch Model Is Worth More? I Took It To The Hobby Shop To Get A Speed Controll Put In It And I Had Two Ventage Servos Made By Novak And One Made By Futaba I'm Not Sure Witch One He Will Put In. I Will Put Up Pics When I Get It Back
Thanks For Everyones Help
Thanks For Everyones Help
-
