Converting RC10 Graphite to RC10 Graphite Replica

Post by Frankentruck »

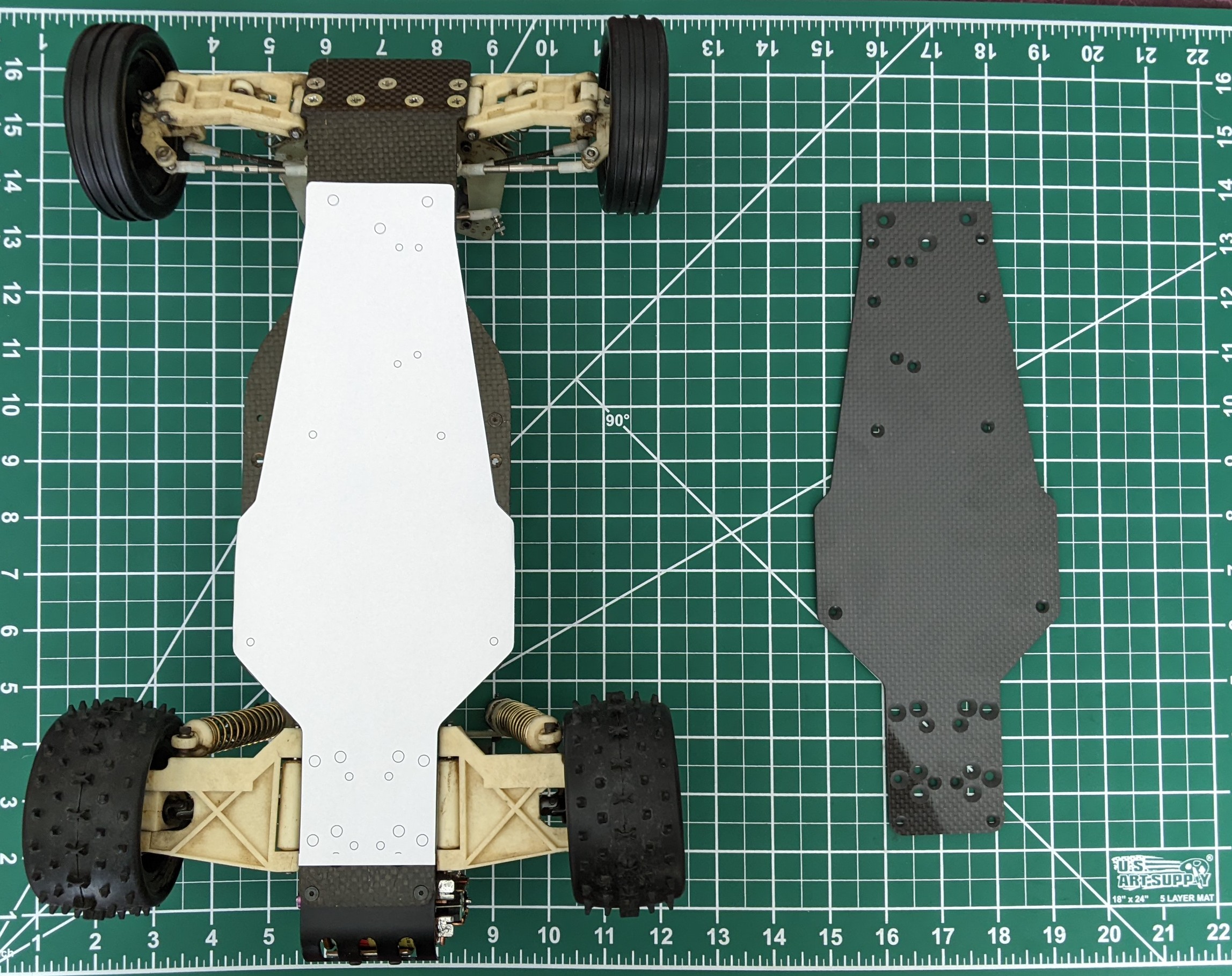

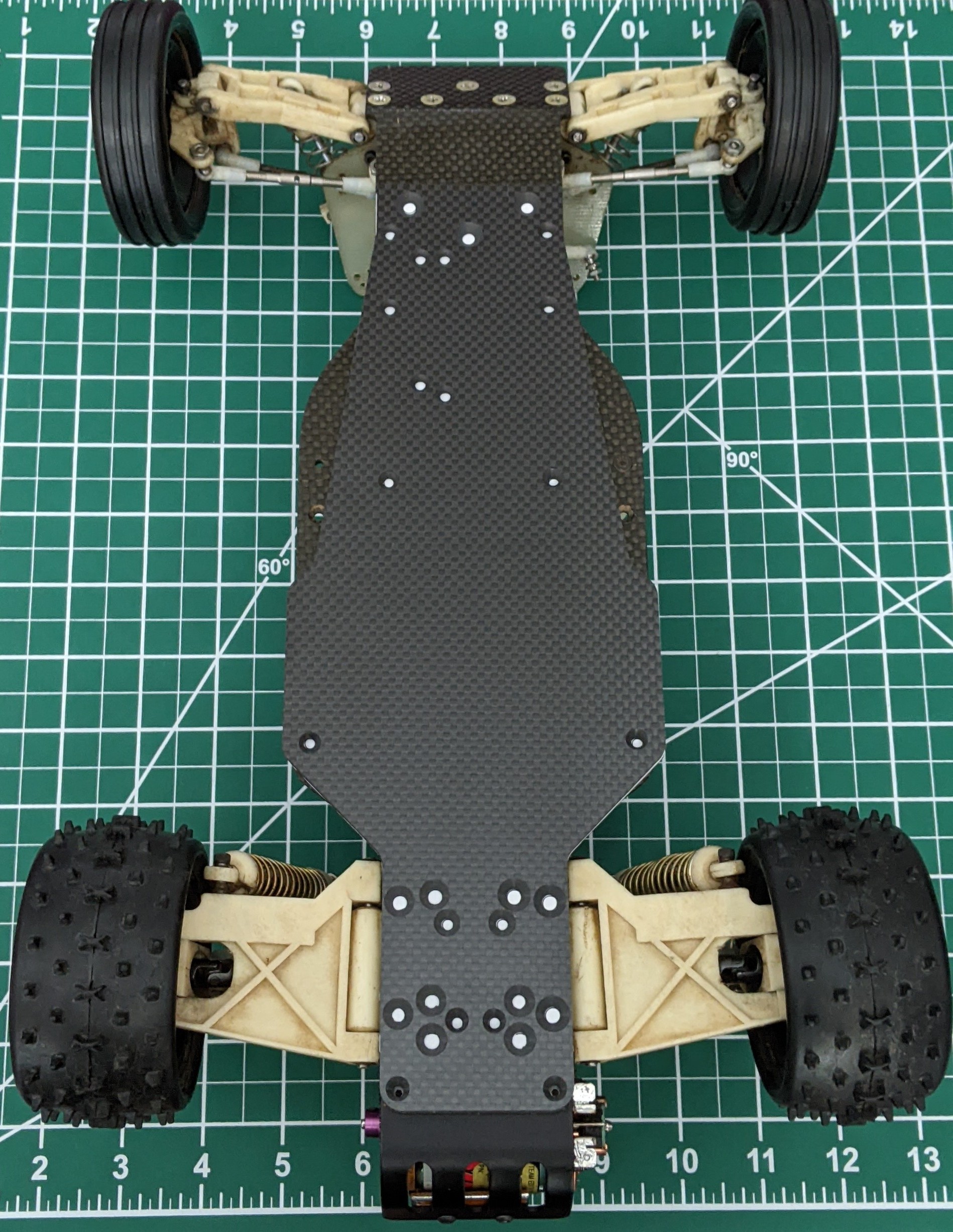

I figured the only way to get a coffin chassis RC10 Graphite is to have a replica chassis made. Since I have an extra later model RC10 Graphite in nice condition, it seems like a good option for the making a coffin chassis style buggy.

Disclaimer - No RC10 Graphite parts are being harmed or lost in this conversion.
.
.
.
For the sharp eyed, yes I know the steering servo is getting mounted on the right side instead of the left side. That' wasn't intentional but works out fine for me. [err... maybe I need to stop looking at chassis plates upsidedown. The servo holes are drilled and countersunk on the correct side]
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

User avatar
MarkyDents
Approved Member
Posts: 976
Joined: Sun Jan 10, 2021 4:52 pm
Location: Staten Island, N.Y.
Has thanked: 1226 times
Been thanked: 467 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by MarkyDents »

4 more holes behind the noseplate holes….. nosetube mounts ?
Who do you race for ?
Me……. I race for me.
That’s impossible, I was told you need a sponsor to race.
Hey Cru ! Go balls out 8)

User avatar
Frankentruck
Super Member
Posts: 2278
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1347 times
Been thanked: 1484 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by Frankentruck »

Yes, for RC10GT nose tube brackets.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

User avatar
MarkyDents
Approved Member
Posts: 976
Joined: Sun Jan 10, 2021 4:52 pm
Location: Staten Island, N.Y.
Has thanked: 1226 times
Been thanked: 467 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by MarkyDents »

Nicely thought out piece 8)
Who do you race for ?
Me……. I race for me.
That’s impossible, I was told you need a sponsor to race.
Hey Cru ! Go balls out 8)

User avatar
RogueIV
Approved Member
Posts: 437
Joined: Sun Aug 28, 2022 2:04 am
Location: W. Mass
Has thanked: 936 times
Been thanked: 351 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by RogueIV »

Looks nice! Did you do the chassis yourself or have someone machine it for you?
Consistency is the key I keep misplacing.

User avatar
Frankentruck
Super Member
Posts: 2278
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1347 times
Been thanked: 1484 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by Frankentruck »

I wanted carbon fiber for the chassis plate so I contacted Todd at VintageRC and sent him my pattern. He did nice work.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

User avatar
juicedcoupe
Super Member
Posts: 2850
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 223 times
Been thanked: 1624 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by juicedcoupe »

Dammit, now I want one (with a truck nose).
Always looking for new and interesting ways to waste money.

User avatar
Frankentruck
Super Member
Posts: 2278
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1347 times
Been thanked: 1484 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by Frankentruck »

I have a pretty decent truck nose from a 10T, but I have to come up with a nice buggy nose to use for this.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

User avatar
juicedcoupe
Super Member
Posts: 2850
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 223 times
Been thanked: 1624 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by juicedcoupe »

Frankentruck wrote: Wed Oct 05, 2022 8:40 pm I have a pretty decent truck nose from a 10T, but I have to come up with a nice buggy nose to use for this.
Good luck. Nice buggy nose plates have gotten stupid, especially black ones.
Always looking for new and interesting ways to waste money.

mikea96
Approved Member
Posts: 3201
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 122 times
Been thanked: 504 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by mikea96 »

I was hoping after seeing jconcepts reproduce the truck nose plate that we would see a buggy version.

User avatar
Frankentruck
Super Member
Posts: 2278
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1347 times
Been thanked: 1484 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by Frankentruck »

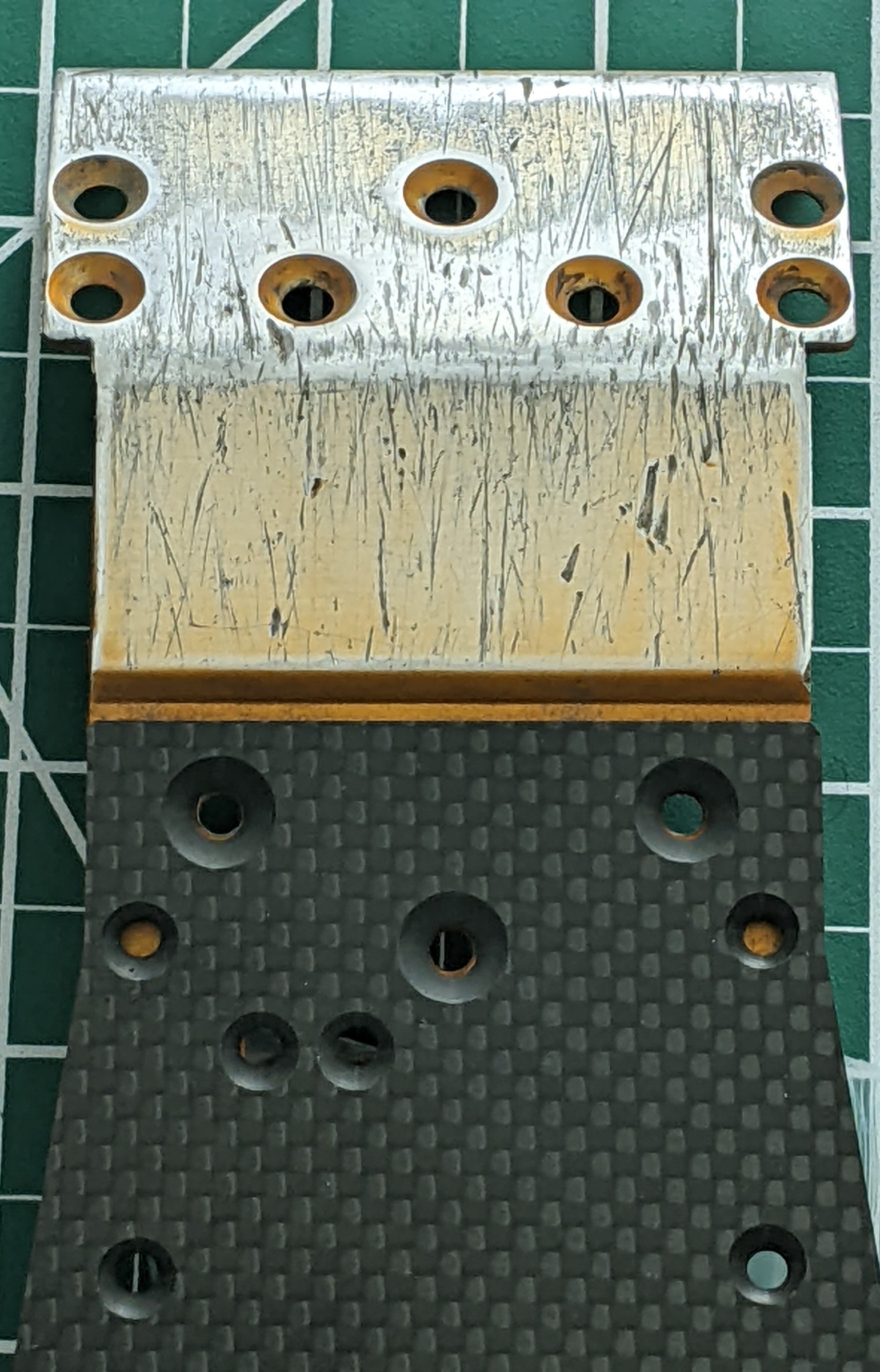

Minor hiccup. When checking alignment with a 'well used' nose plate, I see that I didn't account for the nose plate overlapping a couple of the nose tubes bracket holes. Maybe I refurbish this nose plate and trim the sides a little, or maybe I add some holes and trim a step in the nose tubes brackets. I'm leaning toward refurbish and trim this nose plate.
.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

User avatar
GoMachV
Approved Member
Posts: 11105
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 727 times
Been thanked: 2086 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by GoMachV »

Could always give the nose plate the “worlds” cut
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
Frankentruck
Super Member
Posts: 2278
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1347 times
Been thanked: 1484 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by Frankentruck »

Oooo! I hadn't thought of that.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

User avatar
Frankentruck
Super Member
Posts: 2278
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1347 times
Been thanked: 1484 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by Frankentruck »

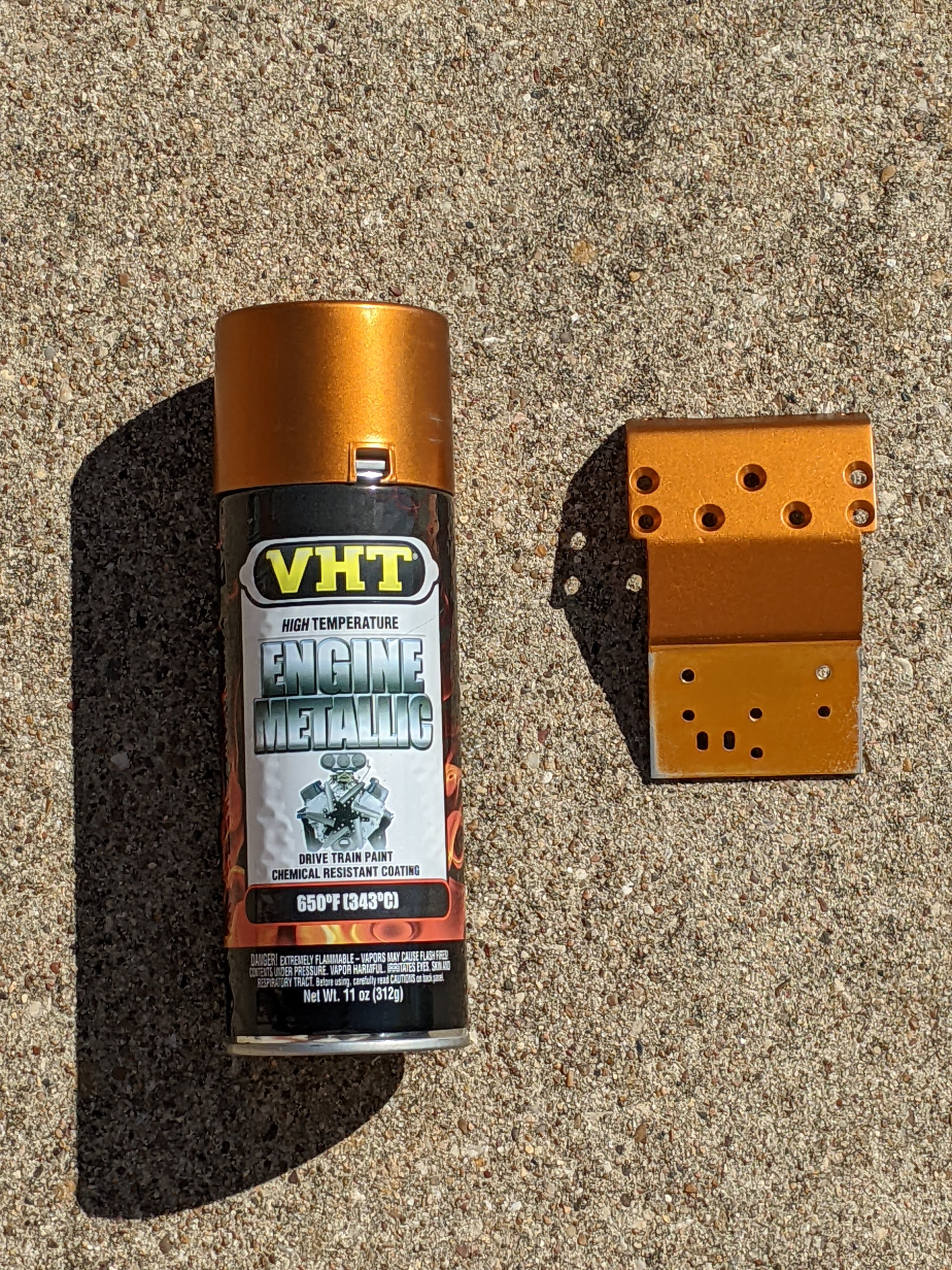

Not really a match for the original gold, but the color is good enough for my refurbished nose plate. Next up, a little worlds style trimming.
.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

User avatar
Frankentruck
Super Member
Posts: 2278
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1347 times
Been thanked: 1484 times

Re: Converting RC10 Graphite to RC10 Graphite Replica

Post by Frankentruck »

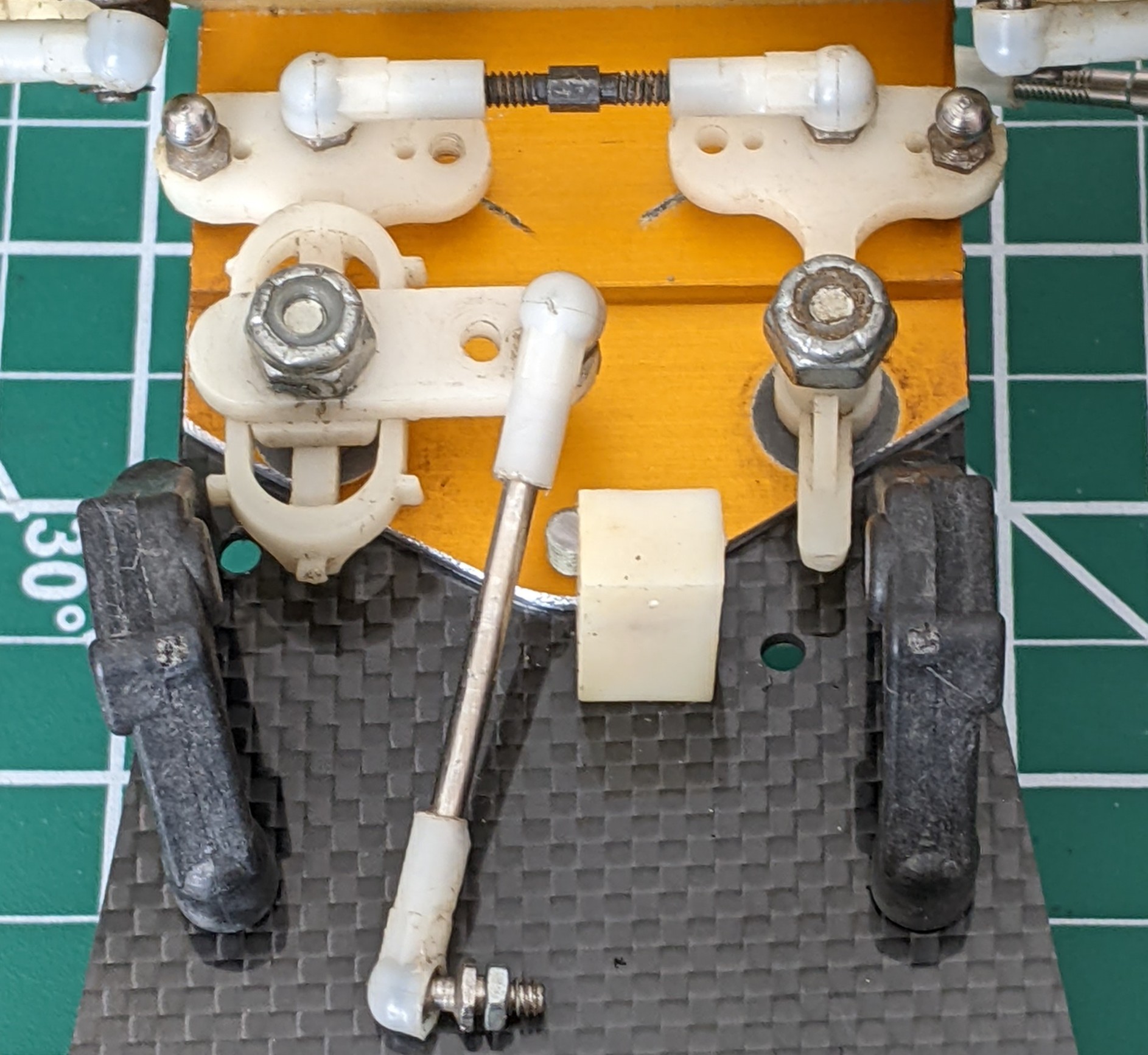

Well that's not good. Another minor hiccup with the RC10GT nose tube brackets. I'll have to use a set of bearing bellcranks.
.
.
It sure is a shiny chassis though. Almost like a carbon fiber mirror.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"
