35v capacitor too large?

Post by tim.sanderson »

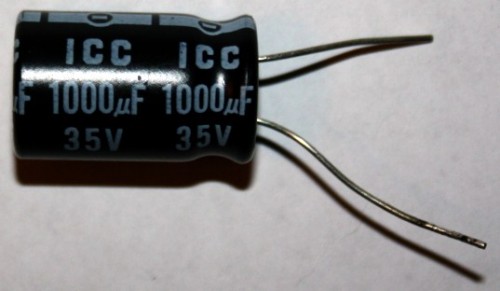

My Spektrum 6040 servos cause my ESCs/servos to go wacky due to too high a voltage draw. (my particular receivers are known to have this problem) In my RB5 I use a 700uf/10v Spektrum capacitor to eliminate the stutters. My TC will be using the same type of servo in it, and I'll need another cap to do the same thing. I've got this 1000uf/35v I found in an old toolbox.
35v capacitor.jpg
Can I use this to do the same job, or will the higher voltage rating of this cap be a risk to my system? Or will the lower voltage that comes out of my receiver not charge the capacitor past 6 or 7 volts?

User avatar
jwscab
Super Member
Posts: 6506
Joined: Wed Jan 28, 2009 9:42 am
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 452 times

Re: 35v capacitor too large?

Post by jwscab »

no issue other than physical size. if you can handle that, you should have no issues.

electrolytics have a maximum safe working voltage, which in this case is 35vdc.

Jay Dub
Approved Member
Posts: 1136
Joined: Tue Jul 29, 2008 1:04 am
Location: San Jose, Ca.
Been thanked: 1 time

Re: 35v capacitor too large?

Post by Jay Dub »

Note: using an excessivelly large capacitor can cause issues as well. However in this case I think you should be fine. You should always try to get as close to the size required as possible.

User avatar
dangermouse
Approved Member
Posts: 112
Joined: Thu Nov 15, 2007 9:08 pm
Location: QLD Australia
Been thanked: 1 time

Re: 35v capacitor too large?

Post by dangermouse »

You could always run a separate higher amperage UBEC. Quite a common thing to do with planes and helis to eliminate brownouts/glitching/voltage fluctuations.

If you do, make sure you remove the red wire on the esc plug (that goes into the receiver).
