2011 VONATs RC10 Graphite....

Post by tecnica2001 »

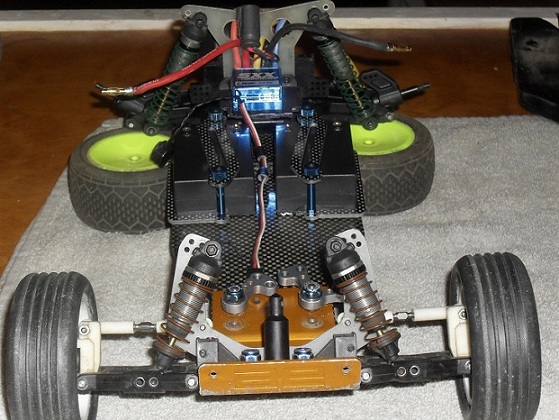

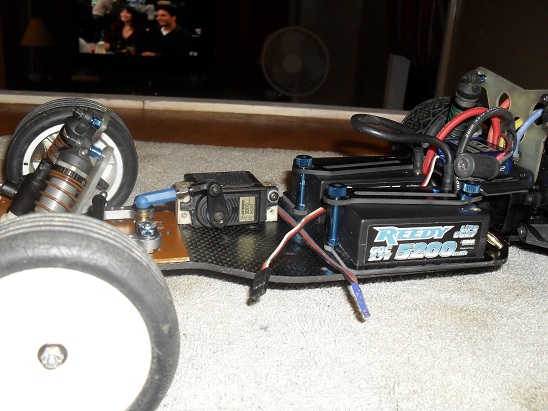

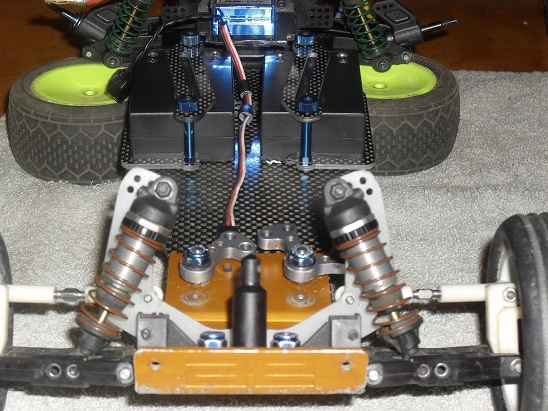

In an effort to use what ever parts I had to build a VONATs entry and this is what I came up with.

RC10 Graphite chassis
RC10 Aluminum Nose plate
B44 rear axles
B44 shocks
B4 rear hubs
B44 Battery holder
Aluminum steering bellcrank (don't know the brand)

Waiting on:
RPM Front and Rear arms
RC10 Tie Rod set
RC10 Viper Body
Attachments
2011 VONATs car!!! 005.JPG
2011 VONATs car!!! 004.JPG
2011 VONATs car!!! 003.JPG
2011 VONATs car!!! 002.JPG
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

User avatar
jwscab
Super Member
Posts: 6506
Joined: Wed Jan 28, 2009 9:42 am
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 452 times

Re: 2011 VONATs RC10 Graphite....

Post by jwscab »

looks good. make sure you improvise some kind of nose tubes or braces of some type. can be as simple as a couple of links tied into the steering servo mounts or something.

could use the gt brace tube supports too.

tecnica2001
Approved Member
Posts: 1047
Joined: Mon Jun 30, 2008 3:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 2011 VONATs RC10 Graphite....

Post by tecnica2001 »

Yeah, I was thinking about that too, I have plenty of c-channel and 90deg. angled aluminum that I can do something with....

I could have used my aluminum gold tub, but didn't want to start hacking up an A stamp chassis....
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

tecnica2001
Approved Member
Posts: 1047
Joined: Mon Jun 30, 2008 3:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 2011 VONATs RC10 Graphite....

Post by tecnica2001 »

Here are a couple of more pictures:

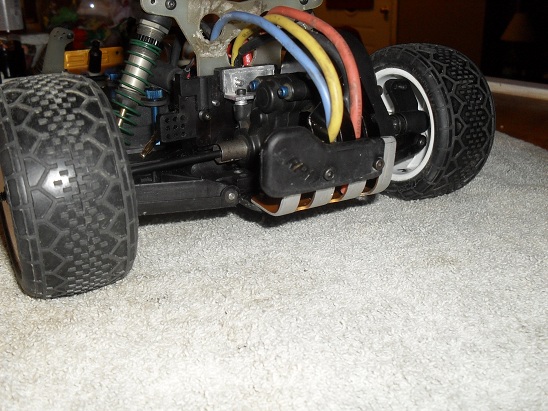

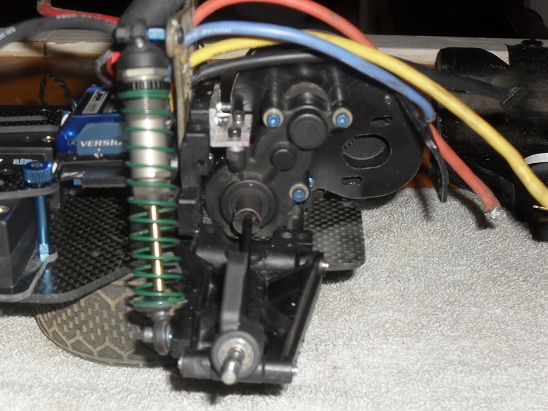

Mounted the rear motor protector and rpm bumper...
Attachments
2011 VONATs car!!! 011.JPG
2011 VONATs car!!! 008.JPG
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

kaiser
Approved Member
Posts: 2414
Joined: Wed Jun 09, 2010 10:03 am
Been thanked: 4 times

Re: 2011 VONATs RC10 Graphite....

Post by kaiser »

saddle packs! for shame. lol

fredswain
Approved Member
Posts: 1167
Joined: Fri Mar 11, 2011 4:20 pm
Location: Houston
Been thanked: 4 times

Re: 2011 VONATs RC10 Graphite....

Post by fredswain »

I actually like the saddle packs. Using the B44 parts to secure them makes it look like they belong there.
Raborn Racing Originals Shapeways store

tecnica2001
Approved Member
Posts: 1047
Joined: Mon Jun 30, 2008 3:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 2011 VONATs RC10 Graphite....

Post by tecnica2001 »

Hey Pete,

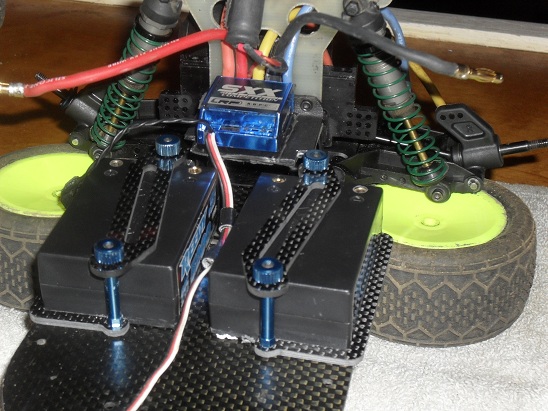

The thing is, I wanted to use as much as I already had, so the saddle pack was the only other battery pack I had. I was going to drill into the chassis, but to my surprise the B44 battery cradles line up perfectly with the existing holes on the chassis...

I've only spent $60 on this project so far, not bad.
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!

User avatar
vintage AE
Approved Member
Posts: 3012
Joined: Fri Nov 14, 2008 1:47 pm
Location: Sunken Lake, Nova Scotia
Has thanked: 29 times
Been thanked: 35 times

Re: 2011 VONATs RC10 Graphite....

Post by vintage AE »

jwscab wrote:looks good. make sure you improvise some kind of nose tubes or braces of some type. can be as simple as a couple of links tied into the steering servo mounts or something.

could use the gt brace tube supports too.

The easiest thing is to grab some RC10gt nose tube mounts from ebay. The are blue and will even match the other blue stuff

gt nose tubes


[email protected]
Approved Member
Posts: 34
Joined: Tue Sep 06, 2011 9:51 pm
Been thanked: 1 time

Re: 2011 VONATs RC10 Graphite....

Post by [email protected] »

Insane freddy.....Can't wait to see it run @ VONATS this year.

fredswain
Approved Member
Posts: 1167
Joined: Fri Mar 11, 2011 4:20 pm
Location: Houston
Been thanked: 4 times

Re: 2011 VONATs RC10 Graphite....

Post by fredswain »

I thought the B44 battery cradle was 1 piece. It looks like yours is 2. Did you cut the center section out? I guess it could be a B44.1 battery cradle but where is the center piece that holds the packs apart?
Raborn Racing Originals Shapeways store

User avatar
soniccj5
Approved Member
Posts: 1210
Joined: Thu Jan 10, 2008 3:23 pm
Location: Massachusetts
Been thanked: 2 times

Re: 2011 VONATs RC10 Graphite....

Post by soniccj5 »

Can't beat the price! See you in CT

ED

tecnica2001
Approved Member
Posts: 1047
Joined: Mon Jun 30, 2008 3:17 am
Location: East Haven, Connecticut
Has thanked: 19 times
Been thanked: 29 times

Re: 2011 VONATs RC10 Graphite....

Post by tecnica2001 »

Yes, they're B44.1 cradles, the center piece would not fit in the center, the packs fit really snug in there, if anything I'll just use a battery foam in there.... :mrgreen:

I might go back to using a gold pan instead, for the rigidity factor... :D
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!
